Specifications
MAIN DIMENSIONS
Length Overall: 124'
Length Hull: 124'
Length Waterline: 102'11"
Maximum Width: 24'1"
Draft Under Propellers: 7'8"
Displacement: 418.878 lbs
Max Height: 27'9"
FEATURES
Fuel Tanks Total Capacity 5,716 gallons
Fresh Water Tanks Capacity 803 gallons
Grey Water Tanks Capacity 500 gallons
Holding Tanks Capacity 500 gallons
Sludge Tanks Capacity 130 gallons

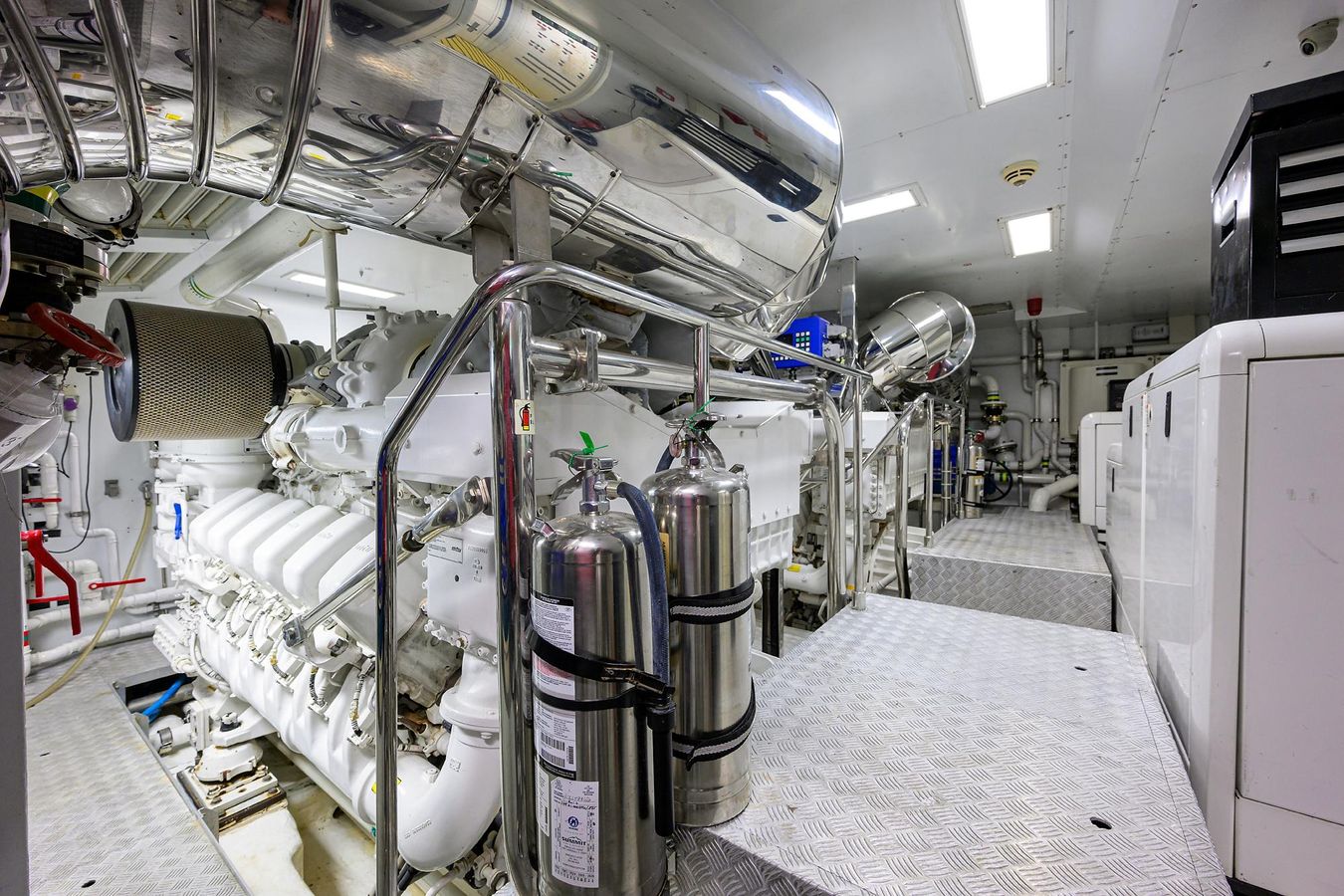

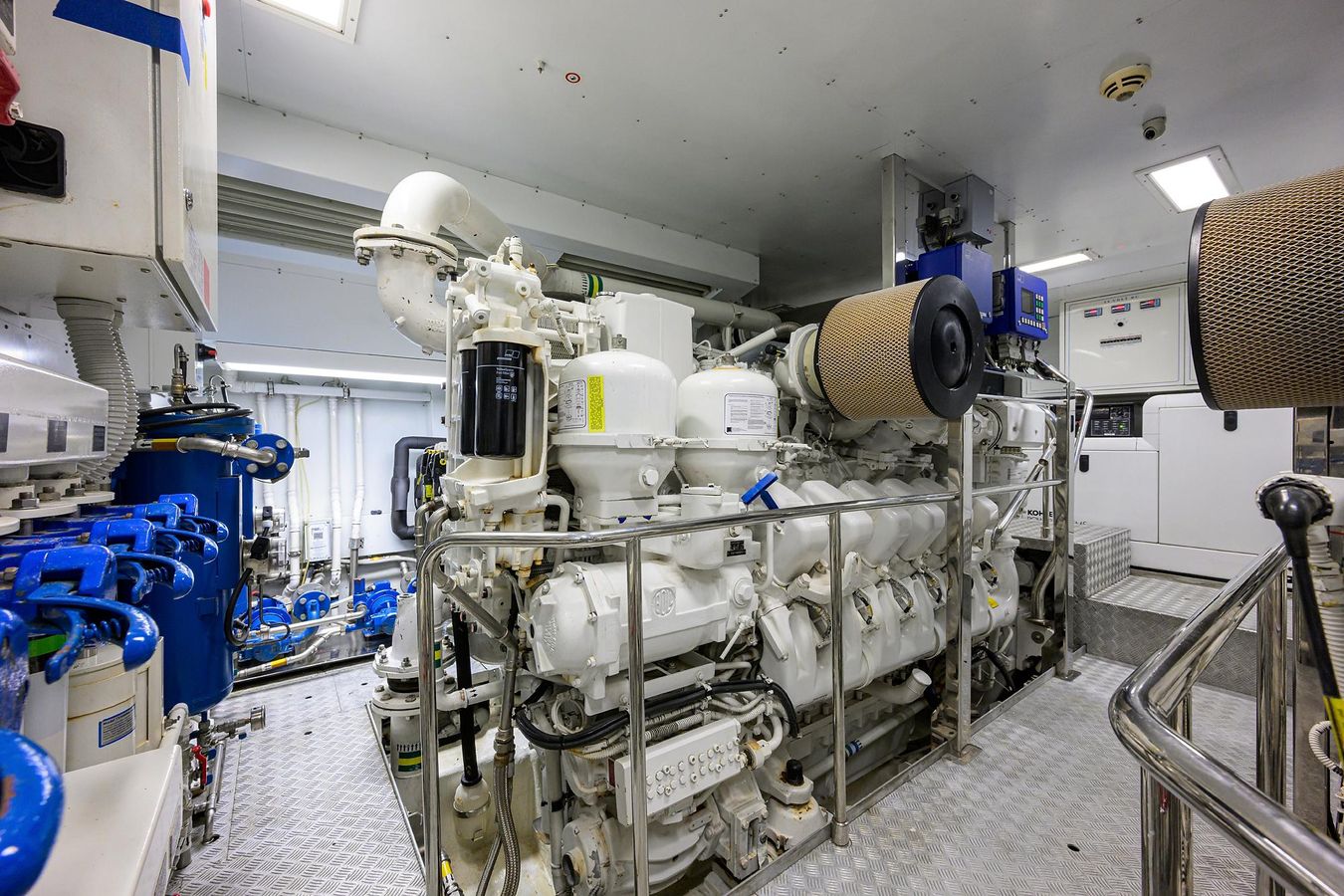

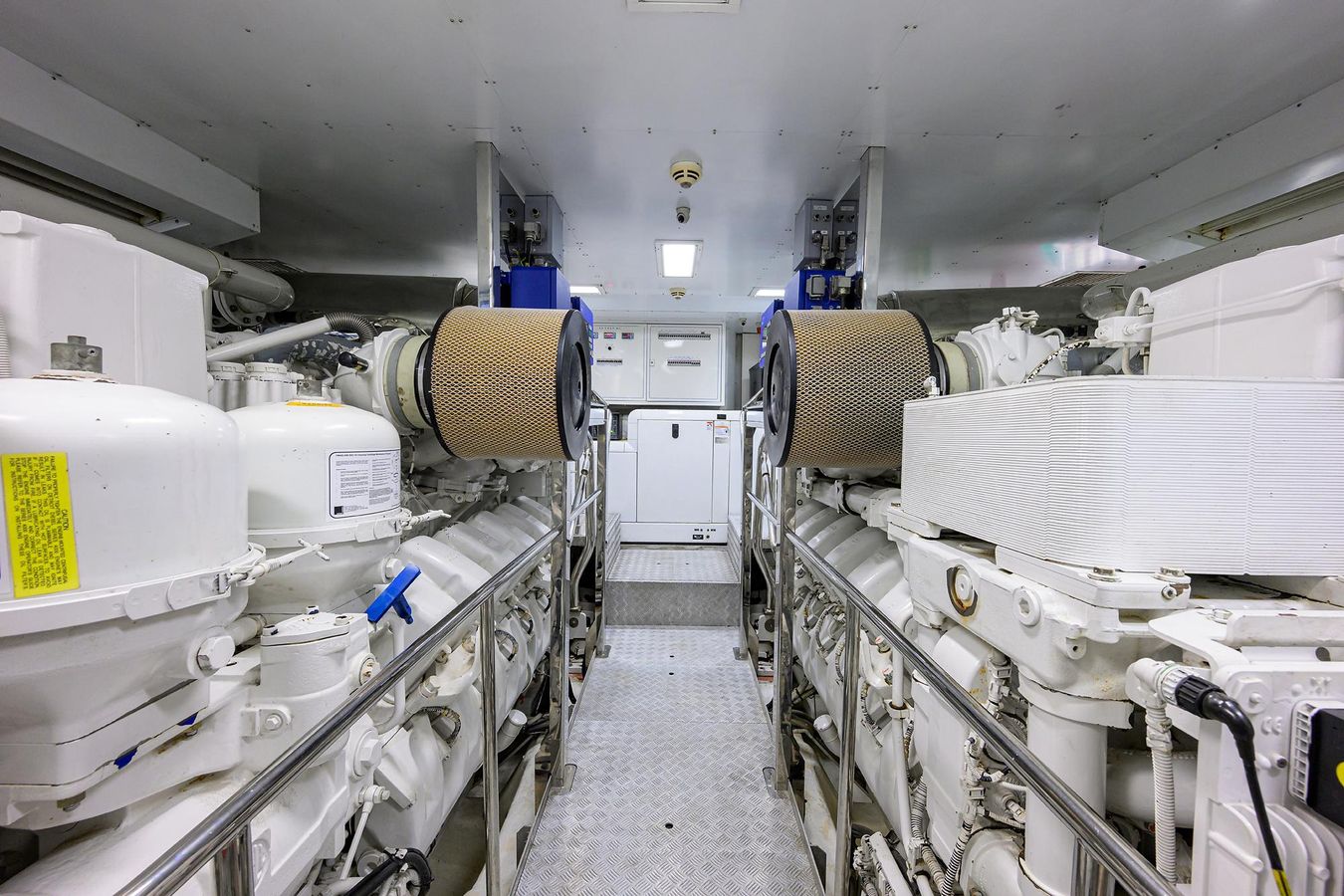

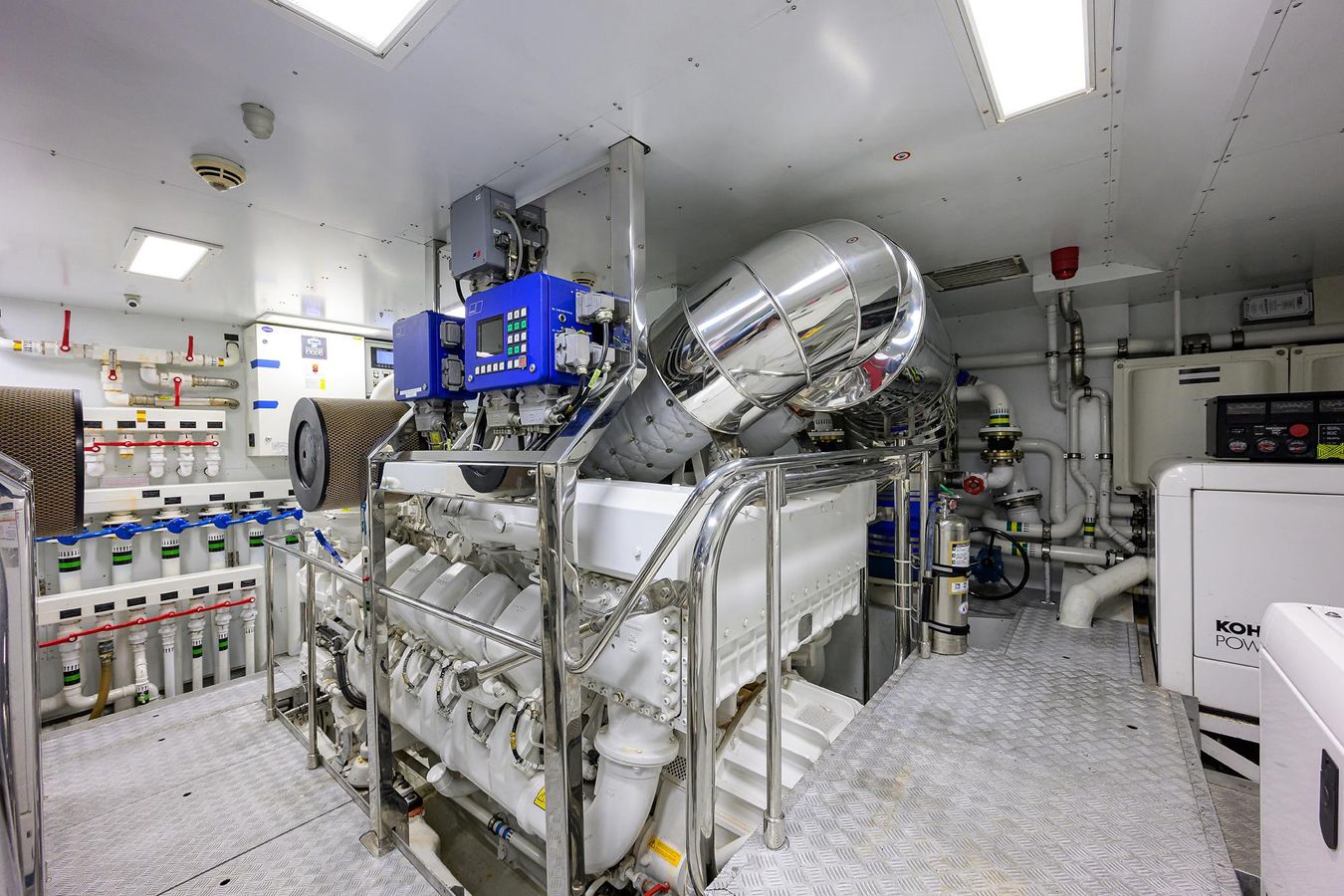

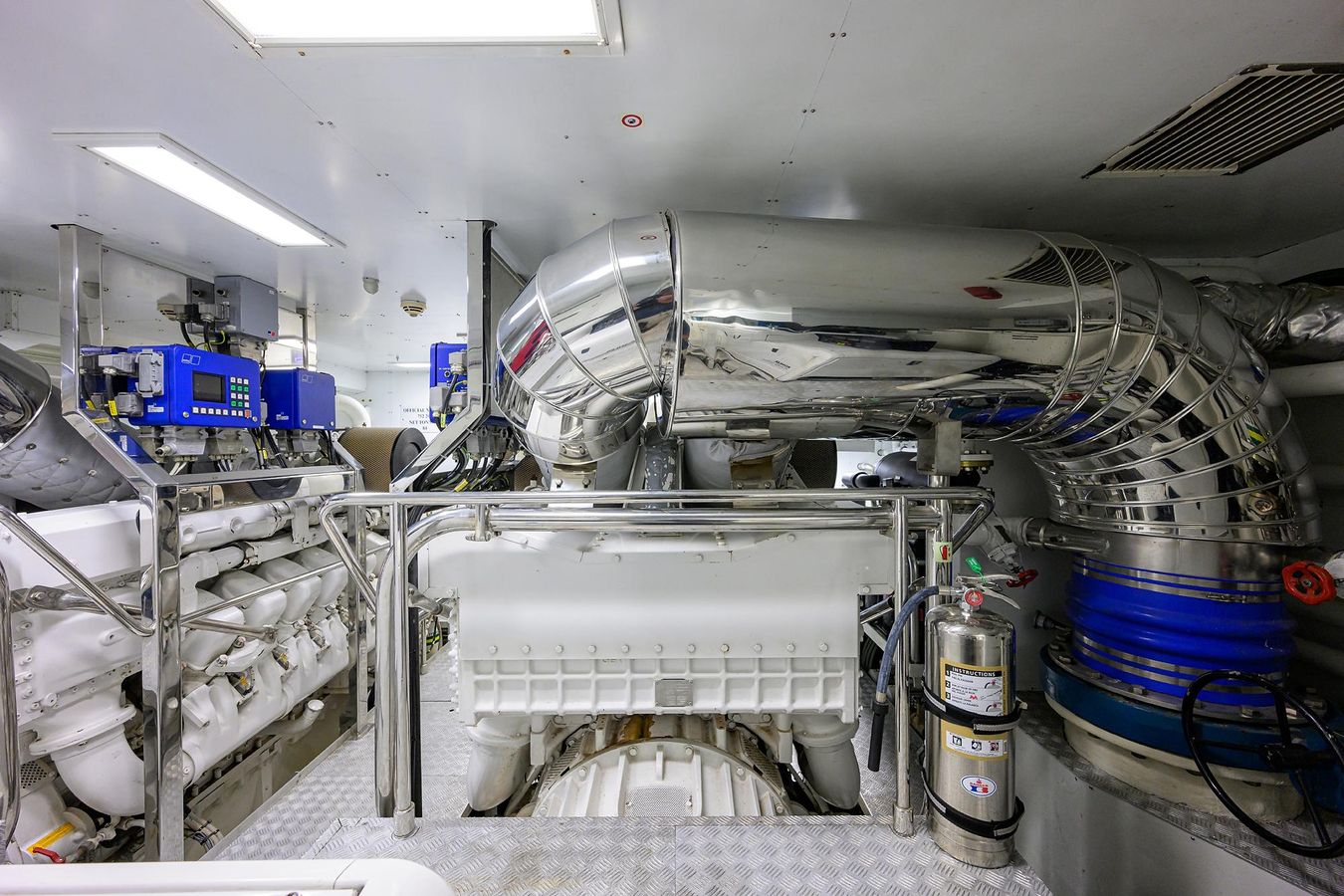

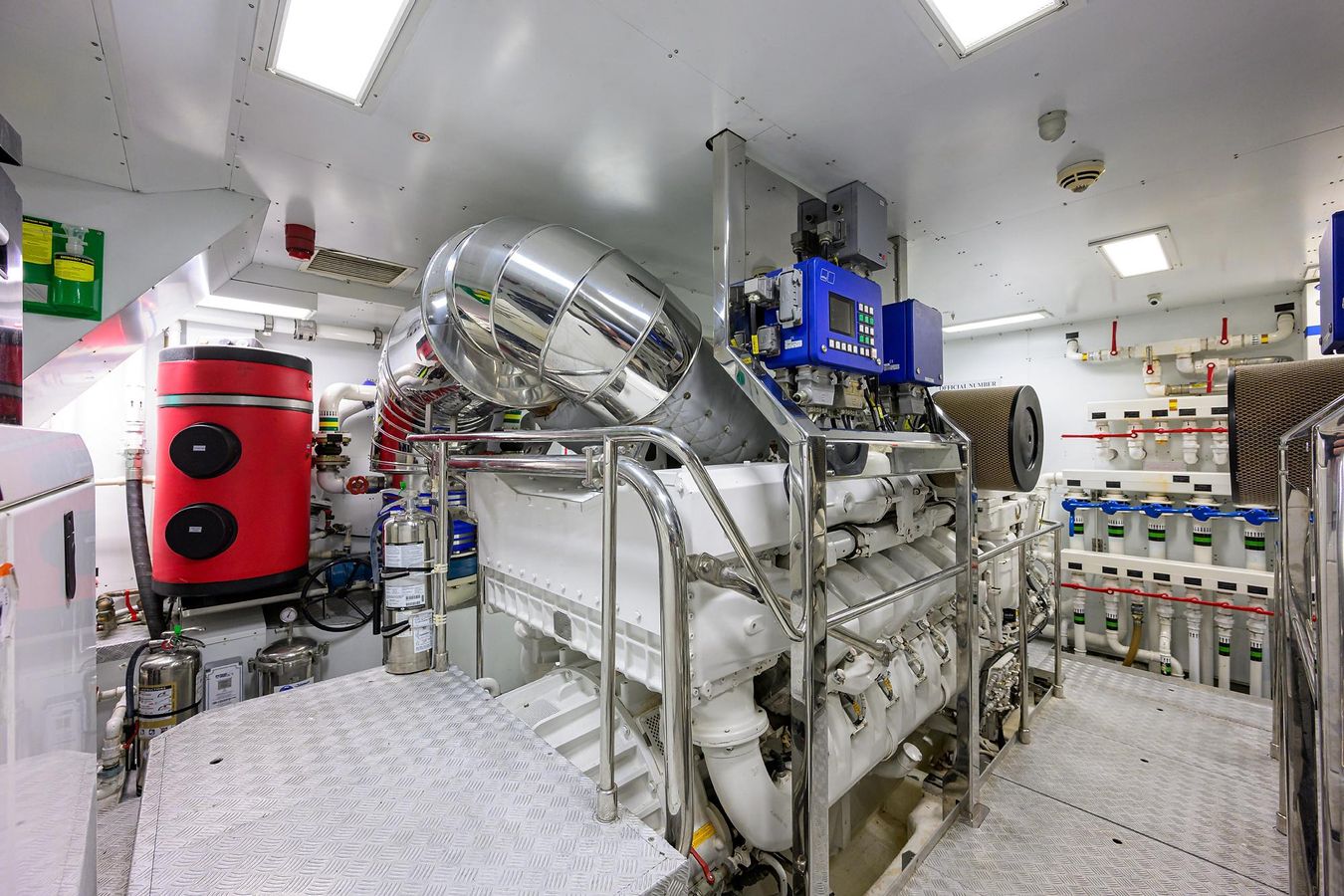

ENGINES
2 X MTU 12 V 4000 M 93 L-2580KW /3510 HP at 2100 rpm with (STBD ENG: 1610 HRS, PORT ENG: 1610 HRS as of 1/2025)
SHAFTS DIAMETER
135 mm, LENGHT: 5660 mm
GEARBOXES
2 X ZF 7600 A , REDUCTION RATIO: 2,957/1

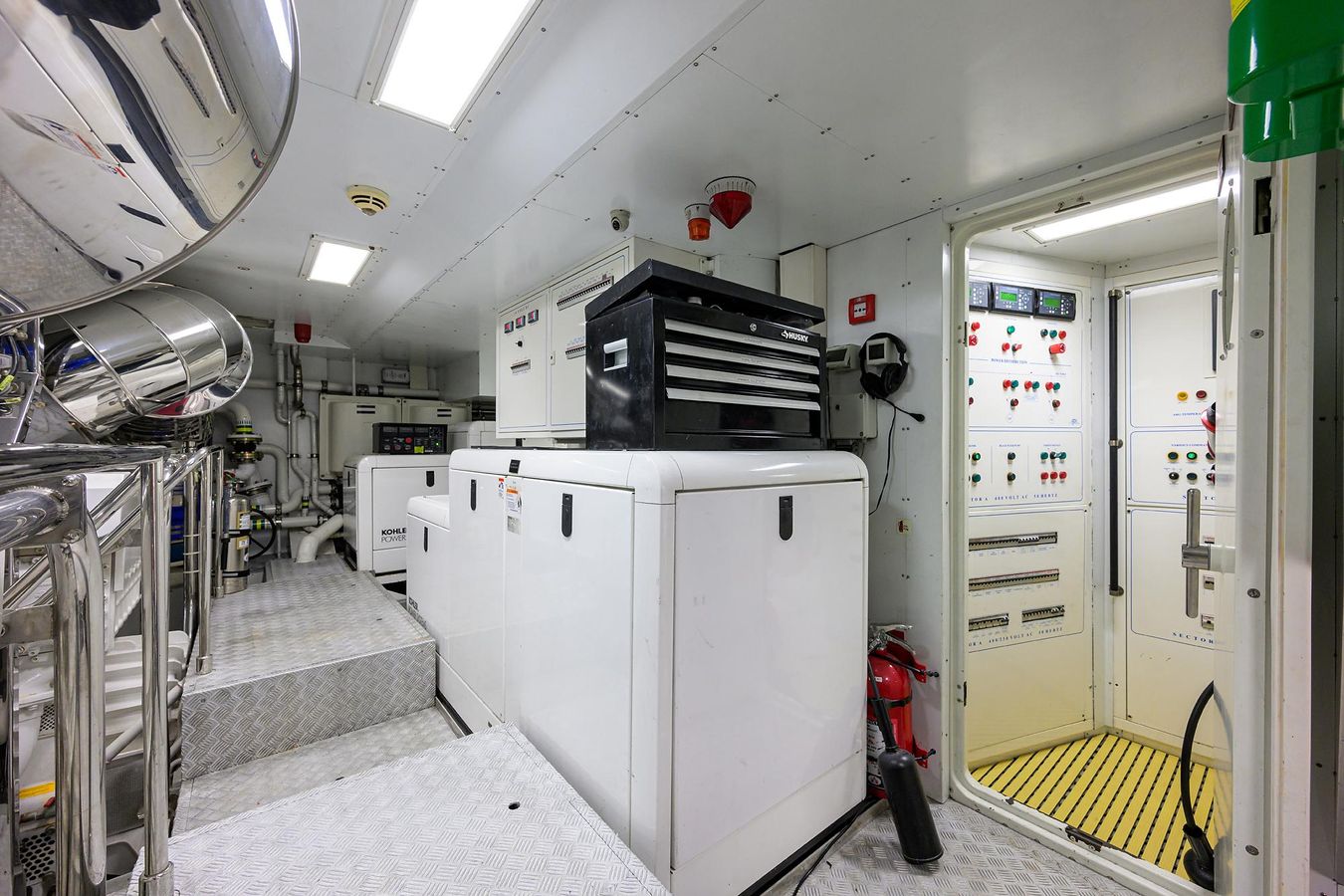

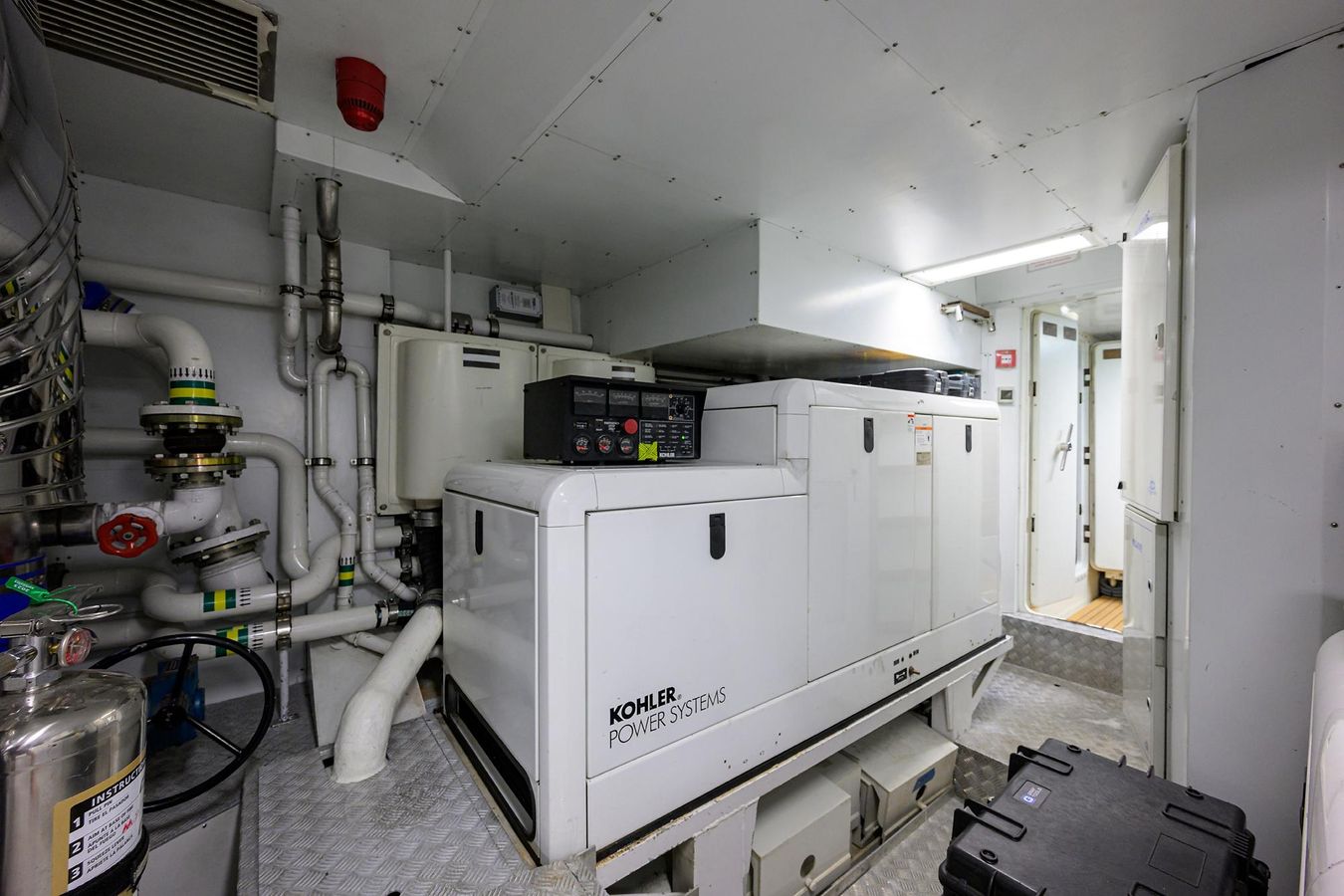

GENERATORS
1 X KOHLER EFOZ 70D 70KWe, 400 VAC,50 hz, (12014 HRS as of 1/2025)
1X KOHLER EFOZ 70D 70KWe, 400 VAC, 50hz, (10000 HRS as of 1/2025)
FRESH WATER PUMPS
2 X GIANNESCHI UP 20-30 N 220VAC/50hz
FIRE FIGHTING PUMP
1 X ACM 501 BT 380VAC/50hz. 3Ph
BILGE PUMP
1 X ACM 501 BT 380VAC/50hz. 3Ph
SUBMERGED BILGE PUMPS
12 X RULE 3700 GPH 24VDC
EMERGENCY FUEL TRANSFER PUMP
1 X CP 40 1000 LT/HR 24VDC REVERSIBLE
EMERGENCY DIESEL MOTOR PUMP
1 X M-BMA 40 3.7 kw
GREY WATER PUMP
1 X GIANNESCHI R MV 44
BLACK WATER PUMP
1 X GIANNESCHI R MV 44
BOILERS
1 X QUICK 100 LT 230VAC (2021)
1 X QUICK 80 LT (230VAC -2021)
1 X ANAGES 150 LT 230VAC (2020)
AIR CONDITIONING
1 X CONDARIA TROPICAL 324.000BTU/HR- Kcal 27520
25 X FANCOILS WITH DIFFERENT CAPACITY
BATTERY CHARGERS
1 X MASTERVOLT MASS 100 AMP
1 X MASTERVOLT MASS 75 AMP
1 X MASTERVOLT MASS 50 AMPINVERTER
1 X MASTERVOLT 24VDC, 70AMP, 1500VA
ENGINE STARTER BATTERIES
4 X MASTERVOLT AGM 12VDC 230 AMP/H
SERVICE BATTERIES
4 X MASTERVOLT DEEP CYCLE GEL 12VDC 230 AMP/H
GENERATOR BATTERIES
2 X MASTERVOLT AGM 12VDC 230 AMP/H
EMERGENCY BATTERIES
2 X MASTERVOLT DEEP CYCLE GEL 12VDC 165 AMP/H
MTU BLUEBOX BATTERIES
2 X MASTERVOLT DEEP CYCLE GEL 12VDC 165 AMP/H
ISOLATION TRANSFORMER
2 X ASEA 45KVA WATER COOLED 8/23

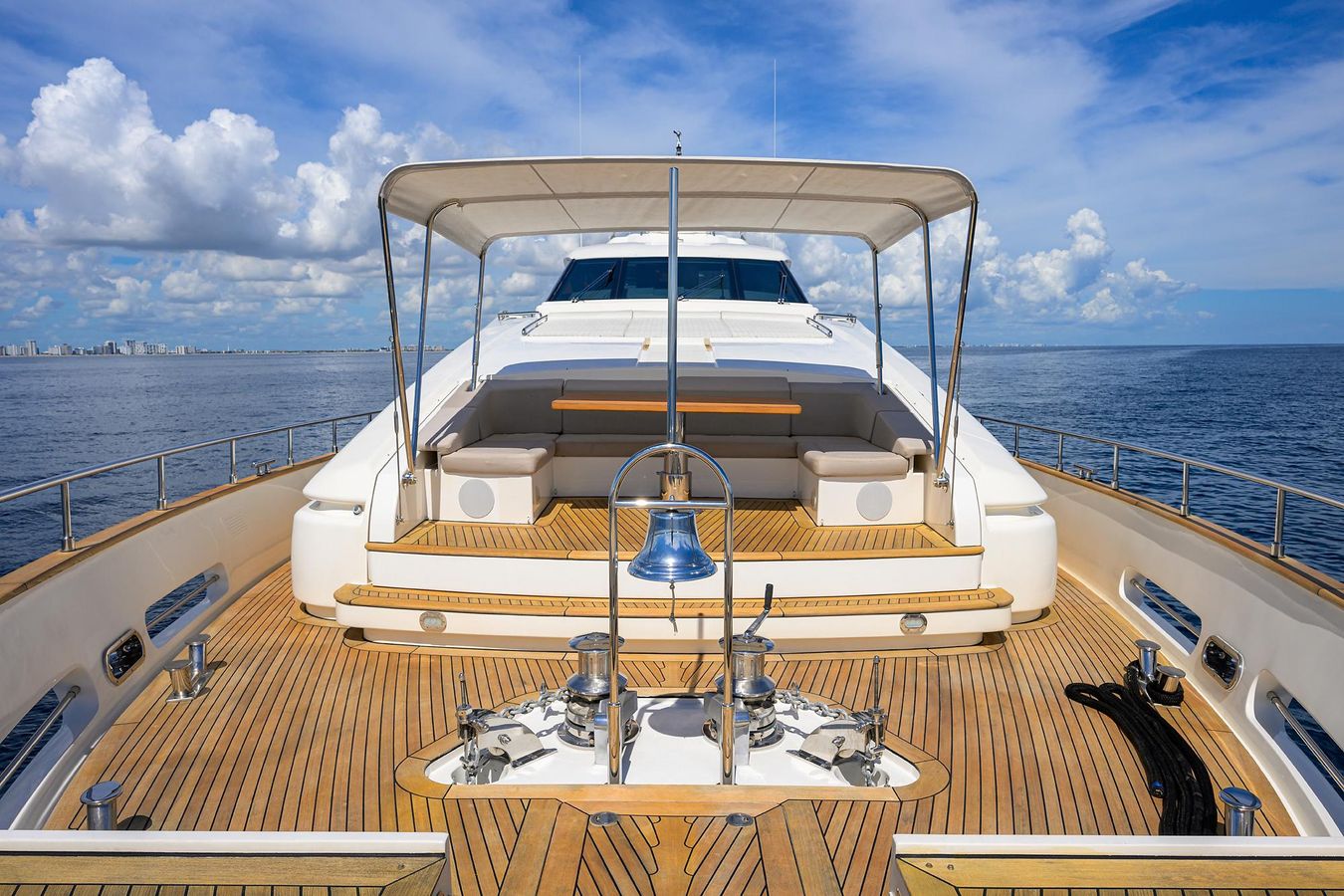

ANCHOR
2 X 175 KG
ANCHOR CHAIN
2 X 160 METERS, DIAMETER 14.5 MM
ANCHOR WINCH
2 X LOFRANS 380VAC/3500 WATT
WARPING
2 X LOFRANS 380VAC/2500 WATT
ENGINE ROOM EXTRACTORS
2 X ELL 355/2
FUEL SEPERATORS
2 X RACOR 73/1000 HAMP
DIESEL FUEL CLEANING
2 X MAHLE KFWA 2.000 LT/HRS
FUEL WATER SEPERATORS
2 X RACOR 500 HAM (Generators)
HUMPHREE INTERCEPTOR
2 X H1050 PLATE
BOW THRUSTER
1 X AMERICAN BOW THRUSTER, HYDRAULIC, 20 İNCH
STERN THRUSTER
1 X AMERICAN BOW THRUSTER, HYDRAULIC, 16 İNCH
FINS
2 X TRAC 370
GYRO STABILIZERS
4 X MITSIBUSHI MSM 37500 ARG 375 T

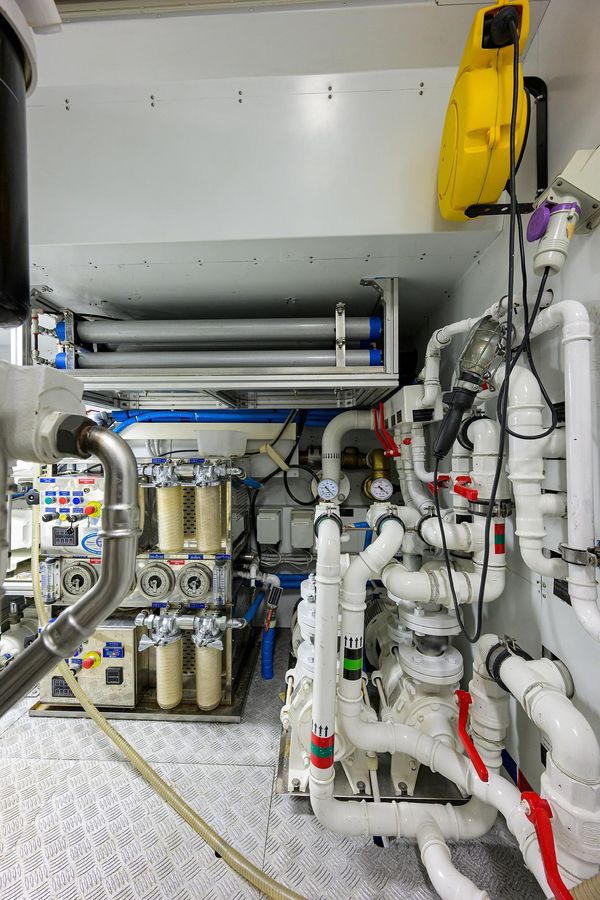

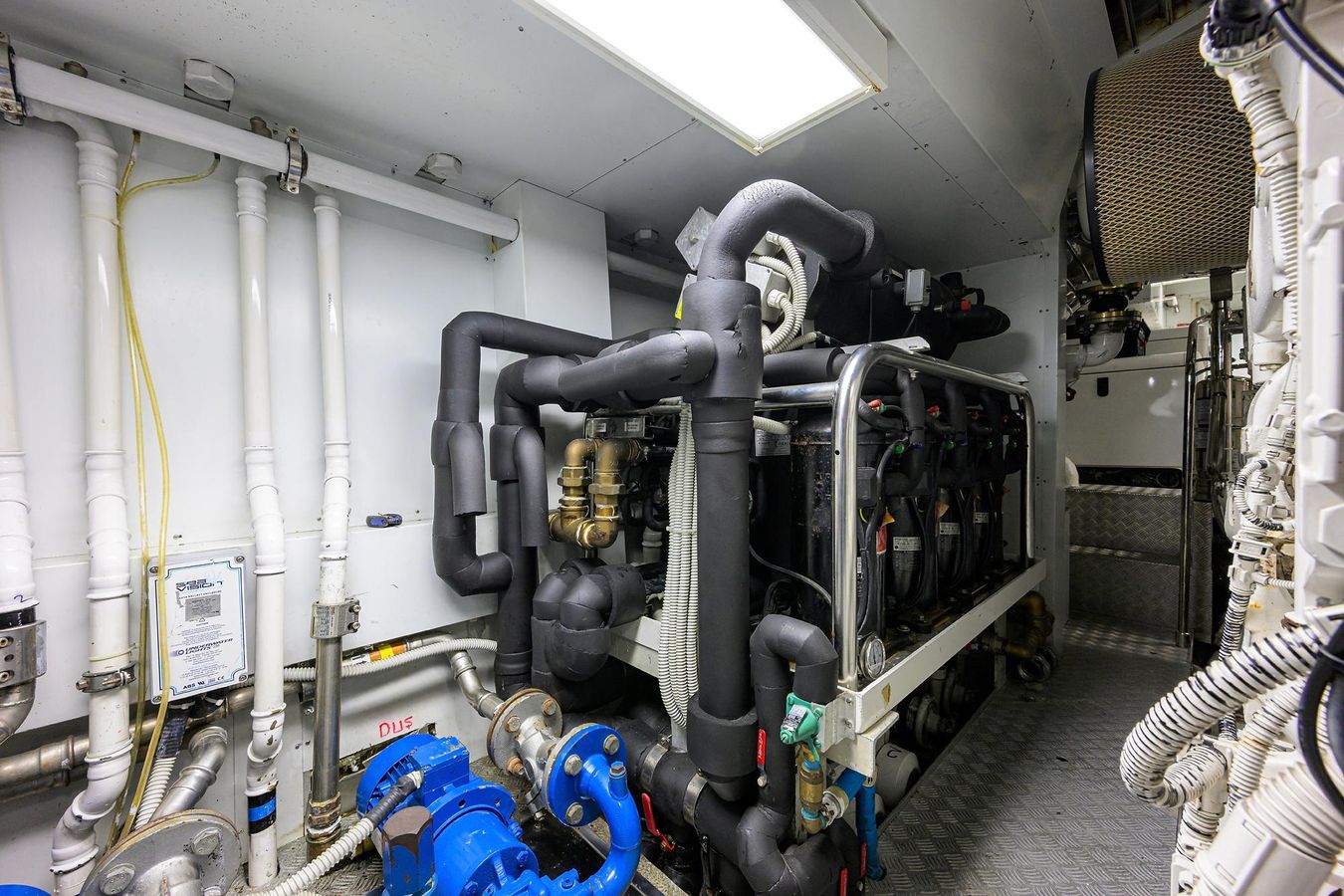

WATERMAKER
2 X IDROMAR MC5 DUPLEX 250LT+250LT, CARBON FİBER TUBES
