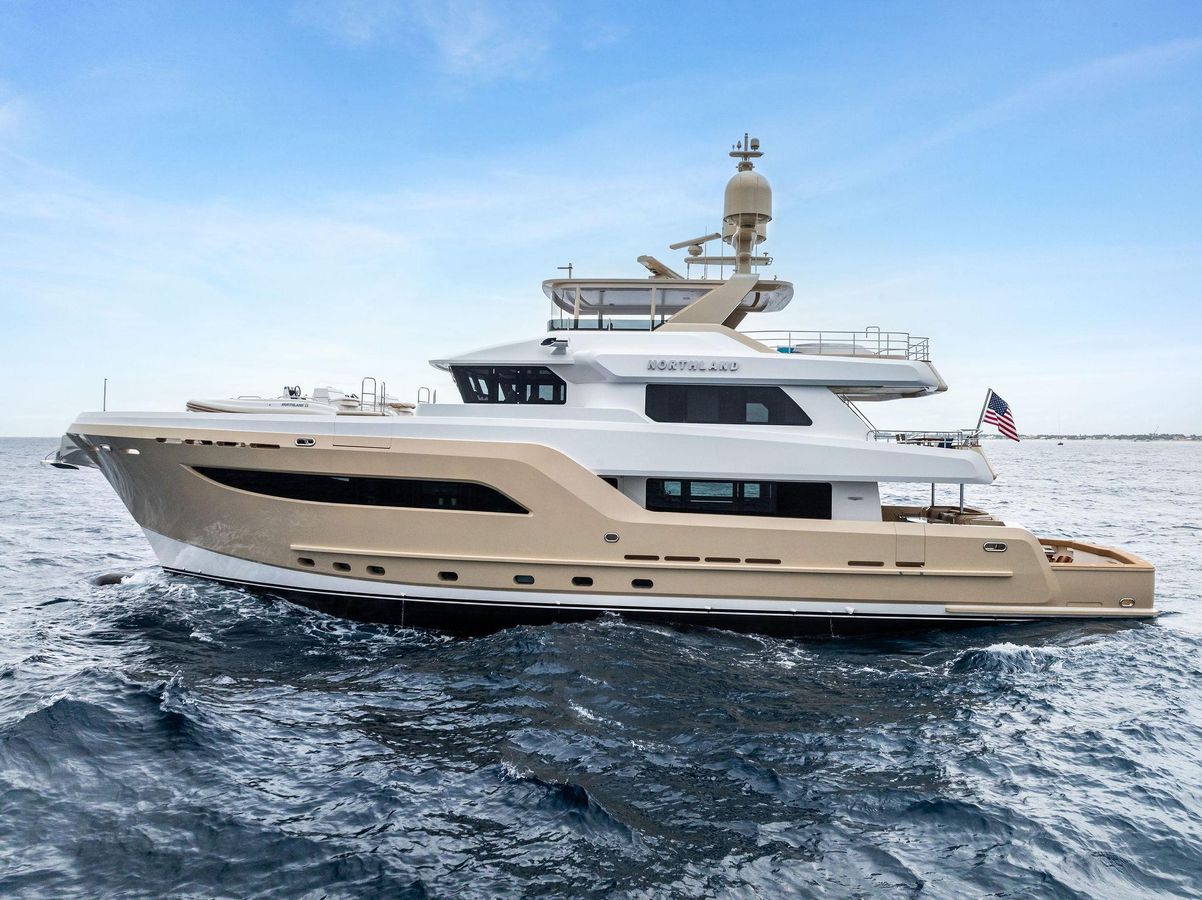

Additional Information
Performance
Designed with the following approximate target speeds and range based on powering from two (2) Caterpillar C18 ACERT "A-Rating" engines rated for 475 bhp (350 bkW) at 1800 rpm.
- Top Speed (WOT at Half load) - 12.4 knots (approximate)
- Cruise Speed (85% Available Power at Half load) - 12 knots (approximate)
- Long Range Cruise Speed - 9.5 knots (approximate)
- Range (at long Range Cruise Speed) - 4000 Nautical Miles
Tank Arrangements & Capacity Plan
The vessel's approximate tank capacities are as indicated below:
- Fuel Capacity - 9,790 gallons (approximate)
- Freshwater Capacity - 2,404 gallons (approximate)
- Black Water capacity - 710 gallons (approximate)

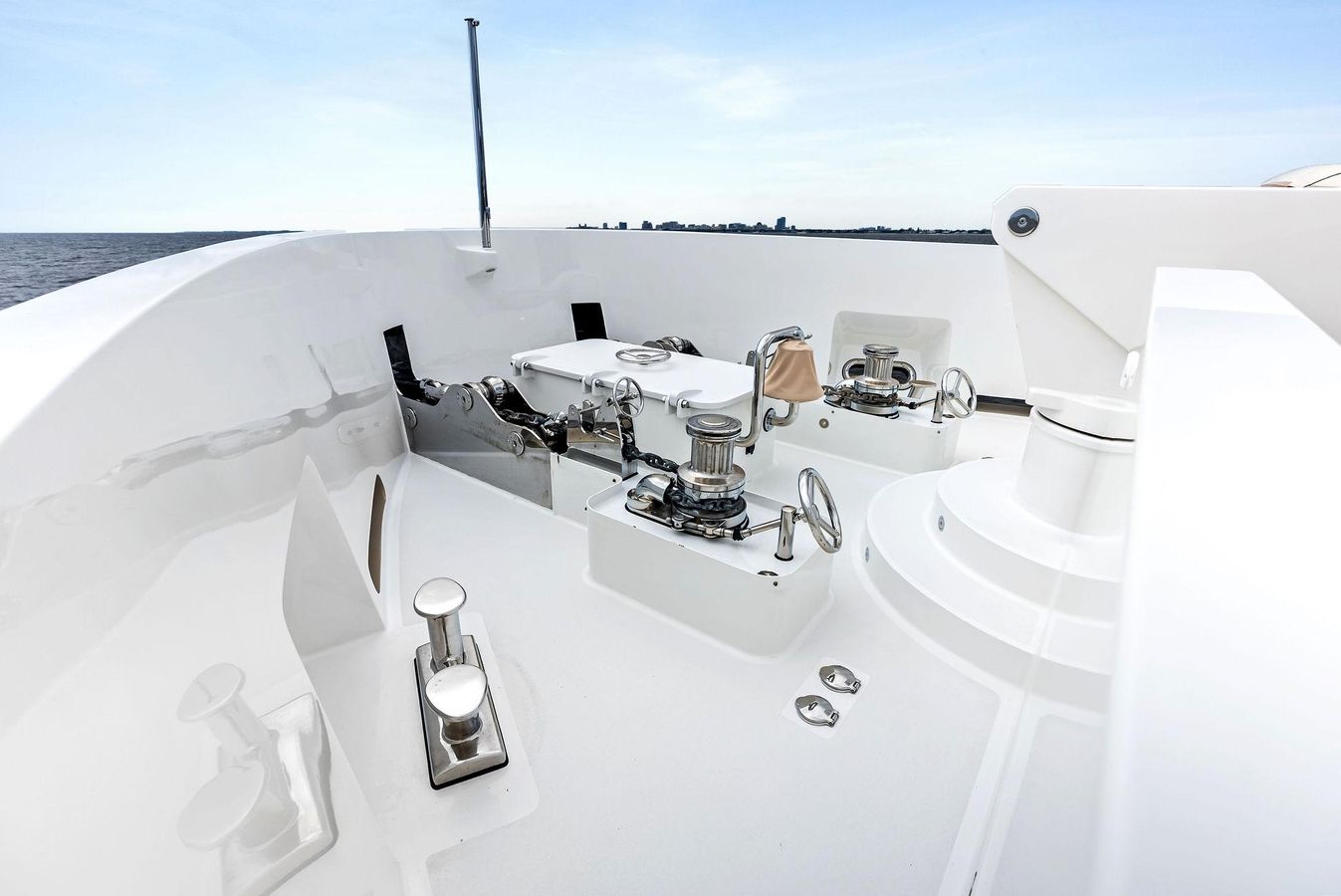

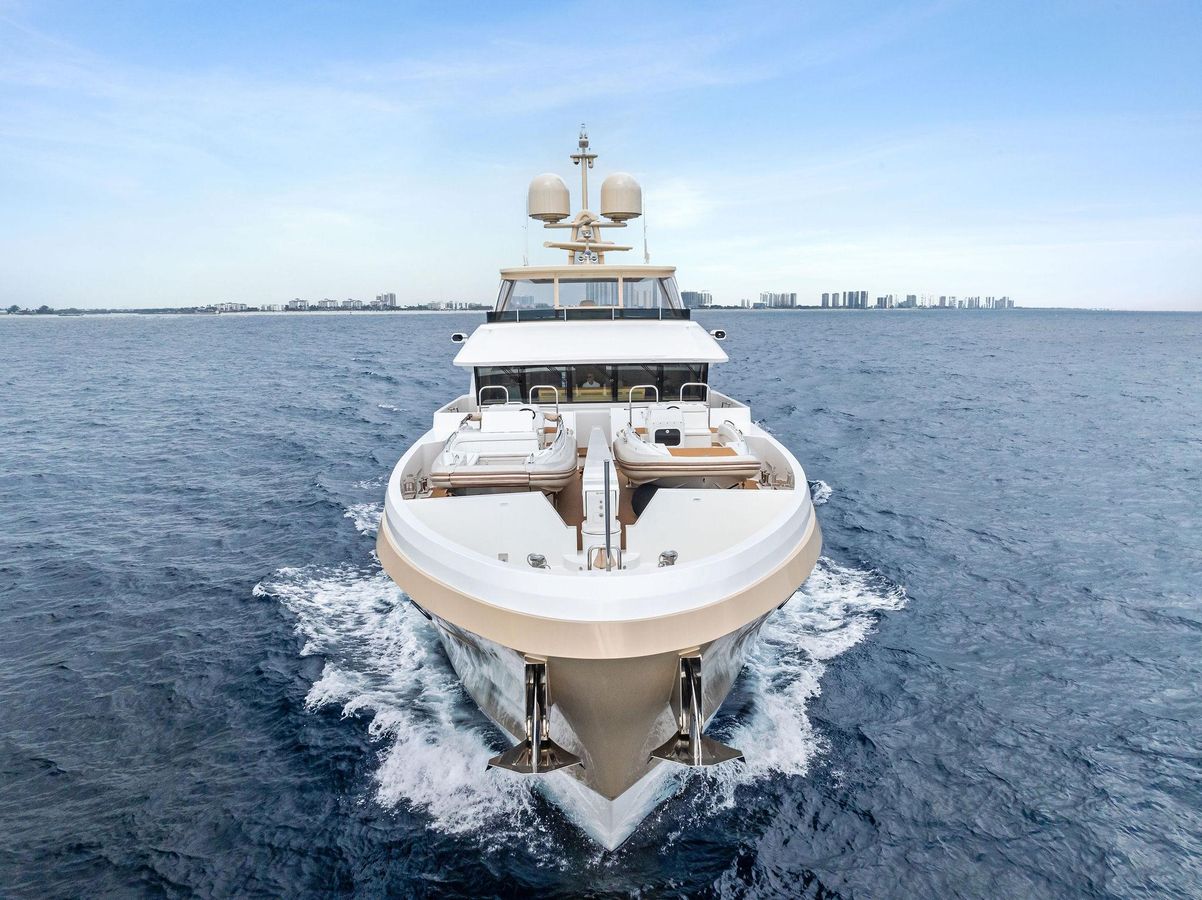

Anchoring System
The anchoring system includes two (2) CQR Ultra Anchors, model 250-SS0, (1) S/8" 3S0' length galvanized stud link chain, (1) SS0' length galvanized stud link chain.

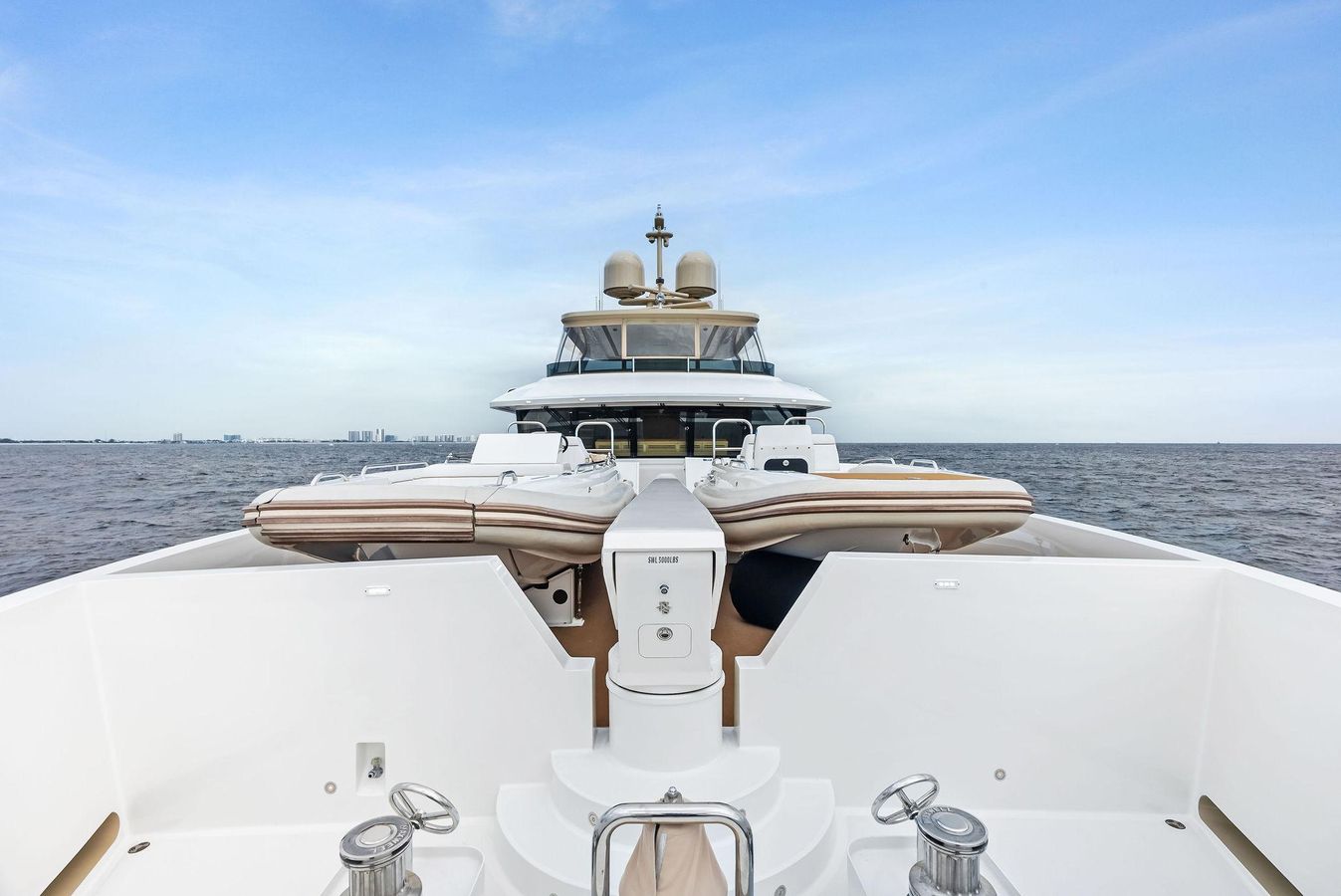

The vessel is outfitted with two (2) Maxwell 6000 hydraulic windlasses with capstan drums. Each windlass has horizontal gear boxes and band breaks. Each has local control via hand wheel of the wildcat {gypsy) band brake, chain stopper with tensioner, square rollers with chain groove for stud link anchor chain, electric foot switch assembly, and chain counters . The windlasses are complete with a 19.7 foot (6 meter) cable wired remote control.
Mooring System

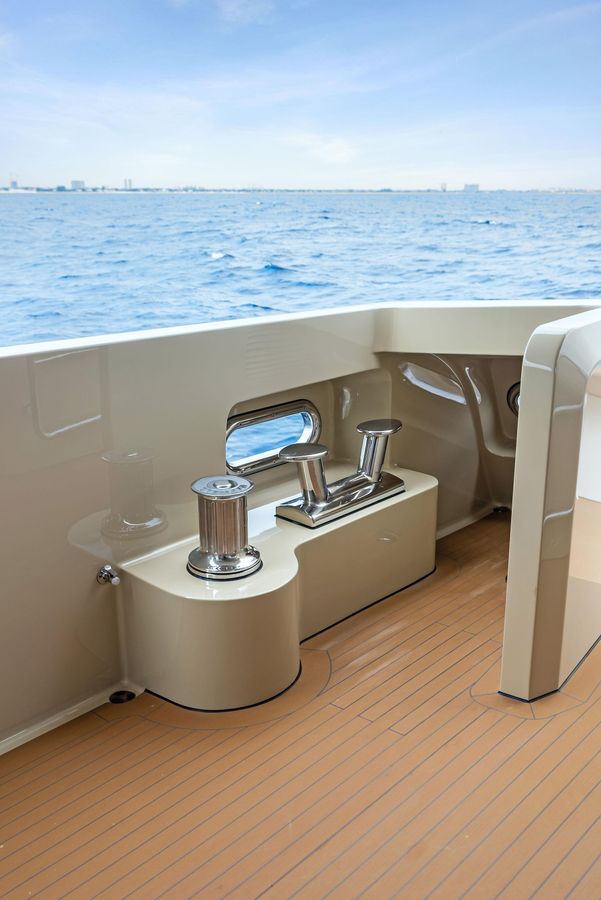

The mooring system includes two (2) chrome plated bronze high pressure Maxwell 4000 hydraulically driven vertical capstans.

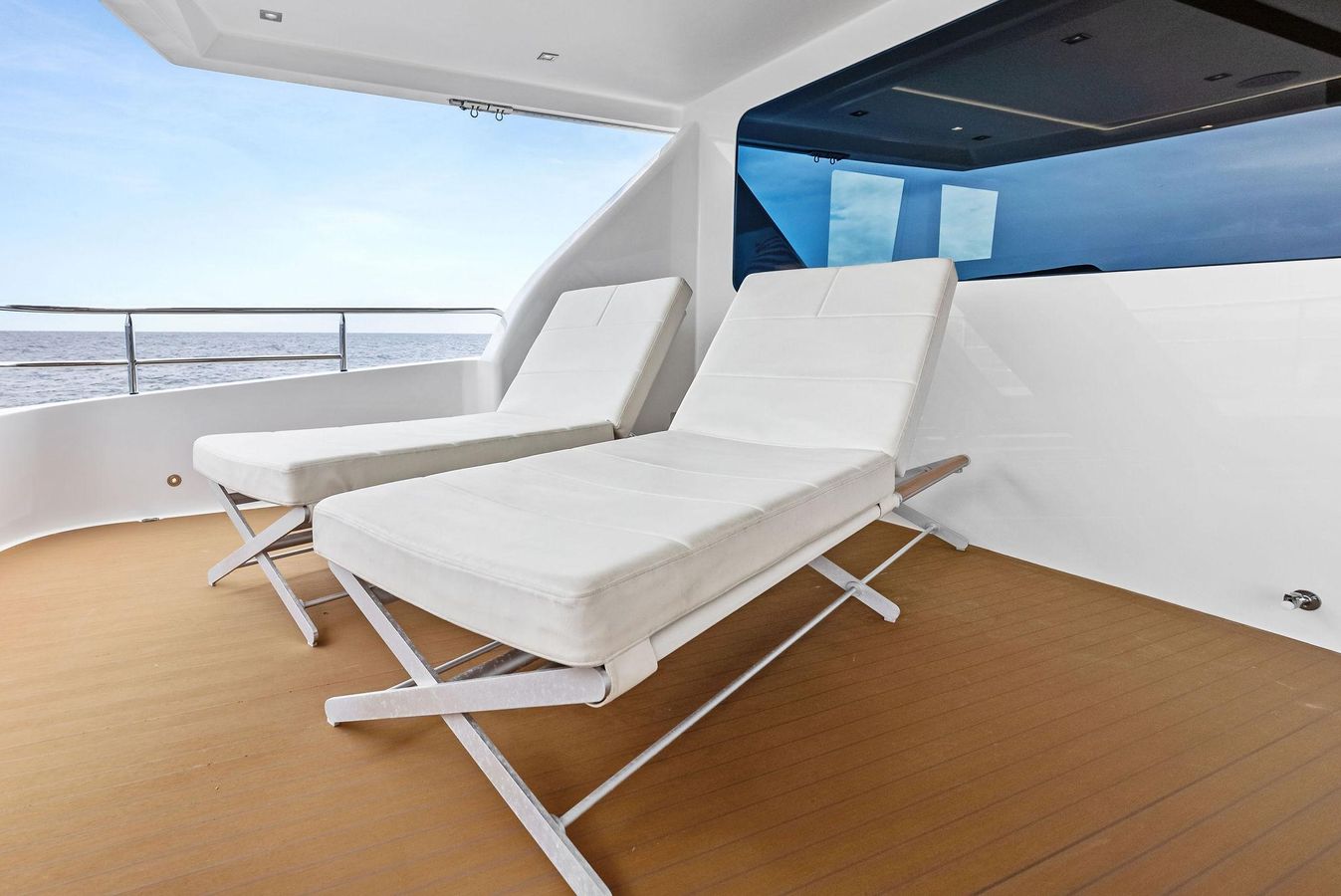

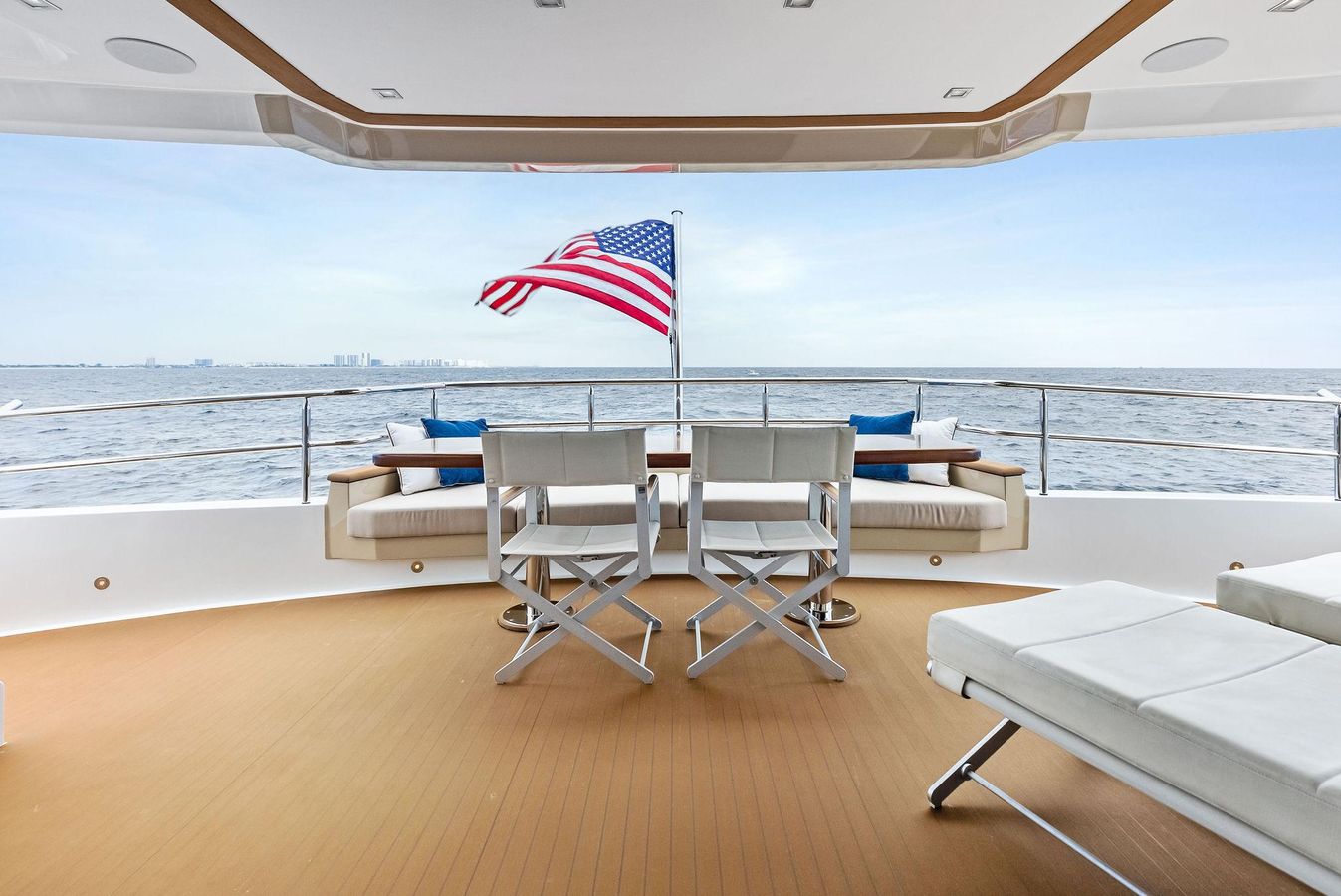

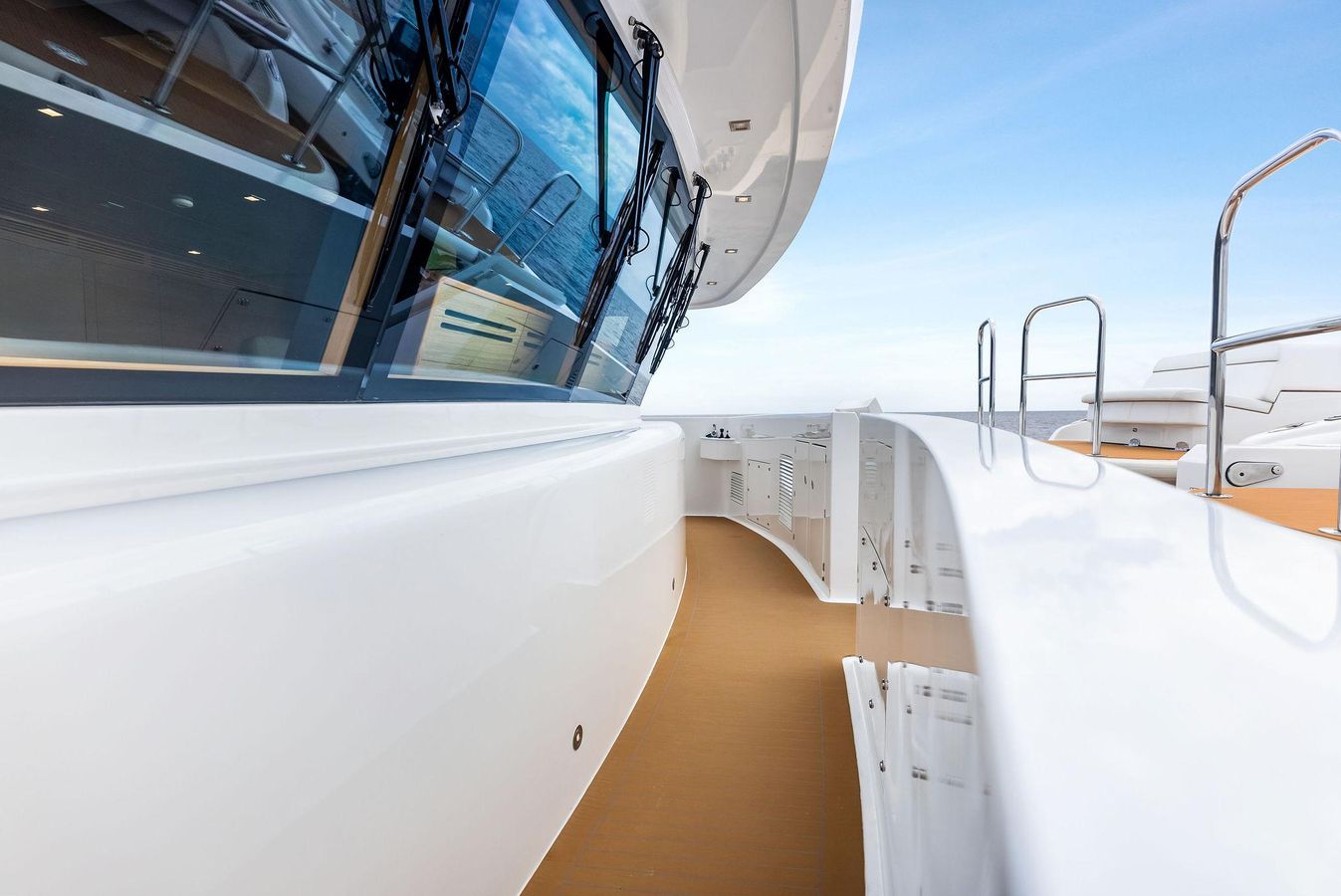

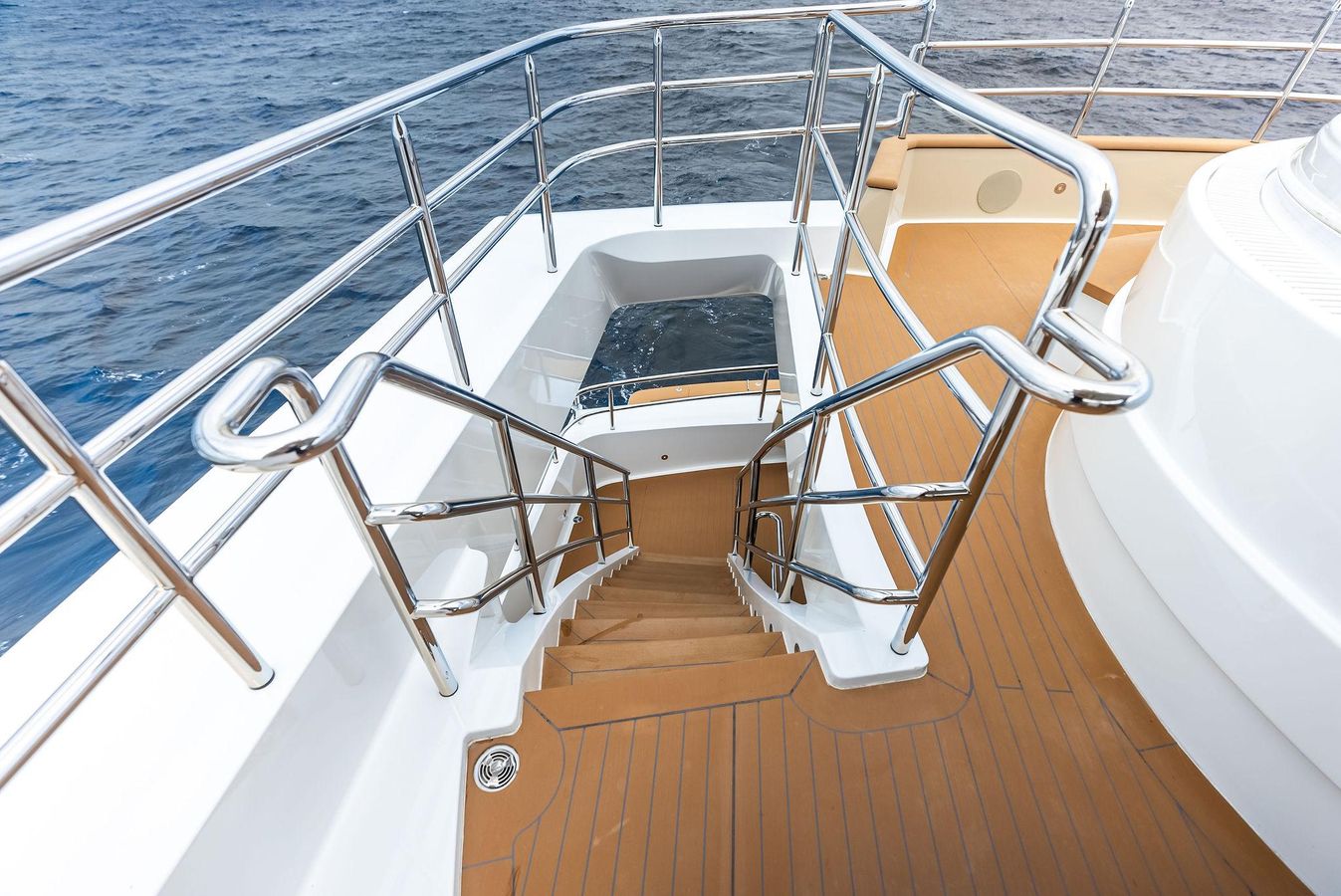

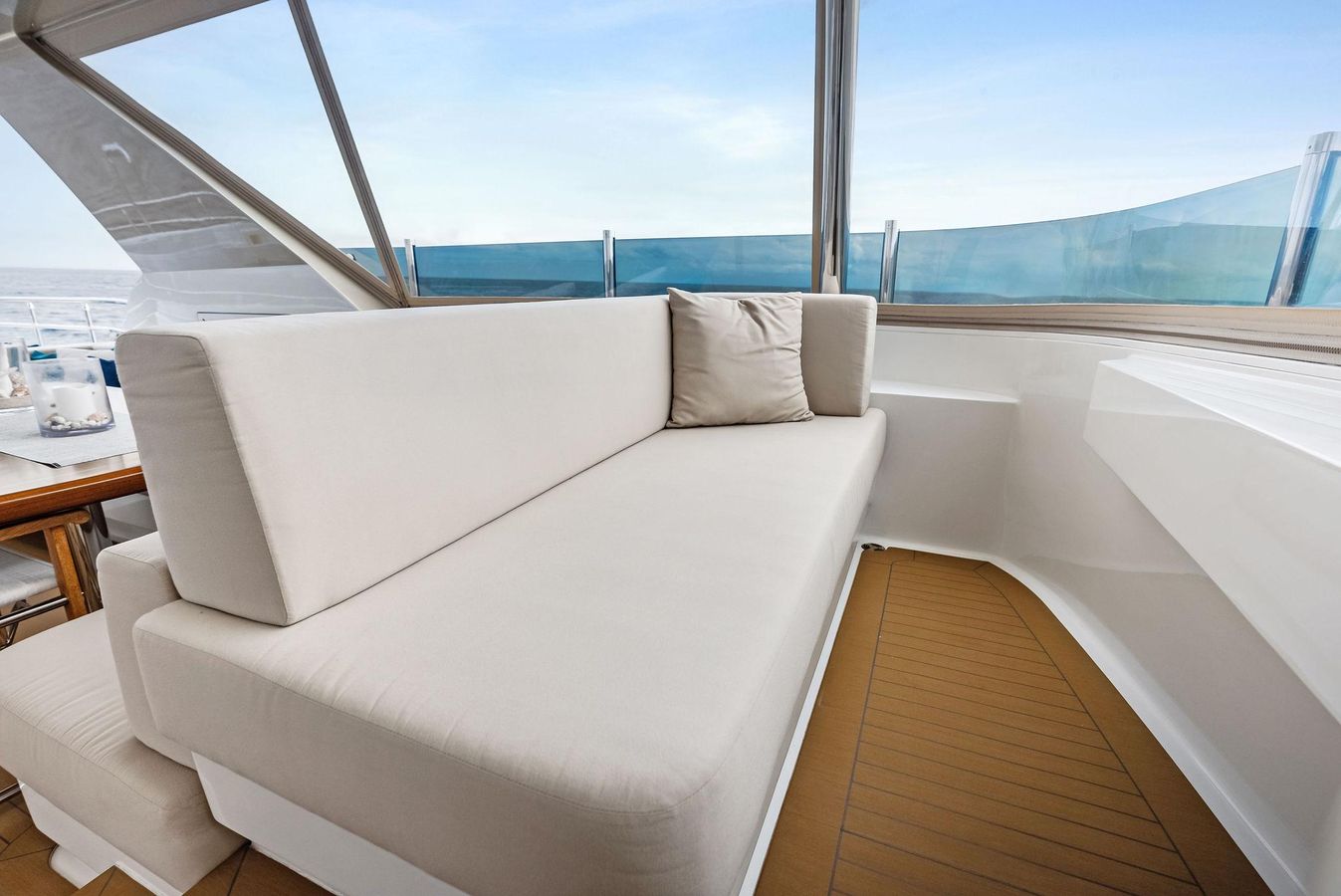

Esthec® Decking

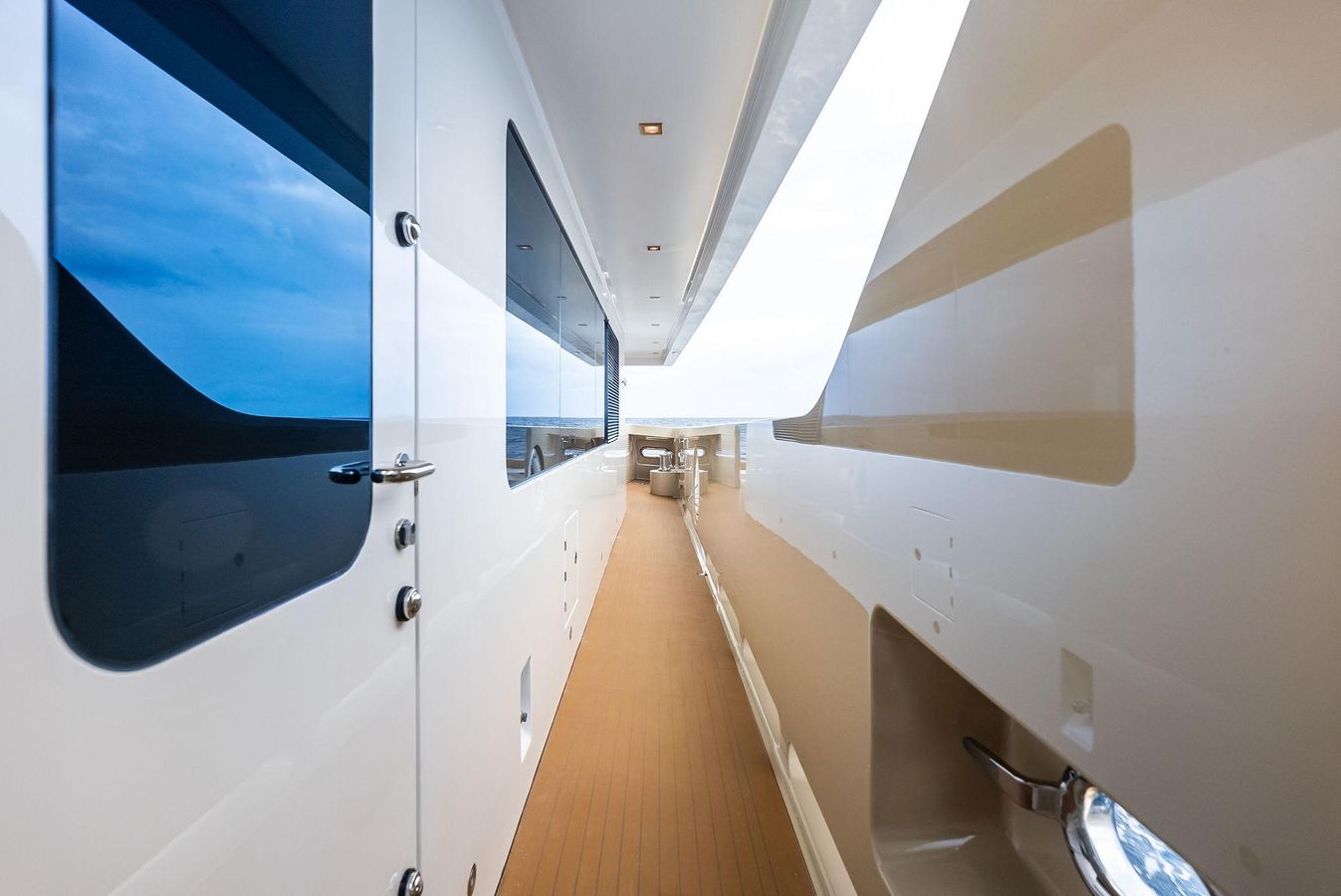

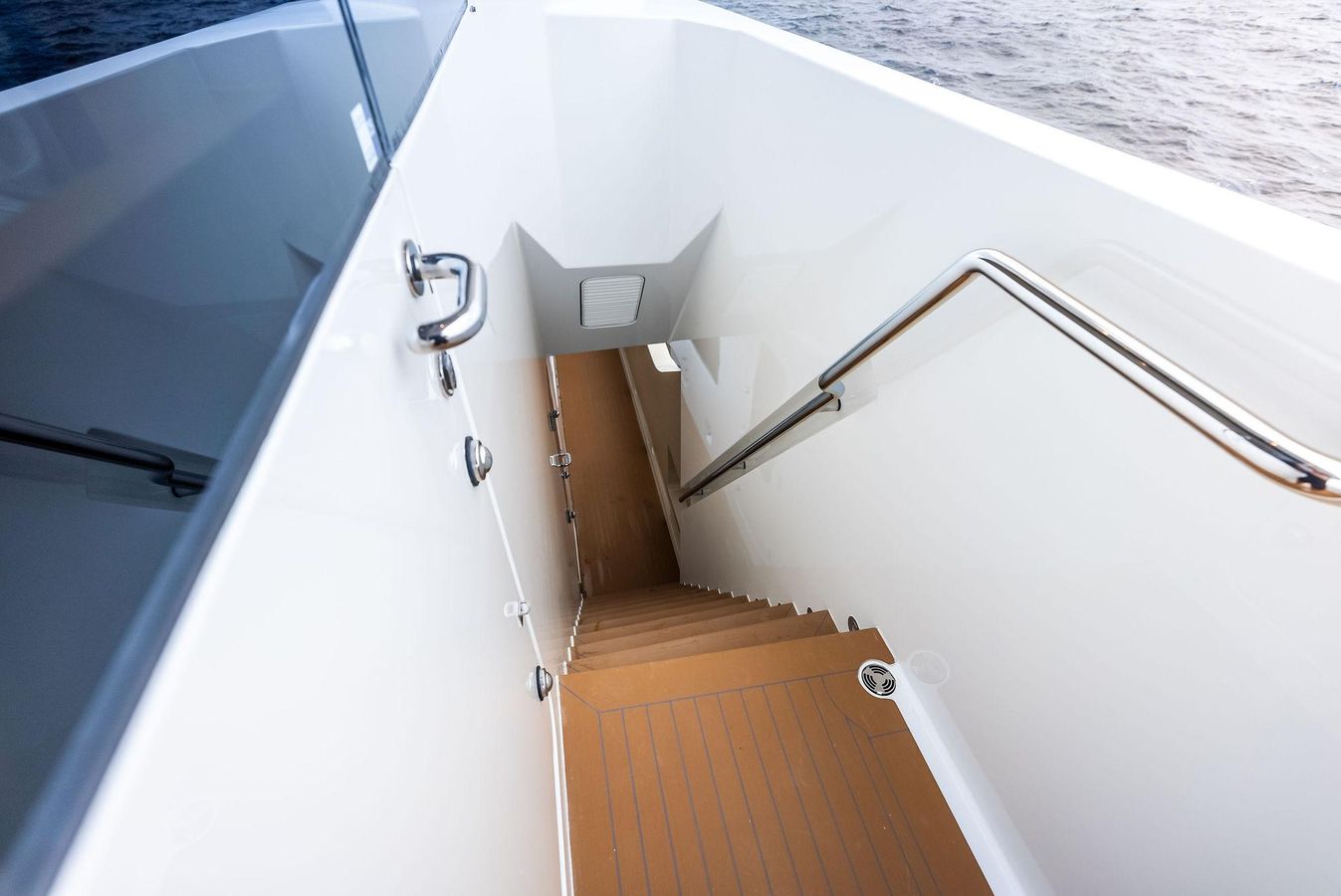

Esthec decking is found in the cockpit, aft main deck, port and starboard main deck side decks, aft bridge deck, forward bridge deck, boat deck, Flybridge, and all exterior stairs. The Esthec decking features a biscuit-colored batten pattern that is approximately 1-7/8" wide with 4mm wide black seams between. The material is ¼" thick.

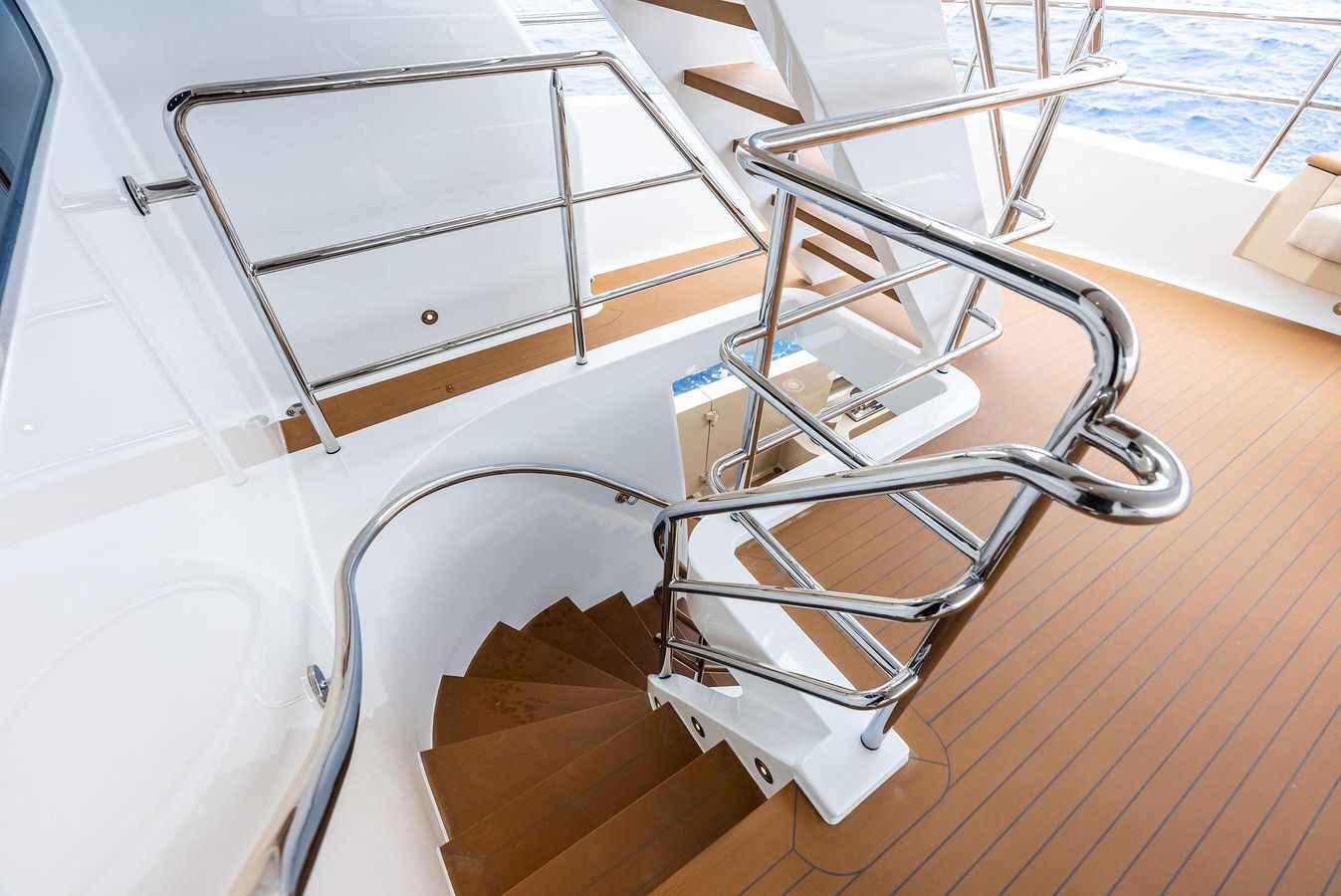

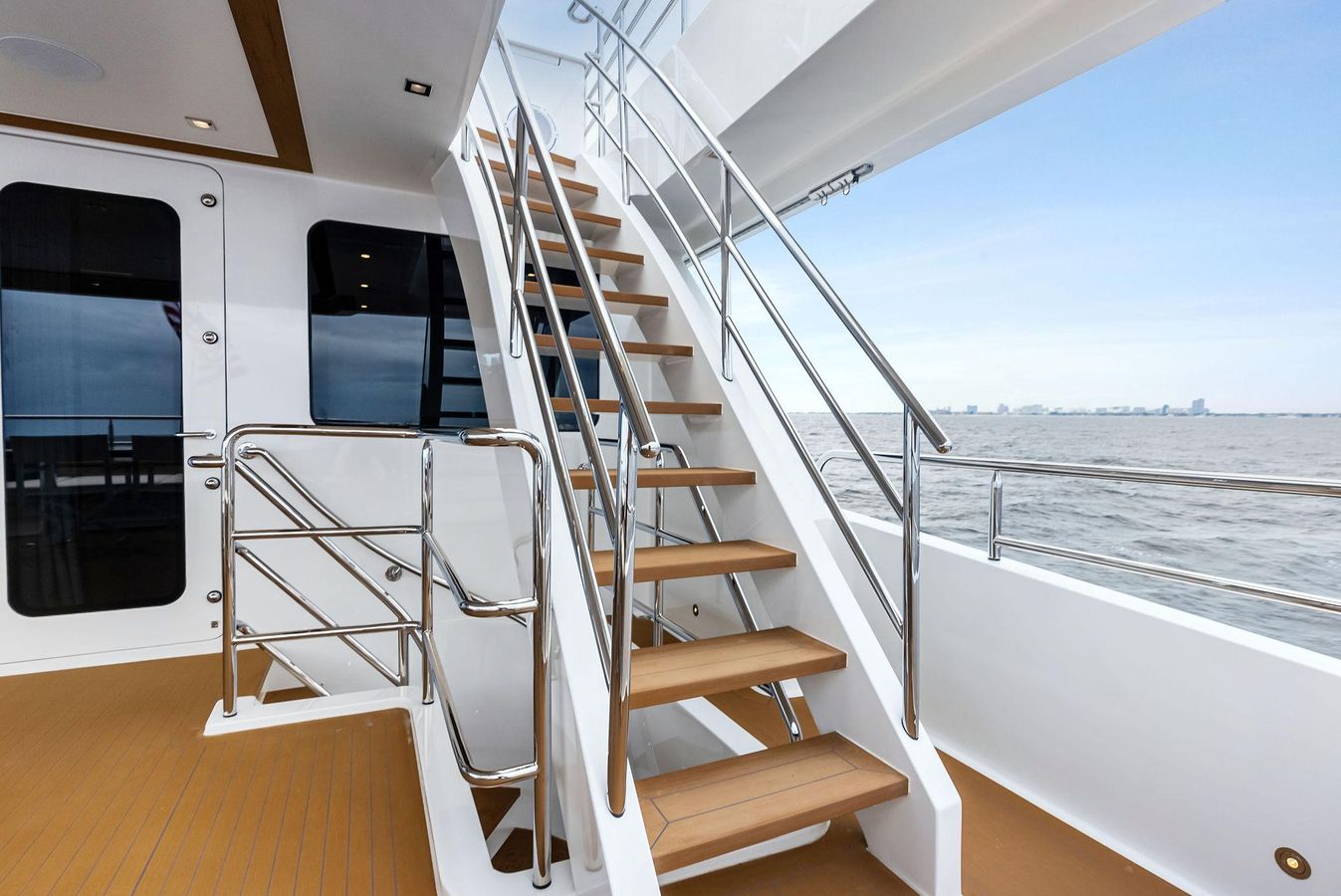

Ladders & Boarding Ladder Systems
- Sea Stair - One (1) manual operating UMT carbon fiber side-boarding sea stair. Stowage of the sea stair is in a recess in the main deck bulwarks or the superstructure side.
- Swim Ladder - One (1) angled anodized aluminum swim ladder with take-apart section that allows it to be stored in two pieces.
- Hard Top Access Ladder - A portable, telescoping ladder provides service access to the hardtop from the Flybridge.
Exterior Signaling & Searchlights
- Navigational Lighting - LOPO navigational lights.
- Searchlights - One (1) Jabsco JA 62042-4006 searchlight.
- Ship's Bell - One (1) chrome plated ship's bell engraved with the vessel's name, year launched and the BURGER logo.
- Ship's Horn - One (1), three (3) trumpet Kahlenberg Model T-2 low profile air operated horn assembly controlled by a Kahlenberg Fog Signal Control Unit.

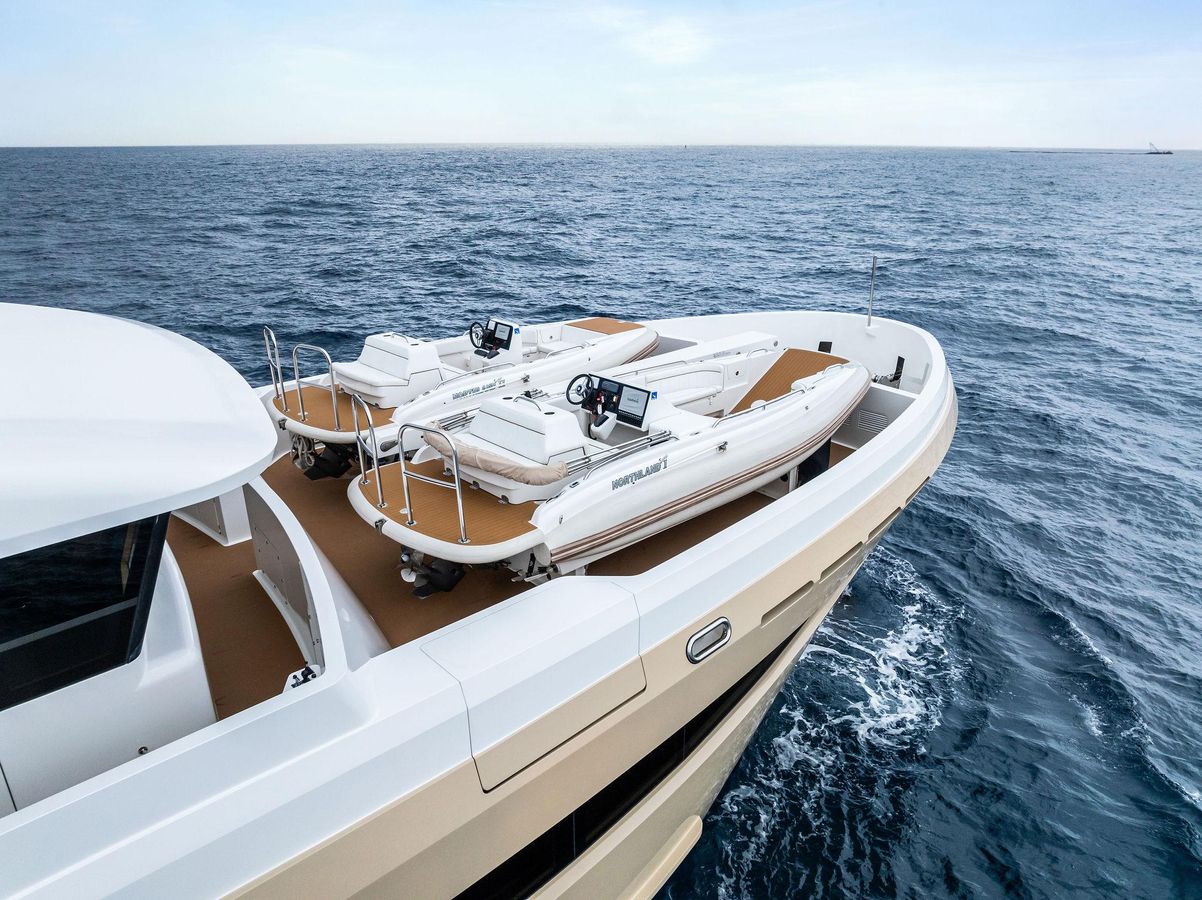

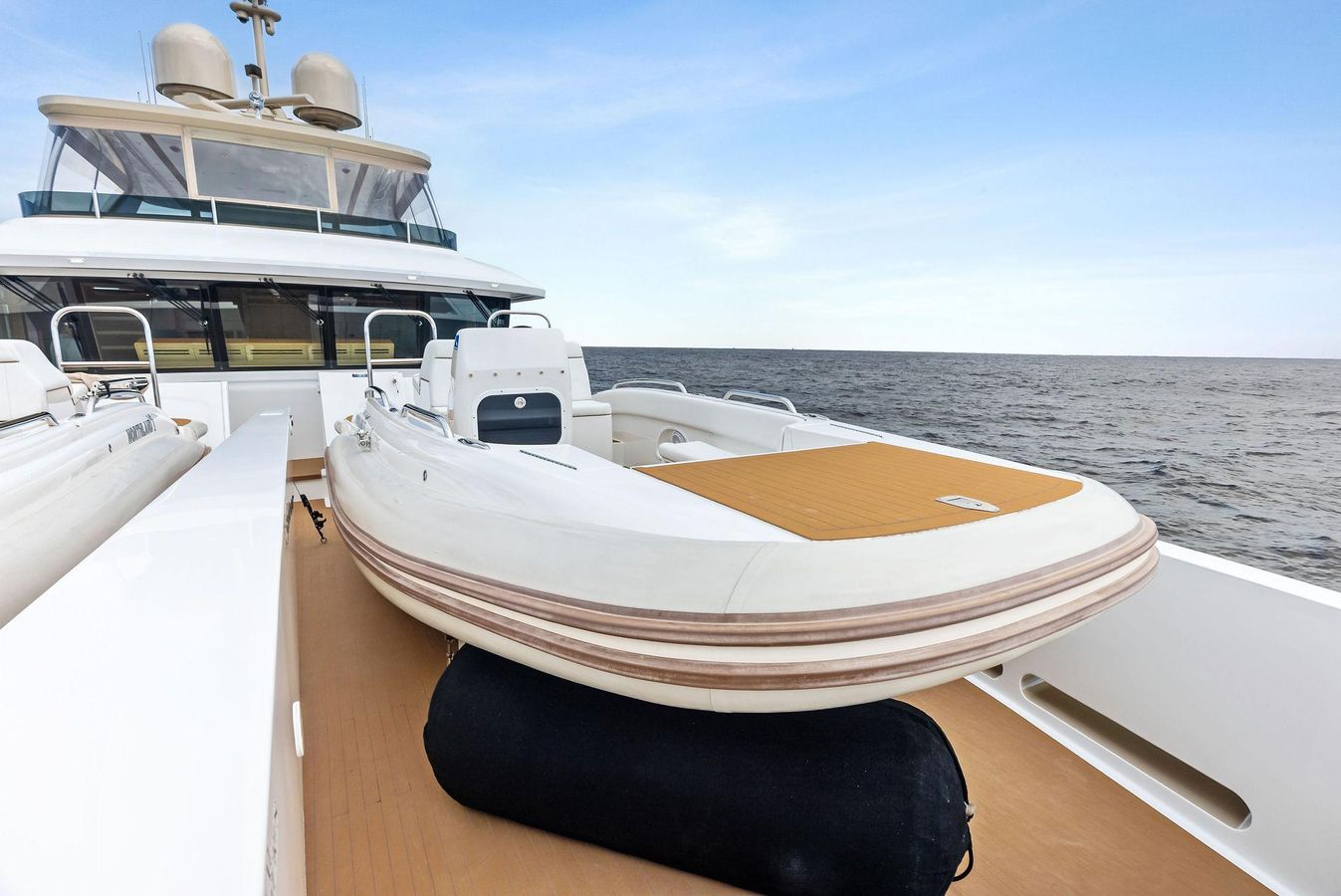

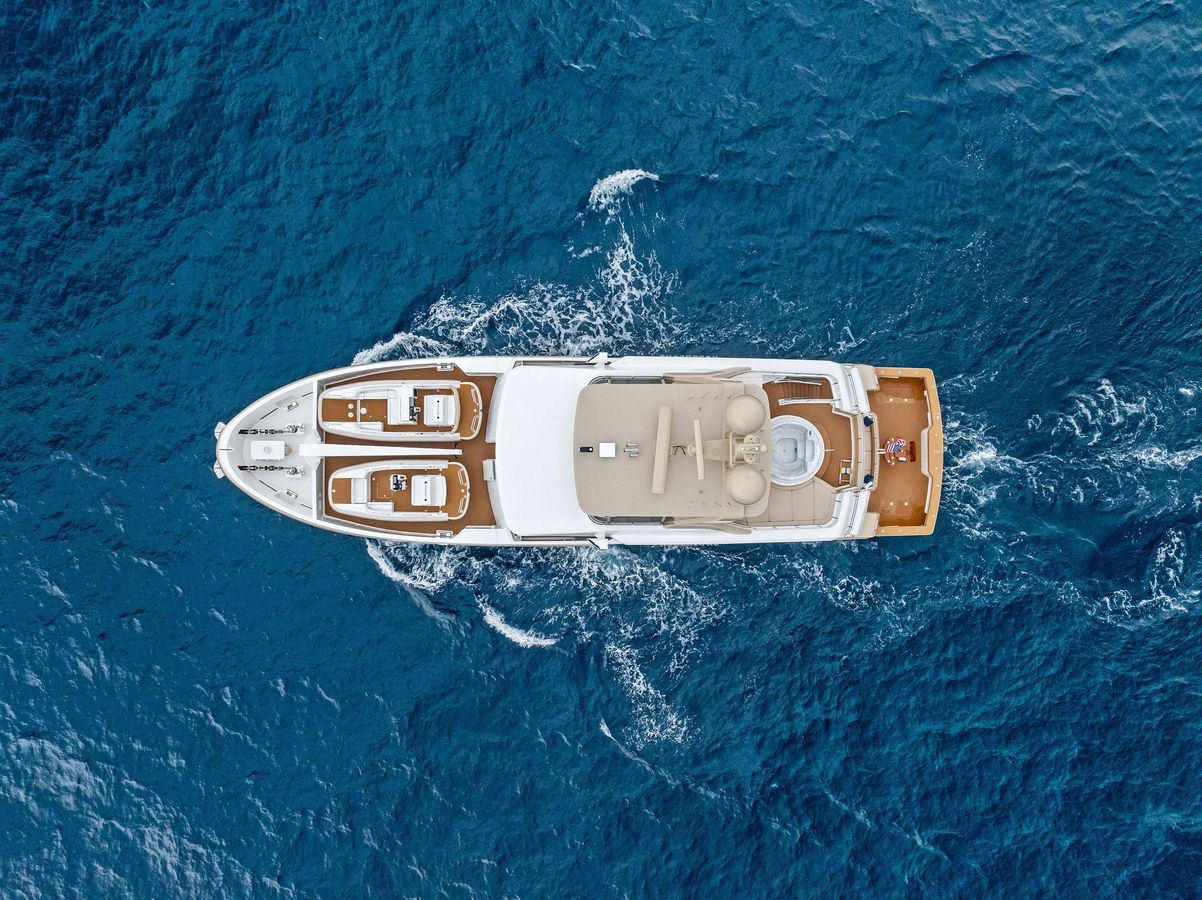

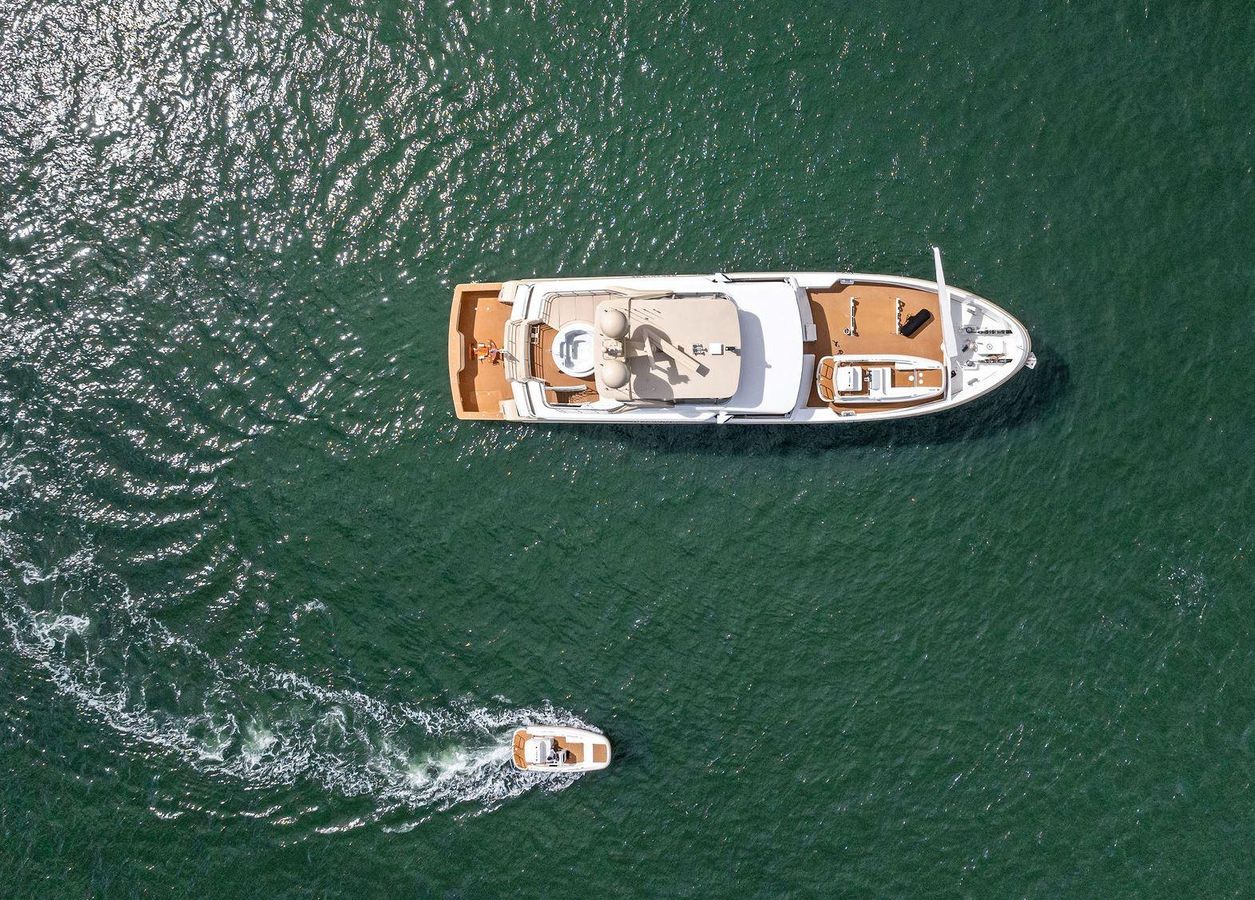

Tender & Tender Launching

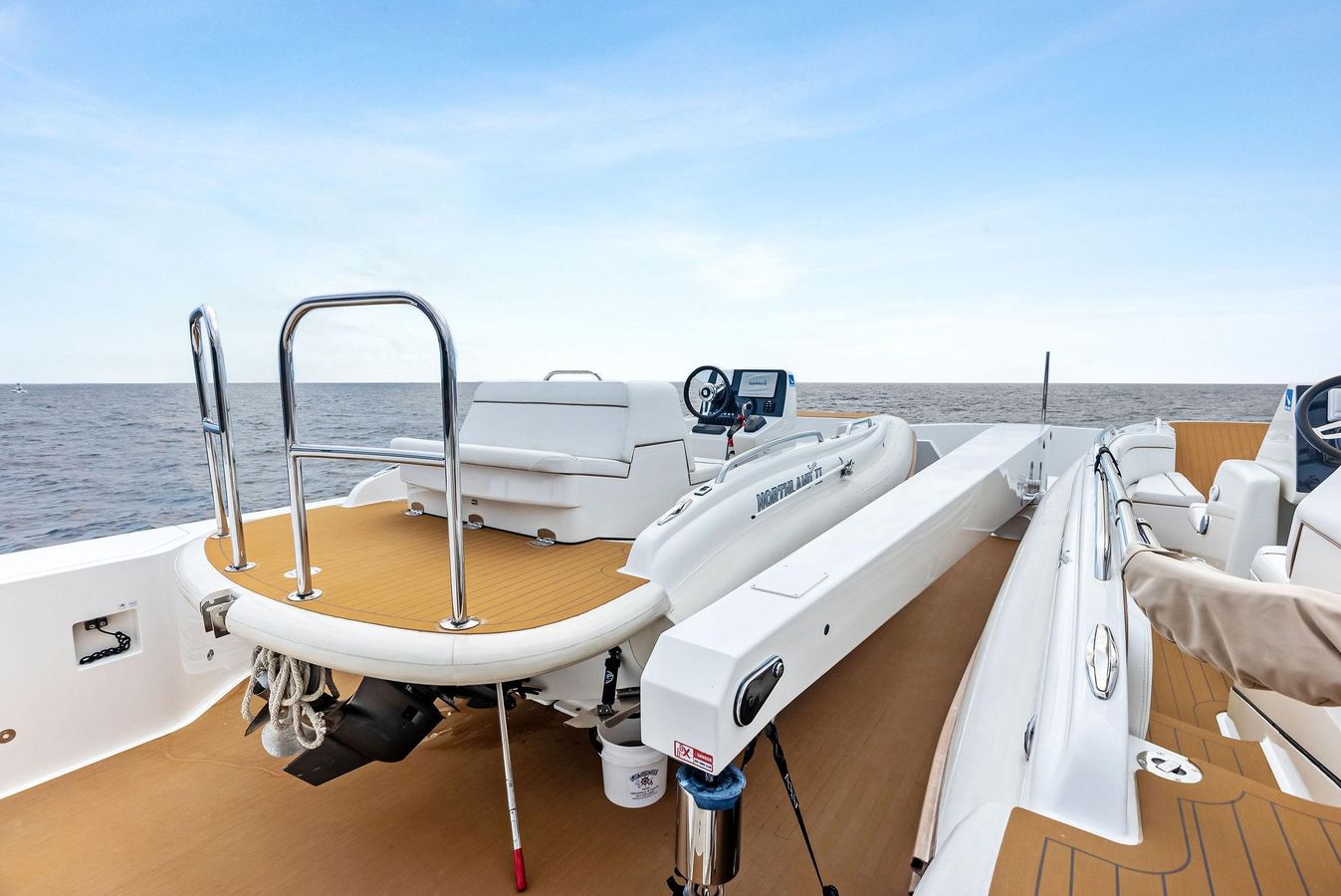

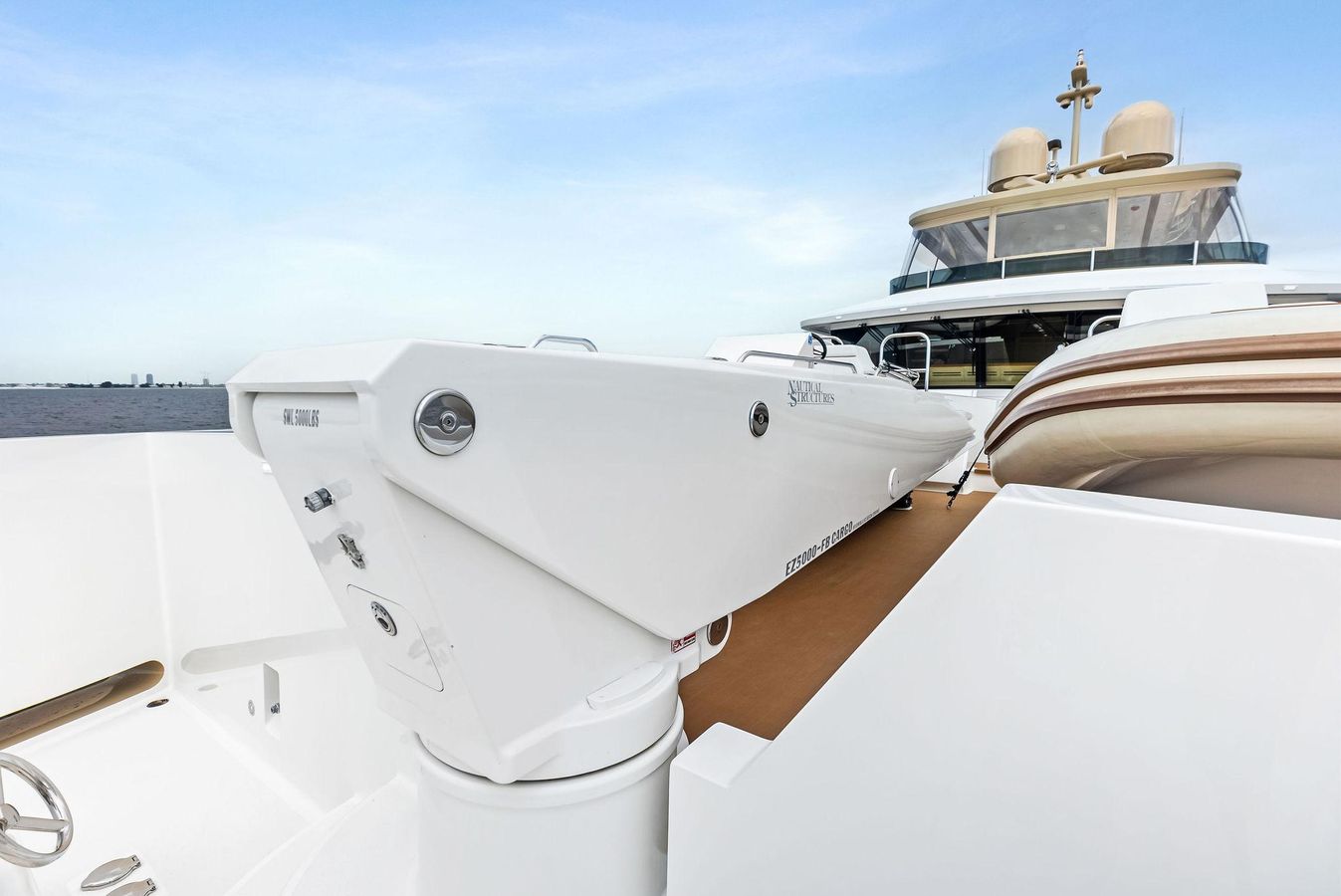

- Launching System - A 5,000 pound, fixed boom, Airtex brand, hydraulic deck crane for launching the tenders is installed on the foredeck, on center line, between the tenders.

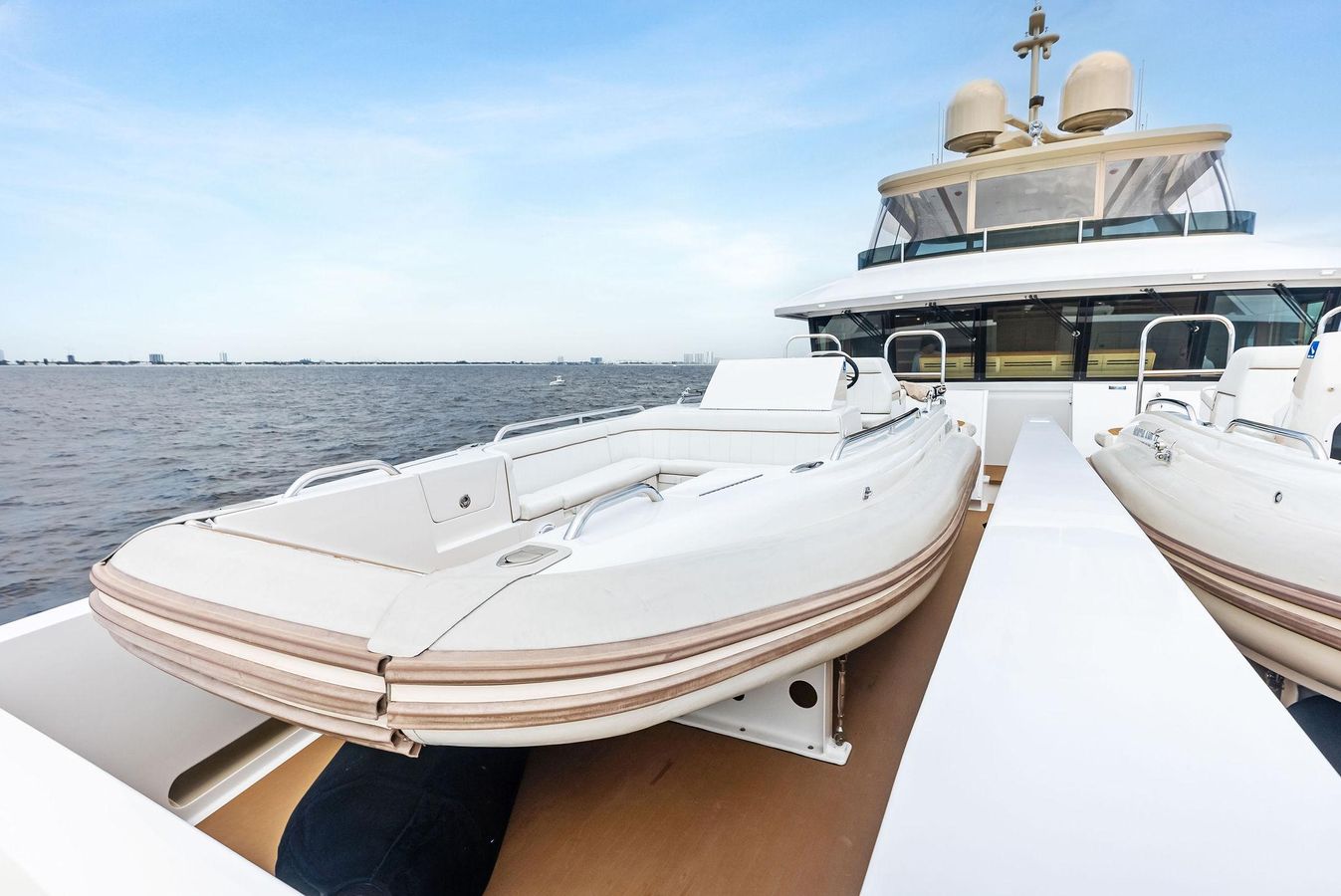

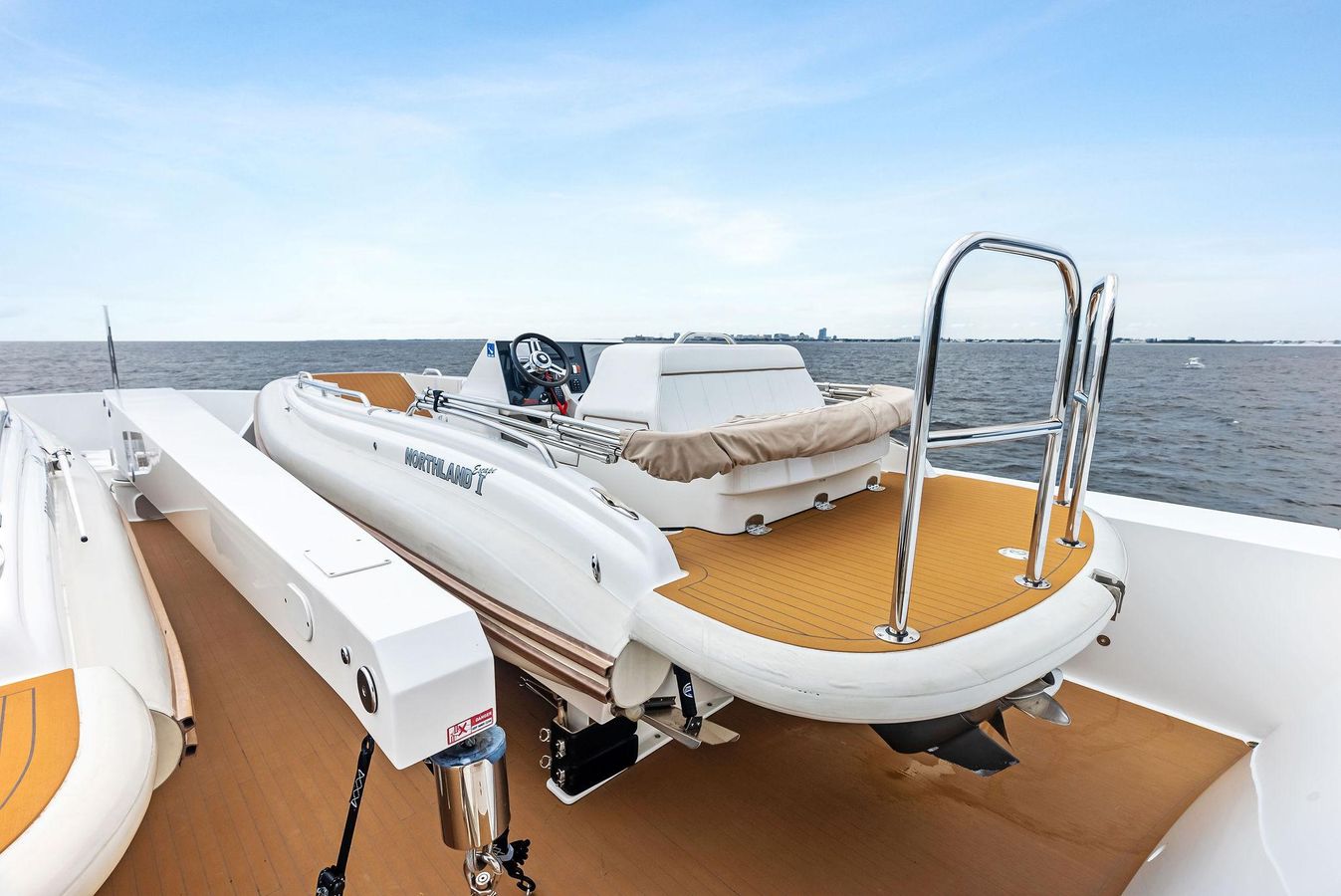

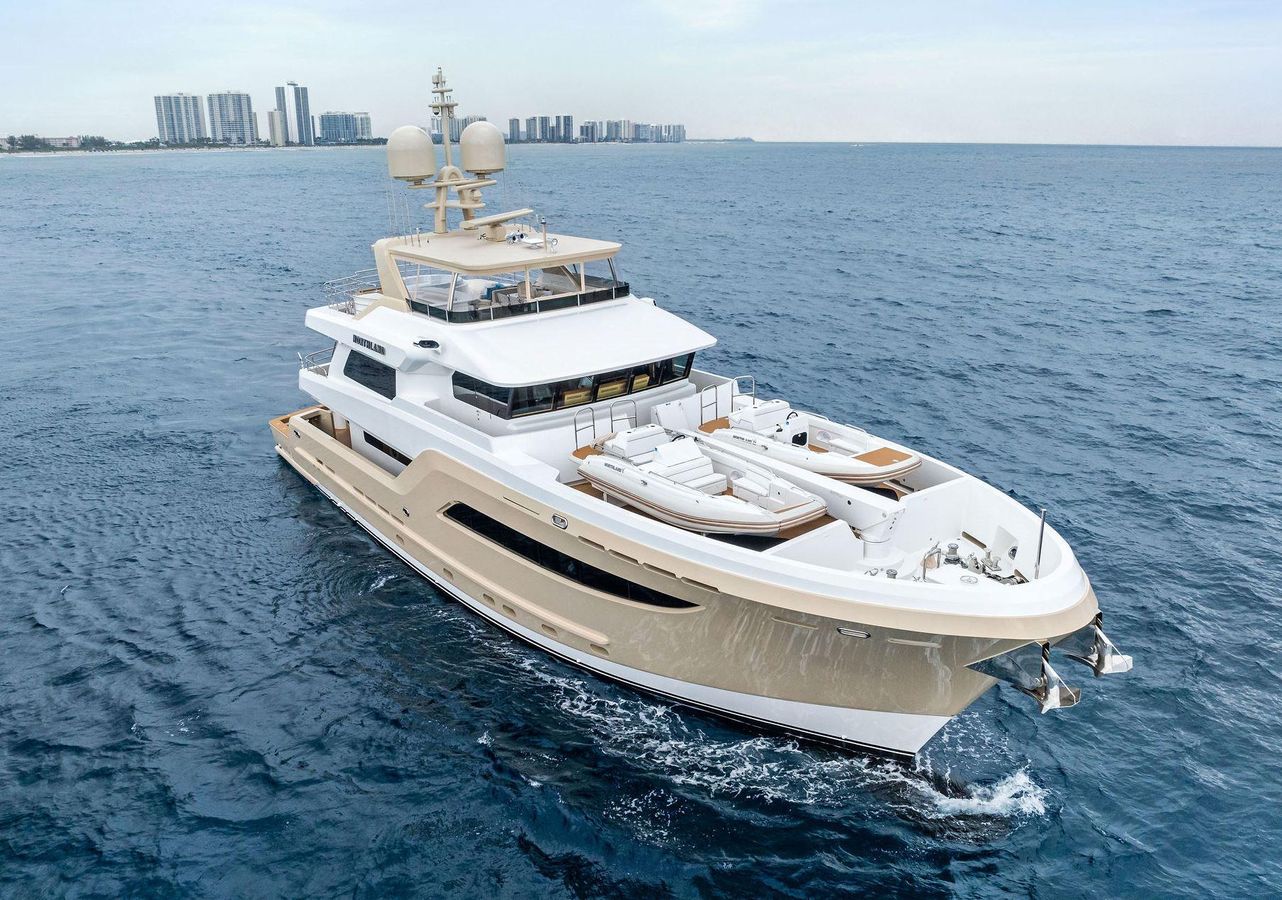

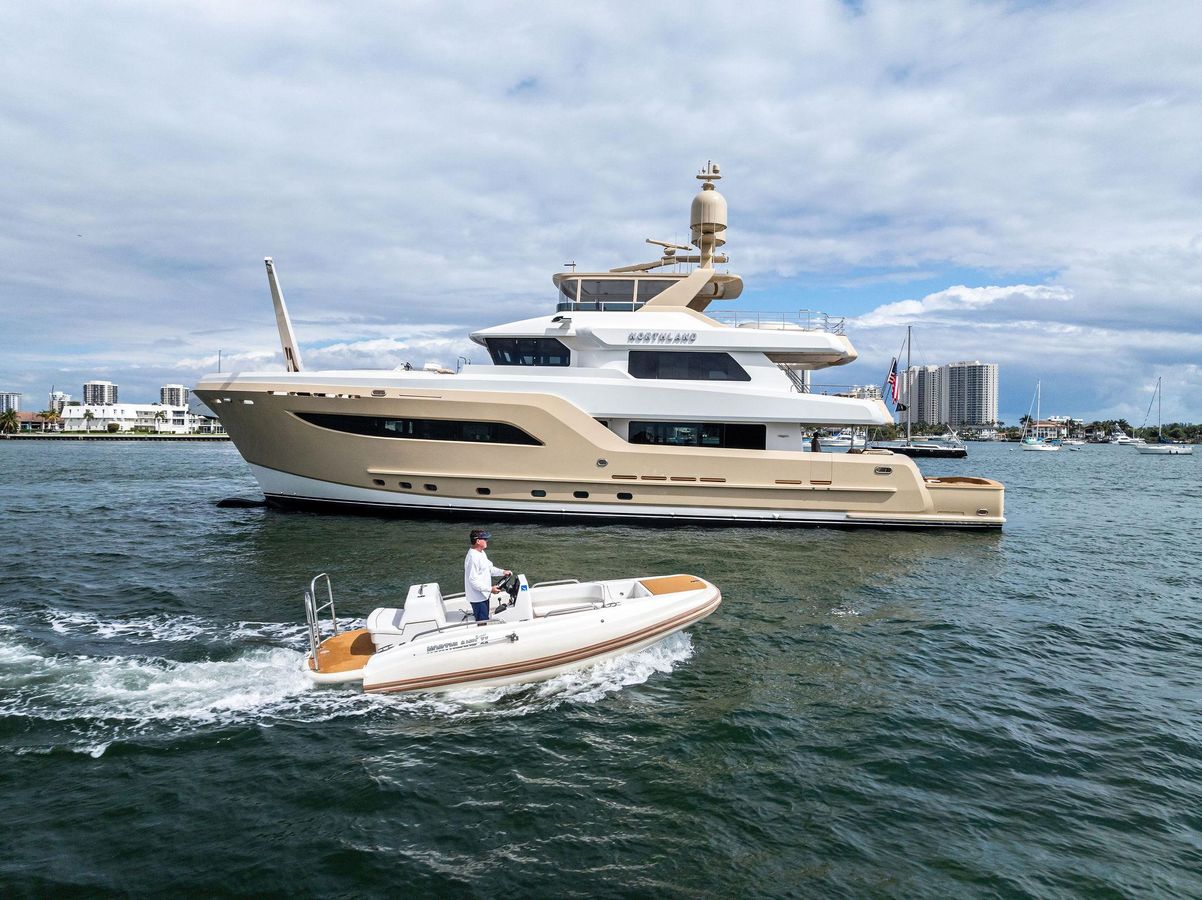

- Tenders - Two (2) Custom built Chapman Transition tenders, one with a forward ramp feature.

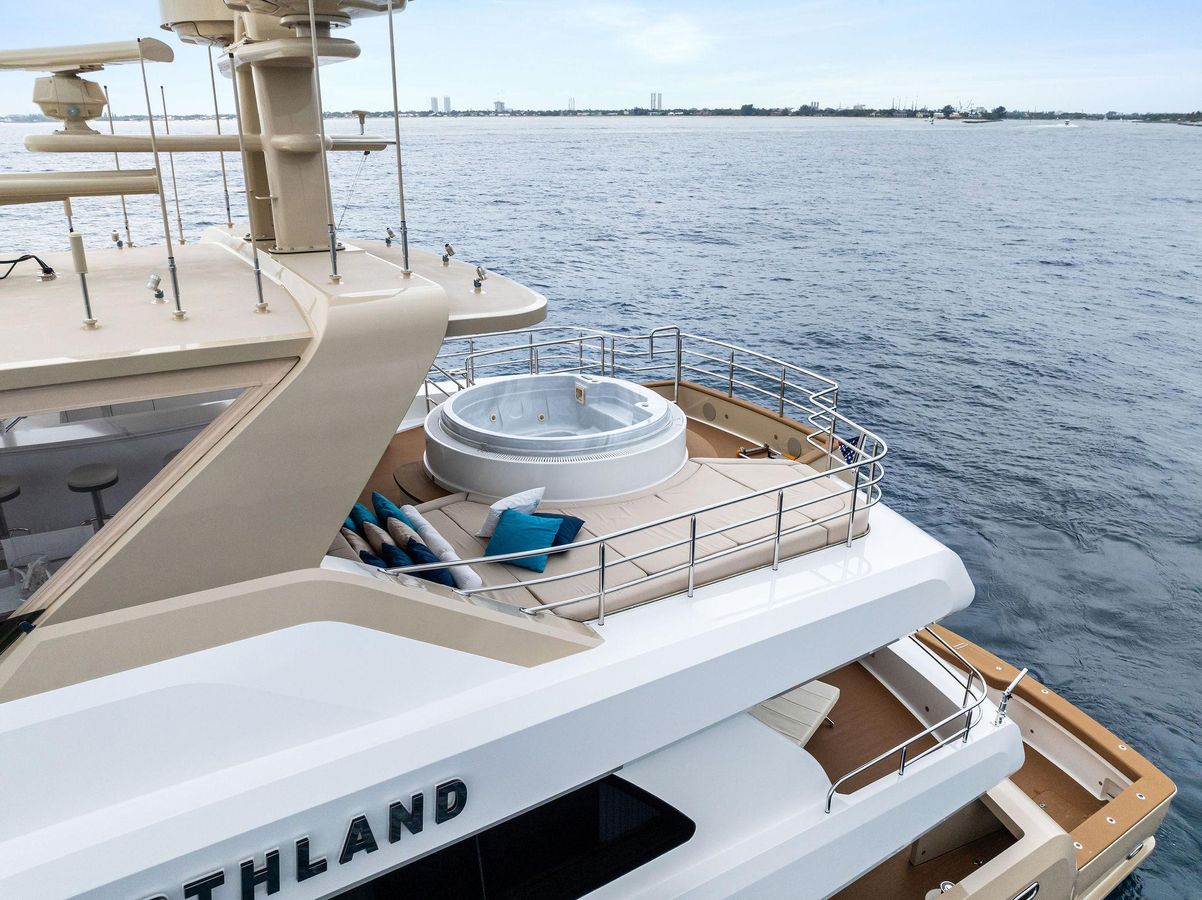

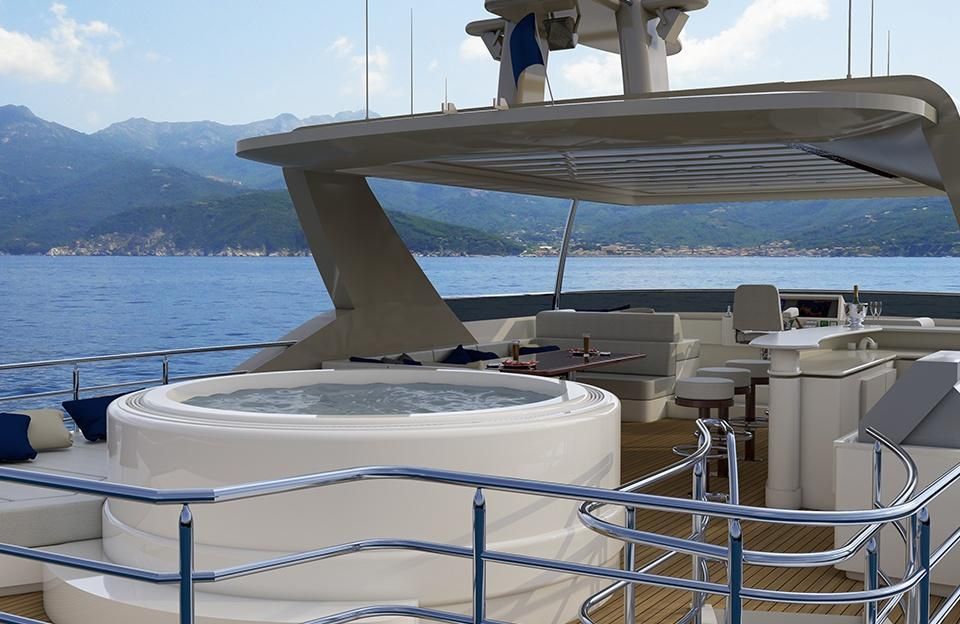

Hot Tub and Sun Pad

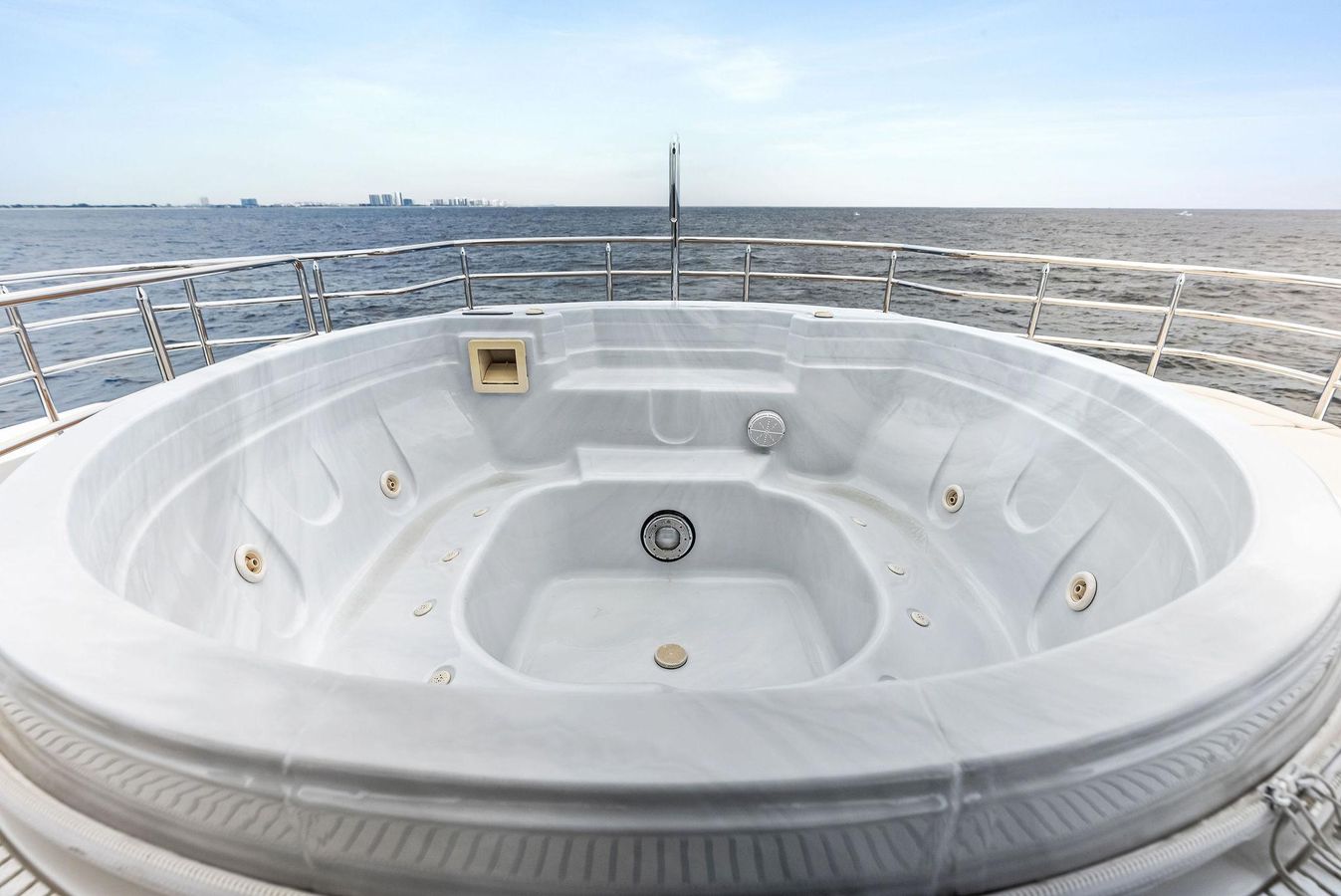

One (1) in-ground type spa; Baja Spas Redondo model installed in a painted aluminum surround with access steps. A sun pad with storage and technical space below is located on the port side of the flybridge.

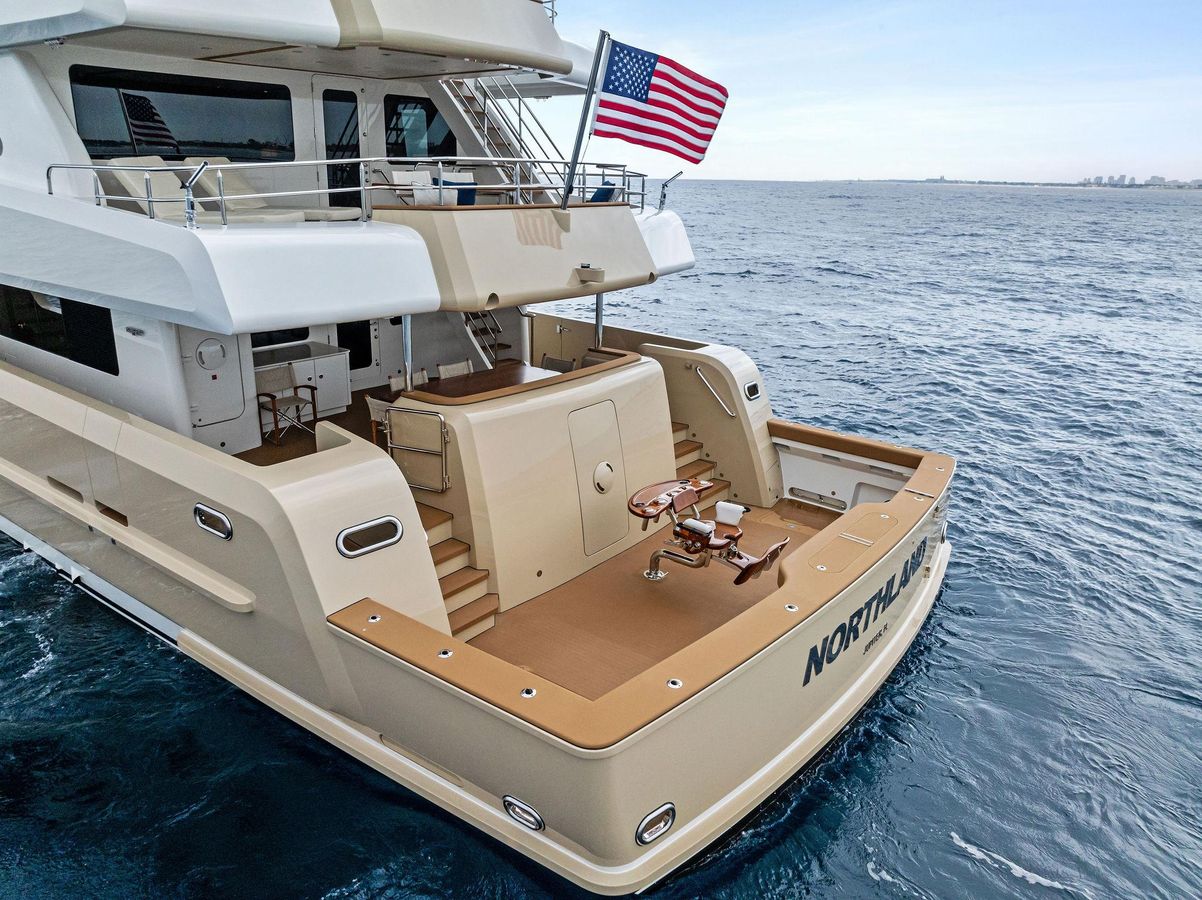

Exterior Covers

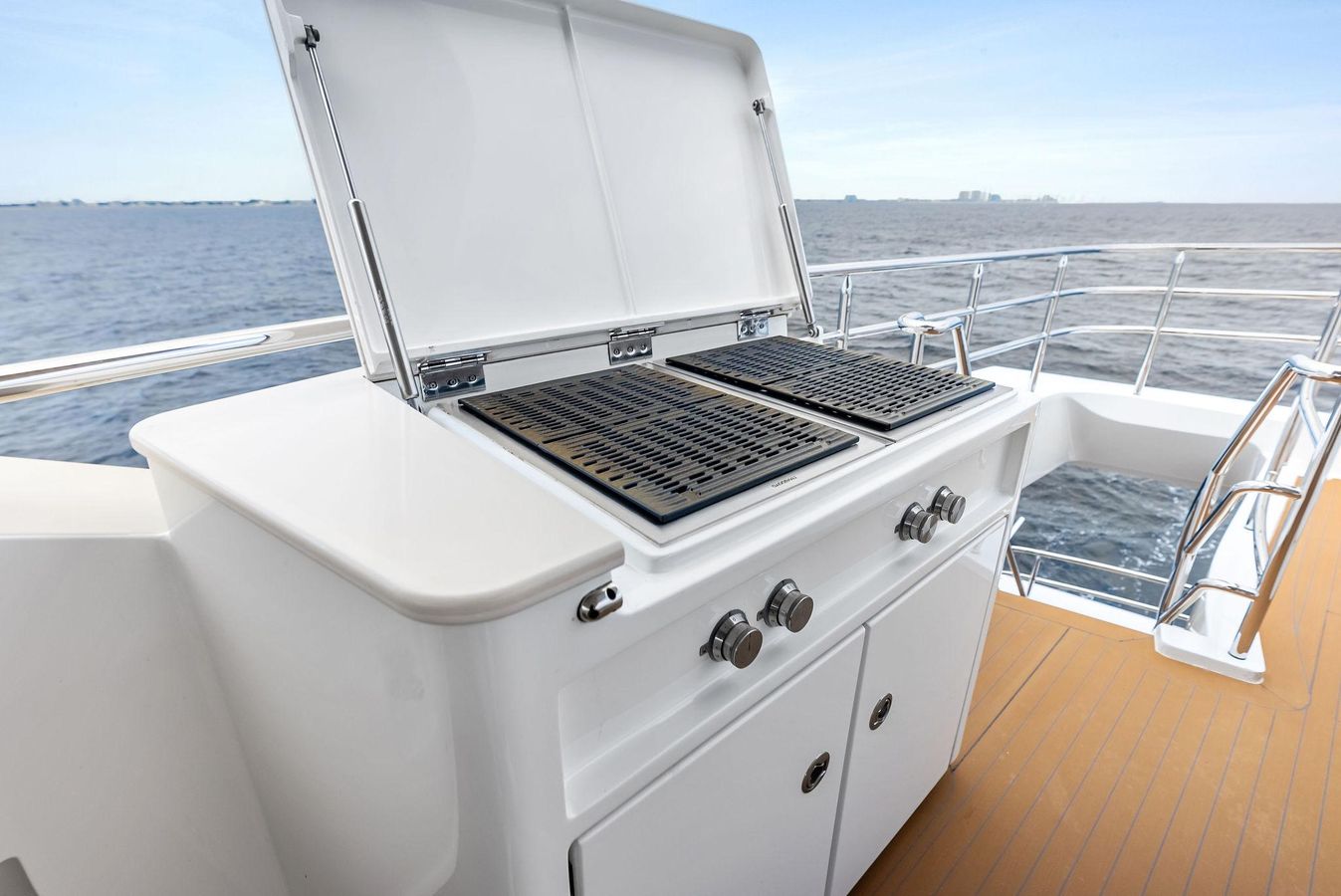

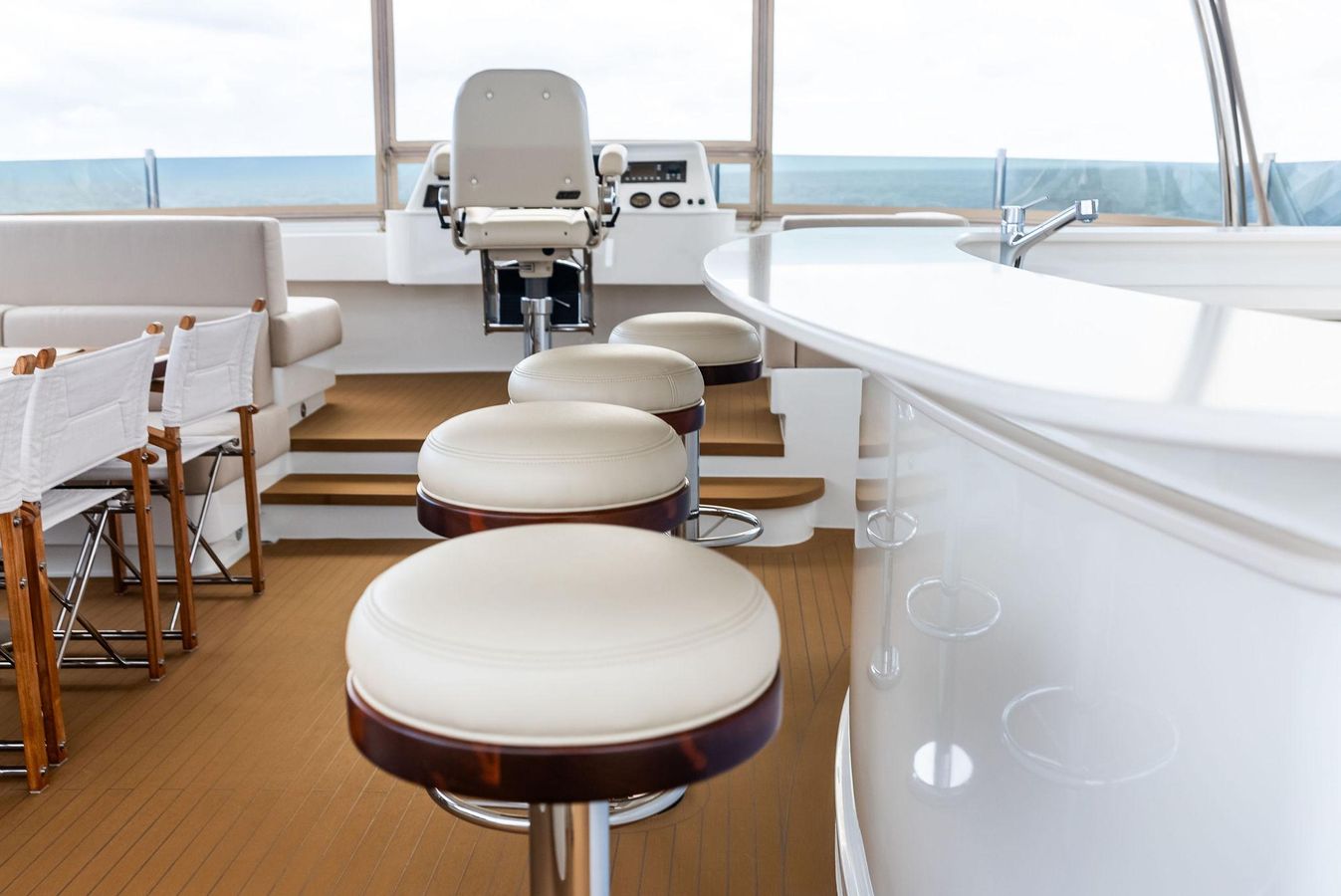

Custom covers shall be made with Sunbrella Exterior Canvas for the following Sundeck items: Sundeck Helm Station, Helm Chair, Bar, Bar Stools, Built in Settees, Settee Tabletop, Hot Tub, Sun Pad, Grill. Covers are also provided for: Tenders, Search light, Air Horn, Ship Bell, Anchor Windlasses, Bridge Deck Tabletop, Bridge Deck Chairs, Bridge Deck Settee, Bridge Deck Settee Tabletop, Bridge Deck Lounge Chairs, Fighting Chair and Capstans. Removable, snap-on mesh shades cover one window on each side of the pilothouse.

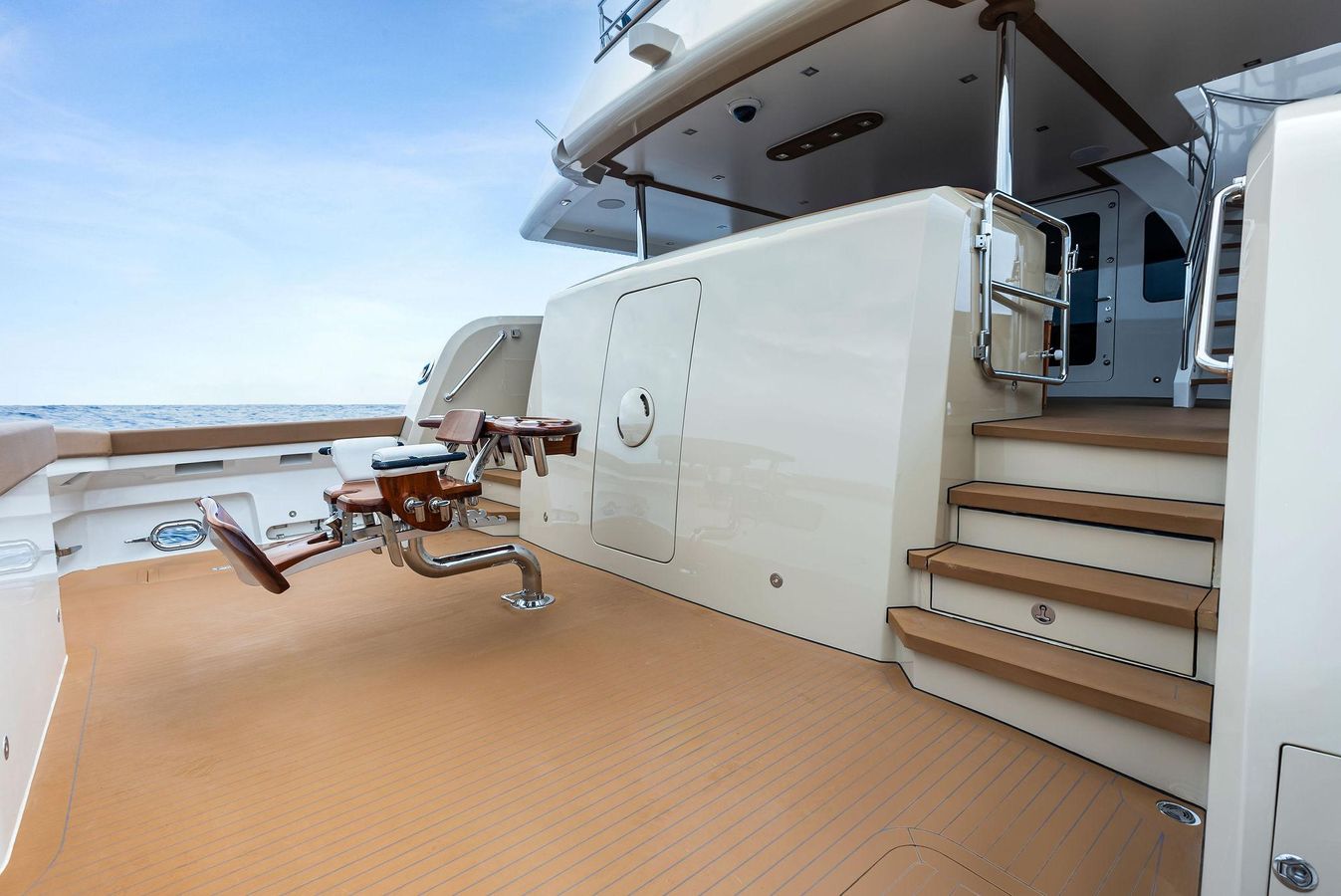

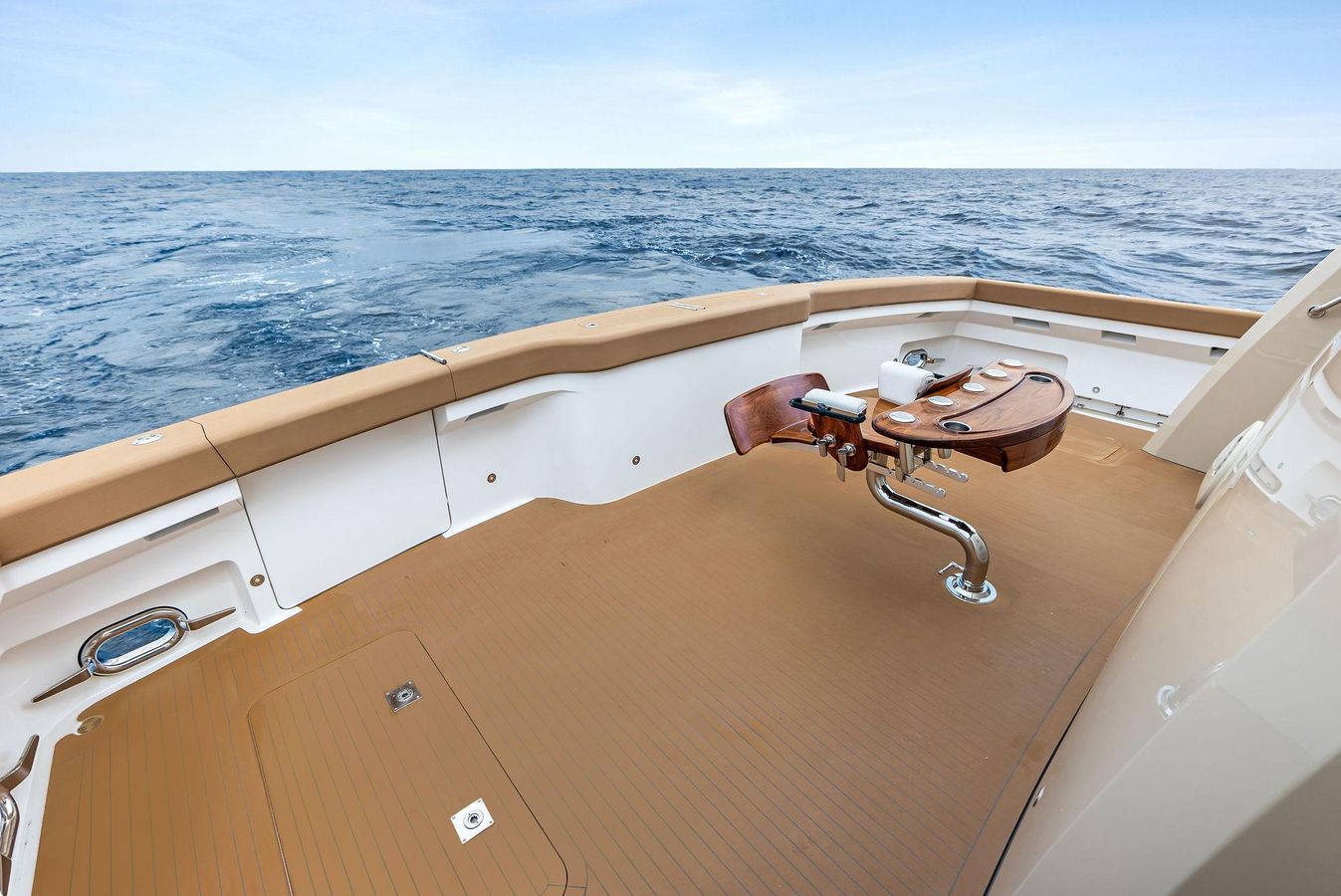

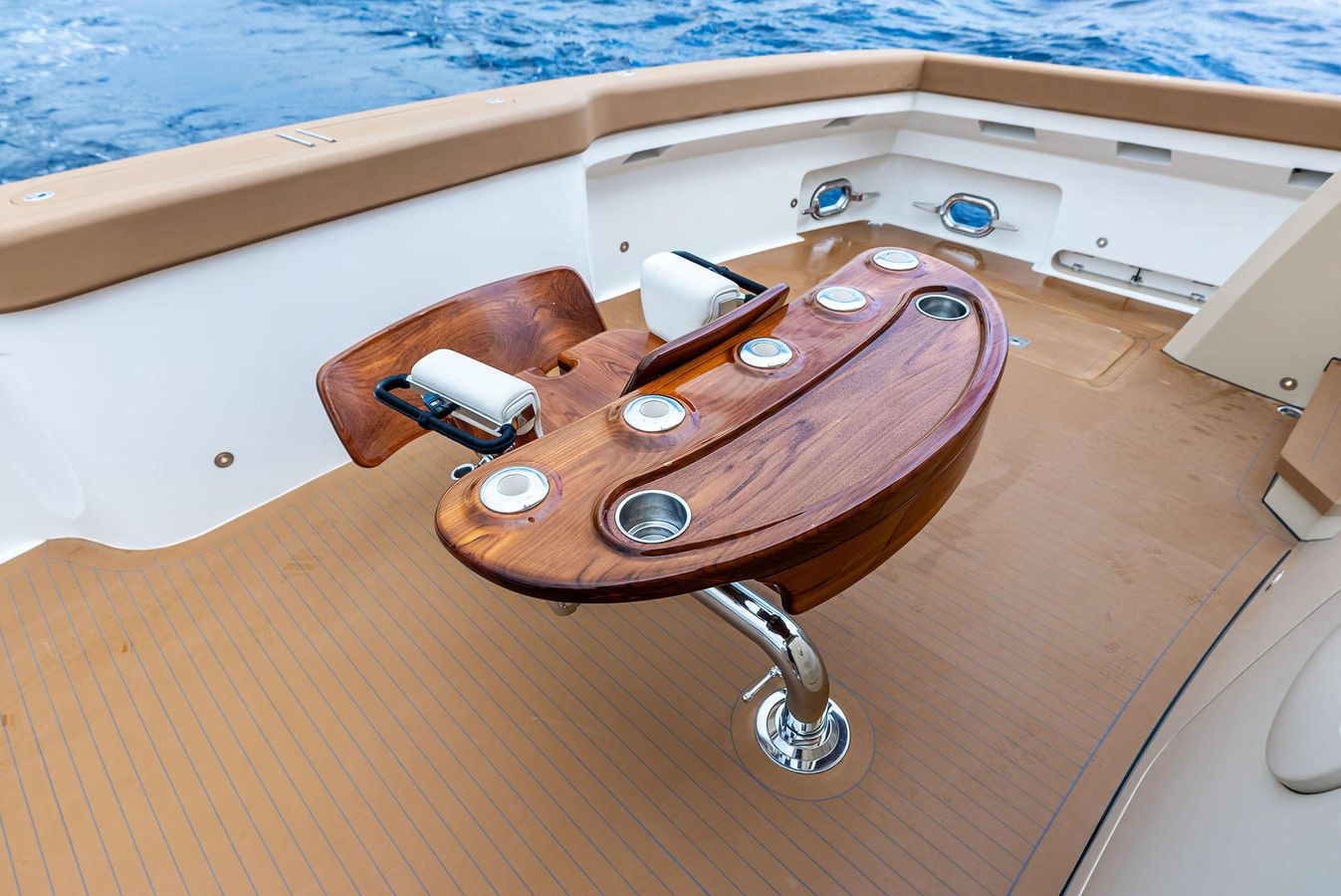

Fishing Gear
- Live-well - Installed in the aft end of the cockpit bulwarks with a dedicated circulation pump.
- Insulated Fish Box - Connected to an Eskimo ice system.

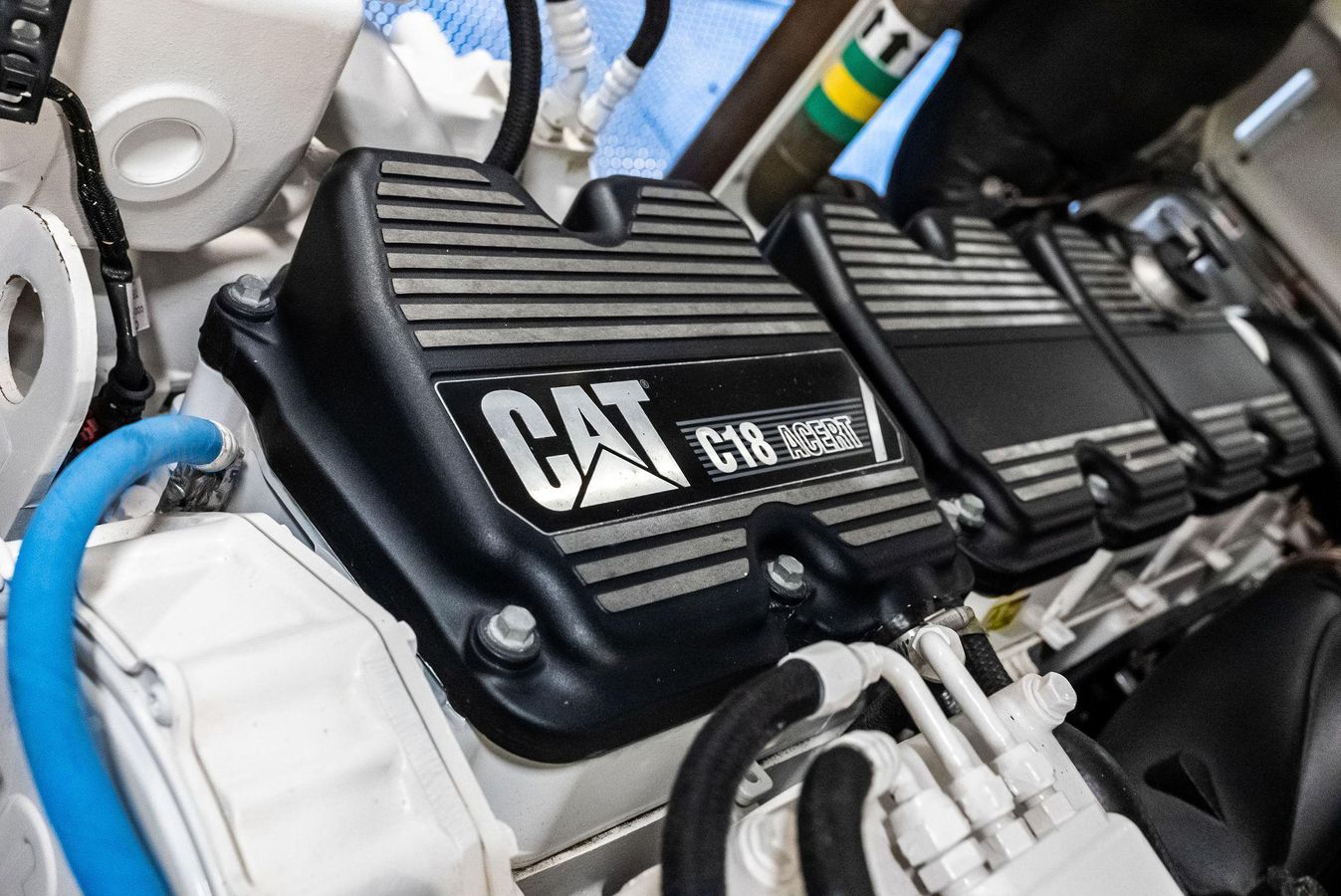

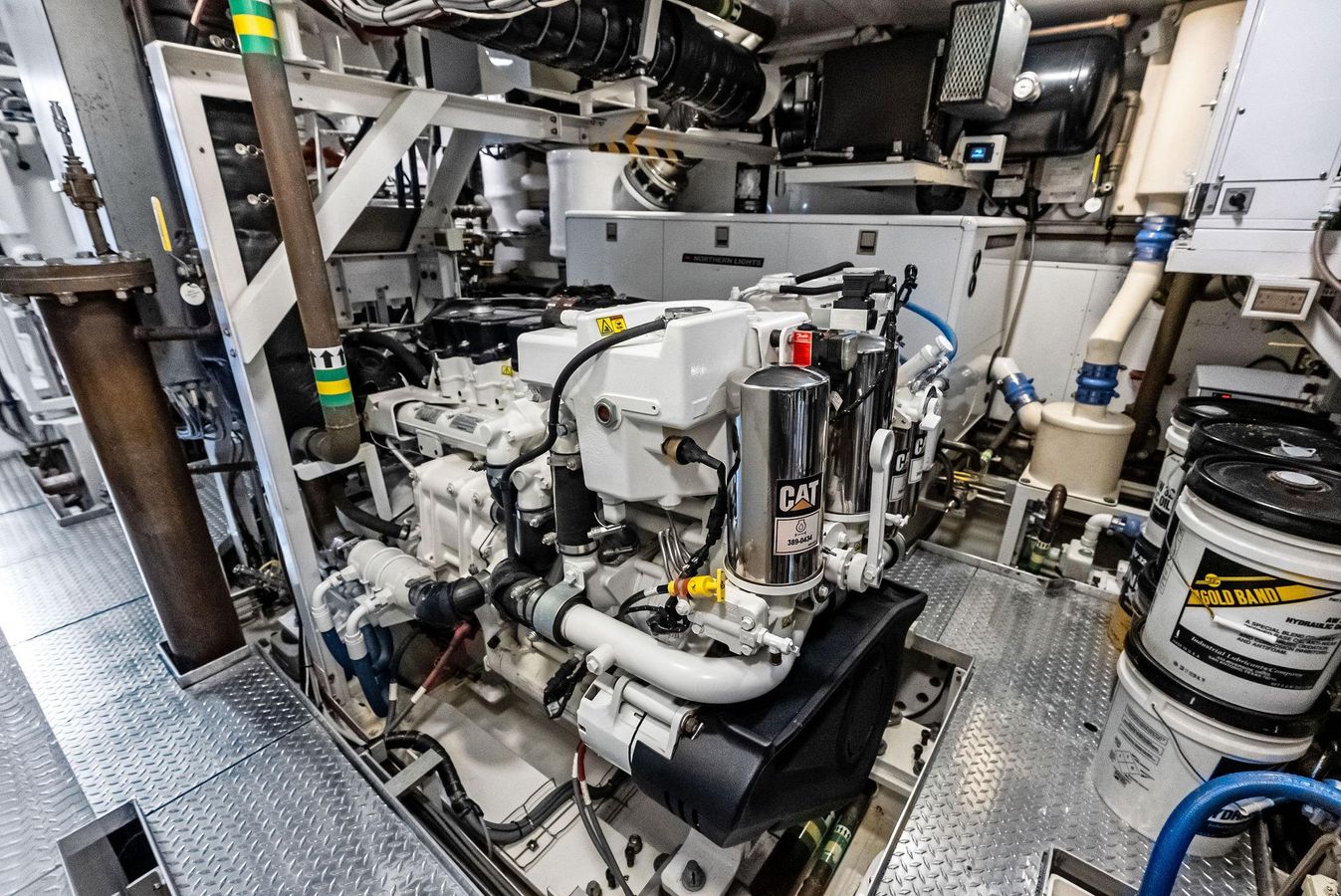

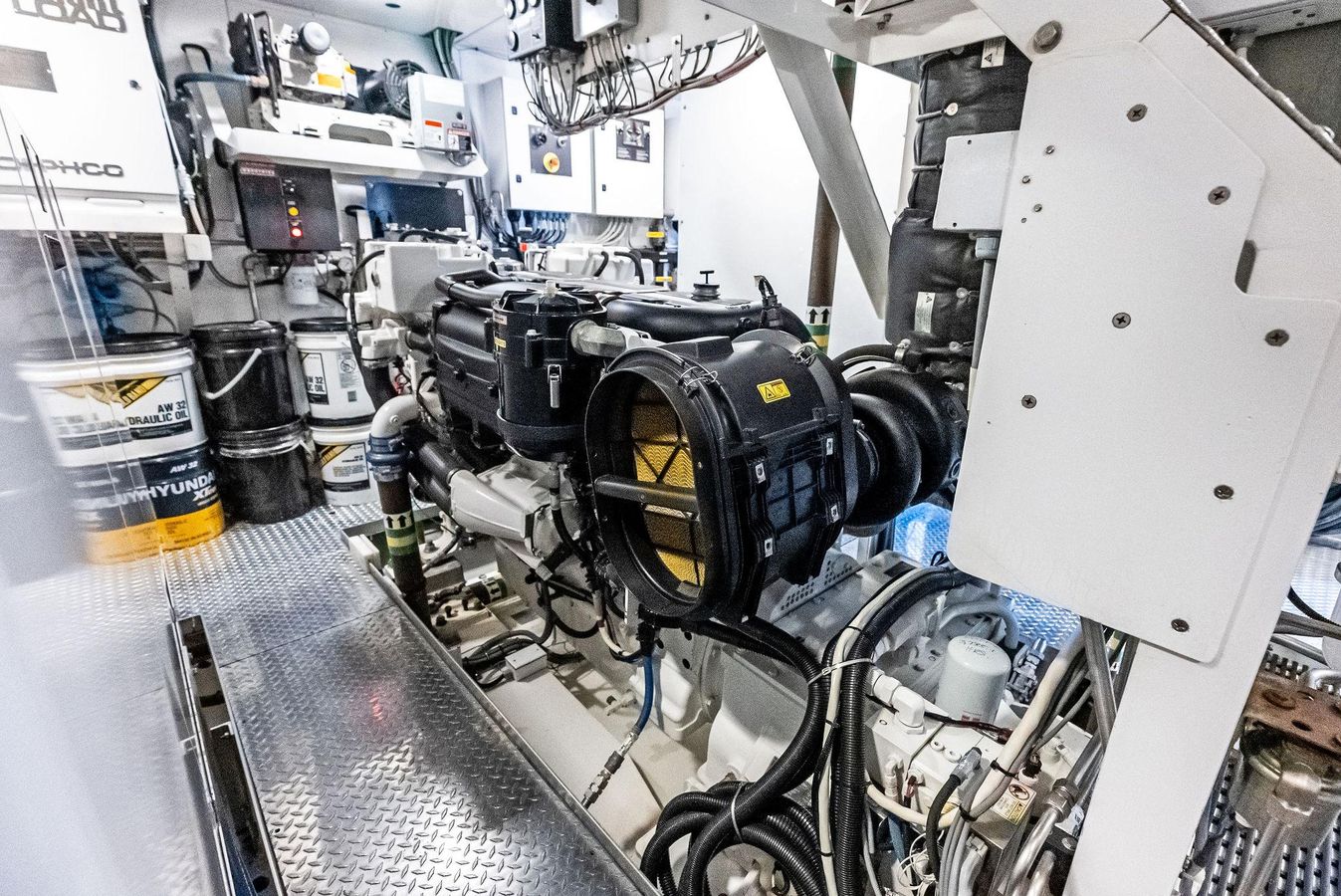

- Propulsion Engines - Two Caterpillar C18 ACERT propulsion engines with 475 bhp (350 bKW) at 1800 RPM
- Reduction Gears - Two Twin Disc electronic shifting configured for outboard turning propulsion shafts in Awlgrip's Matterhorn White.

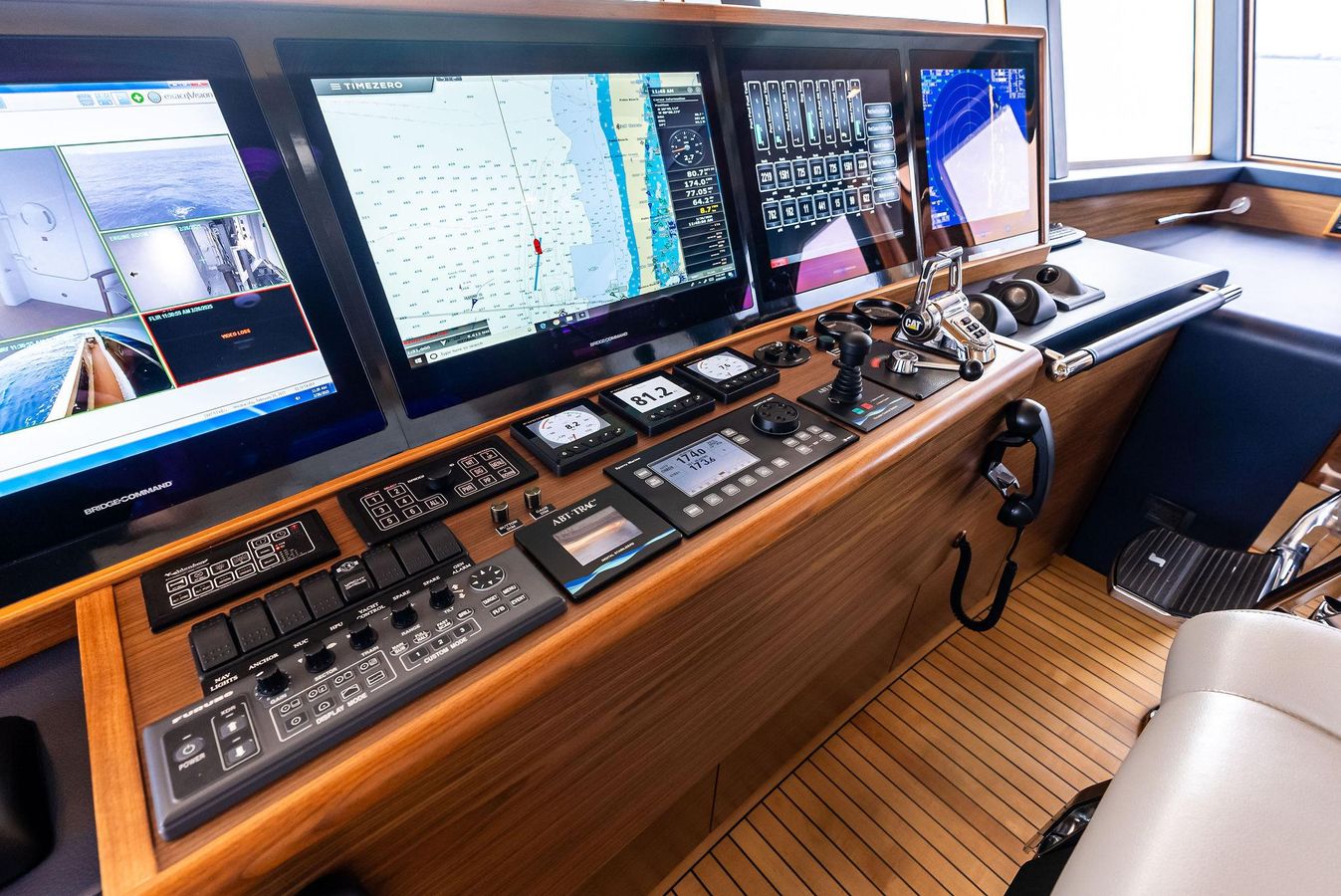

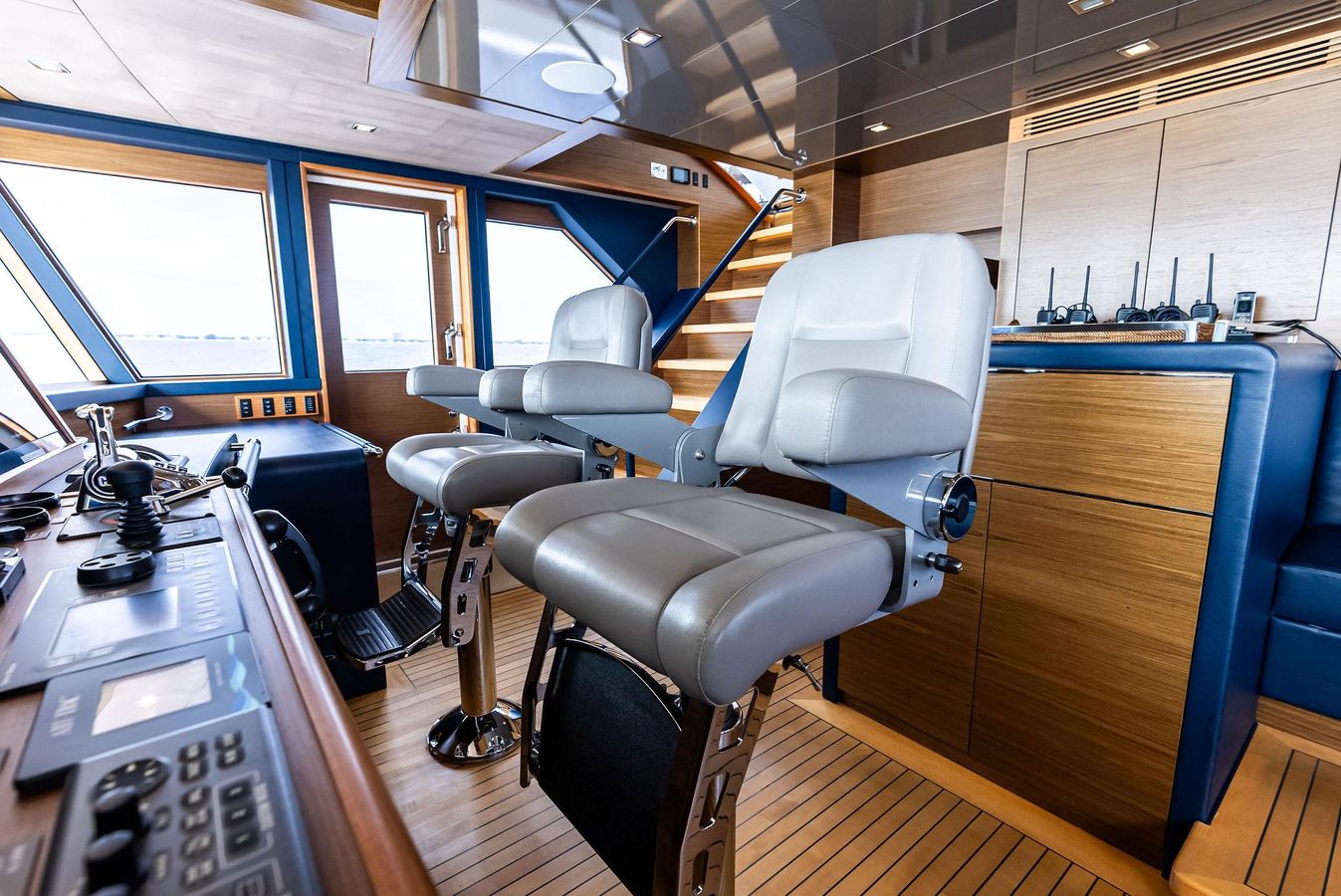

Propulsion Engine and Reduction Gear Controls

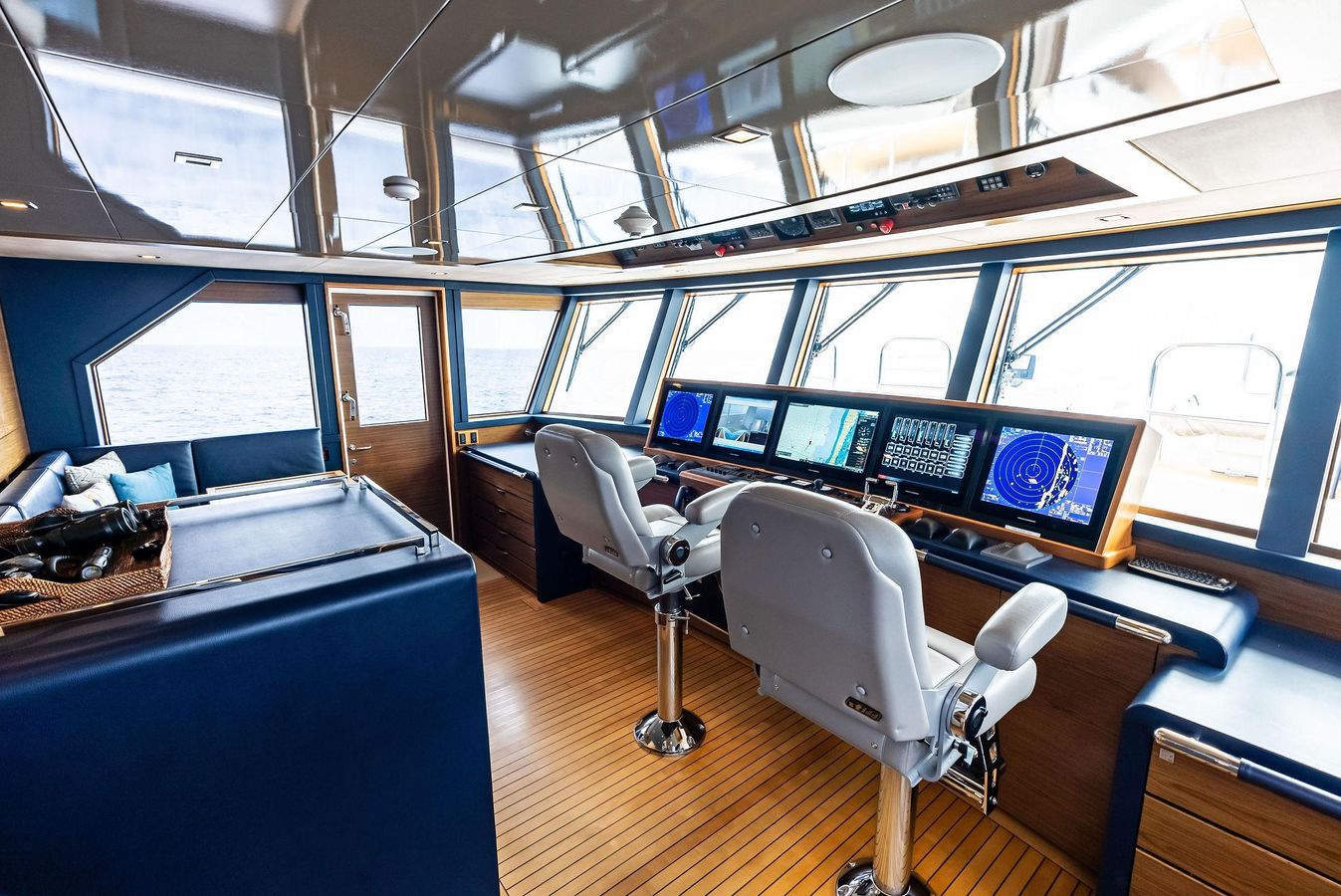

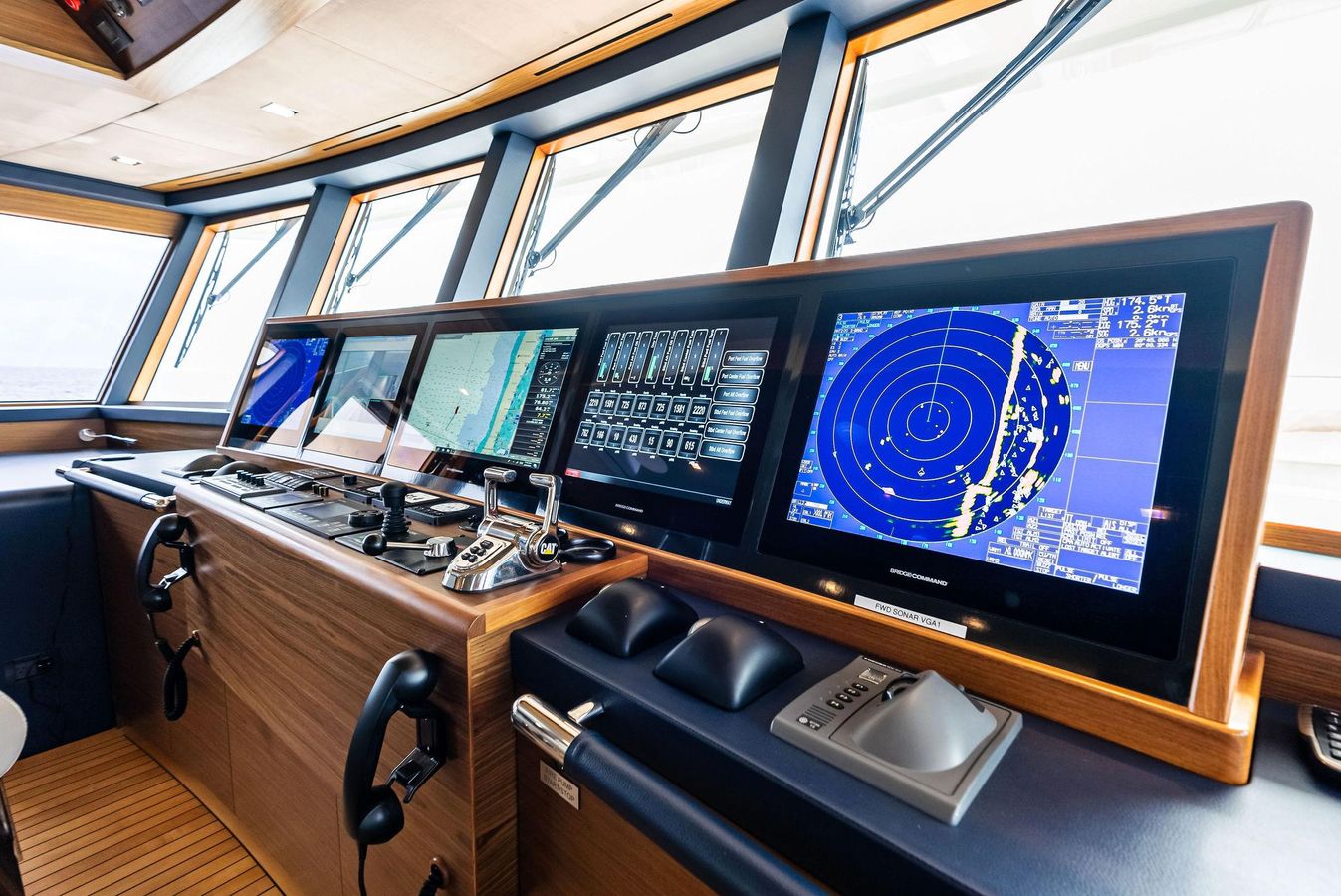

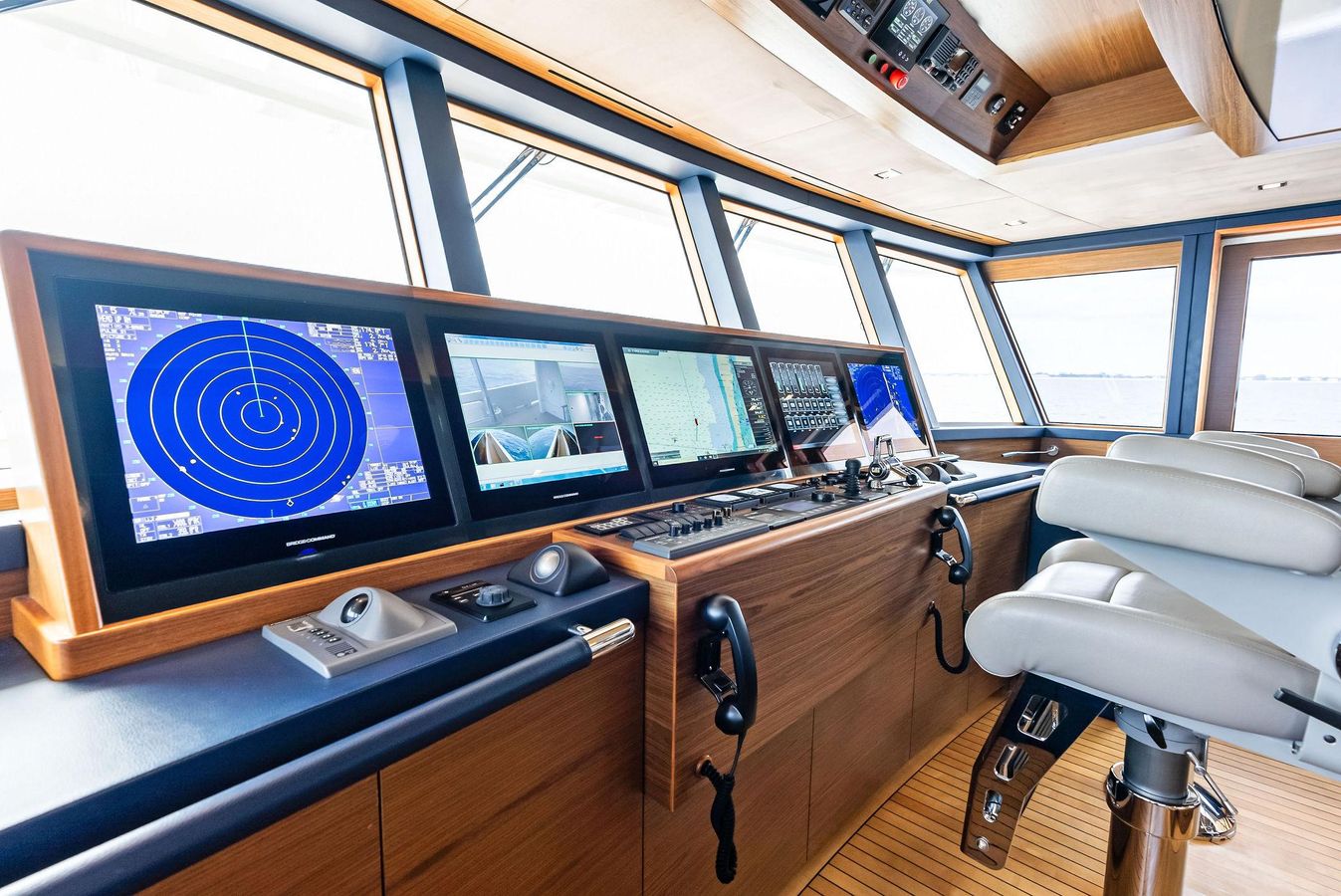

Control station in the pilothouse, port and starboard wing stations, flybridge. Includes Engine throttle synchronization and dimmable illuminated equipment. Marine Power Display monitoring units at the main control station in the pilothouse and at the flybridge control station. Vibration isolation mounts installed.

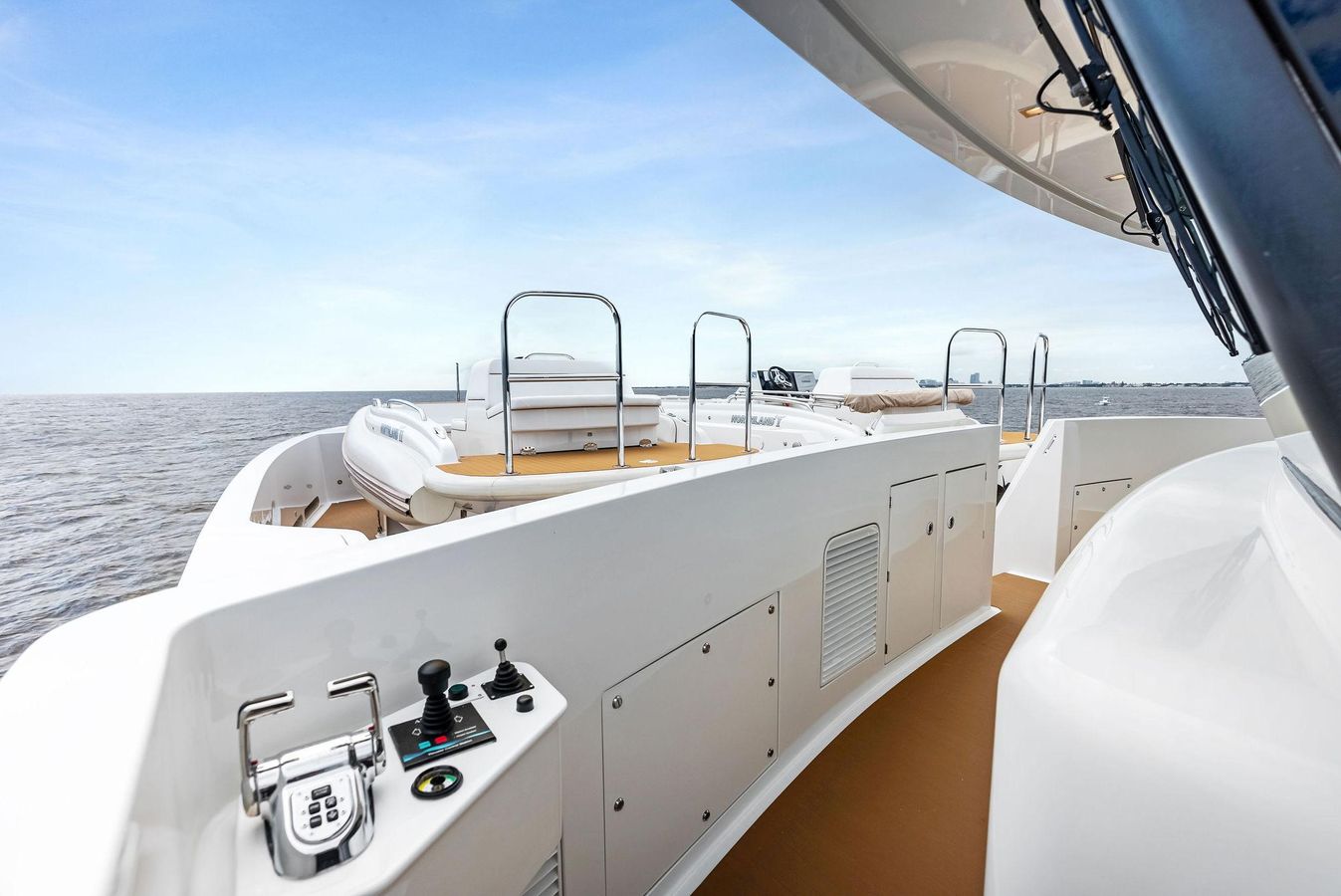

Yacht Controller
Wireless throttle and shift remote control including the operation of the bow thruster.
Propulsion Engine and Reduction Gear Monitoring
Caterpillar digital monitoring / display units located on or near the propulsion engines in the machinery area. Caterpillar color Marine Power Display monitoring units at the main control station in the pilothouse and at the flybridge control station.
Propellers
Michigan Wheel cast and machined from NiBrAI (Nickel Bronze Aluminum) with 5 blades, M-500 design
Propulsion Engine Exhaust System
Hot Gas Piping, Water Injection Fittings, Flexible Compensators, Vibration Isolators, Primary Silencer and Underwater Exhaust Discharge Cowl, Bypass Circuit and Silencer, Wet Exhaust Piping, Overboard Valves, and Overboard Piping.
Generator Exhaust System
Includes Water Injection Fitting, Flexible Compensators, Primary Silencer, Secondary Silencer, Vibration isolation, Wet Exhaust Piping, Water Drain Piping, Overboard valves and Overboard piping.
Steering System
The primary features and components of the steering system are as follows: Steering Hydraulic Pumps and Reservoir,
Steering Control System, Steering Input Devices, Autopilot Interface, Rudder Feedback Unit(s), Relief Valves, Steering Hydraulic System Piping, Rudder Synchronization, Steering Actuators, Tiller Arms, Rudders, Rudder Tubes, Rudder Bearings & Seals, Adjustable tie rod between the tiller arms
Hydraulic System
In addition to independent hydraulic system for the steering system is a multi-consumer hydraulic system with primary features and components as follows: Hydraulic Power Unit (HPU), HPU Hydraulic Oil Cooler, HPU Sea Water Cooling Pump, HPU PTO (Power Tak, e-Off) Pumps, HPU Electronic Control Systems, Hydraulic Manifolds, Hydraulic System Piping, and Hydraulic System Cooling Water Piping,
Stabilization System
The primary features and components of the stabilizer system are as follows: Stabilizer fins, Stabilizer fin Actuators, Stabilizer Hydraulic Actuation System, and Stabilizer Electronic Control System.
Bow Thruster System
The primary features and components of the bow thruster system are as follows: Bow Thruster Motor, Bow Thruster Tunnel Assembly, External Tunnel Grates, Bow Thruster Hydraulic Actuation System, Bow Thruster Electronic Control System and Gear Oil Header Tank
Passerelle
Hydraulically actuated (extension and elevation with a 20" wide walking surface.
Raw Water System
The primary features and components of the raw water system are as follows: Hull Connections and Overboard Piping, Sea Chest Hull Strainers, Valves, Sea Chests, Sea Strainers, Sea Chest Crossover Piping, Raw Water Distribution Piping, Galvanic Corrosion Protection of Raw Water Piping

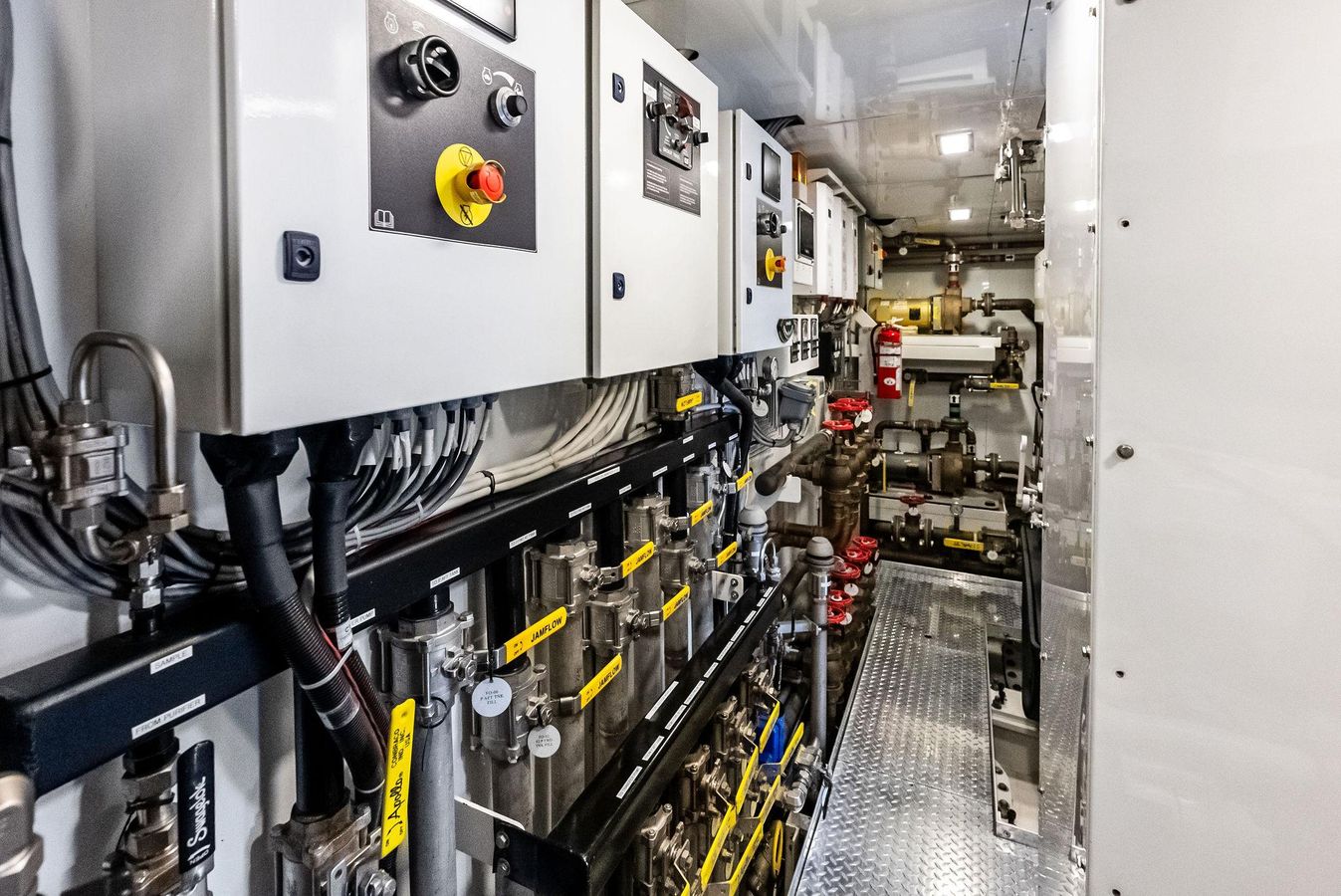

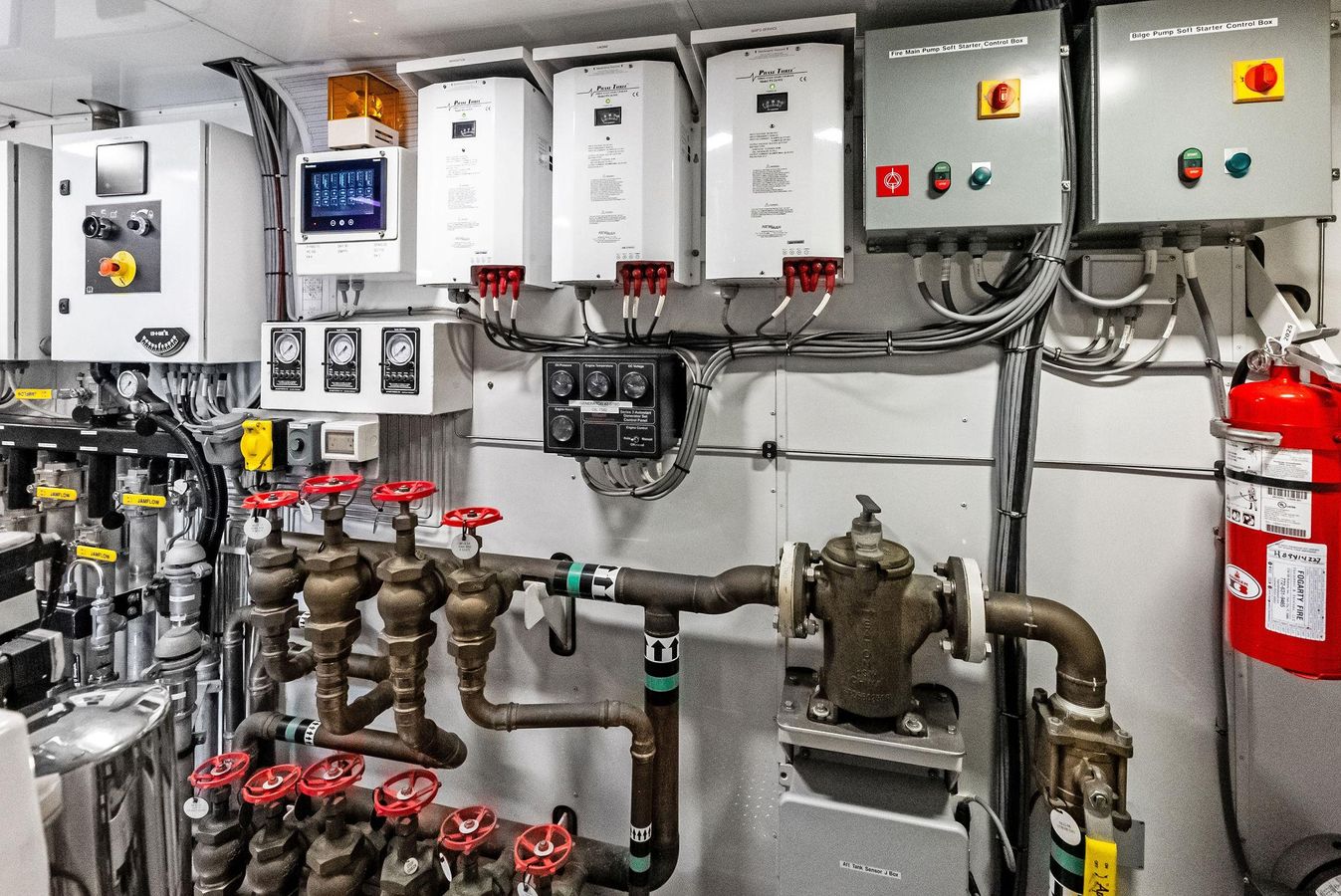

Fuel Oil System
The primary features and components of the fuel oil system are as follows: Fuel Oil, Gasoline Storage, Fuel Oil Storage Tanks, Fuel Oil Day Tank, Fuel Oil Transfer Pump, Fuel Oil Purifier, Fuel Oil Suction / Stripping Manifold, Fuel Oil Fill / Transfer Manifold, Fuel Oil Utility/ Priming Pump, Propulsion Engine Priming Pumps, Generator Fuel Oil Priming Pumps, Propulsion Engine Primary Fuel Oil Filters, Generator Primary Fuel Oil Filters, Fuel Oil Tank Vent Odor Filter, Fuel Oil Tank Vent Piping, Fuel Oil Suction / Stripping Piping, Fuel Oil Fill/ Transfer Piping, Fuel Oil Service Piping, Fuel Fill Stations, Tender Fueling Arrangement, Placards
HVAC System
The primary features and components of the HVAC system are as follows: Air Handlers, Air Handler Controls, Air Handler Ducting, Air Handler to Room Openings, Fresh Air Make-Up, Ventilation Exhaust Fans, Exhaust Ducting, Galley Ventilation Fan System, Clothes Dryer Booster Fans, Clothes Dryer Ducting, Balancing Air Ducting, Exterior Louvers, Machinery Area Exterior Louvers, Moisture Separators, Electronics and Appliance Ventilation, Pilothouse Windows Defroster, Chain Locker Ventilation, Machinery Area Primary Ventilation Fans, Machinery Area Primary Ventilation Fan Control System, Machinery Area Smoke / Fire Dampers, Machinery Area Circulating Fans, Lazarette Ventilation
Lube Oil Transfer System
The primary features and components of the lube oil transfer system are as follows: LubeOil, Lube Oil Tanks, Clean Lube Oil Transfer Pump, Waste Lube Oil Transfer Pump, Clean Lube Oil Hose Reel, Waste Lube Oil Hose Reel, Lube Oil Transfer Piping
Tank Level Indication System
The primary features and components of the tank level indication system are as follows: Electronic Level Sensors, Pneumatic Level Sensors
Bulkhead, Deck and Tank(s) Penetration System Description, Design and General Concept
The primary features and components of the bulkhead-deck-tank penetration system are as follows: Tank Penetrations, Watertight Bulkhead and Deck Penetrations, Fire Rated Bulkhead and Deck Penetrations, Other Penetrations.
Compartment and Deck Drain
The primary features and components of the compartment and deck drain system are as follows: Deck Drain Collection Points, Deck Drain Grills, Deck Drain Piping, Compartment Drain Points, Compartment Drain Piping, Drain Overboard Penetrations
Black Water System
The primary features and components of the black water system are as follows: MSD (Marine Sanitation Device), MSD Sea Water Pump, MSD Controls, Toilets, Black Water Holding Tank, Black Water Discharge Pump, Black Water Holding Tank Vent Odor Filter, Black Water Piping To Tank, Black Water Treatment and Discharge Piping, Black Water Overboard Piping, Black Water Tank Vent Piping, Black Water Shore Discharge Connection, Crossover To Grey Water System For Pump-Out Or Additional Storage
Grey Water System
The grey water system collects, stores, and discharges overboard or ashore, grey water from the vessel's sinks, showers, clothes washers, dish washers, ice makers, and condensate drains. Each drain includes a trap which is easily accessible for maintenance. The primary features and components of the grey water system are as follows: Lift Stations, Grey Water Holding Tank, Grey Water Discharge Pump, Grey Water Holding Tank Vent Odor Filter, Grey Water Piping To Tank, Grey Water Discharge Piping, Grey Water Overboard Piping, Grey Water Tank Vent Piping, Grey Water Shore Discharge Connection, Crossover To Black Water System
Bilge System
The primary features and components of the bilge system are as follows: Primary Bilge Pump, Bilge Manifold, Bilge Pump Suction Strainers, Chain locker Compartment Bilge Eductor, Bilge Suctions, Bilge Alarm Sensors, Bilge Suction Piping, Bilge Pump Suction and Discharge Piping, Bilge Overboard Discharge Piping, Handling of Oily Bilge Water, Placards
Fire Main System
The primary features and components of the fire main system are as follows: Primary Fire Pump, Fire Fighting Stations, Fire Pump Suction and Fire Main Piping, International Shore Connection
Fresh Water System
The primary features and components of the fresh water system are as follows: Fresh Water Holding Tank(s), Fresh Water Shore Fill Connection, Desalinators, Fresh Water Sterilizer, Fresh Water System Filtration, Fresh Water Distribution Piping, Fresh Water Tank Vent Piping, Fresh Water Pumps, Fresh Water Expansion Tank, Water Heaters (2), Water Softener, Hot Water Circulating Pump, Water Softener, and Deck Wash Stations.
Compressed Air System
The primary features and components of the compressed air system are as follows: Air Compressor, Refrigerated Dryer, Compressed Air Receiver, Automatic Condensate Drain Valve, Compressed Air Stations, Compressed Air Piping
Fire Suppression System
The primary features and components of the machinery space fire suppression system are as follows: Suppression System Package, Nozzles, System piping, System Release, Electrical Equipment Shut-Down
AC Power System
The AC power system is a three phase grounded neutral 60 Hz system. It provides all AC power for the VESSEL. System voltage is 208/120 VAC.
AC Power Distribution

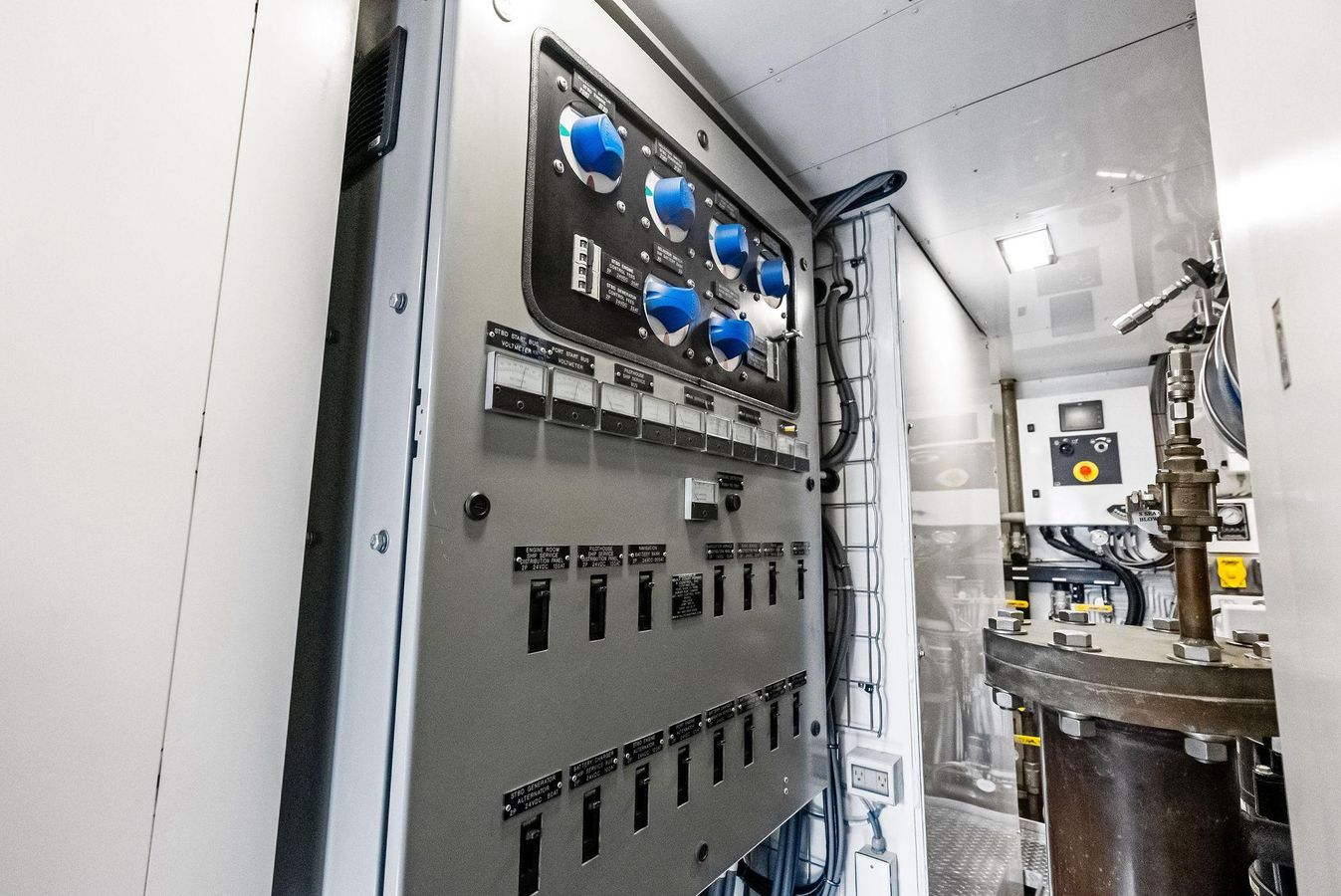

The main switchboard will supply electrical power to distribution panels in the following areas: Engine Room, Lower Deck Accommodations, Main Deck/Galley, and the Bridge Deck/Pilothouse.
DC Power System
The DC power system is provided using a two wire 24 volt battery system with negative lead. The DC power system is responsible for providing house loads and emergency loads with DC voltage as supplied by multiple battery banks. Batteries will be AGM type by Lifeline.

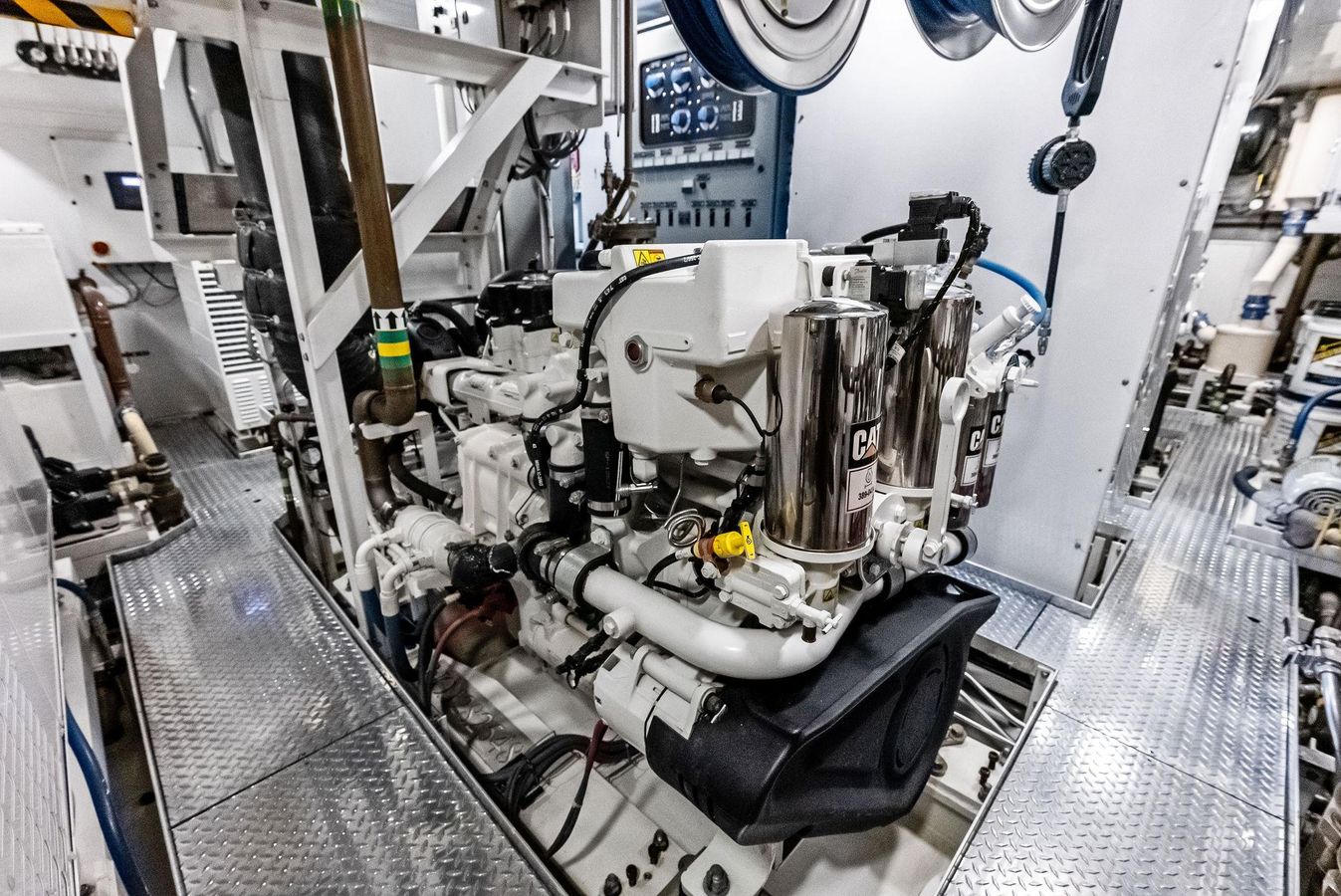

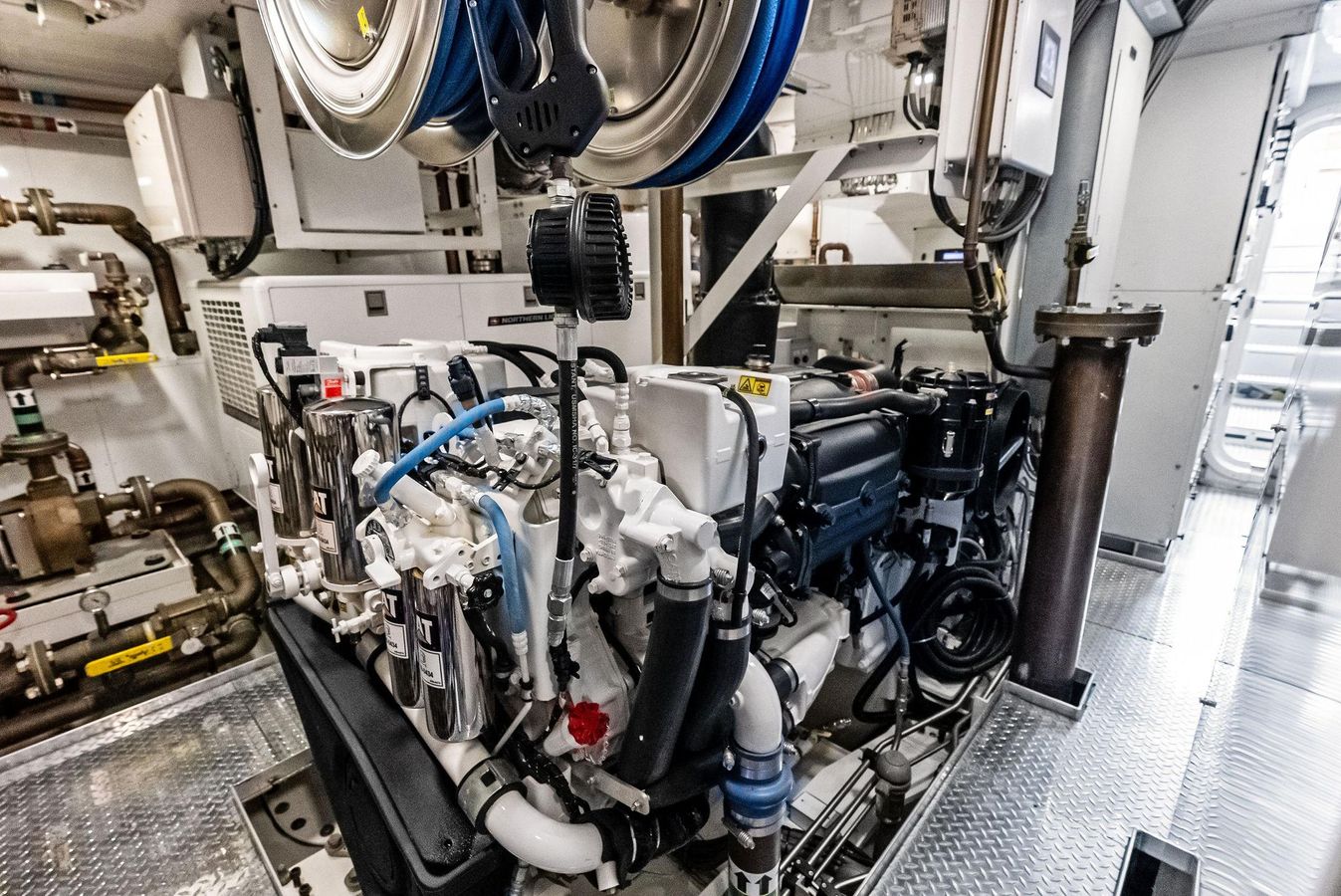

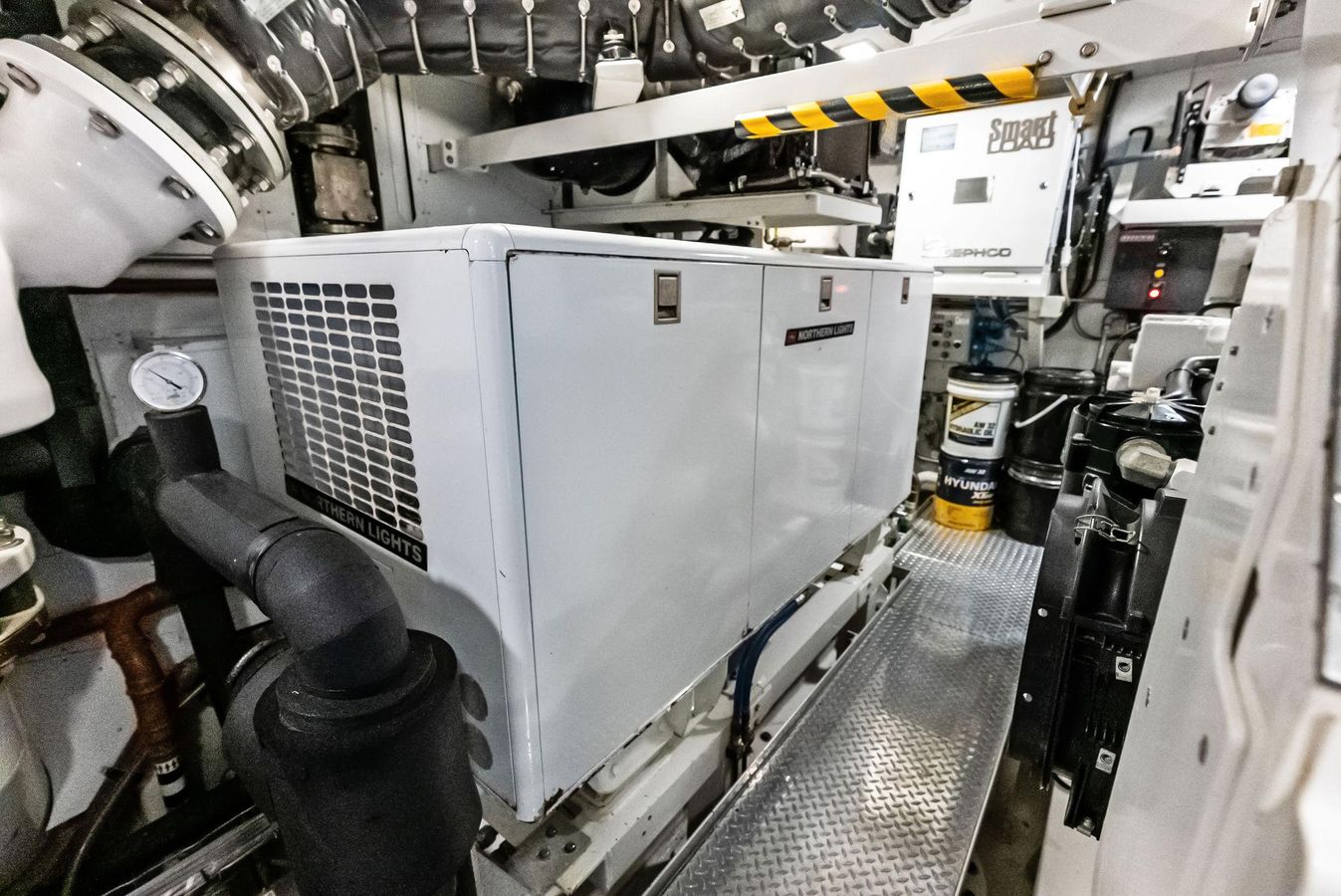

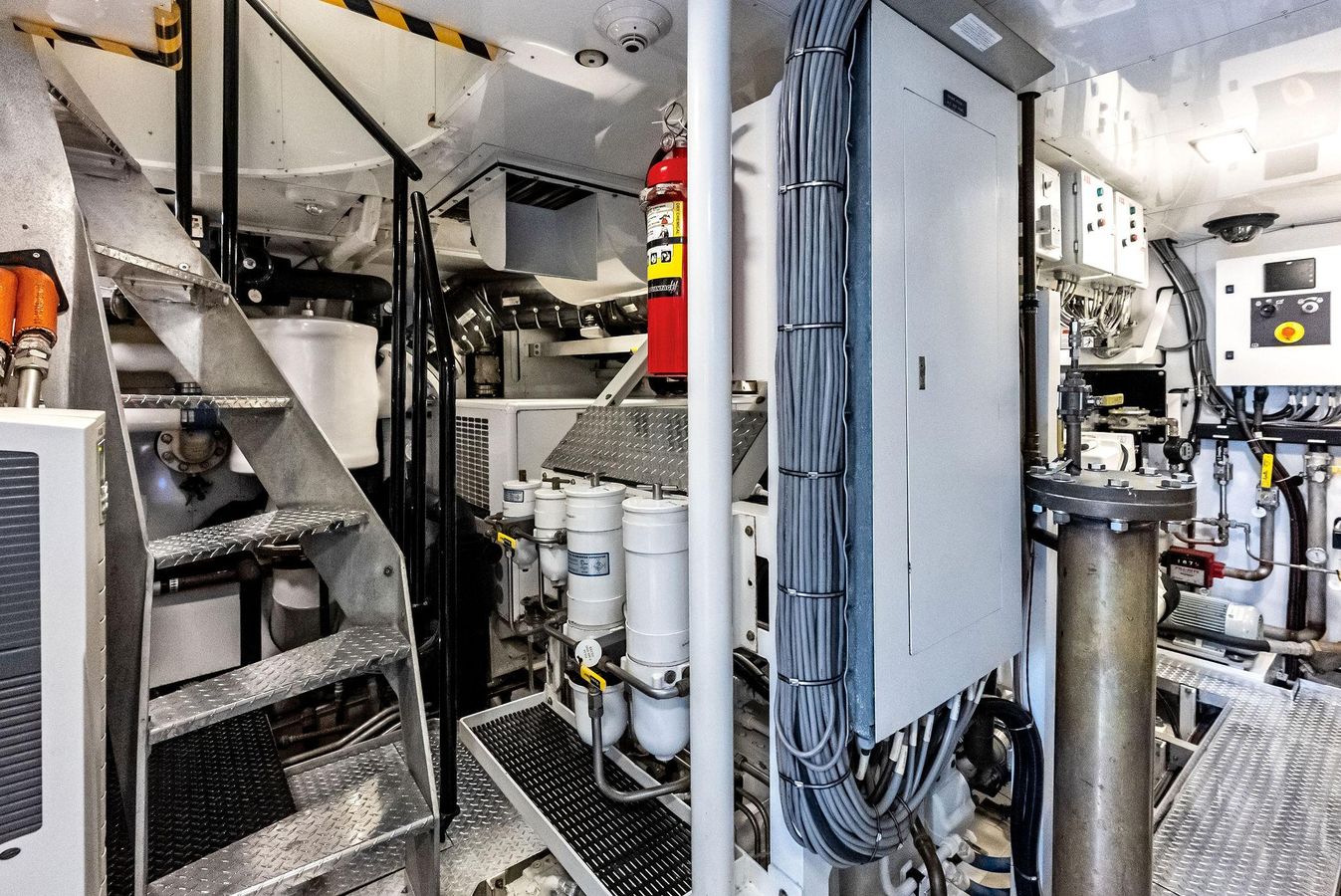

Generators

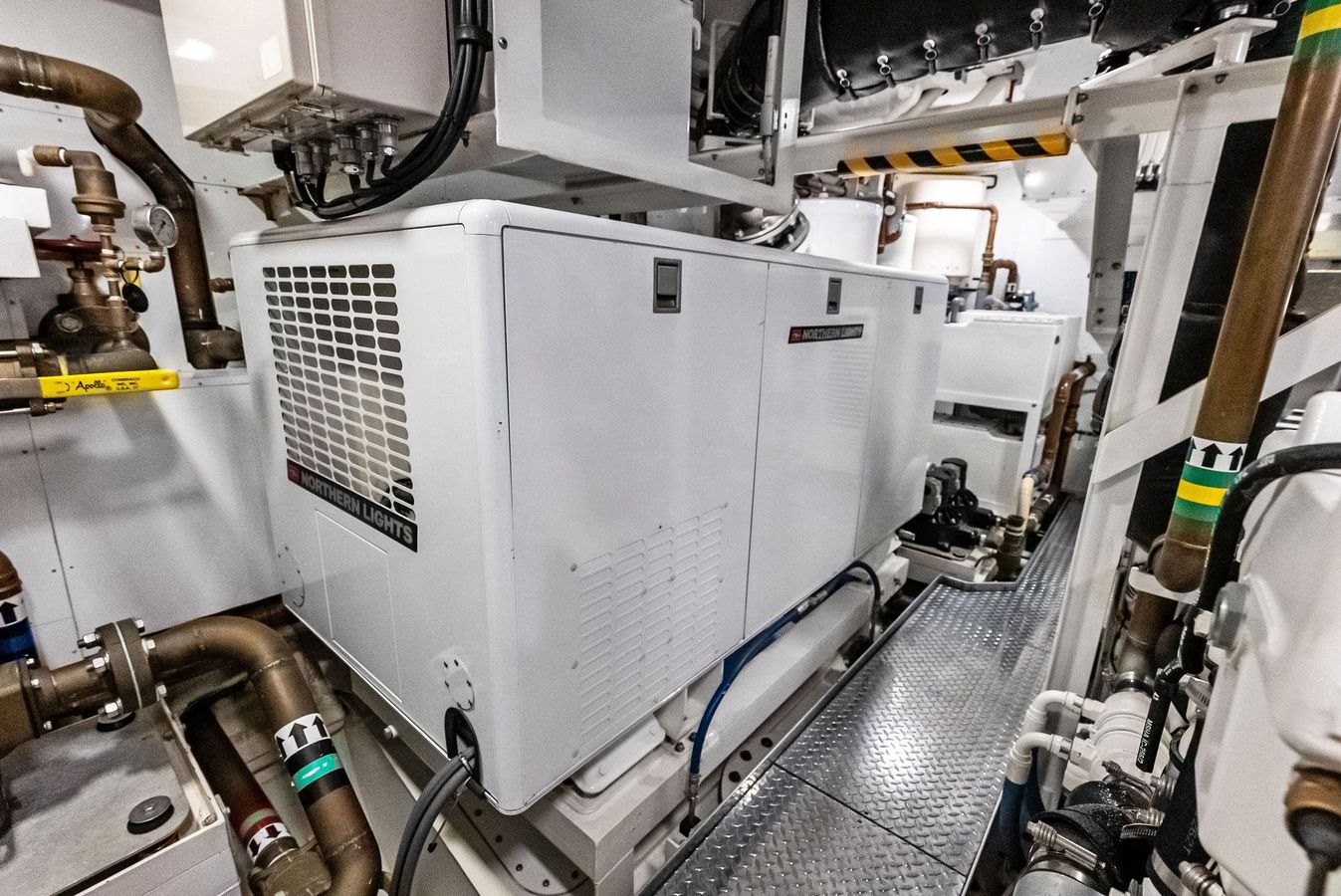

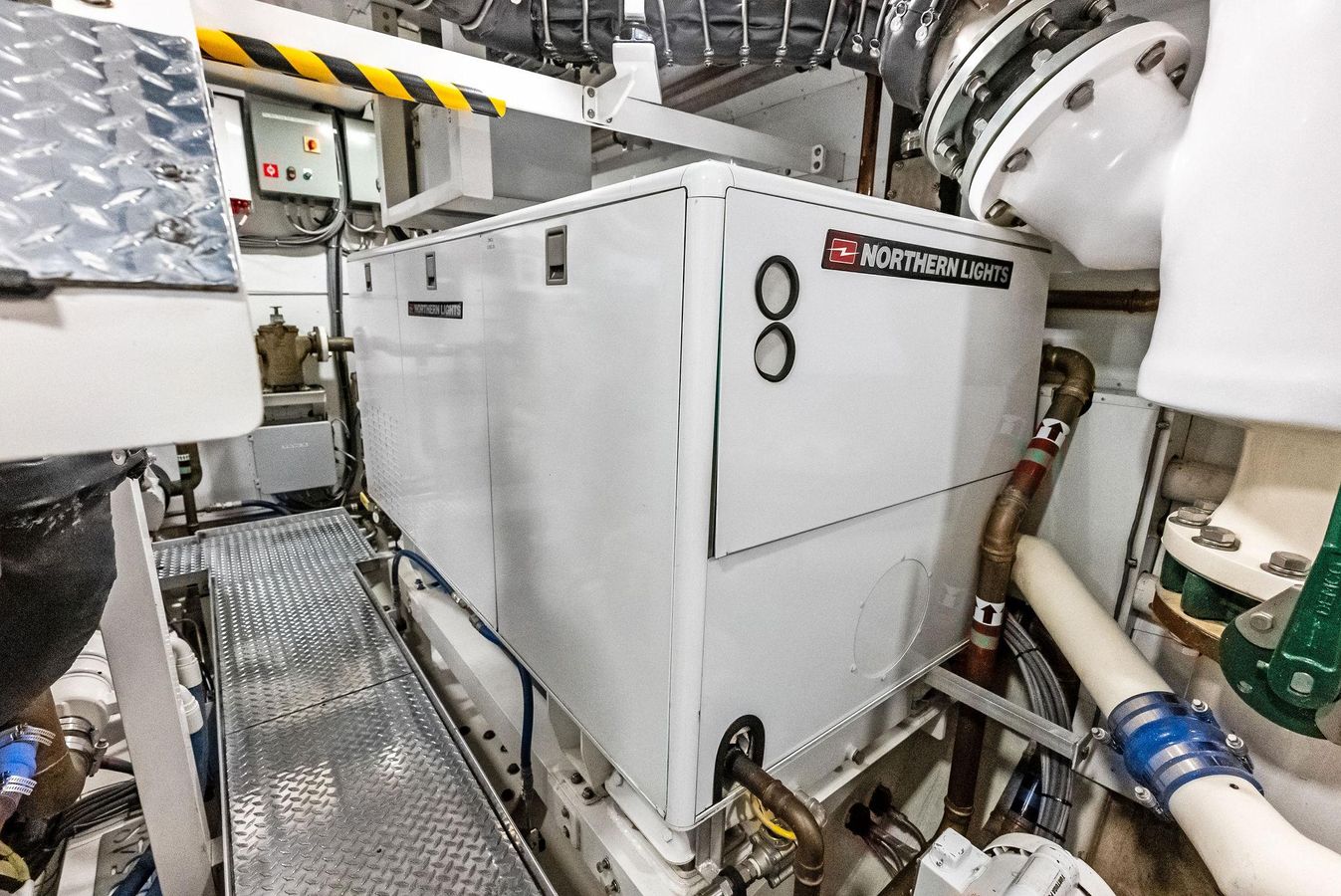

There are two (2) Northern Lights generators located in the engine room, each powered by an in-line marine diesel engine within a sound enclosure. The generator control panel(s) is located in the Engine Room. Generator function is monitored through manufacturer-provided displays.
Shore Supply
A shore power voltage and frequency converter is installed for direct shore power connection
Batteries
Propulsion Engine & Generator Start and Control Batteries, Ship's Service (House) Batteries (engine room), Navigation Electronics Batteries, Radio Batteries, and Emergency Batteries.
Battery Chargers
Sett-regulating and temperature sensing, automatic battery chargers are provided for the following systems: Propulsion engine & generator starting and control, Ship's service (house), Navigation electronics - Also configured to act as a backup to the emergency battery charger, Radio and Emergency.
Centralized Monitoring
A Centralized Monitoring System is installed onboard to monitor the tank levels, bilge and fire alarm systems, battery status and the other points that are monitored for pressure, open and close, temperature and liquid quantity or level.
Underwater Lighting
Sea Vision (Underwater Lights USA) SV 14 RGB model - Weld In LED Type (Qty. 4)

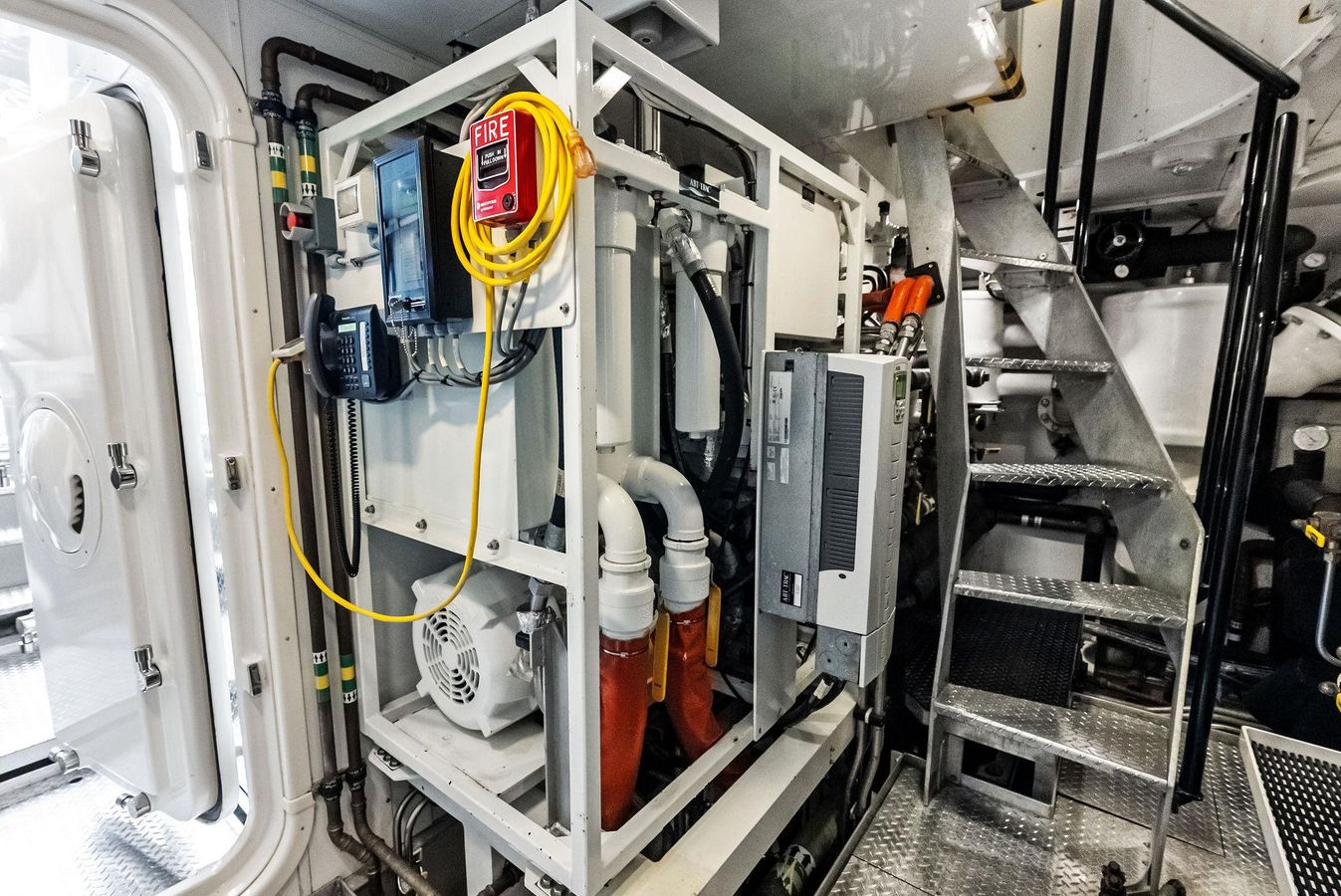

Fire Detection
A fire detection system and its equipment are installed on the vessel. The system is a stand-alone system that is also incorporated into the vessel's Centralized Monitoring System. The system will consist of: Smoke sensors in all accommodation spaces, storage areas, and technical spaces, Heat sensors in the galley and engine room, Manual alarm triggers at strategic locations and as required by statutory requirements, Audible alarms throughout the vessel, Alarm indicating panel in the pilothouse and the engine room, a flashing strobe and siren is placed in the engine room.
