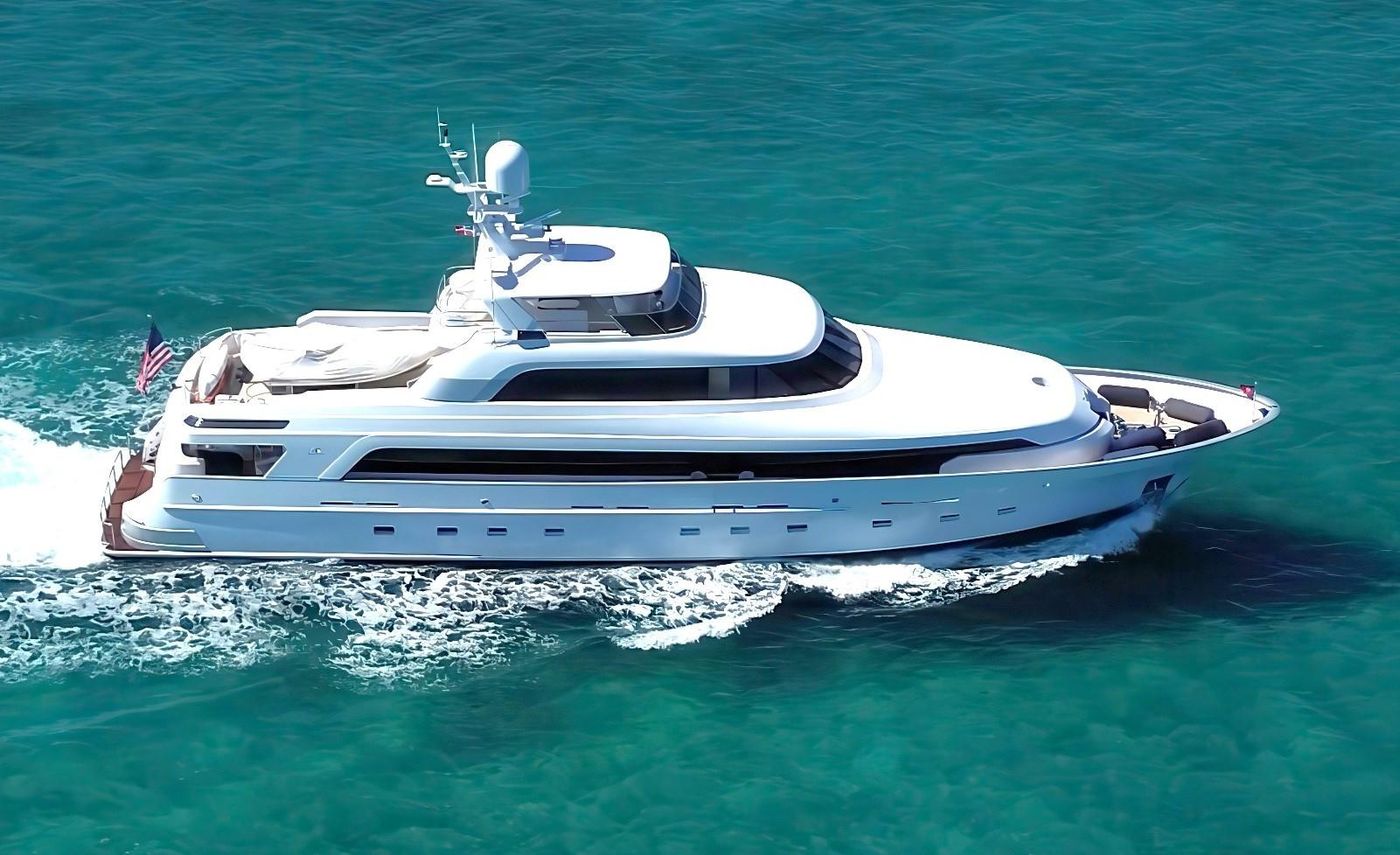

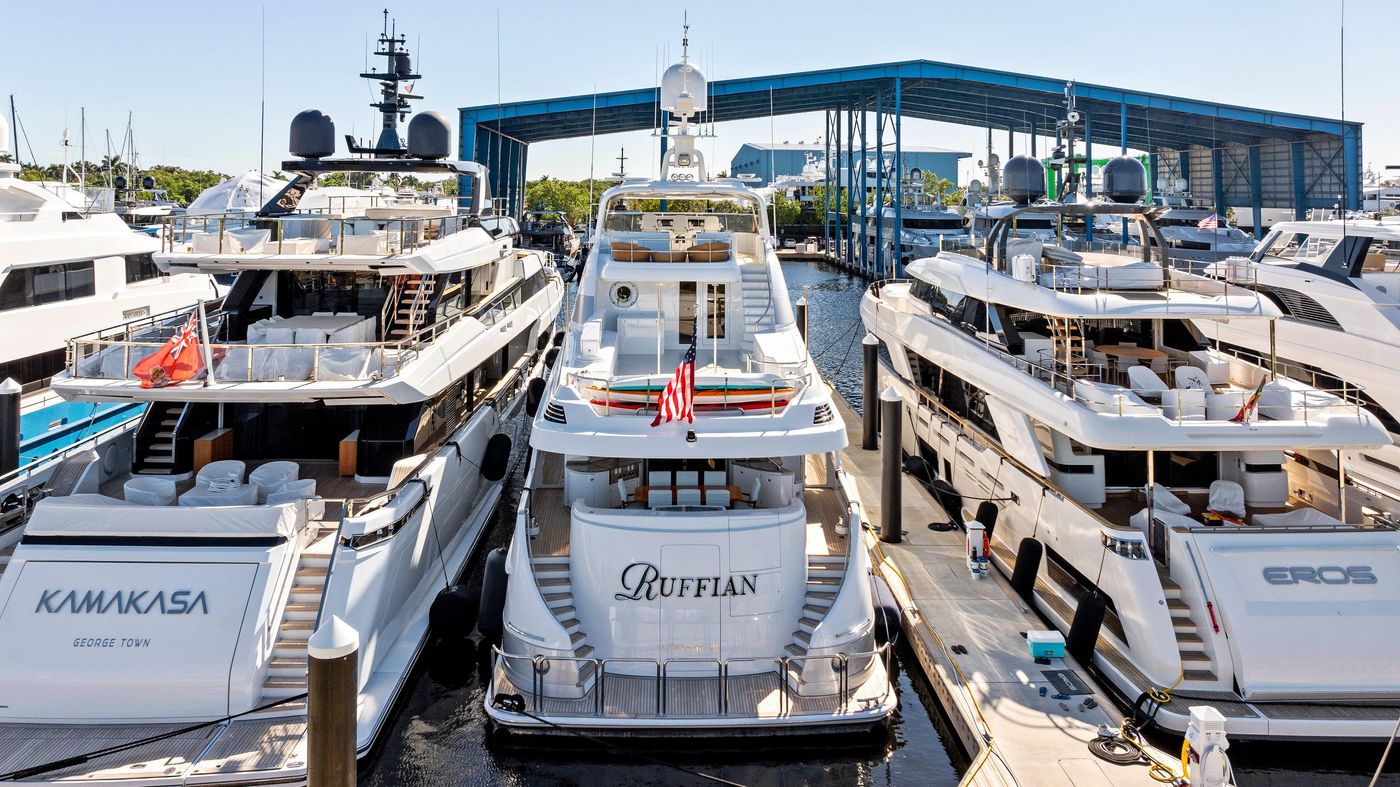

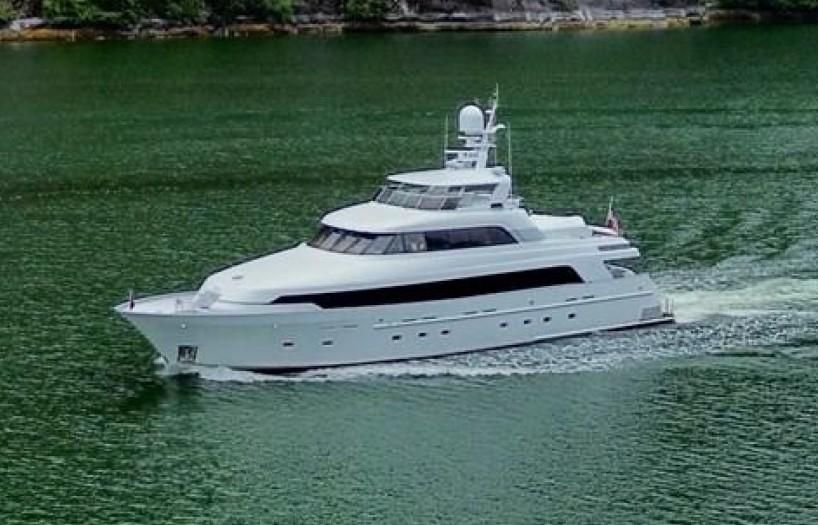

2001 Delta 124 Motor Yacht | RUFFIAN

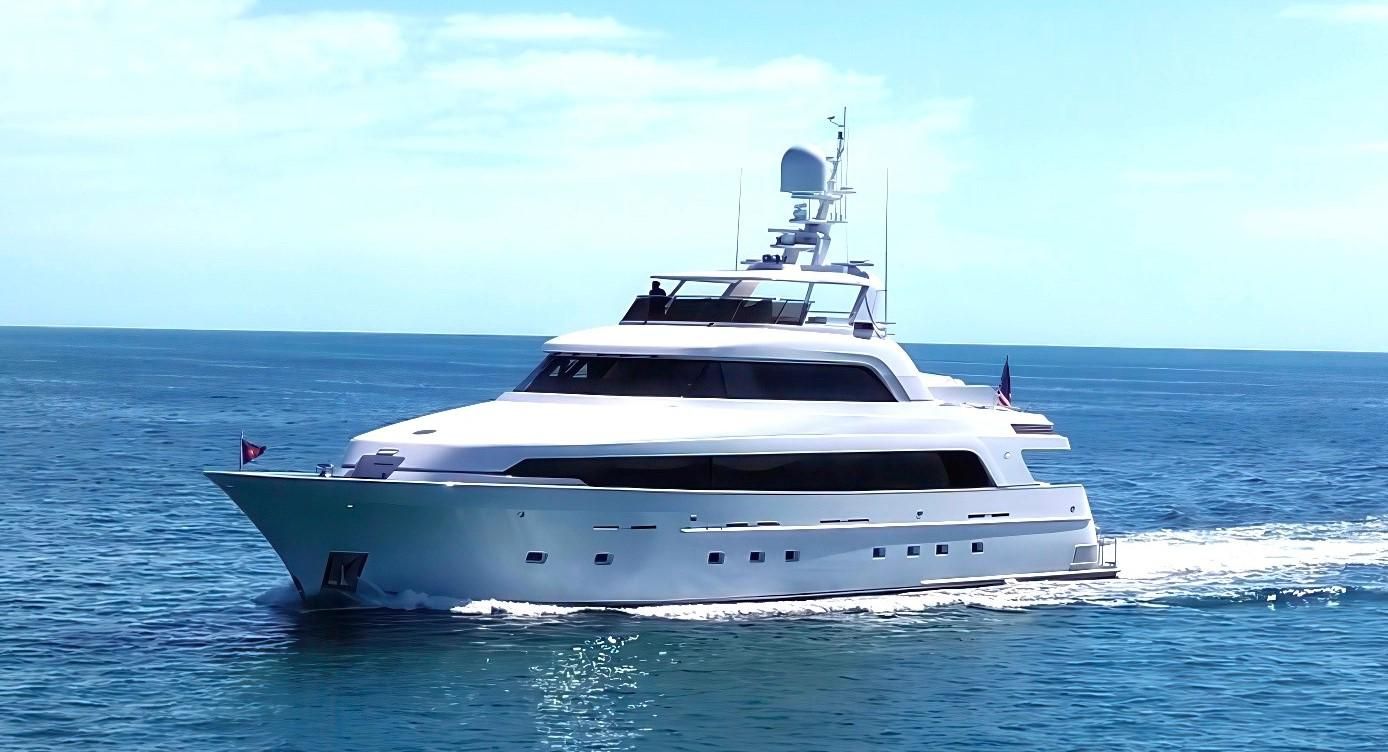

RUFFIAN is a great opportunity to own a high-pedigree yacht from the world-renowned Delta shipyard. She has received constant updating from her knowledgeable owner and crew, and benefits from a visit to the Delta Shipyard in 2022/2023 where further work and extensive updating was performed. RUFFIAN’s exterior was originally designed by Delta’s in-house design team while her interior was designed by Jonathan Quinn Barnett, which has also benefited from many recent updates.

With her high-quality GRP construction, RUFFIAN assures lower maintenance costs and features a shallow draft. She also benefits from her Quantum zero-speed stabilizers that provide comfort while underway and at rest. RUFFIAN is truly a rare find in today’s marketplace and is available for inspections in Fort Lauderdale, Florida.

Additional Information

Key Features

• Main engines rebuild completed June 2017
• Complete Awlgrip HDT paintjob completed in 2021

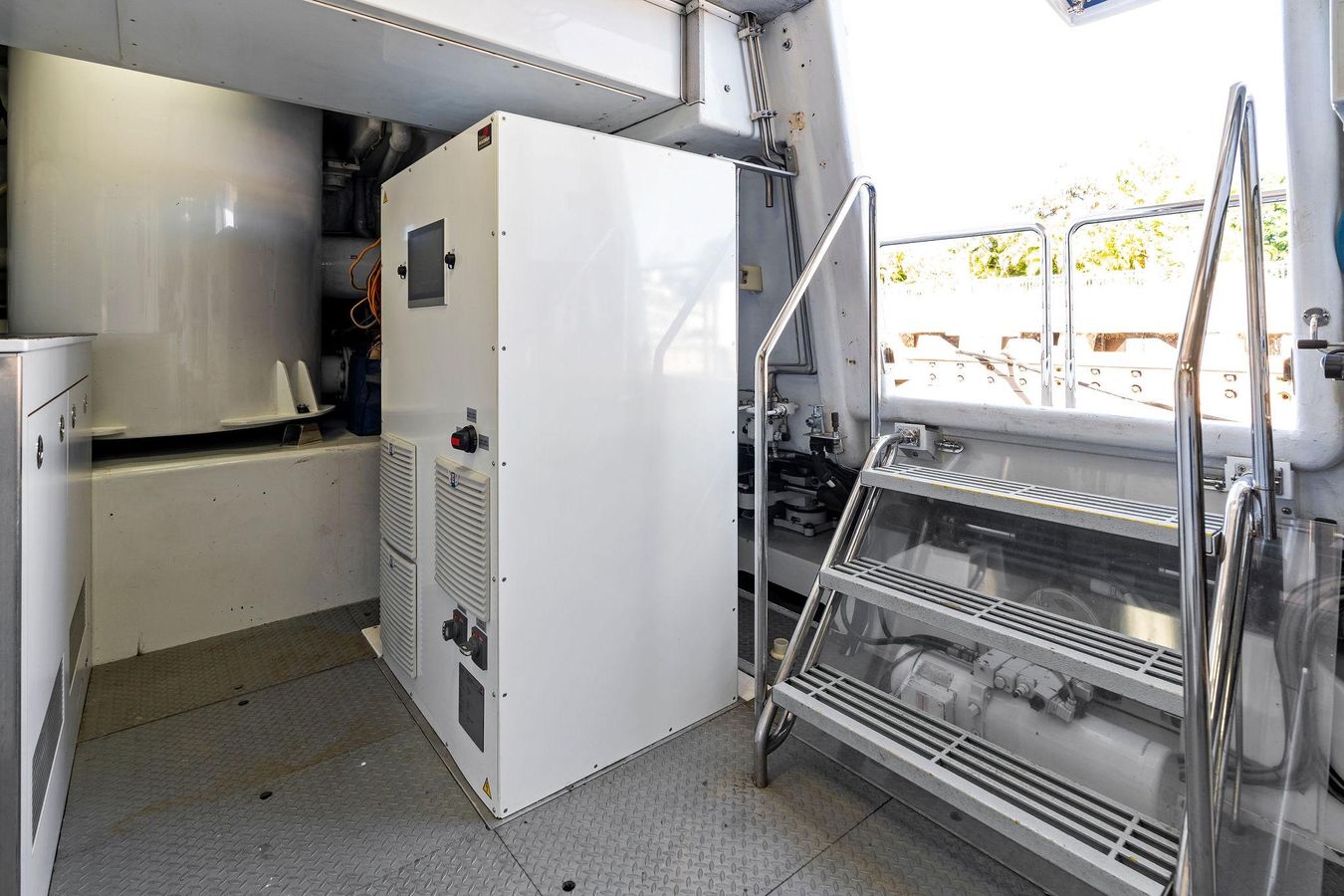

• New Magnus Marine State of the Art Power Conversion System Installed 2023 while at Delta Factory
• All NEW Crestron AV System
• Two new SeaChests with Stainless Steel Plumbing installed by Delta Factory 2023
• Interior refit and service work completed at the Delta Marine Shipyard in 2022/2023
• (2) New Northern Lights 80kW Generators installed in 2022 along with new chilled water A/C system, and new Watermakers, Inc. 4000 GPD watermaker
• Electronics/Navigation Equipment refit in 2020
• Dual antenna Marine Starlink system added 2023
• 2002 Winner of Showboats International Best Semi Displacement Motoryacht Under 38 Meters

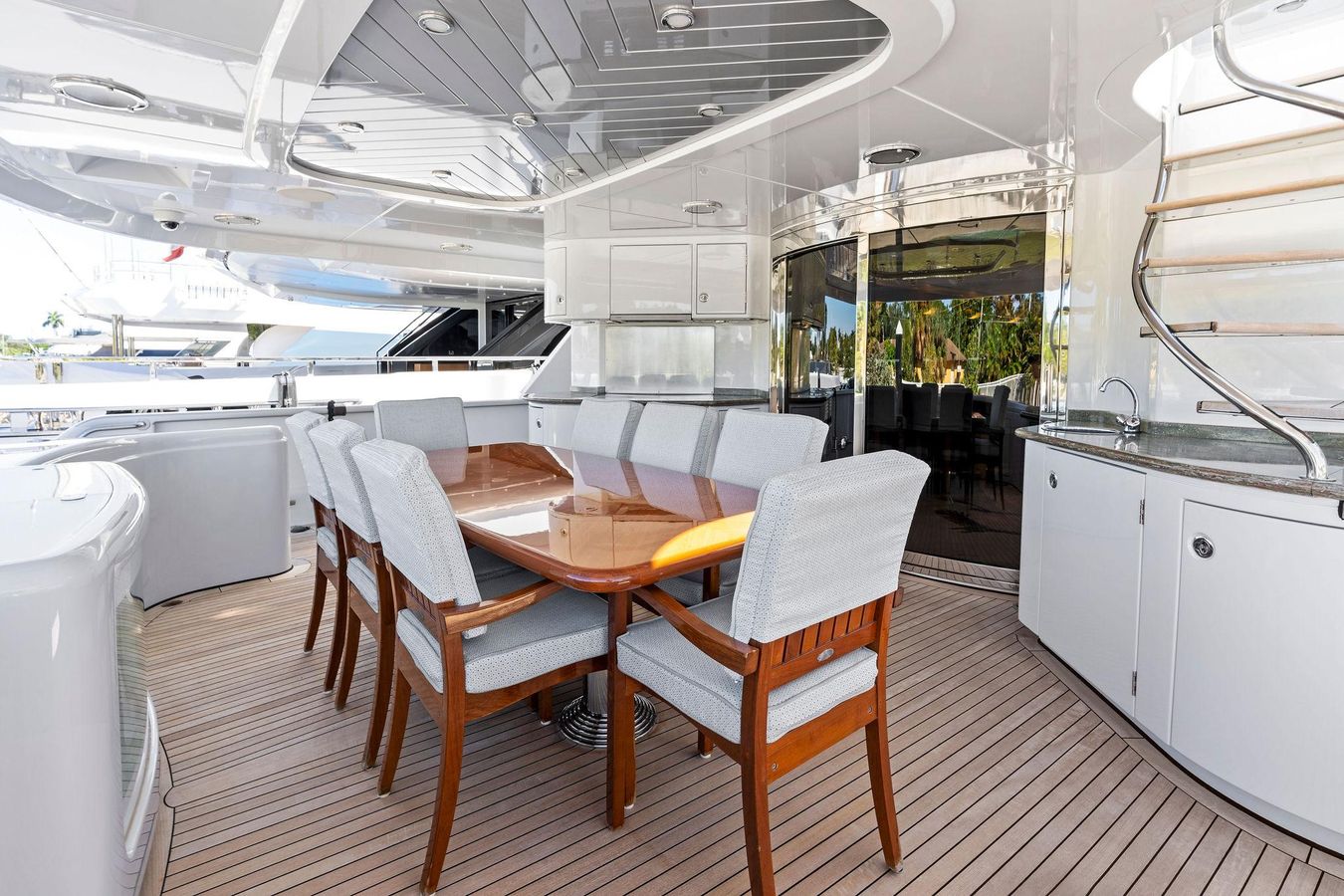

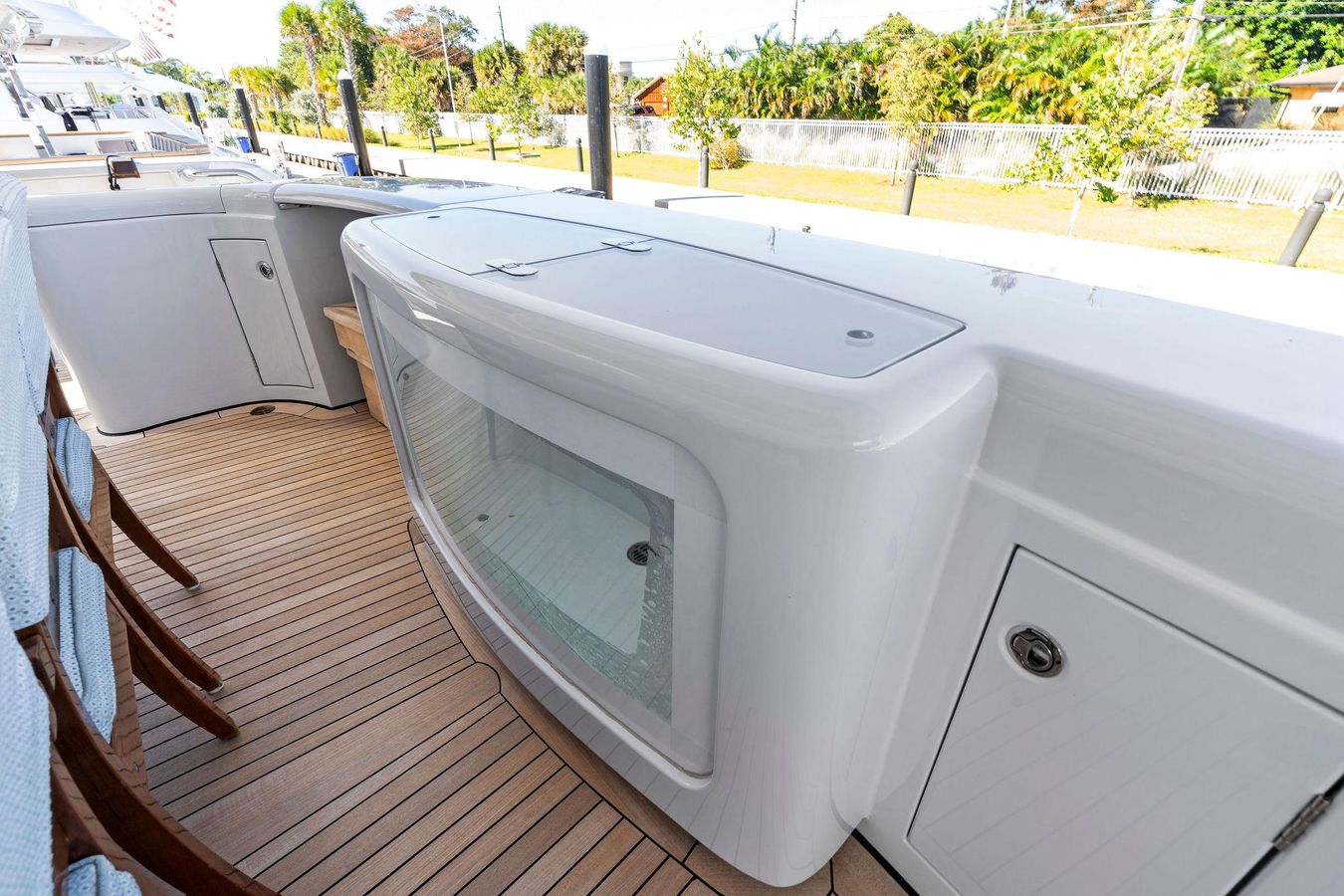

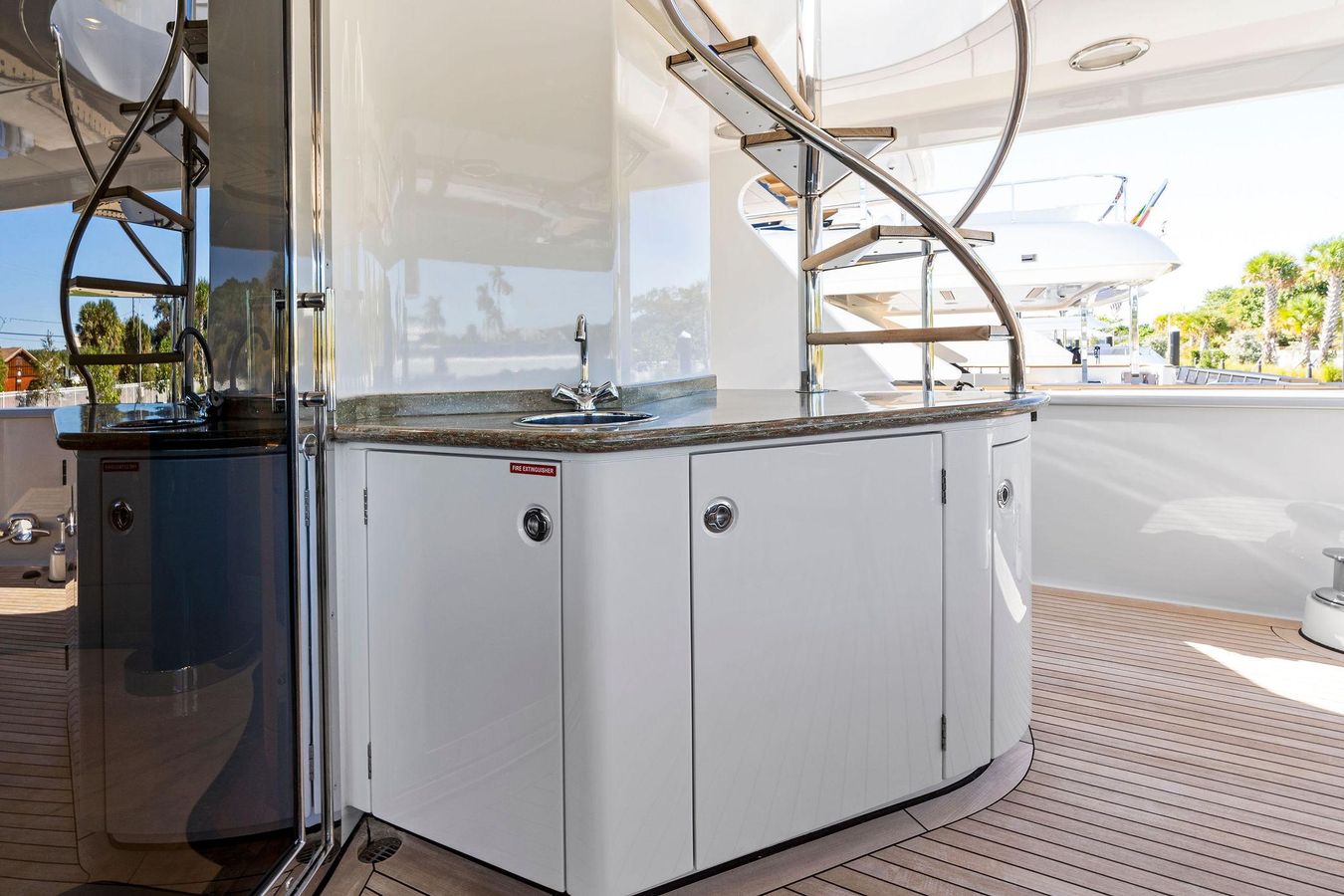

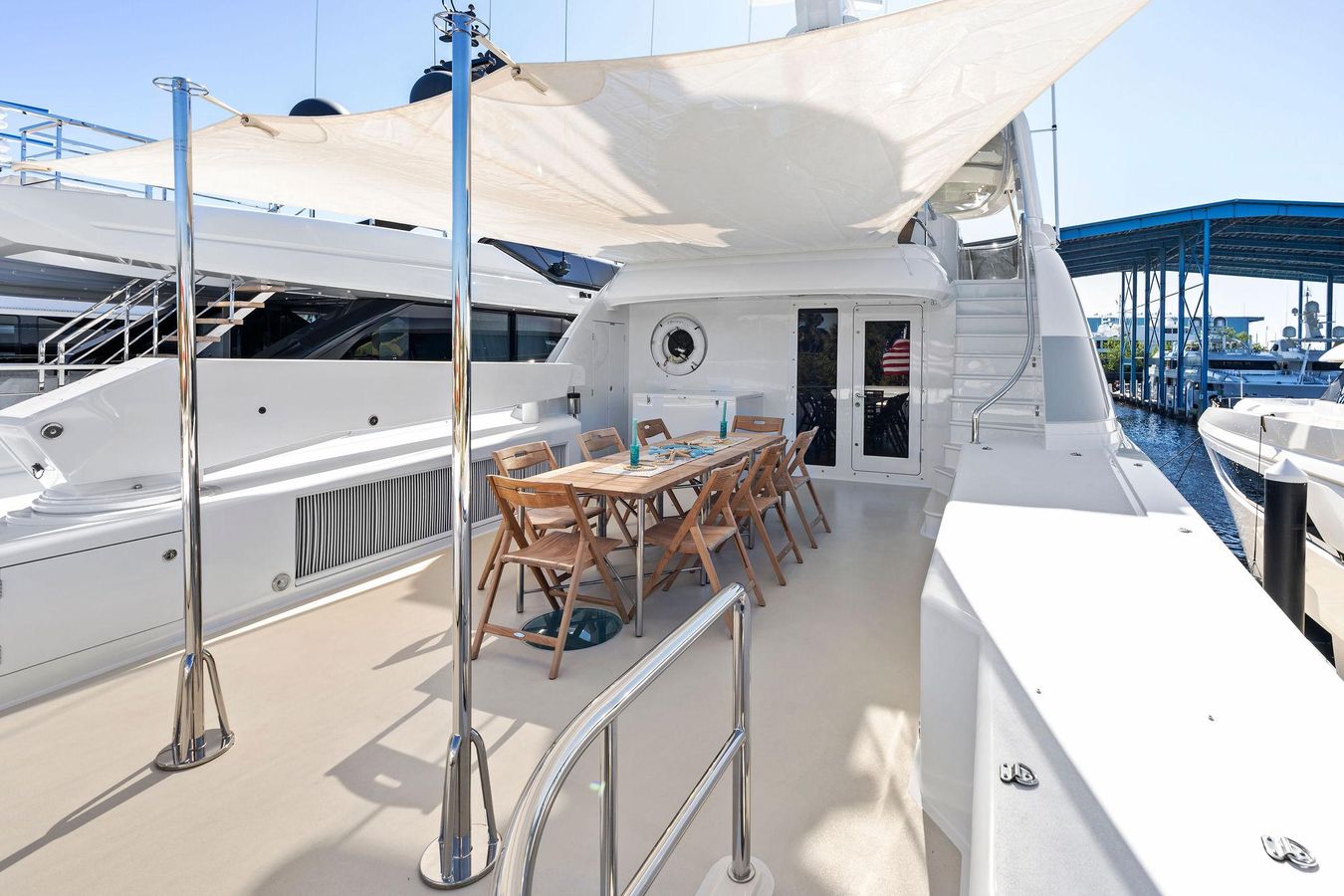

AFT DECK from the swim platform, curved stairs rise to the aft deck.  The streamlined transom contains a passerelle and full docking station controls. When these are not in use all that is visible is the curved transom enhanced by an aquarium ­style live tank amidships. Armchairs surround a wood table and a functional service bar includes a gas grill and ample storage. To starboard a curved teak stairway ascends to the upper deck.  Thick Plexiglas doors provide protection from the wind when closed and access to the side decks.

AFT FOYER features a magnificent floor inlay of two eagles by stone artist Jeff Homchick illuminated from above by a cast glass skylight.

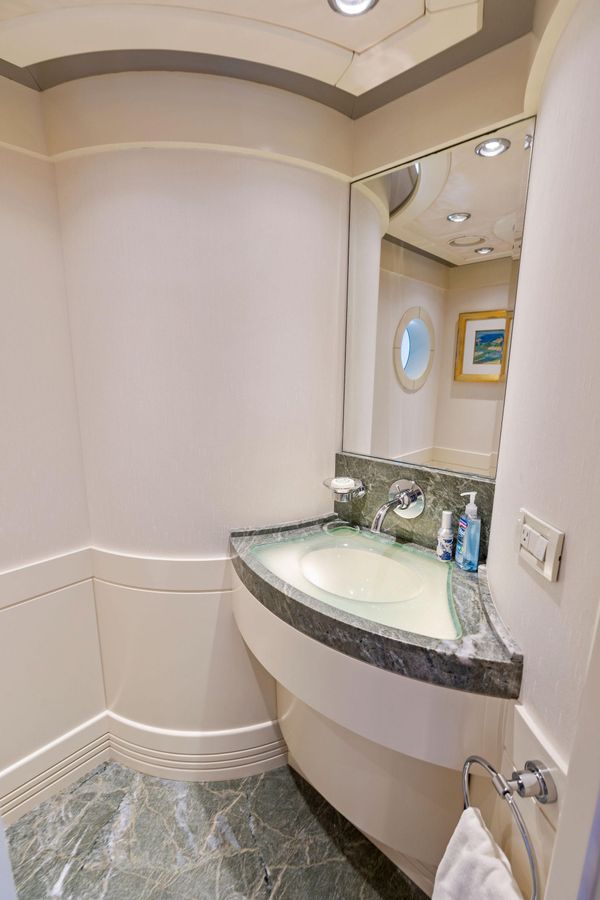

DAY HEAD is across the foyer to starboard featuring an underlit glass bowl sink and quartzite accents.

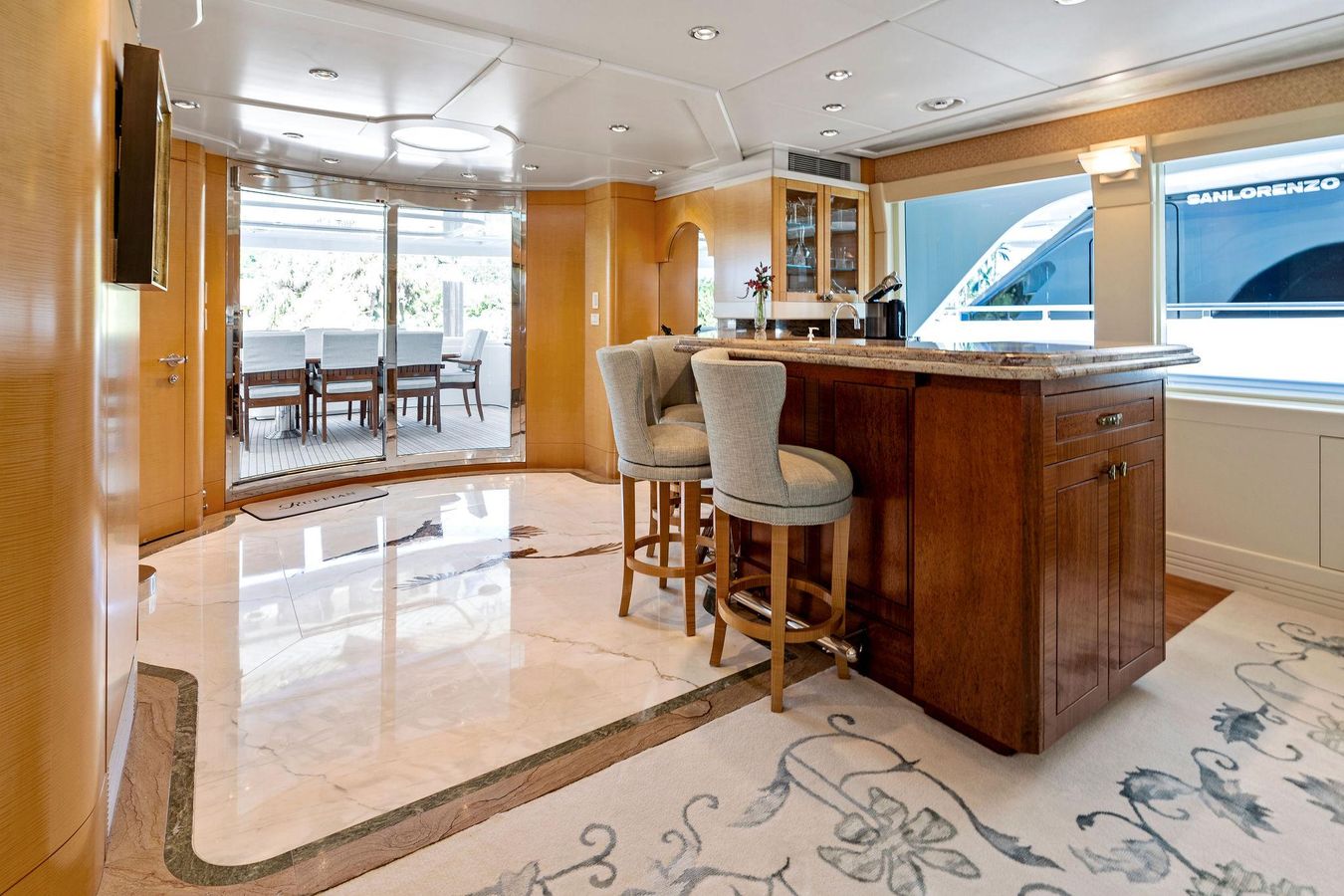

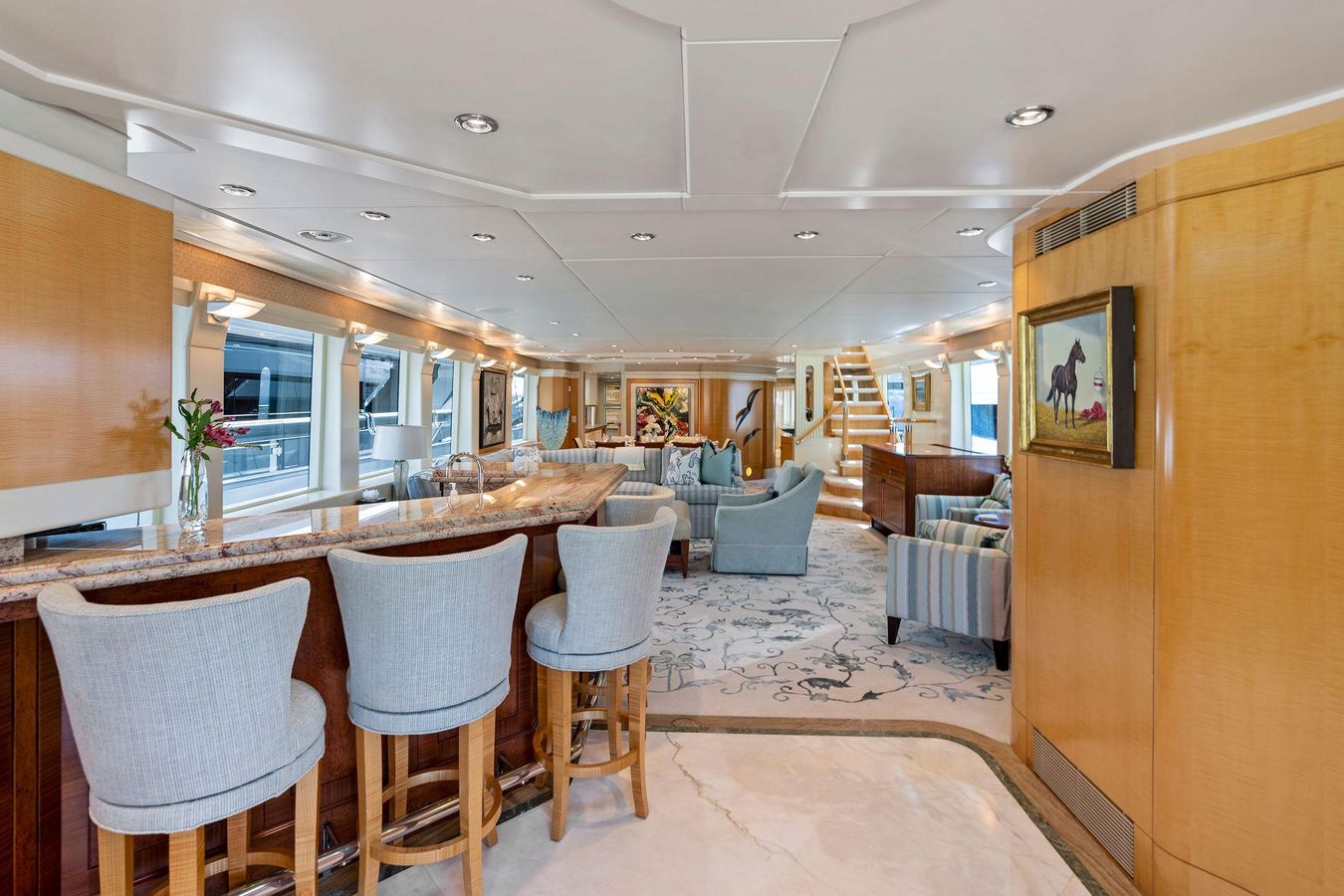

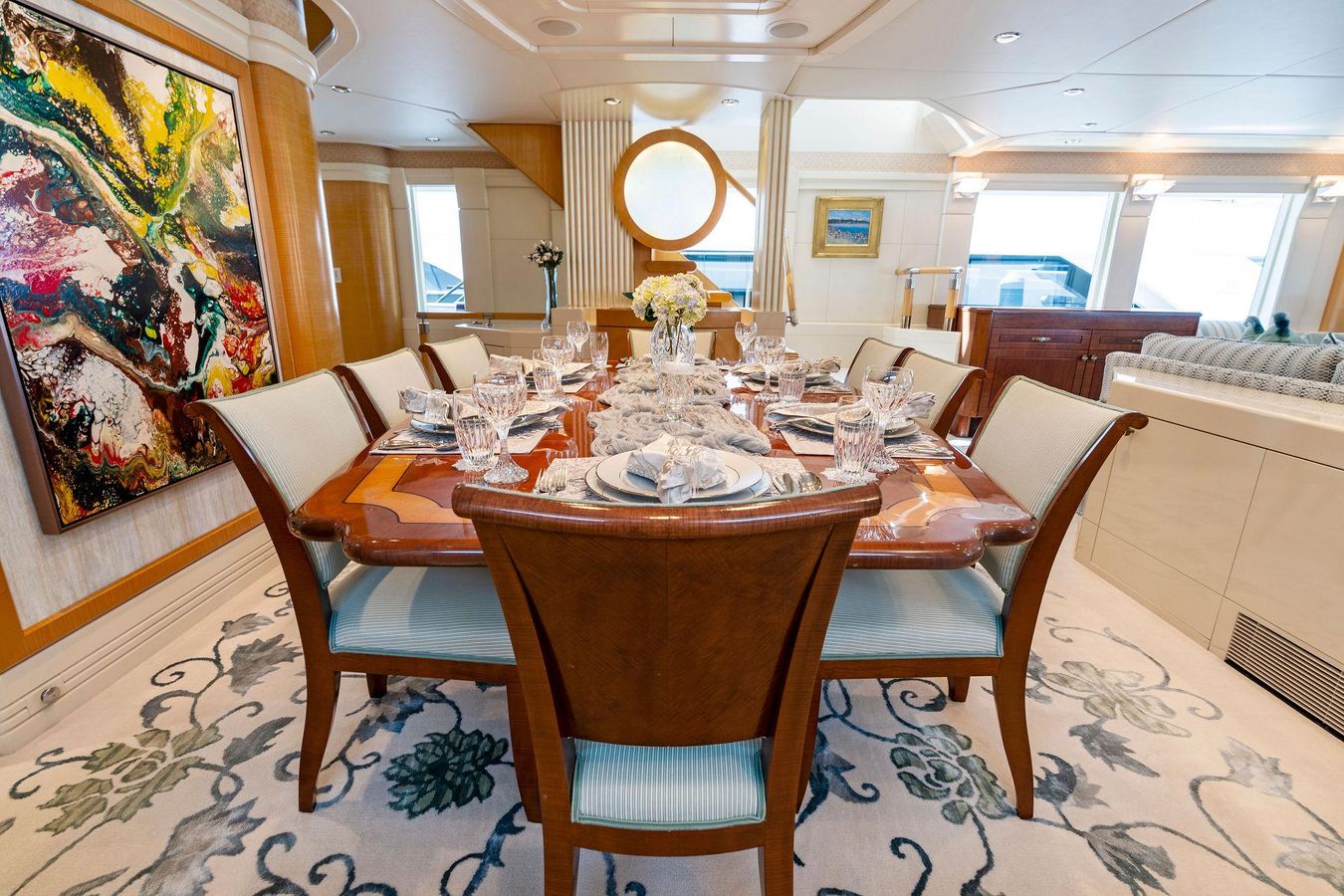

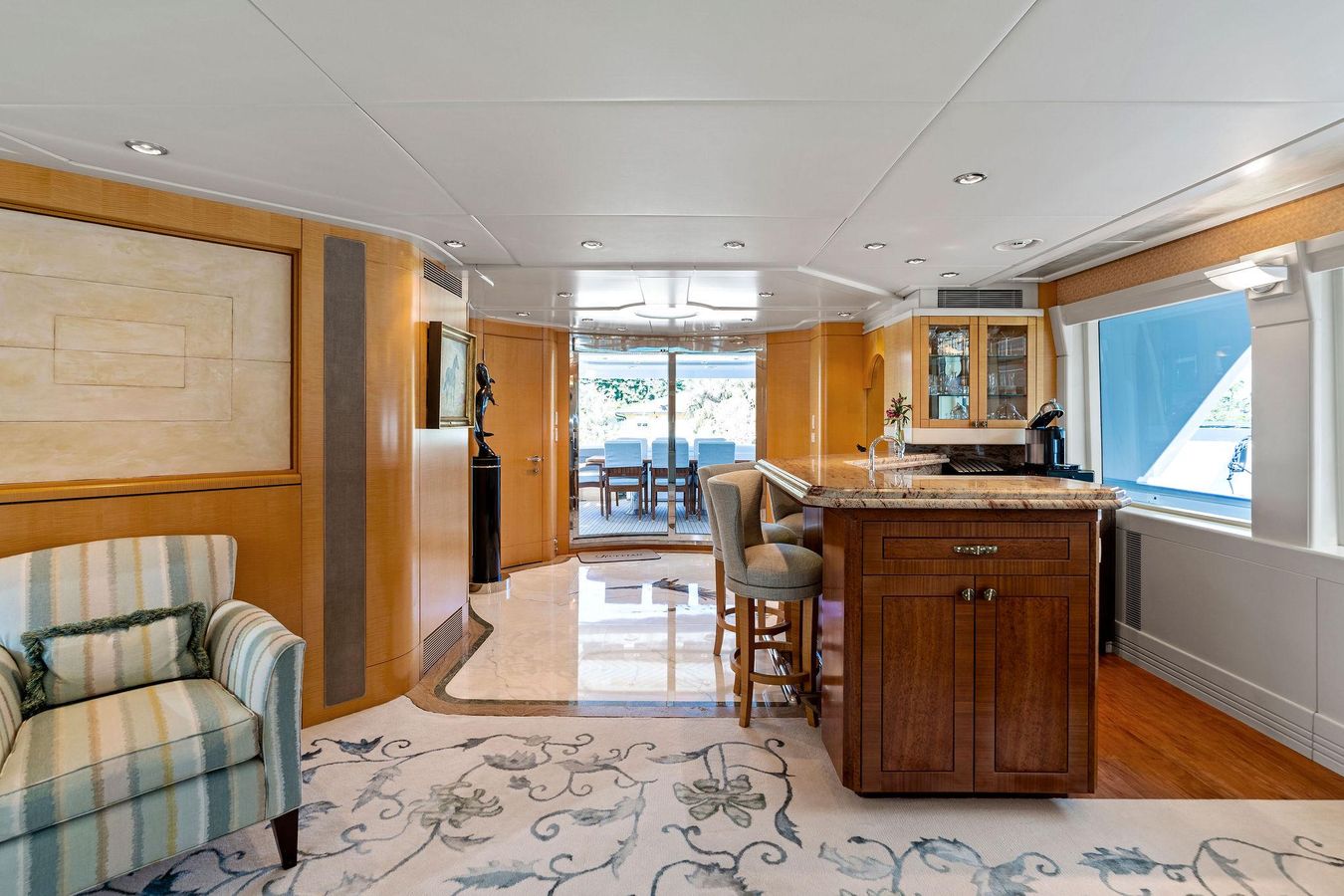

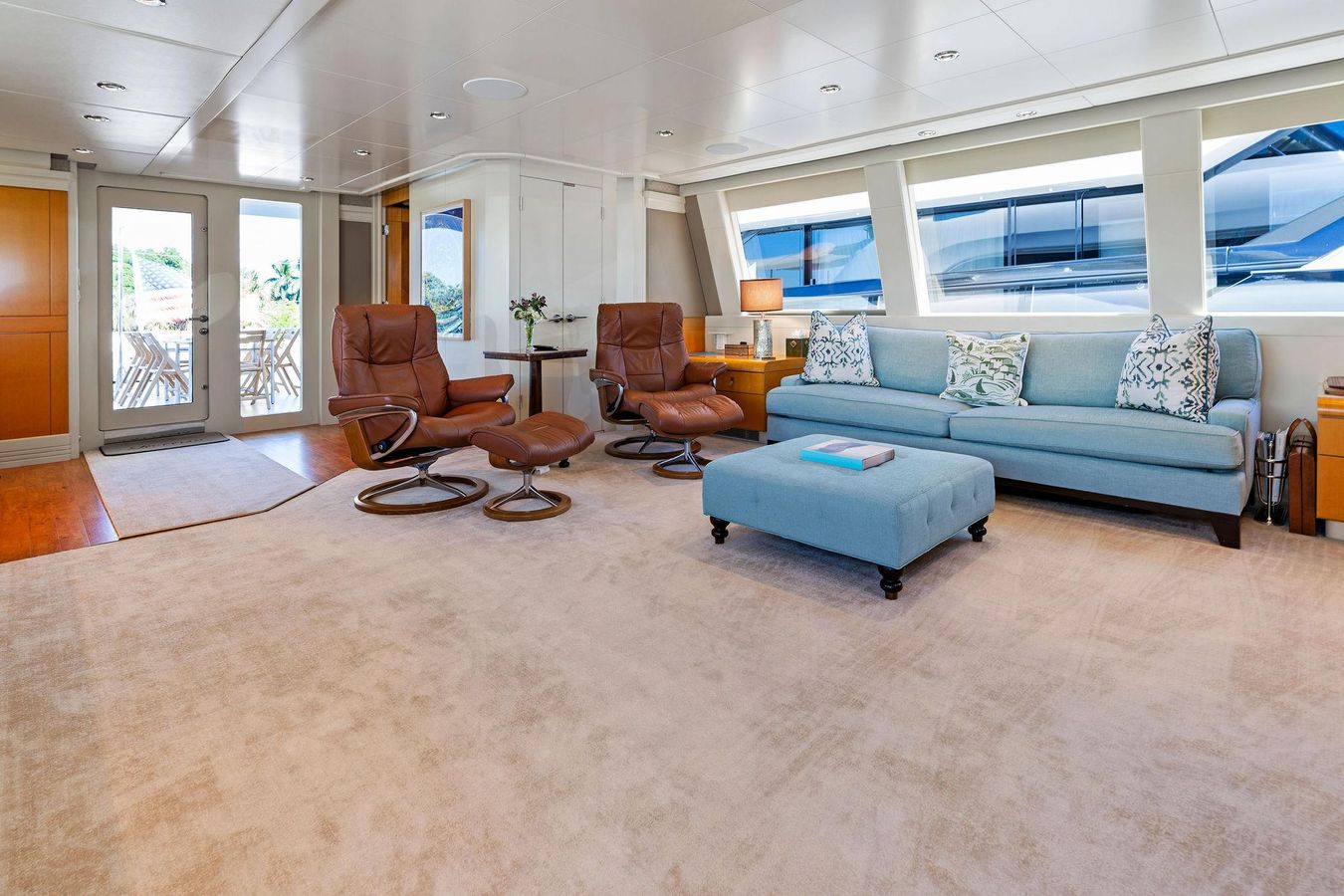

SALON foyer features a magnificent marble floor inlaid with two eagles created from fossilized wood. The Salon is spacious. Forward of the bar is the lounge with a hidden HD surround sound entertainment center. The Powder room features an underlit glass bowl sink and quartzite accents. A glass masterpiece is displayed on a built-in buffet which, with leather wall panels, defines the perimeter of the hexagonal Dining Room with its own sound system.

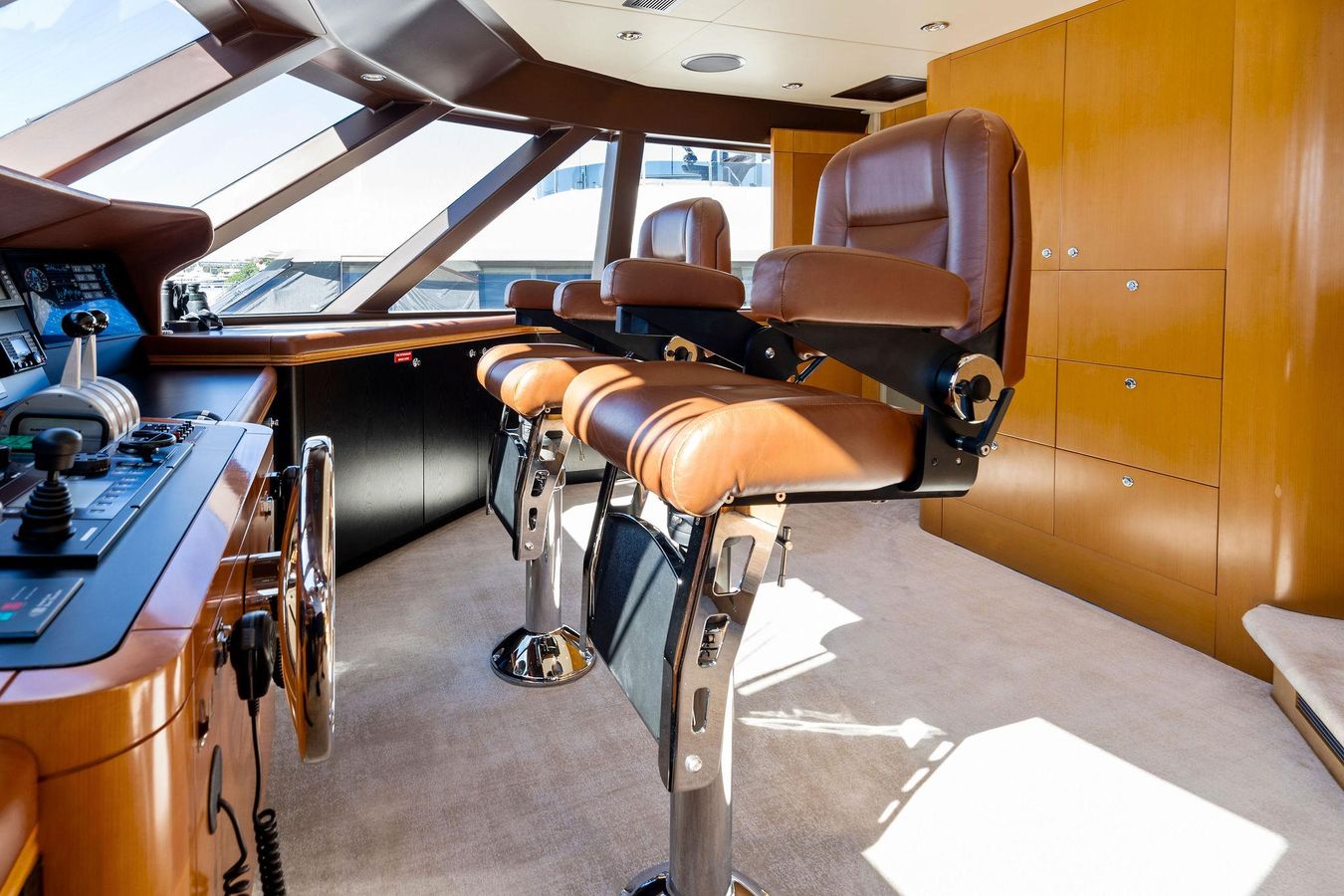

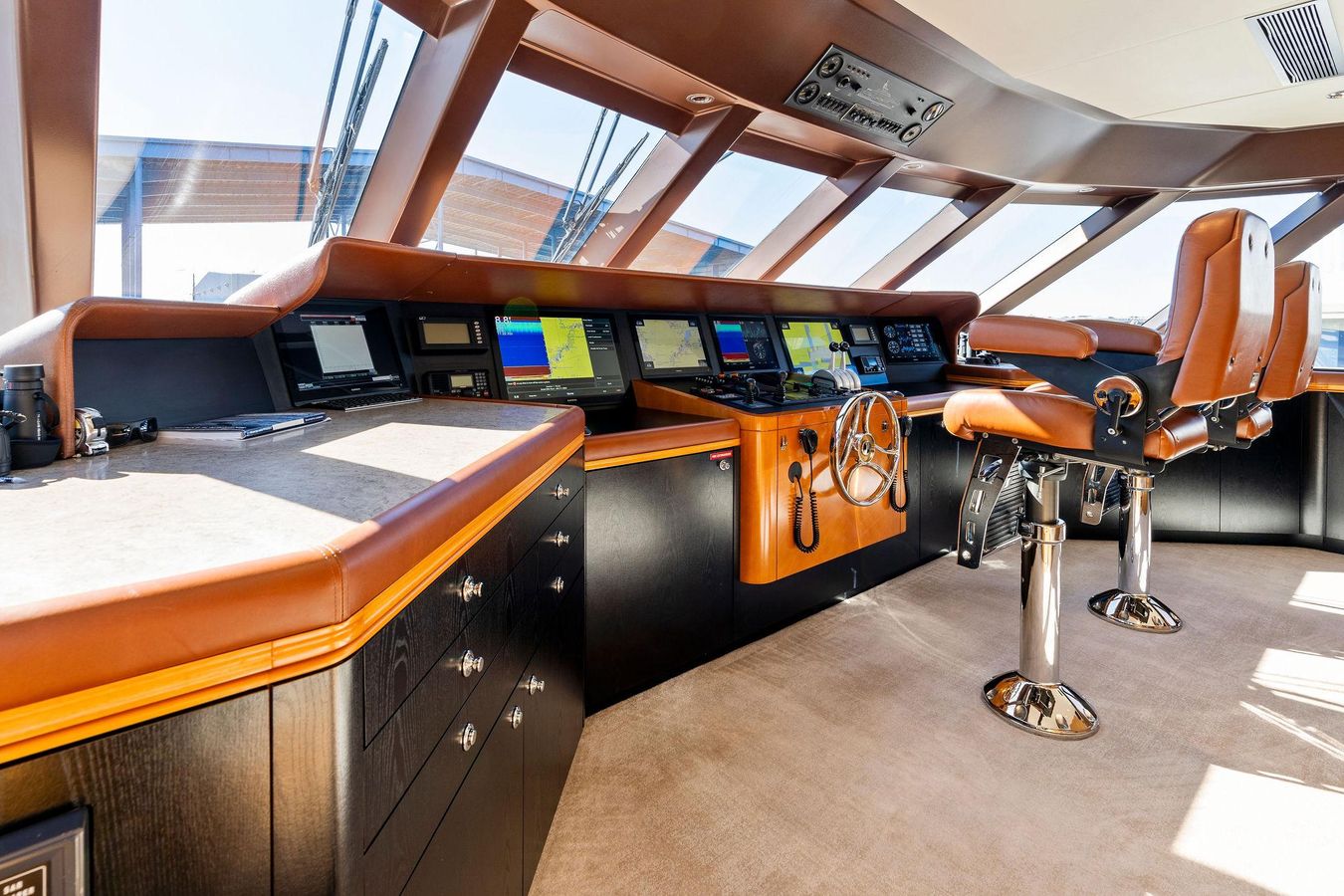

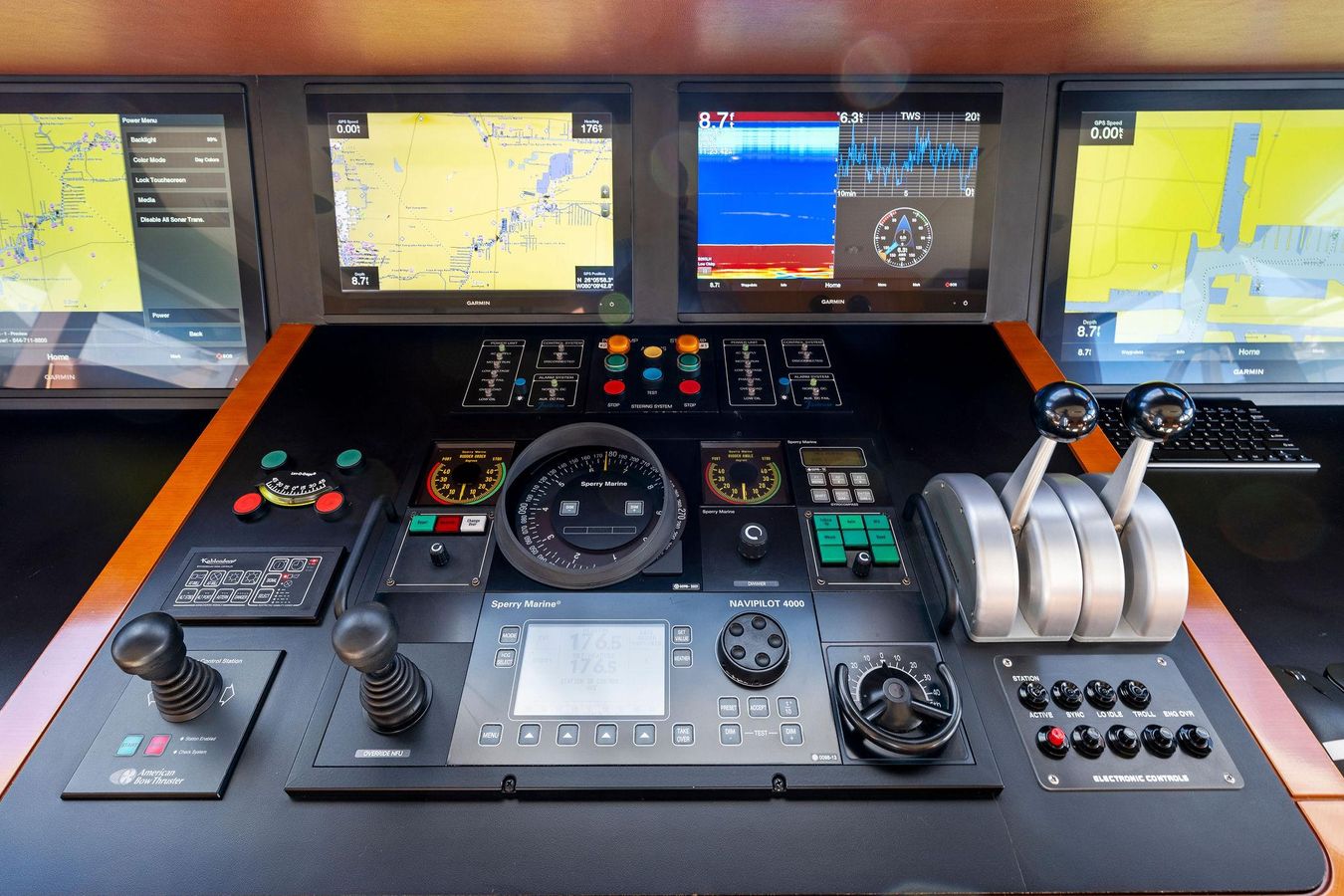

WHEELHOUSE, an elegant stairway leads around a fluted rectangular column up to the pilot house which has a streamlined and uncluttered dashboard with hidden access to most components offering a clear 180° view. There are two Stidd leather helm seats at the navigation station and behind that, a leather elevated settee with a table for guest observation.

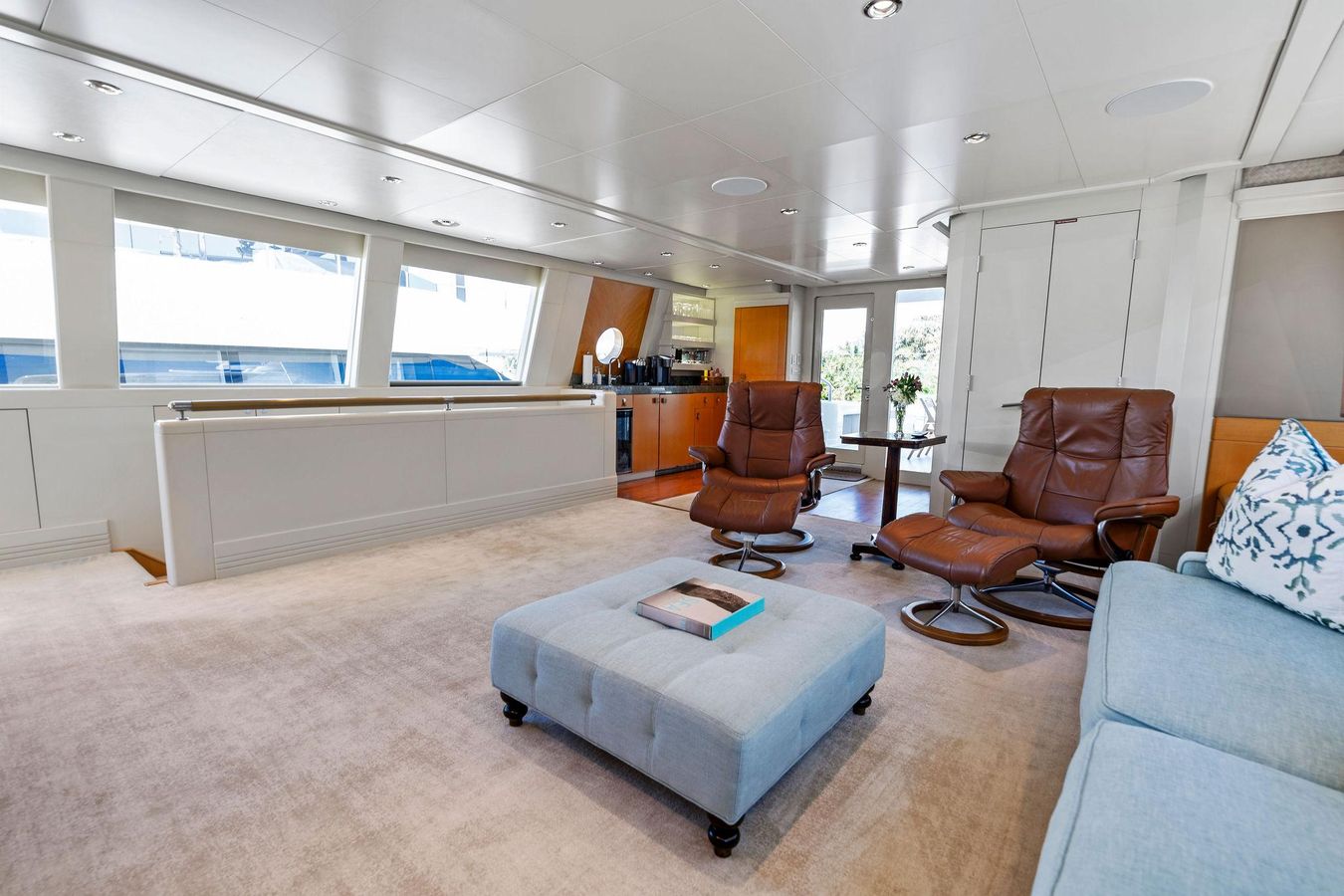

SKY SUITE aft of the pilothouse provides another comfortable retreat with deep windows to embrace the view with remote controlled Hunter Douglas blinds. This area has a custom couch (which converts to a Queen bed).  There is a full bathroom on the port side with a shower. On the starboard side is a full wet bar with a refrigerator, wine cooler, and ice maker. From the aft end of the lounge, you exit through a door to the Boat Deck and up stairs to the flybridge.

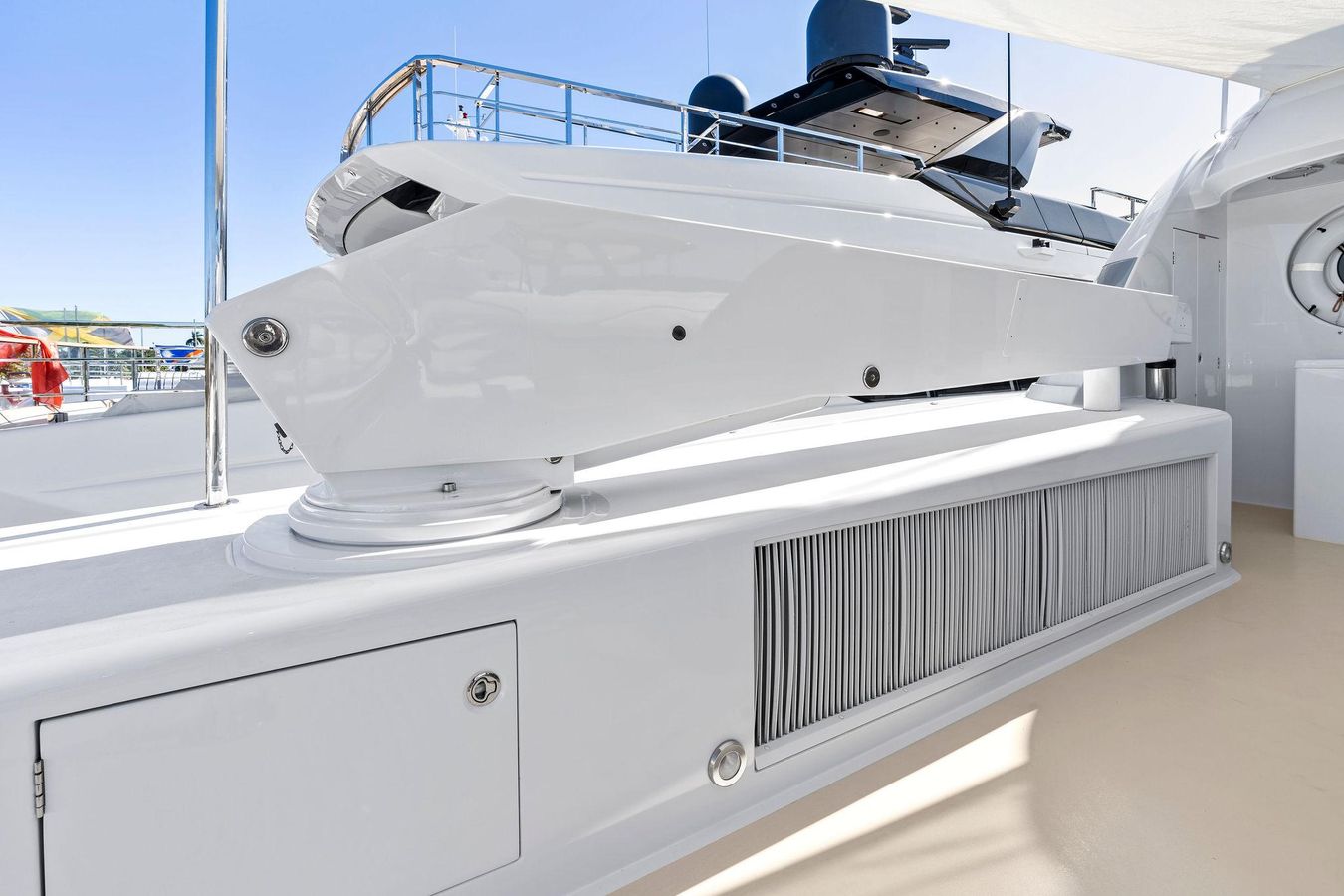

The tender is stored on the Boat Deck. Tender and chocks can be removed and replaced with a teak 10 person dining table and teak chairs. There are also chaise lounges and a large GE chest freezer. There are spiral stairs up to the flybridge.

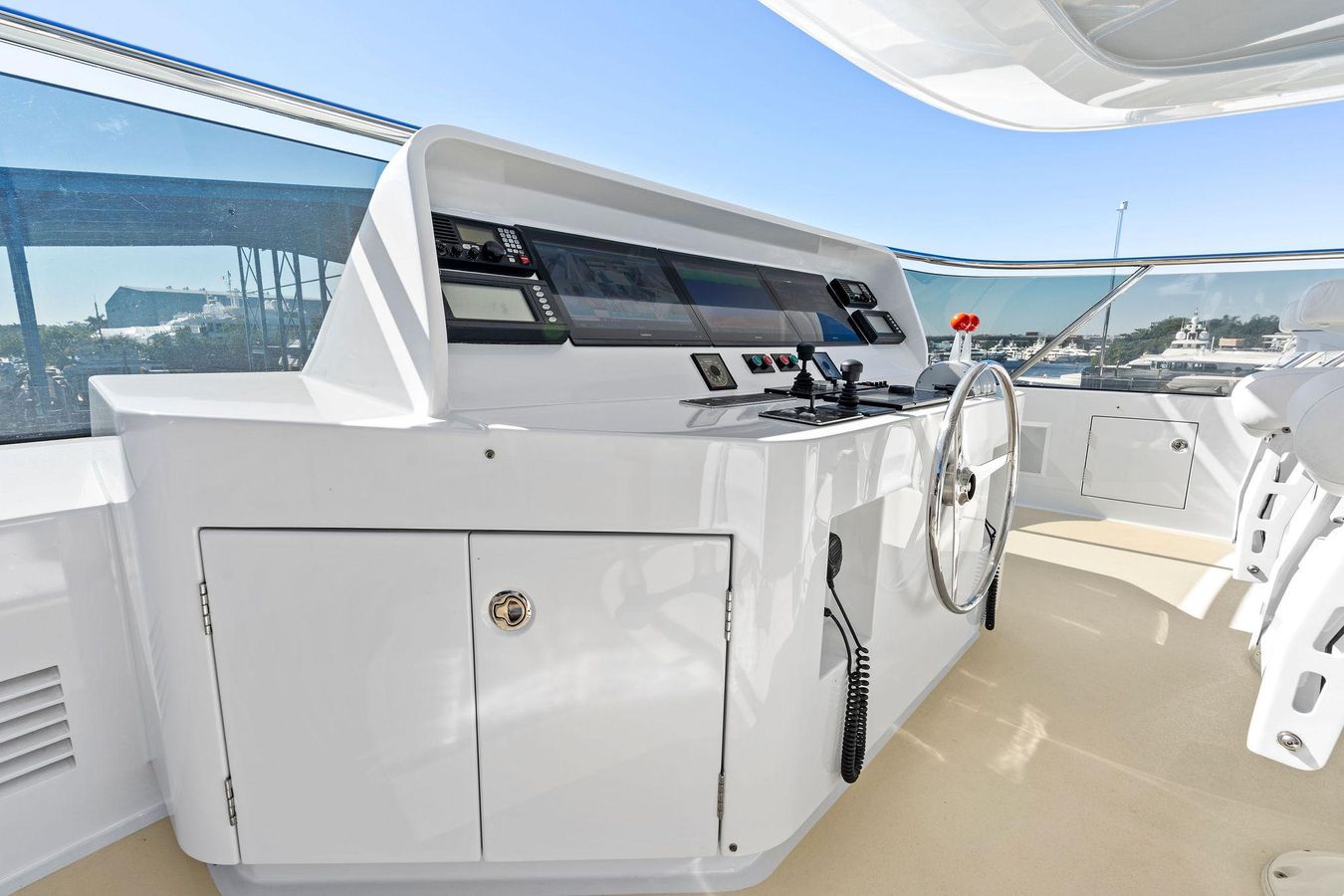

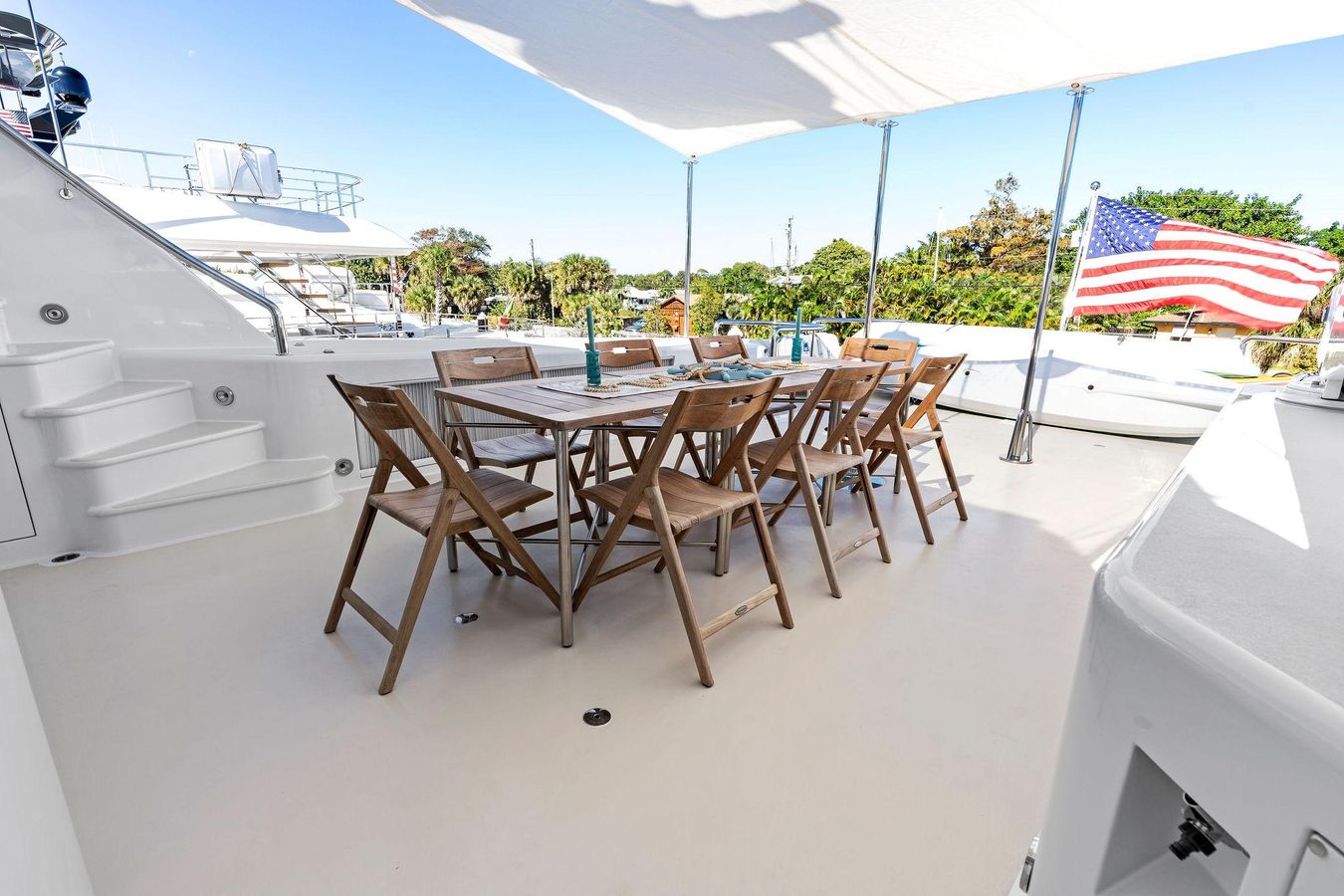

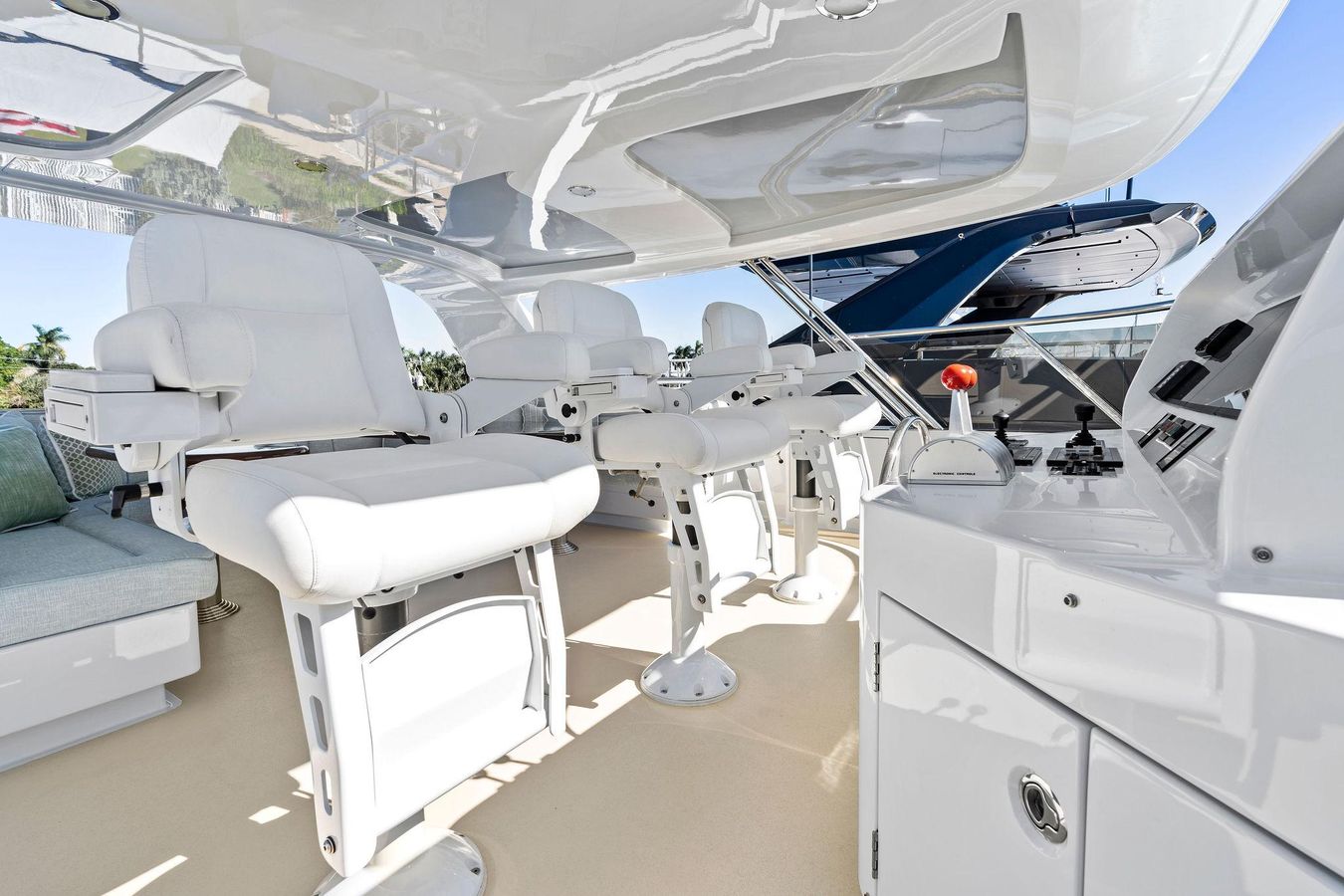

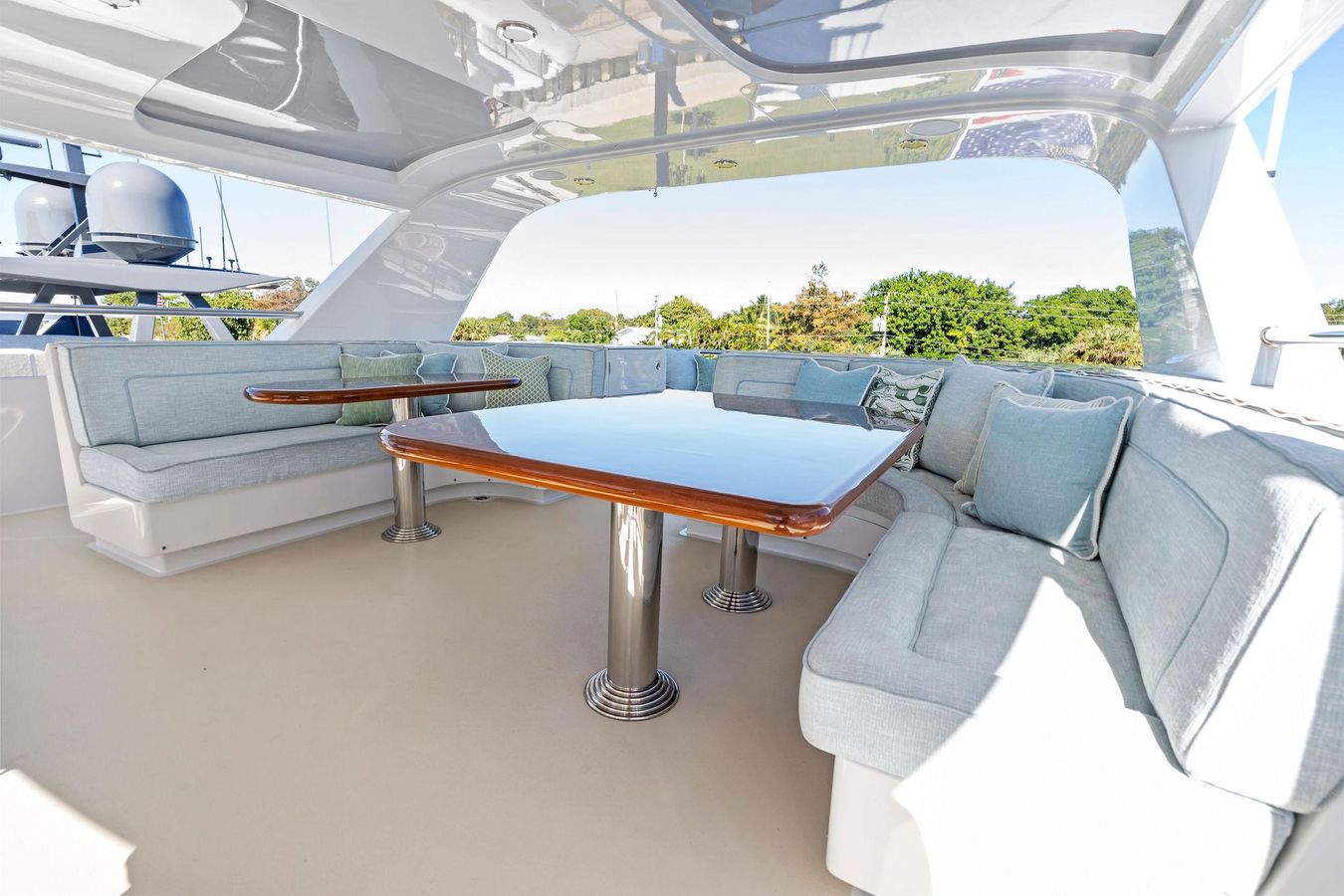

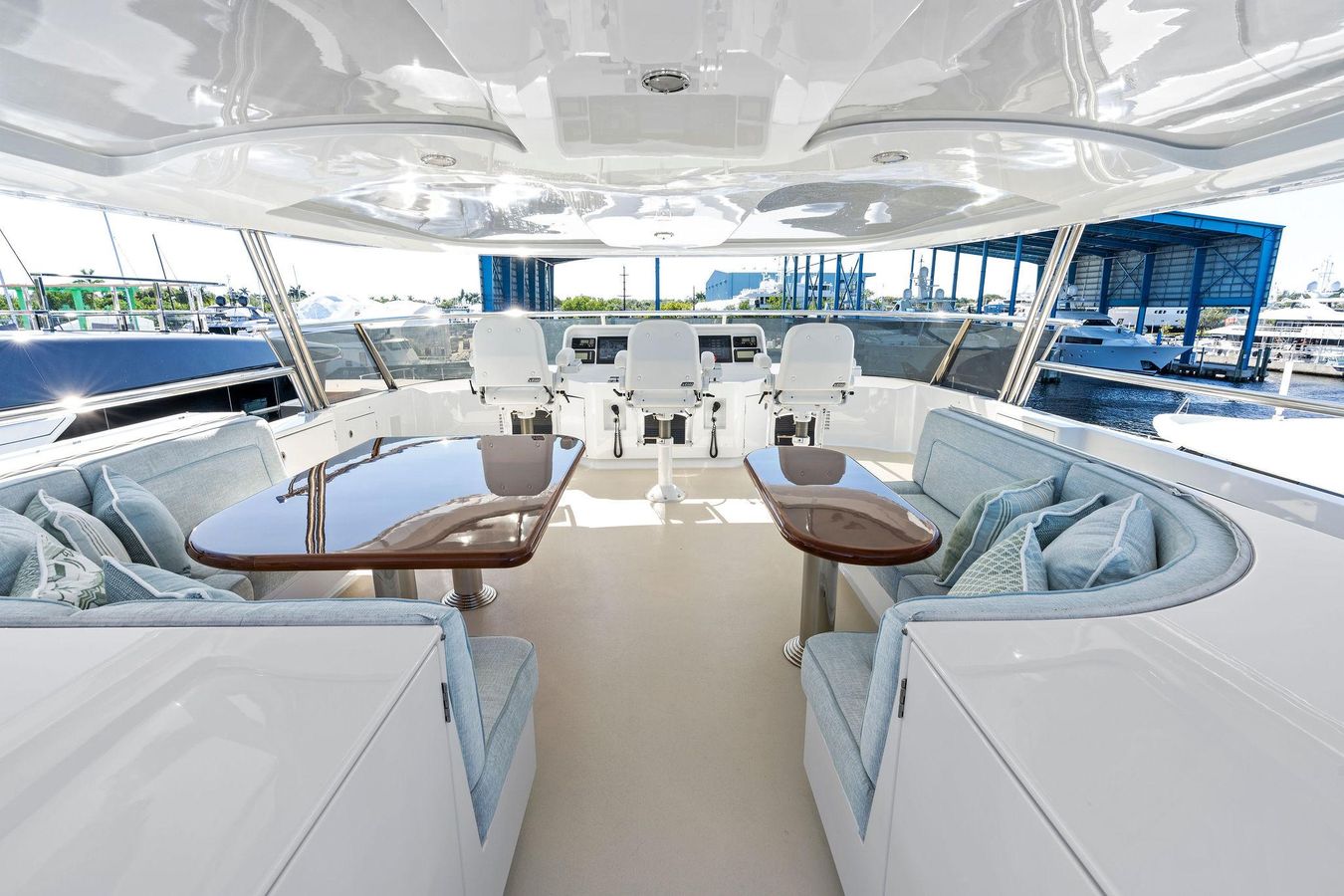

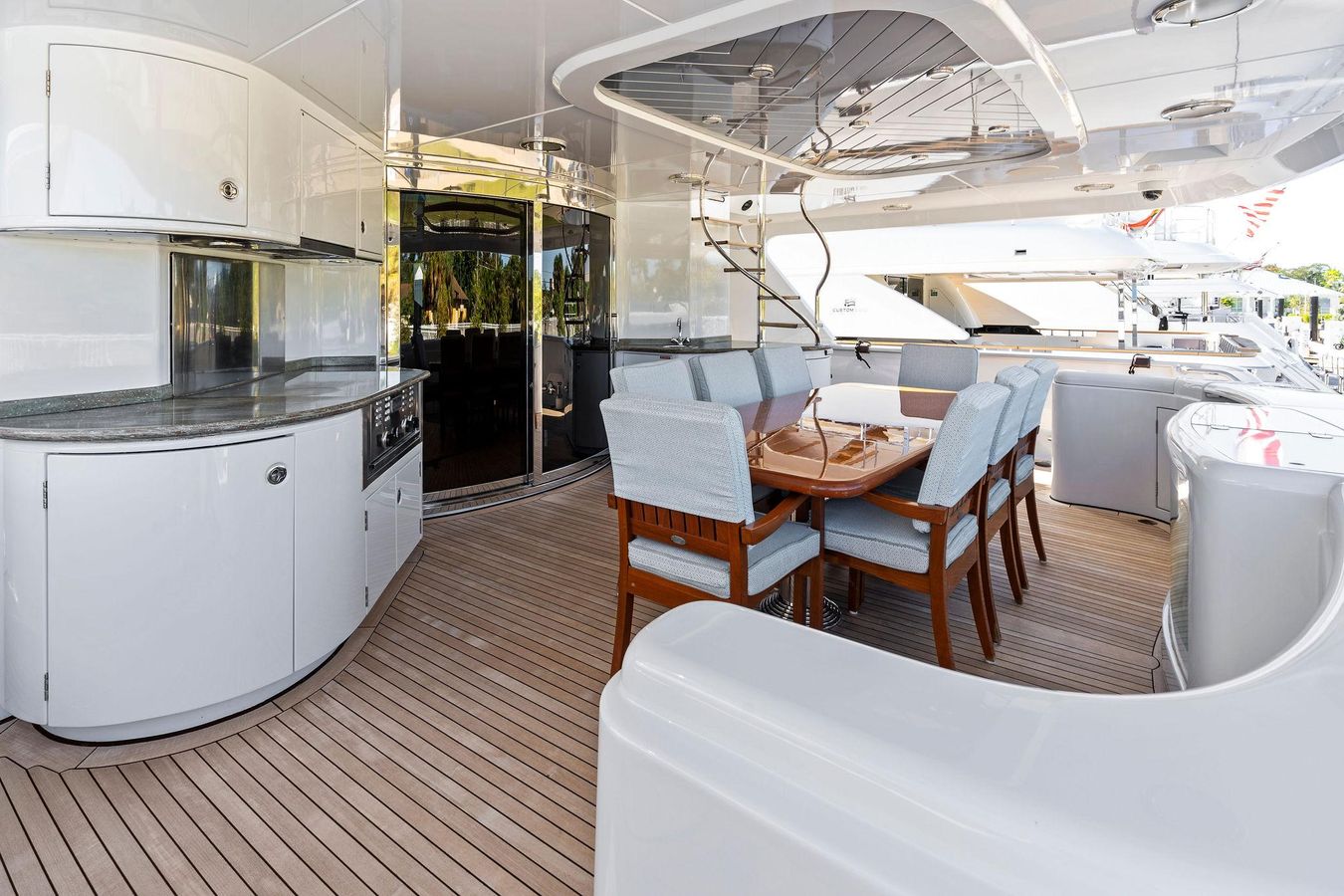

FLYBRIDGE offers ample seating in either sun or shade. Two tables with wraparound seating are out of the sun, all the way aft is a sunny seating area with wicker chairs. On port and starboard sides forward are flip up wing stations which are completely hidden when not in use. A wet bar with refrigeration and ice maker is built into the back of the port side bench seating.

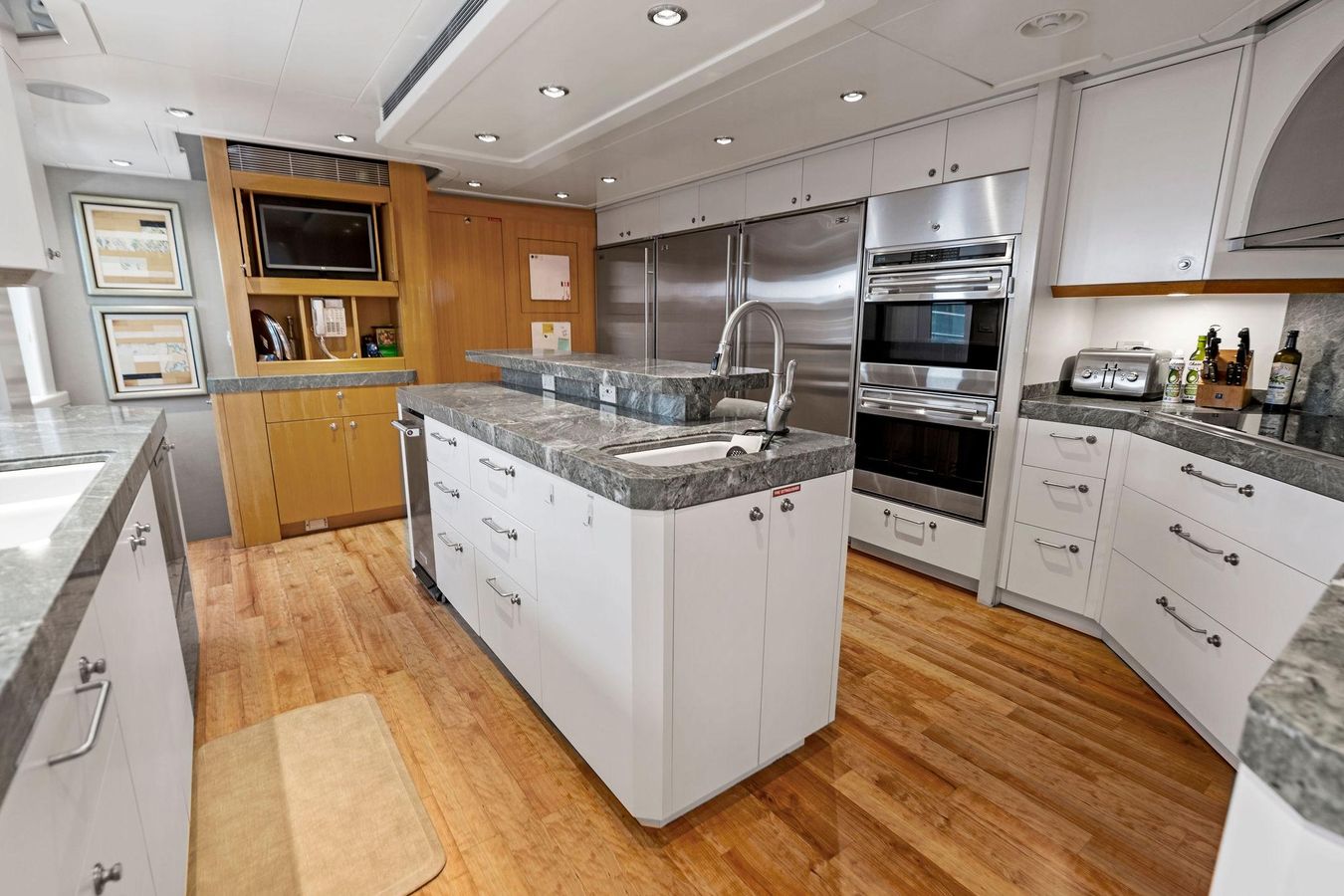

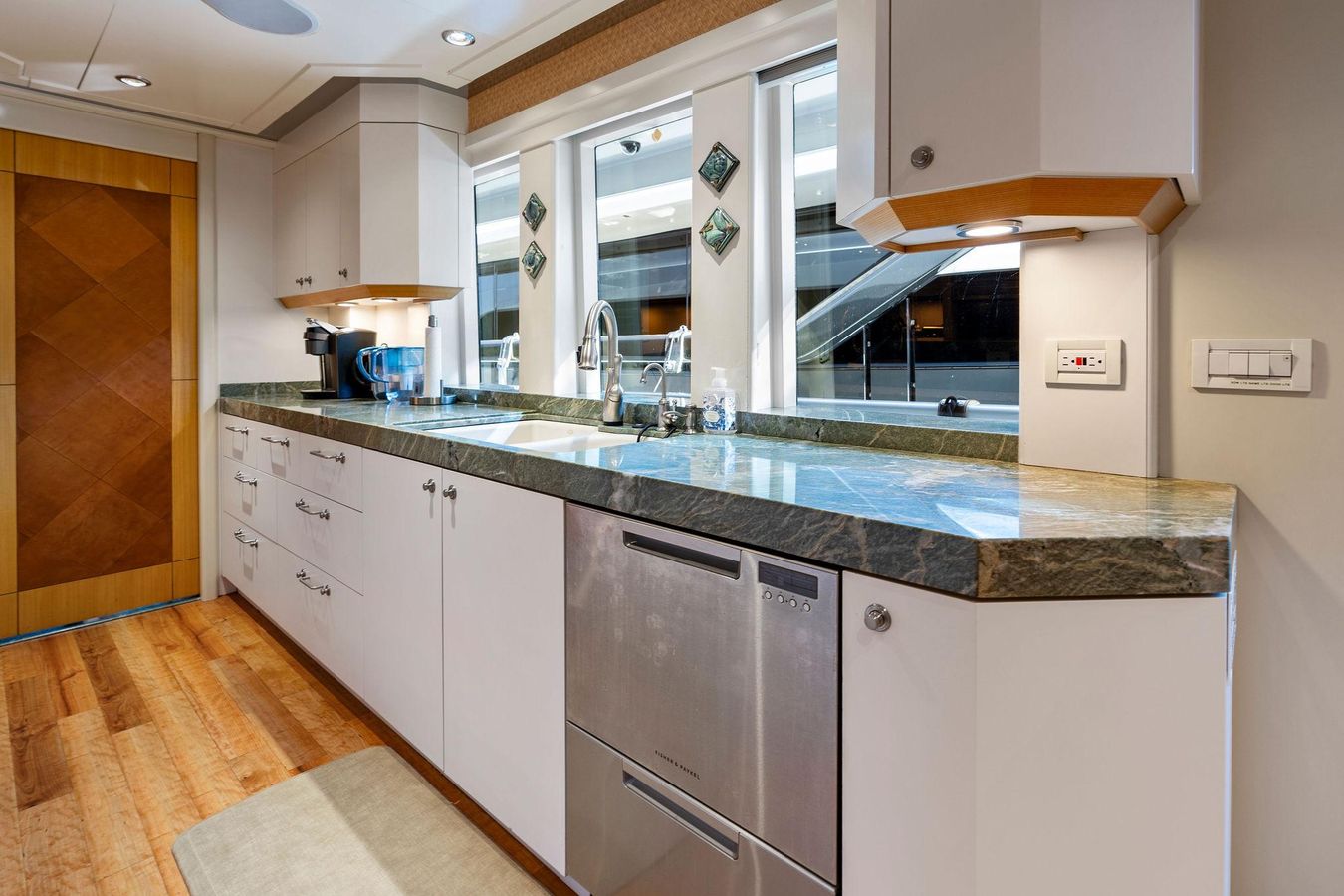

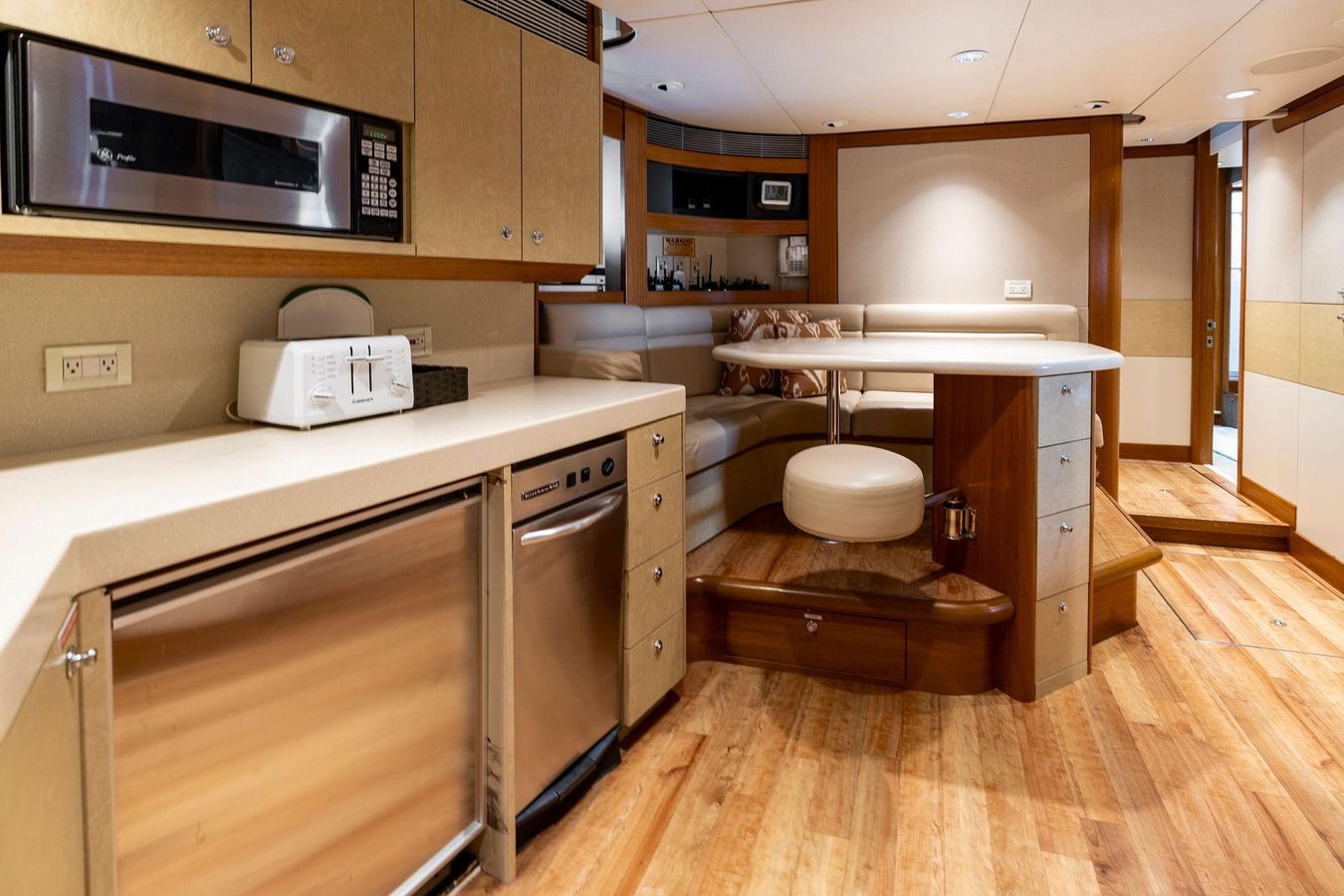

GALLEY the very practical on­deck galley with its central island and stools is used for casual dining.  Three large windows illuminate this efficient, well ventilated area, which has an ample pantry and expansive worktops as well as an abundance of large pullout drawers. Automatic door connects the galley to the dining area. Here you will also find the port side main deck crew entrance.

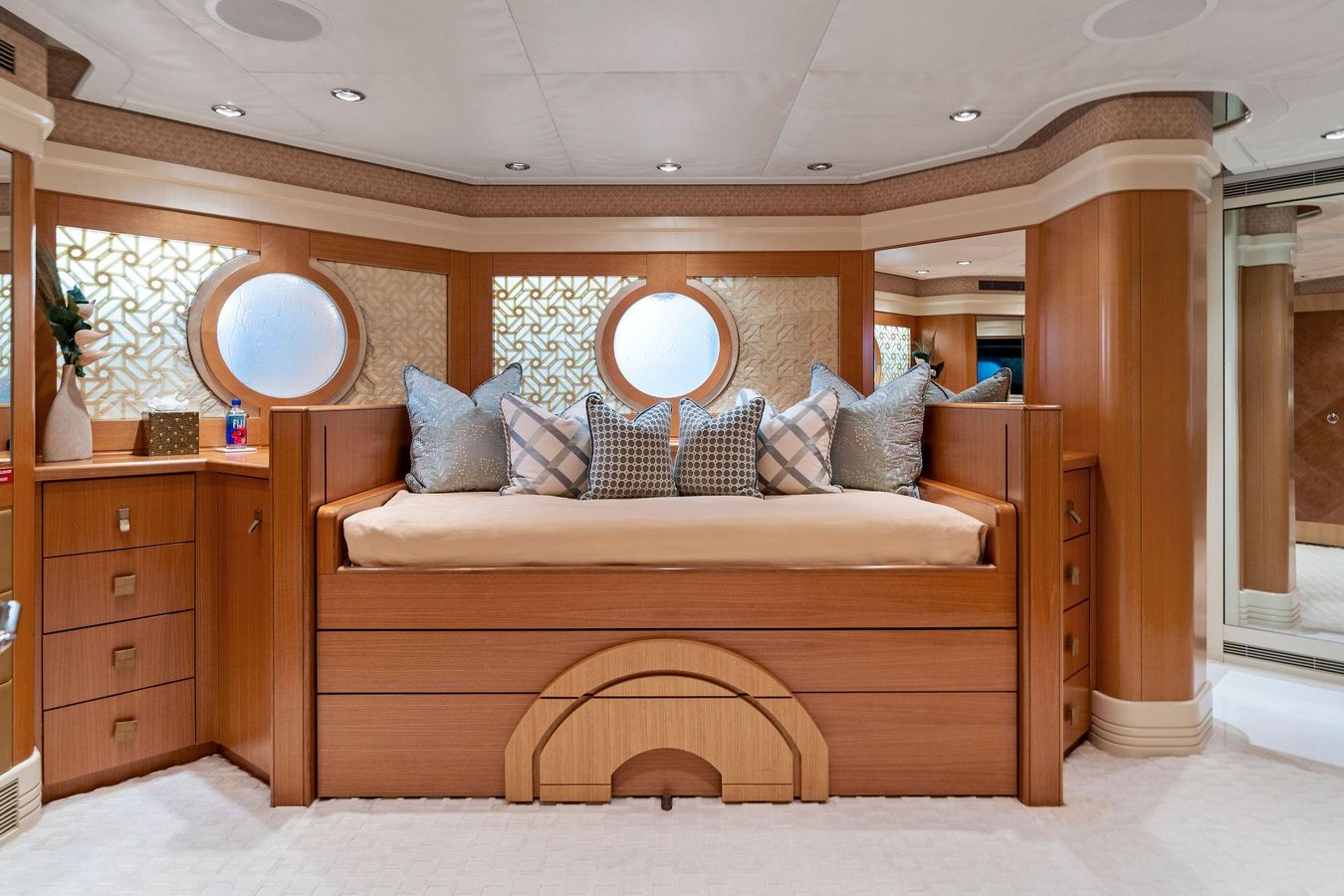

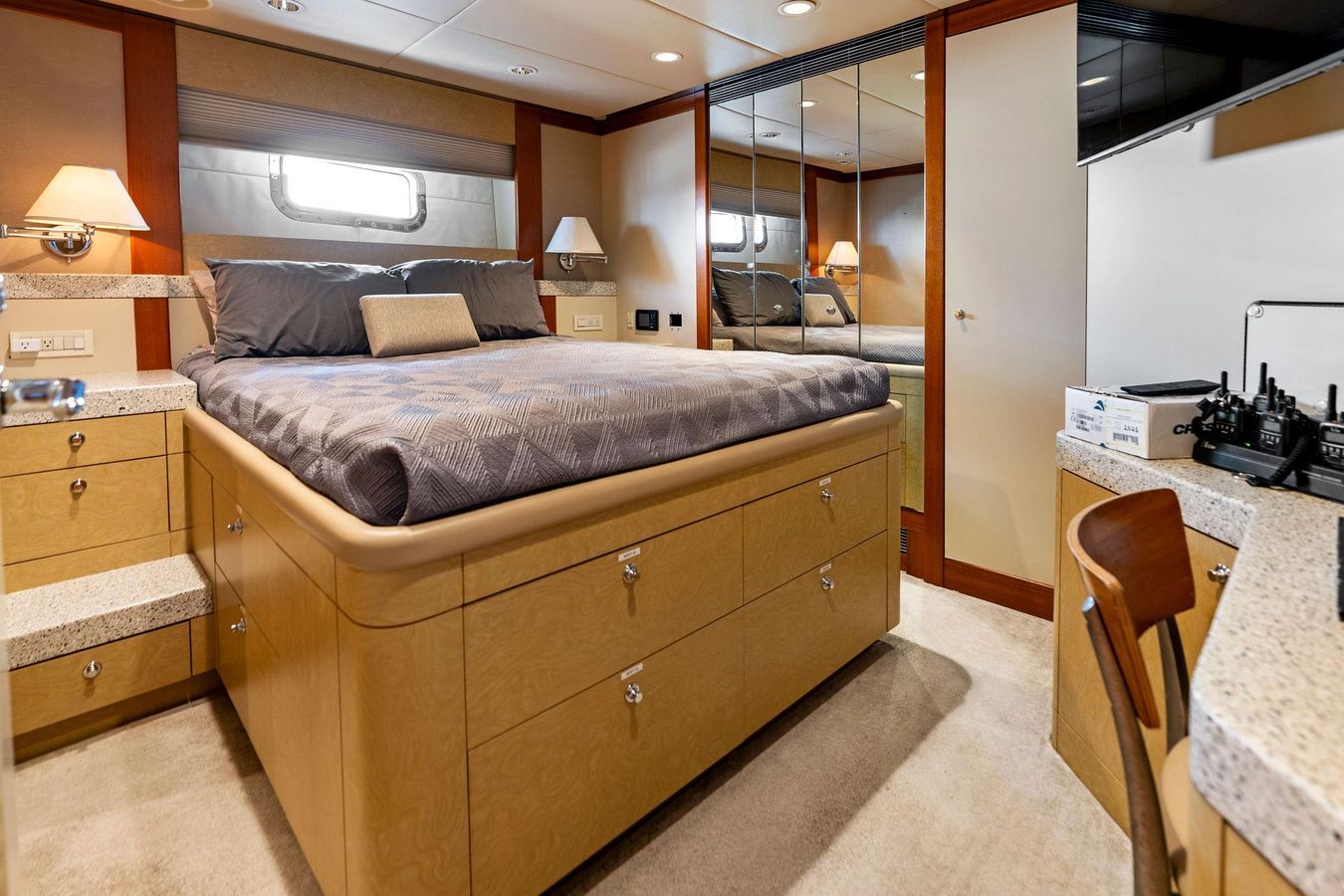

VIP SUITE on­deck has a King berth with pullout drawers beneath wrapped in calf hide. The bed also has a nightstand with built­in lamp on either side. Large windows provide a magnificent view. There is plenty of storage in two hanging lockers and two chests of drawers. The bath is jade green marble with a cylindrical shower full of natural light provided through a skylight. The bath also offers twin vanities, separate toilet compartment and heat on the floor.

MASTER AND GUEST CABINS are found by descending the curved stairway to the lower deck where the diamond shaped foyer is dramatic and the cabins angle off at 45­degrees. The two Guest cabins are aft and the Master forward. The unique arrangement of berths diagonally in these cabins creates a greater feeling of space.

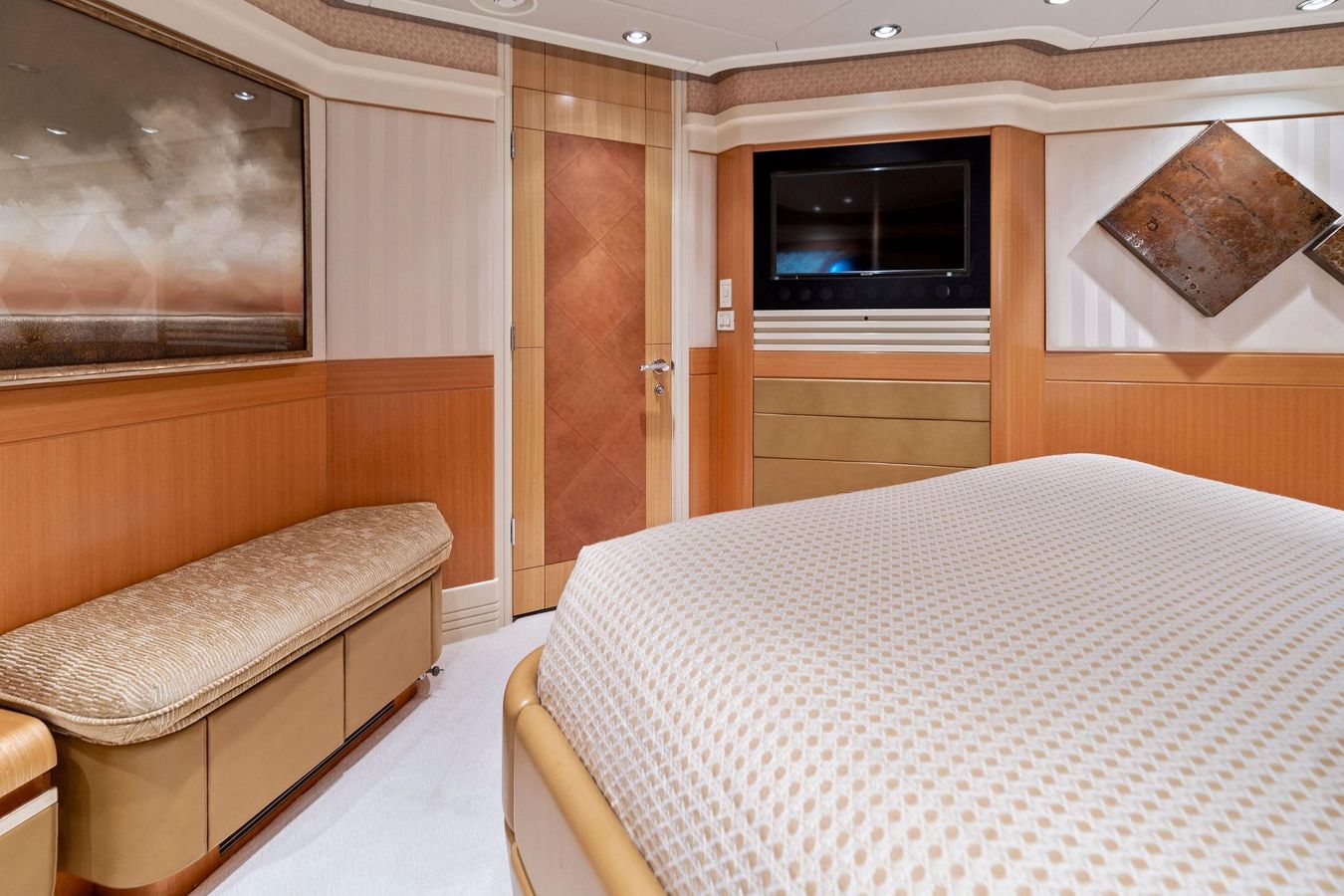

GUEST CABINS one has a Queen berth, the other is a convertible with 3 beds, each room has corner settees, en-suite bathrooms with floors heaters and showers, two hanging closets and chests of drawers.

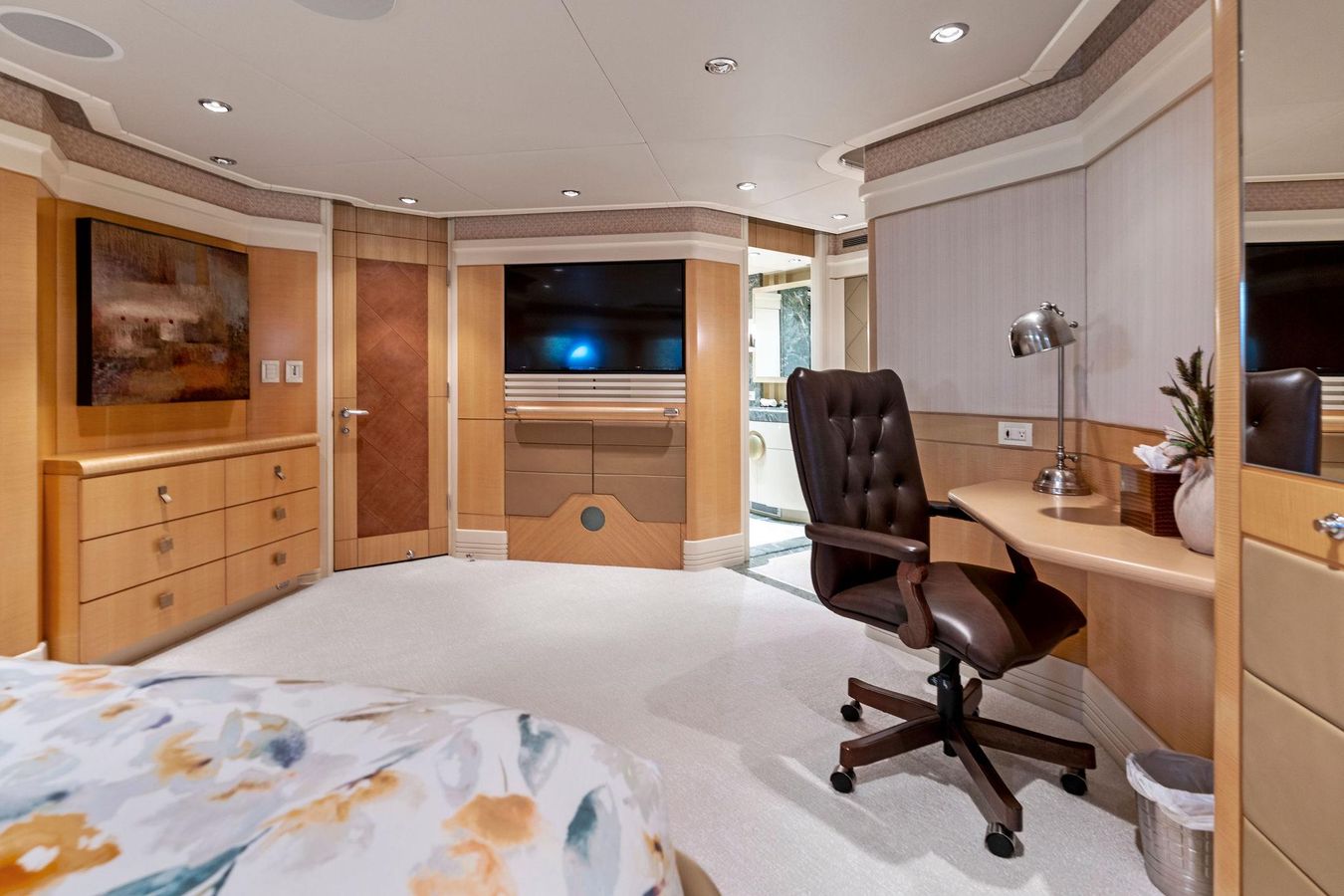

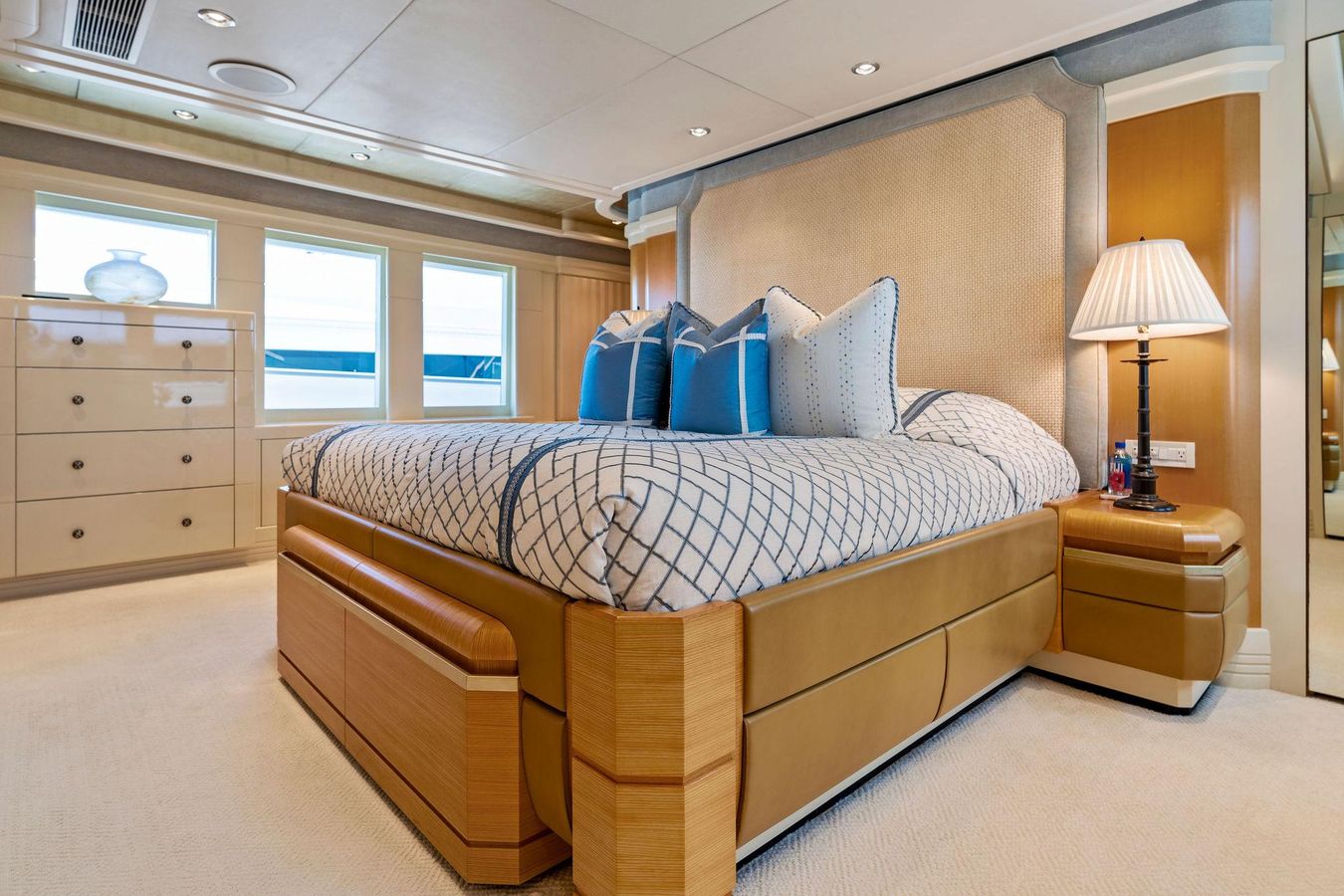

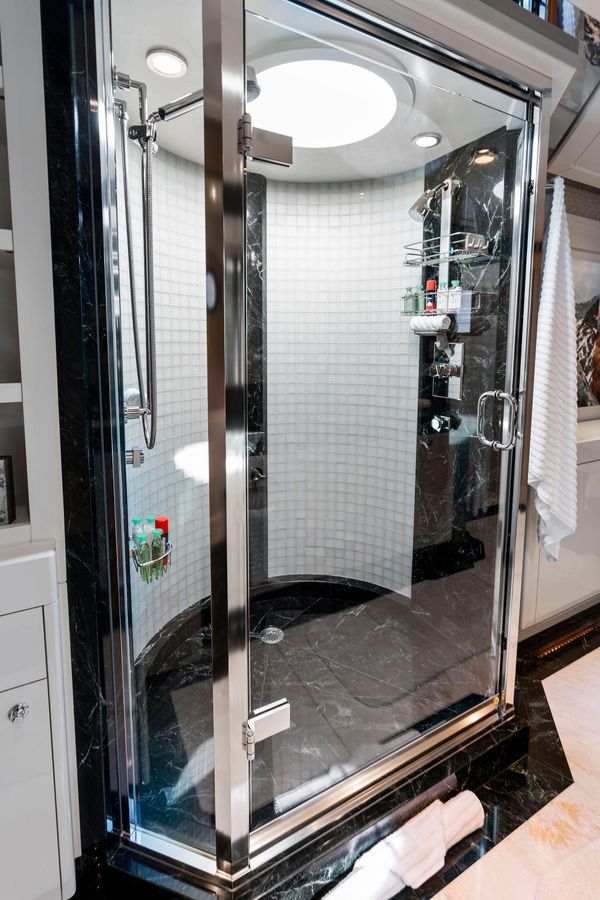

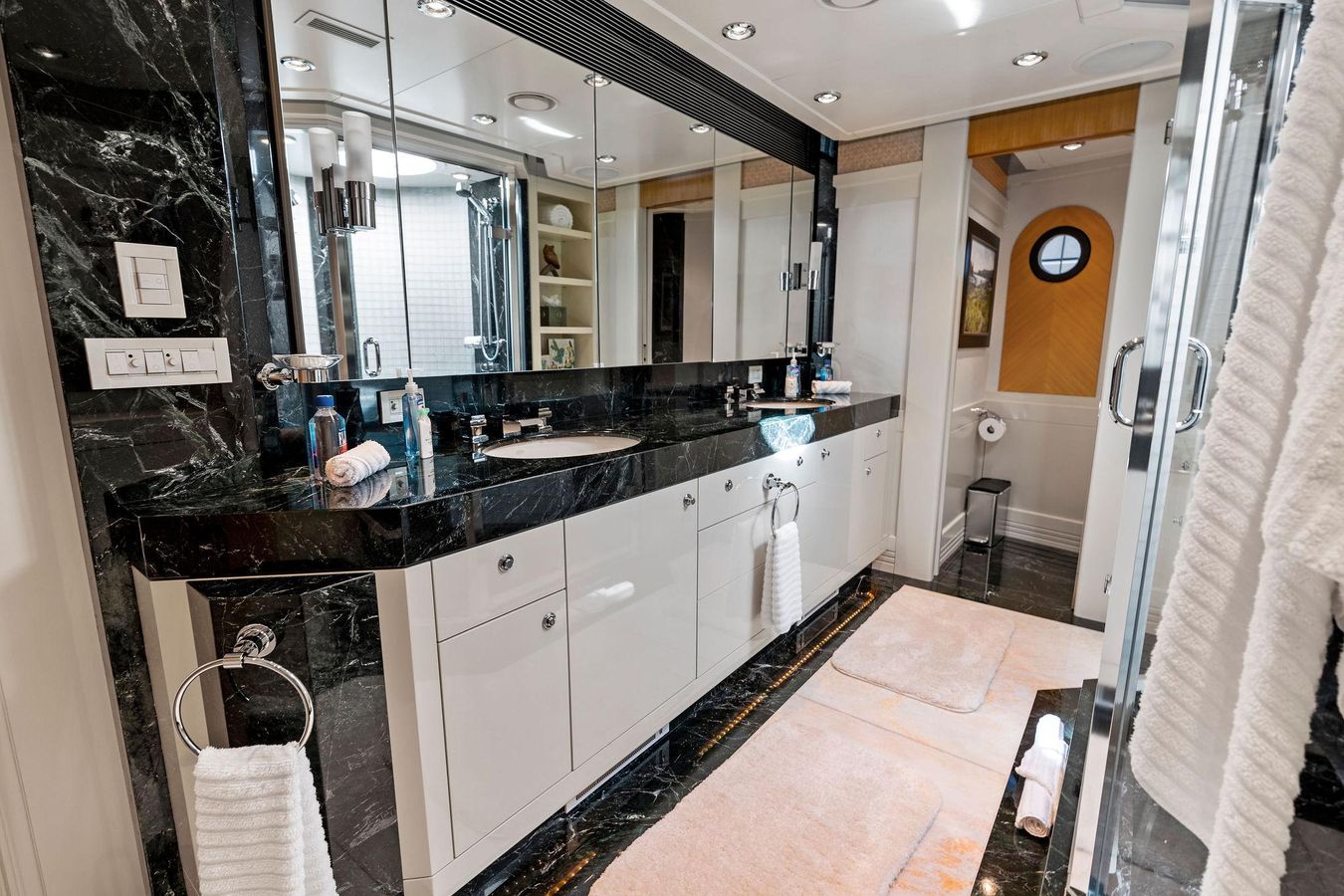

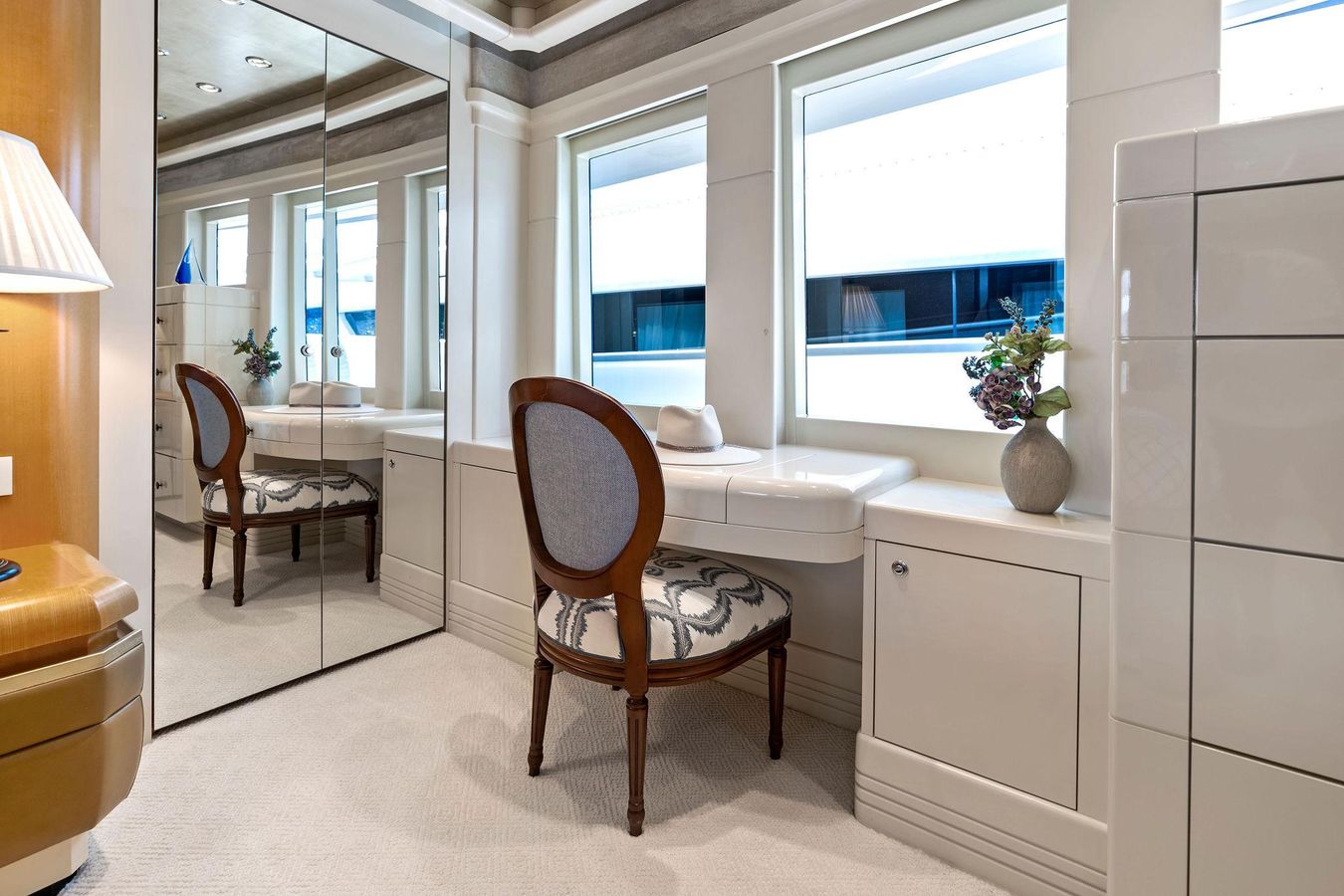

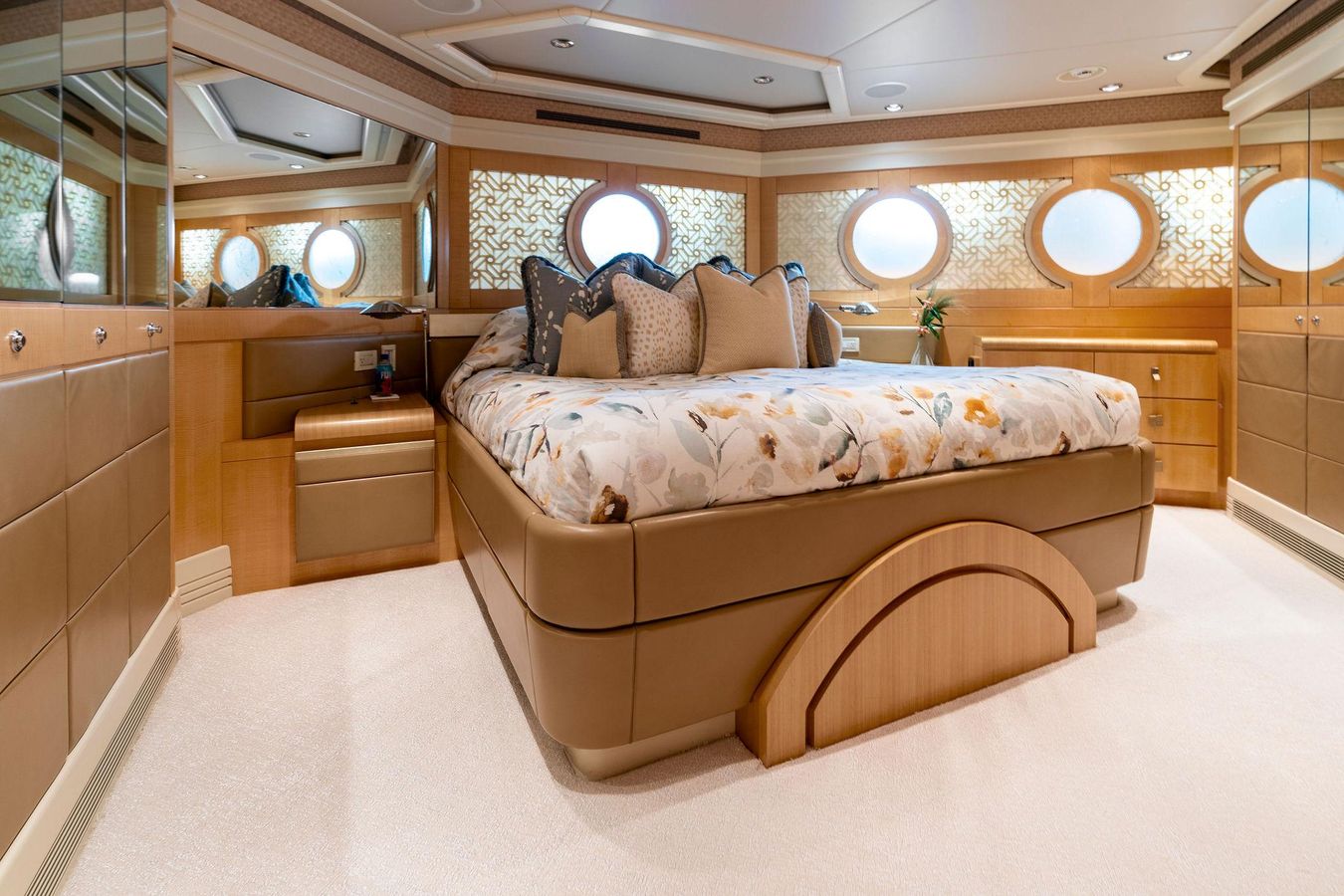

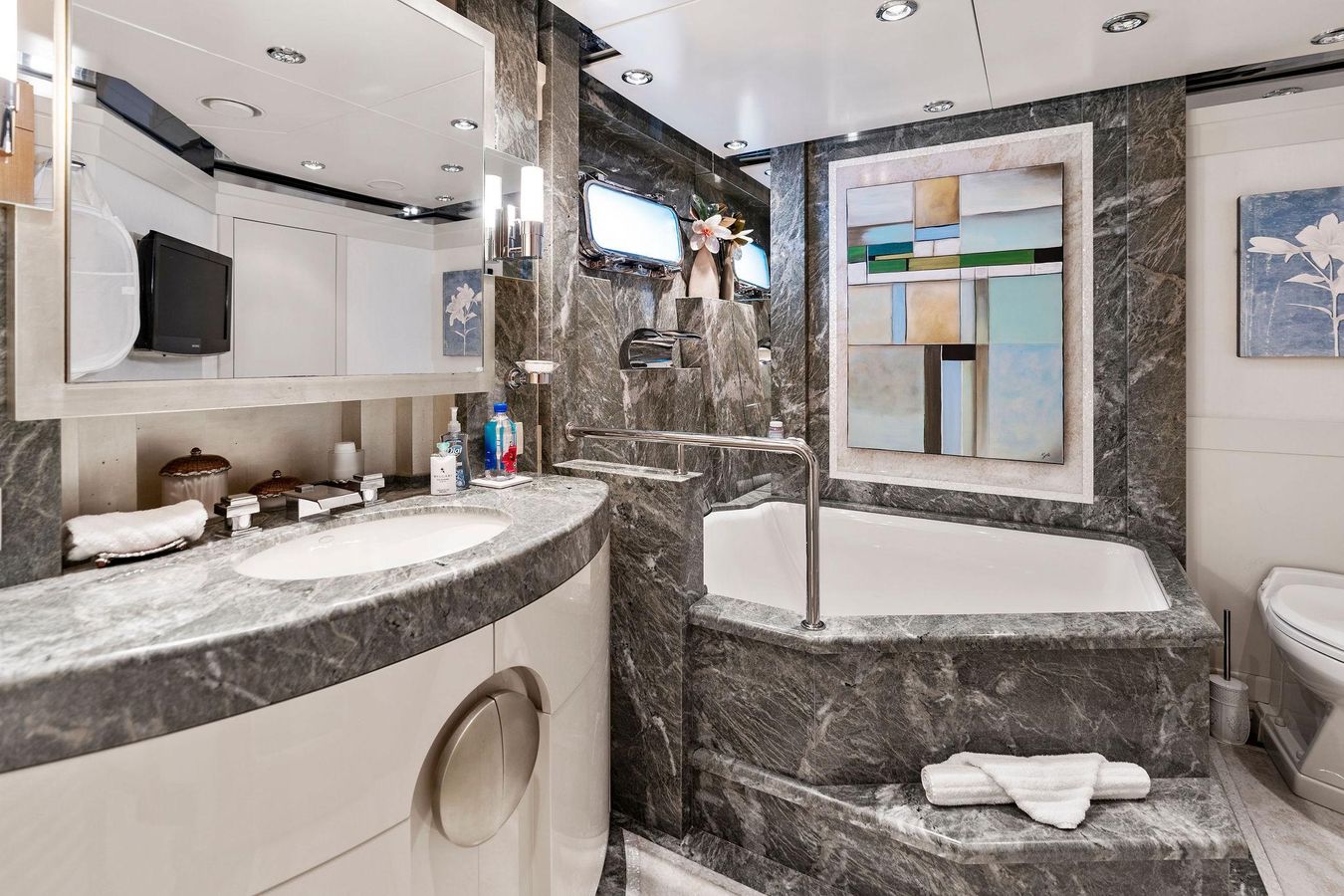

MASTER SUITE is full beam with lounge area, desk, King sized bed, vanity two bathrooms, fore and aft to port, one with shower and one with Roman tub. Each head has floor heaters.

CREW QUARTERS are all the way forward with a spacious lounge and comprehensive galley. The Captain's cabin has an elevated queen berth with storage under, a desk, wardrobe and private head.  The starboard and port crew cabins each have upper and lower twin berths.  All three cabins have private heads with shower.

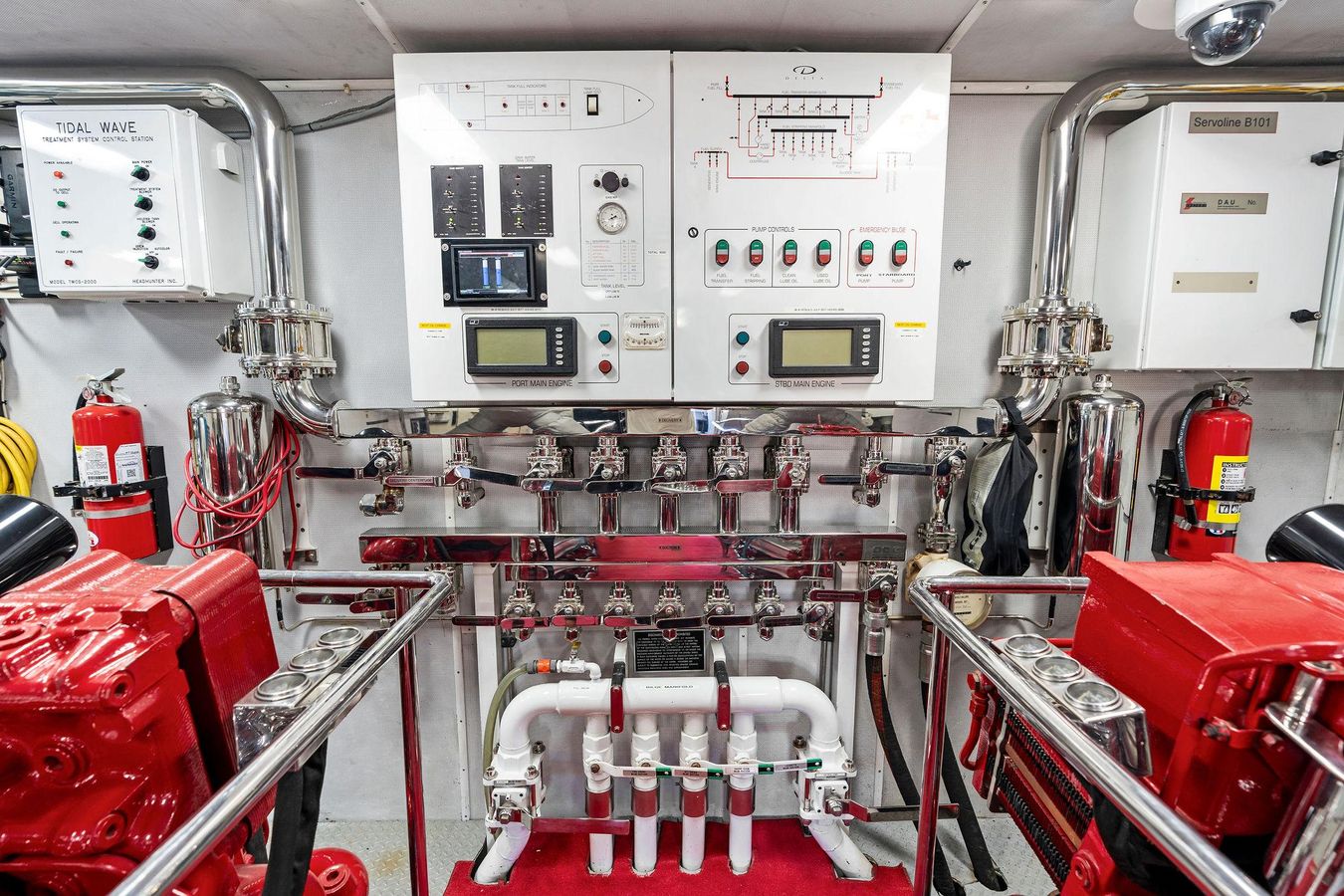

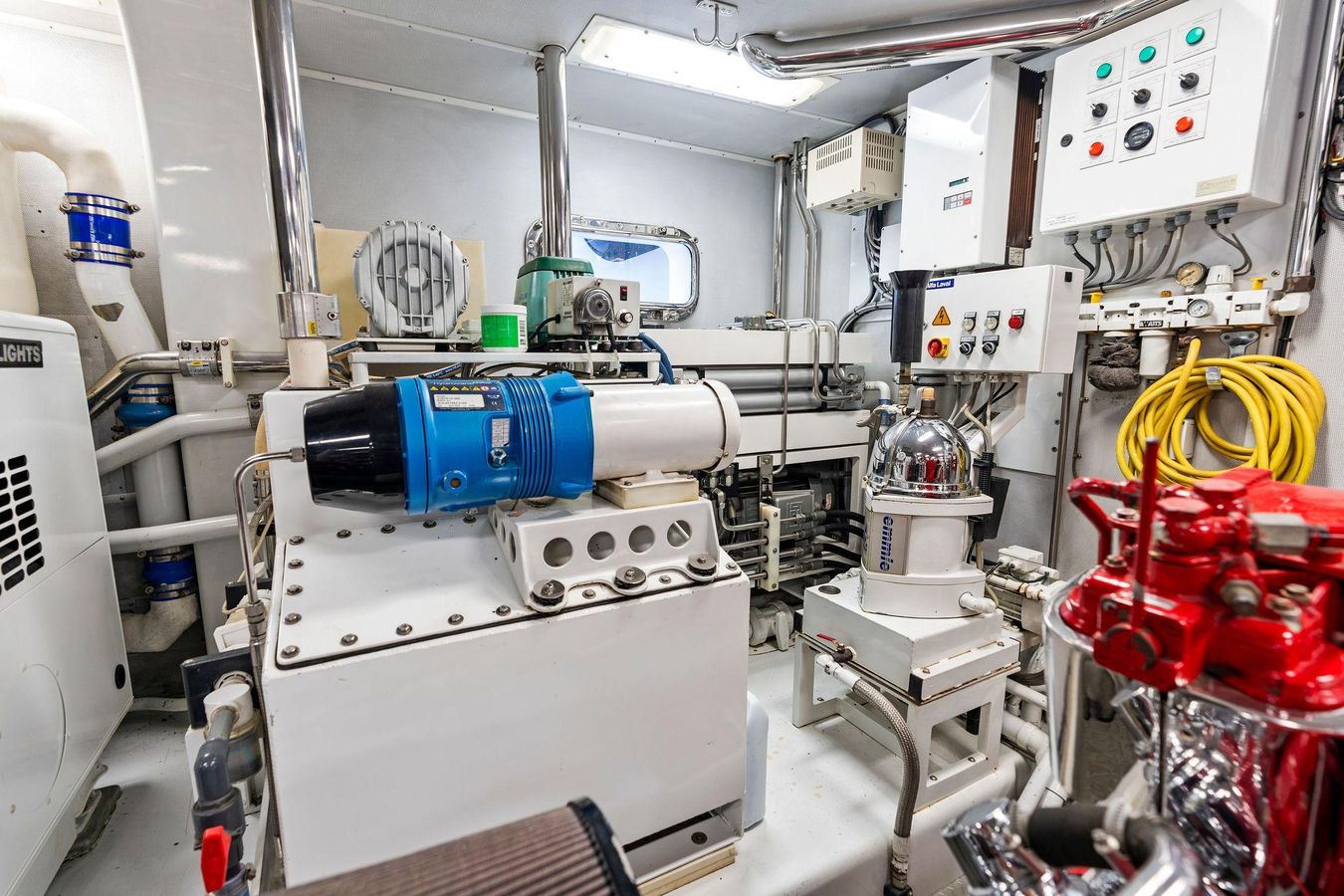

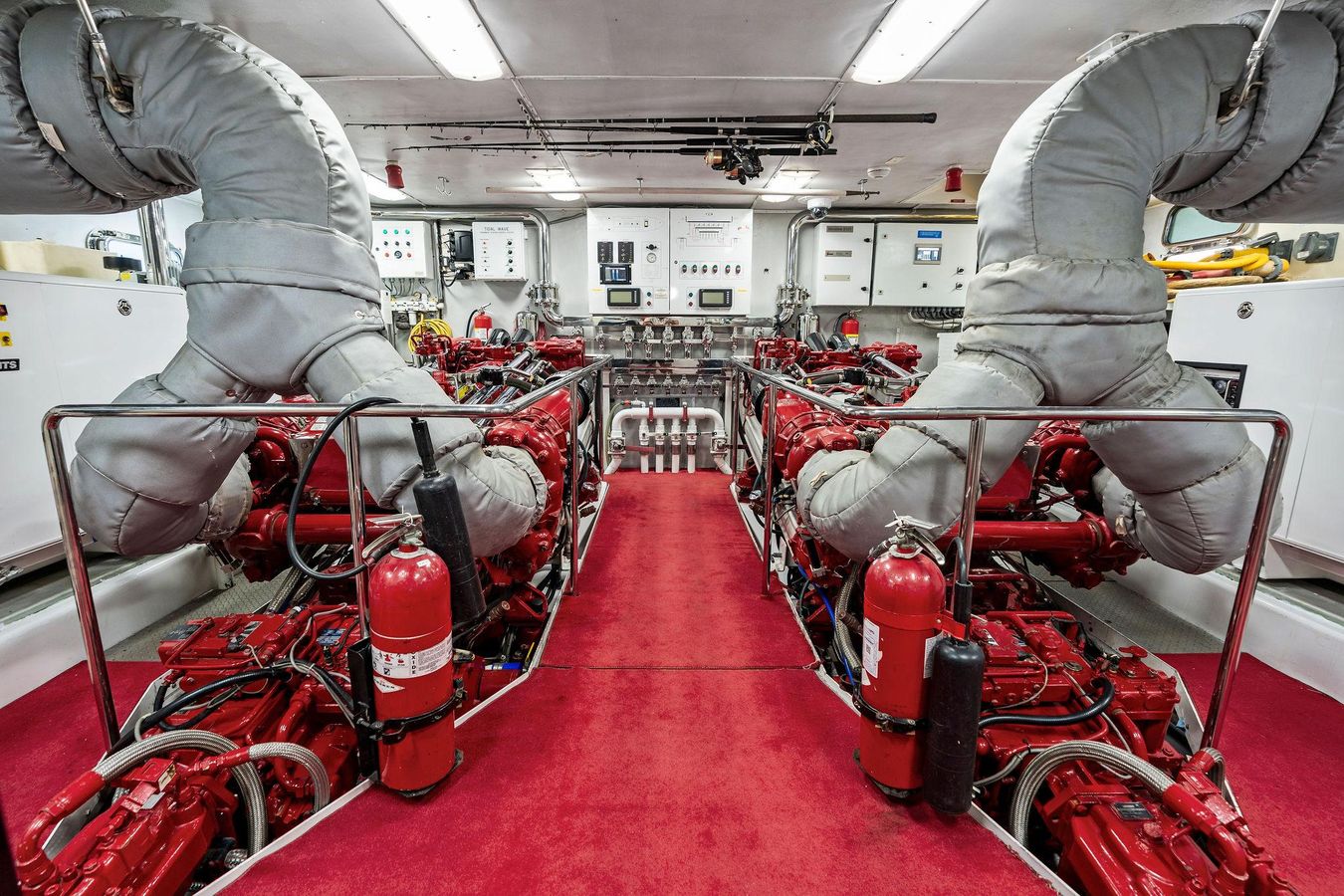

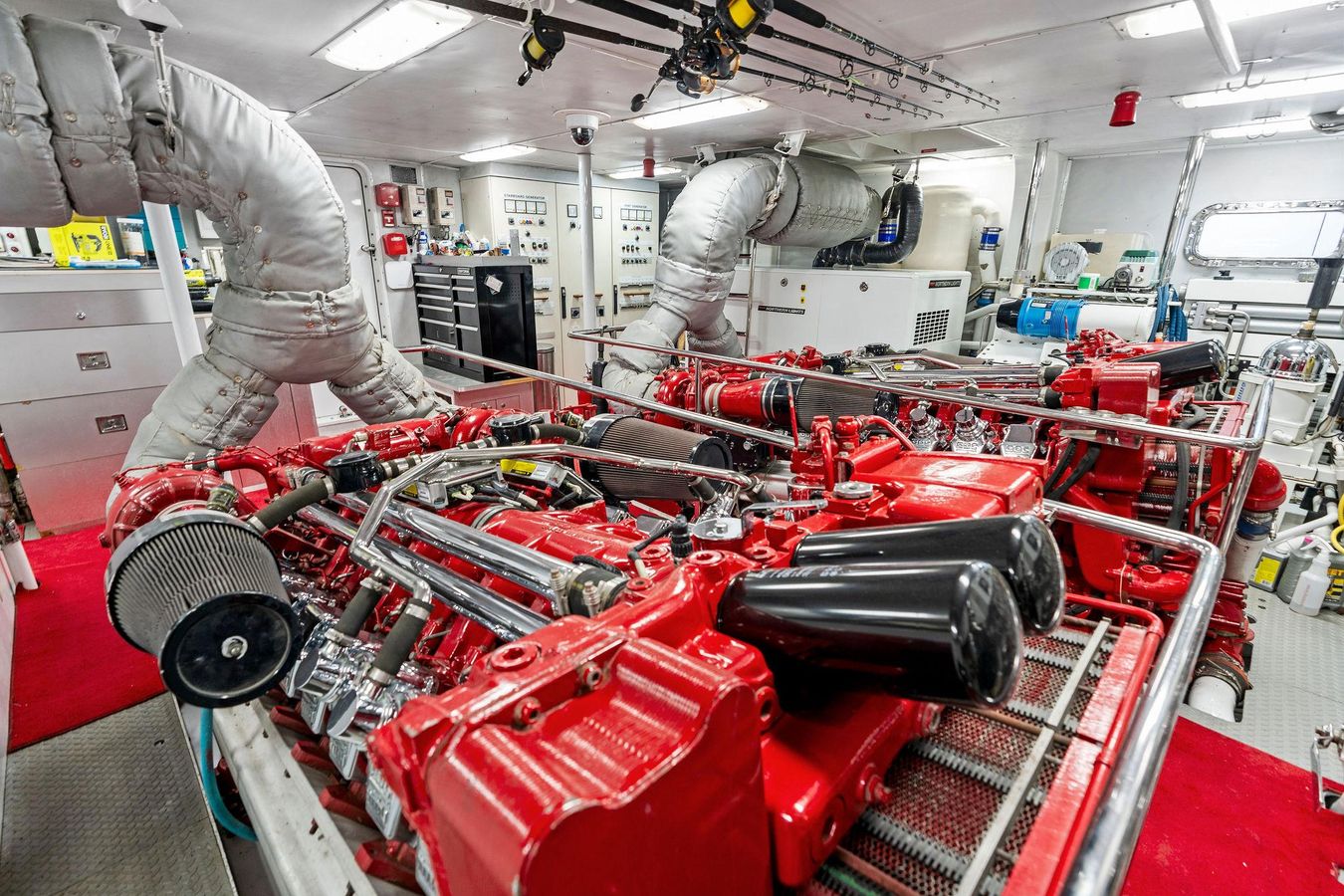

ENGINE ROOM is gleaming with red carpet between the red special order engines. Due to the amount of pre­planning, space and maneuverability is remarkable.

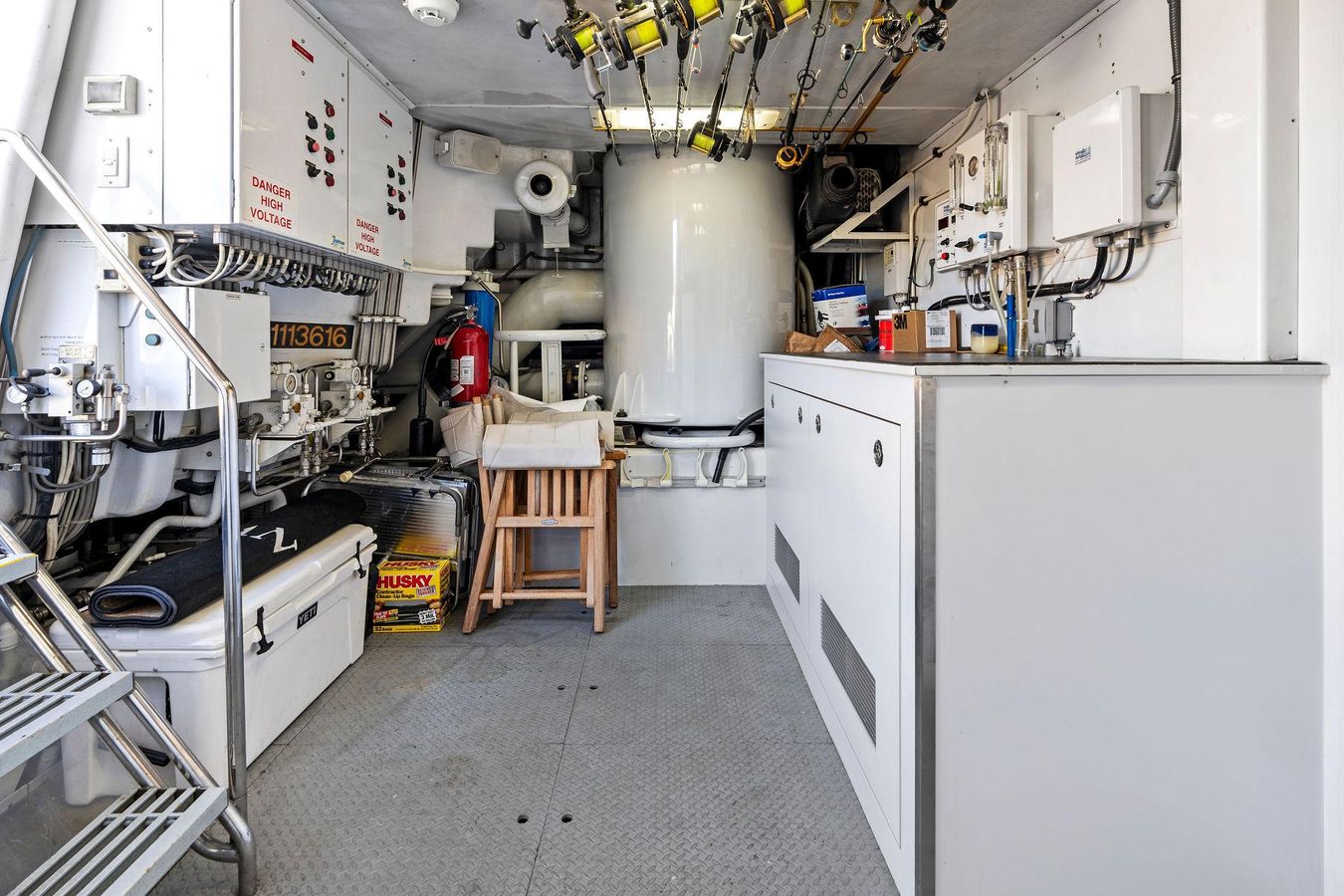

LAZARETTE is very spacious and can house your diving, fishing and water sport gear.

Construction

• Hull: Composite GRP
• Superstructure: Composite/Carbon Fiber
• Decks: Teak on Main Deck Only
• Paint: Awlgrip HDT paint Matterhorn White with silver escutcheon and flash accents on superstructure and overheads (fly bridge and aft deck) and Black boot stripe (Full paint job completed 2021)

Capacities

• Tonnage: 329 gross tons - 168 displacement tons
• Fuel Capacity: 9,200 US Gallons (5,678 Liters)
• Water Capacity: 1,500 US Gallons (34,826 Liters)
• Watermakers: 4,000 US GPD (15,141 Liters)
• Clean Oil: 86 US Gallons (326 Liters)
• Waste Oil: 76 US Gallons (288 Liters)
• Black Water: 469 US Gallons (1,175 Liters)
• Grey Water: 426 US Gallons (1,613 Liters)
• Sludge: 27 US Gallons (102 Liters)
• Maximum Speed: 18 kts – 2100 RPM
• Cruising Speed: 14 kts – 1700 RPM

Main Machinery

• Main Engines: 2 x MTU16V2000M90, Models R1627K03 and R1627K02 - Complete main engine rebuild completed June 2017
• Engine hours: 2,344 SMOH (October 2024)
• Engine Controls: DDEC
• Gear Boxes: BW 255 ratio 2.482:1
• Shafting: 4” stainless steel Aquanet
• Propellers: 5 blade 38 ½ “x 42”
• Start: 24 volt

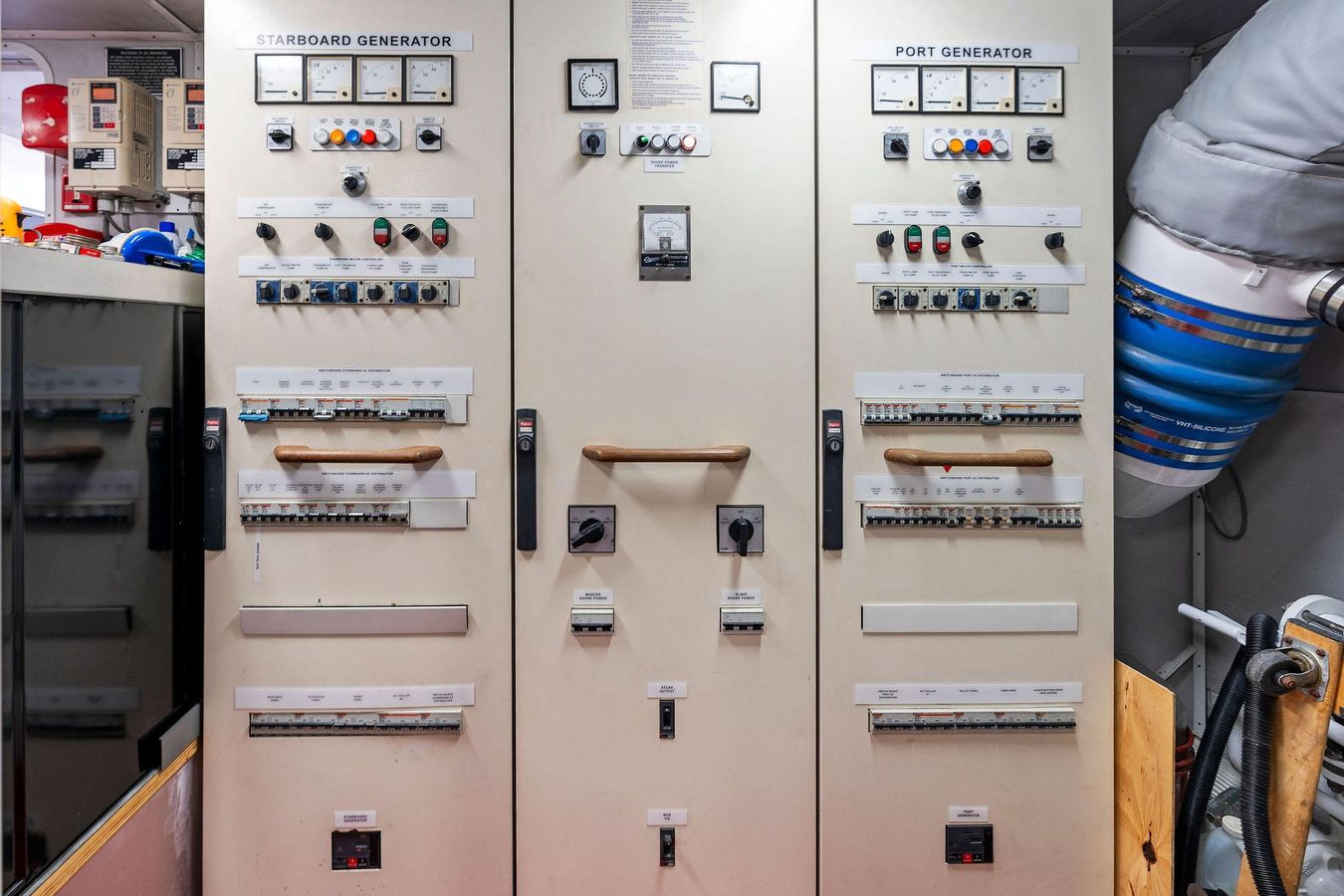

• Generators & Electricity Output: Primary system designed to use 120/208 VAC three phase 60HZ

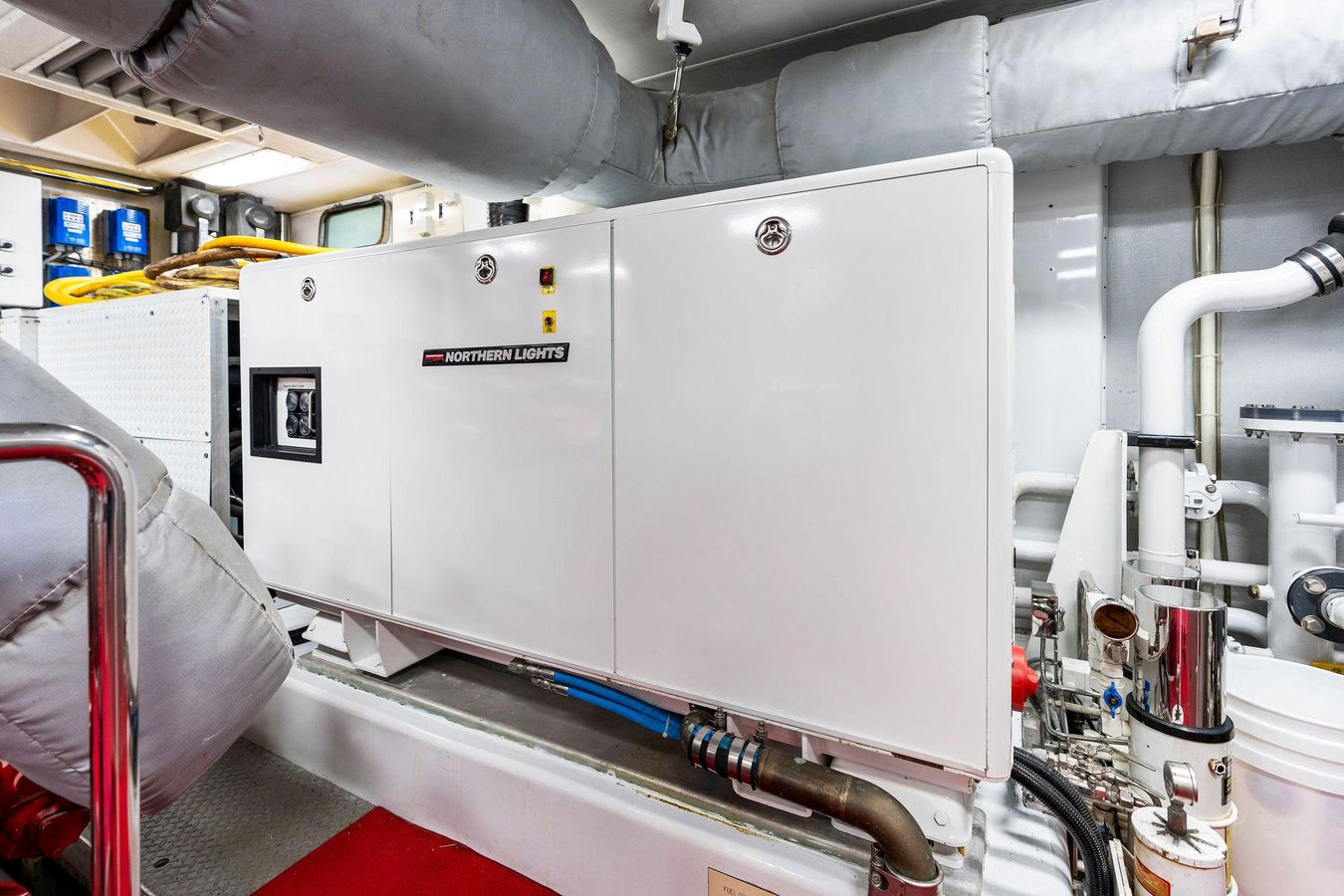

• Generators: 2 x Northern Lights 80 kW generators 120/308 three phase INSTALLED 2022
• Generator Hours Port: 1,711; Starboard : 1,721 (October 2024)
• Shore Power
  • Dual 100 Amp shore power connections in transom and bow section
  • (2) Shore power (2) 100 Amp / 3 phase / 208 volt cords that can be hooked up in two locations, either from the stern or through the forward end of the engine room, or a single 480/3 phase cord
  • 1 x Atlas 75 KVA power system with seamless transfer
  • 1 x Magnus Marine power system with seamless transfer installed at Delta Factory NEW 2023
• Batteries: 2 x 8D batteries, kept charged by 50­amp Sentry charger
• Generator Start: 24 volt

Ancillary Machinery

• Air Conditioning: 24 ton (4) 6 ton Technicold Air Conditioning Systems compressors with 4 individual heaters NEW CHILLERS 2021
• Air Compressor: Compare 10 PUR Hydrovane 30 gallon compressor
• Bow Thruster: 1 x American 20" 80 hp bow thruster
• Fresh Water Heaters: 2 x 40 g each
• Watermakers, Inc. 4,000 GPD watermaker
• Fresh Water Pressure System: 2 x Headhunter Mach 5
• Fuel Separator: 1 x Alfa Laval MIV 303 fuel oil separator
• Grey Water Pump: 1 x Edson 120­ELB­20­AC­200 grey water diaphragm pump
• Black Water Pump: 1 x Edson 120­ELB­20­AC­200 black water diaphragm pump
• Sewage Treatment System
  • 1 x Headhunter Tidal Wave RF 200 class II marine sanitation device
  • 1 x Headhunter Auto­clor marine hypoclorinator
• Toilet System: Headhunter
• Stabilizers: Quantum QC­1200 Zero­Speed Stabilizer System with QP20CD HPU
• Steering System: 2 x Twin Jastram steering system with 2 B­300­12 hydraulic cylinders
• Under Water Lights: 5 x Sea Vision, aft/swim platform
• Helm/Control Stations: Wing stations and aft deck control stations, DDEC controls, bow thruster, rudder follow up and horn button

Deck Machinery & Equipment

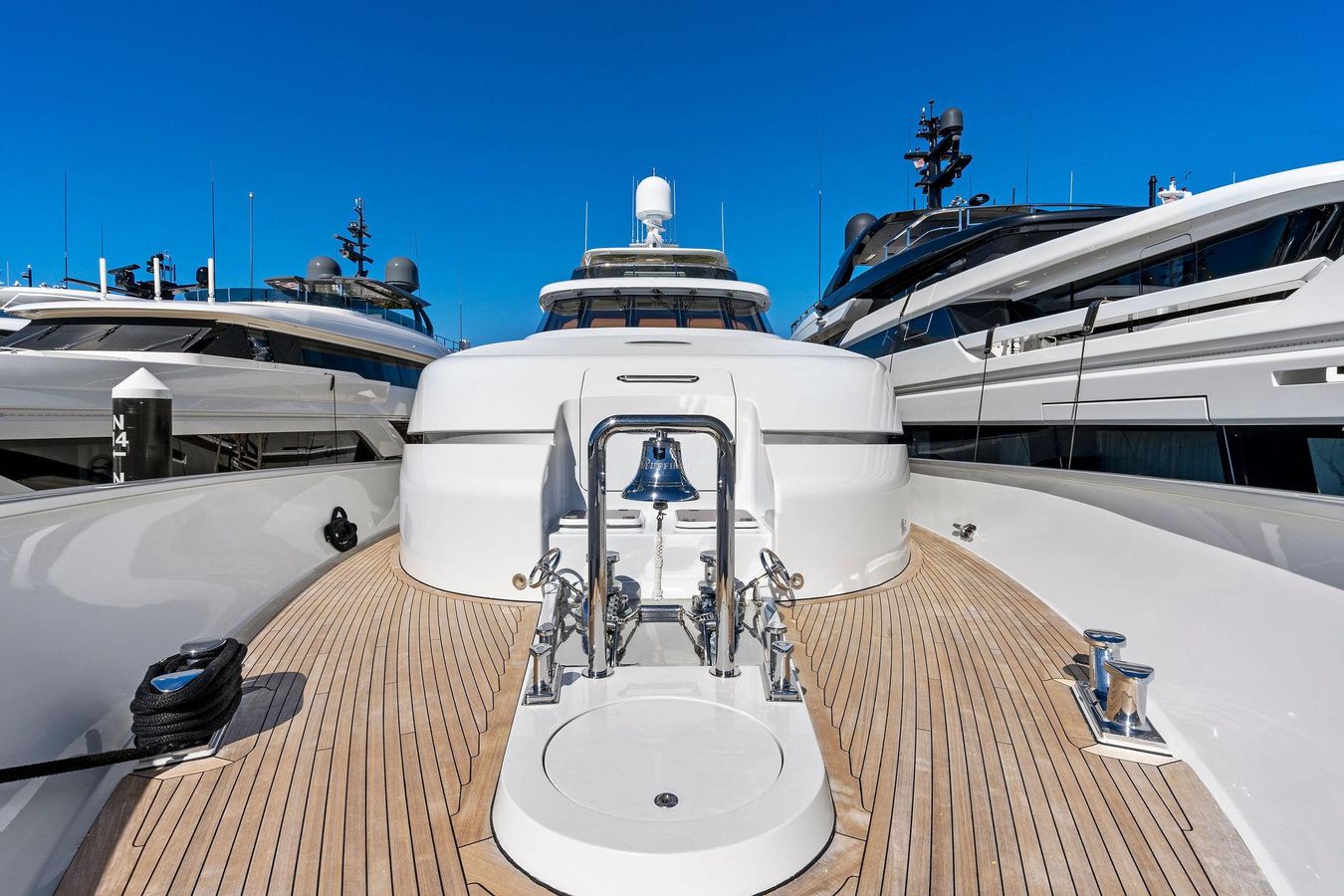

• Anchors: 2 x Talon 180 kilograms (450 lb.) brushed stainless Poole style with port anchor having 300 ‘of 5/8” high tensile galvanized chain. The starboard side has 450’ of same chain size
• Anchor Chains: Portside 300’ of 5/8” high tensile galvanized Stbd. 450’ of 5/8” high tensile galvanized

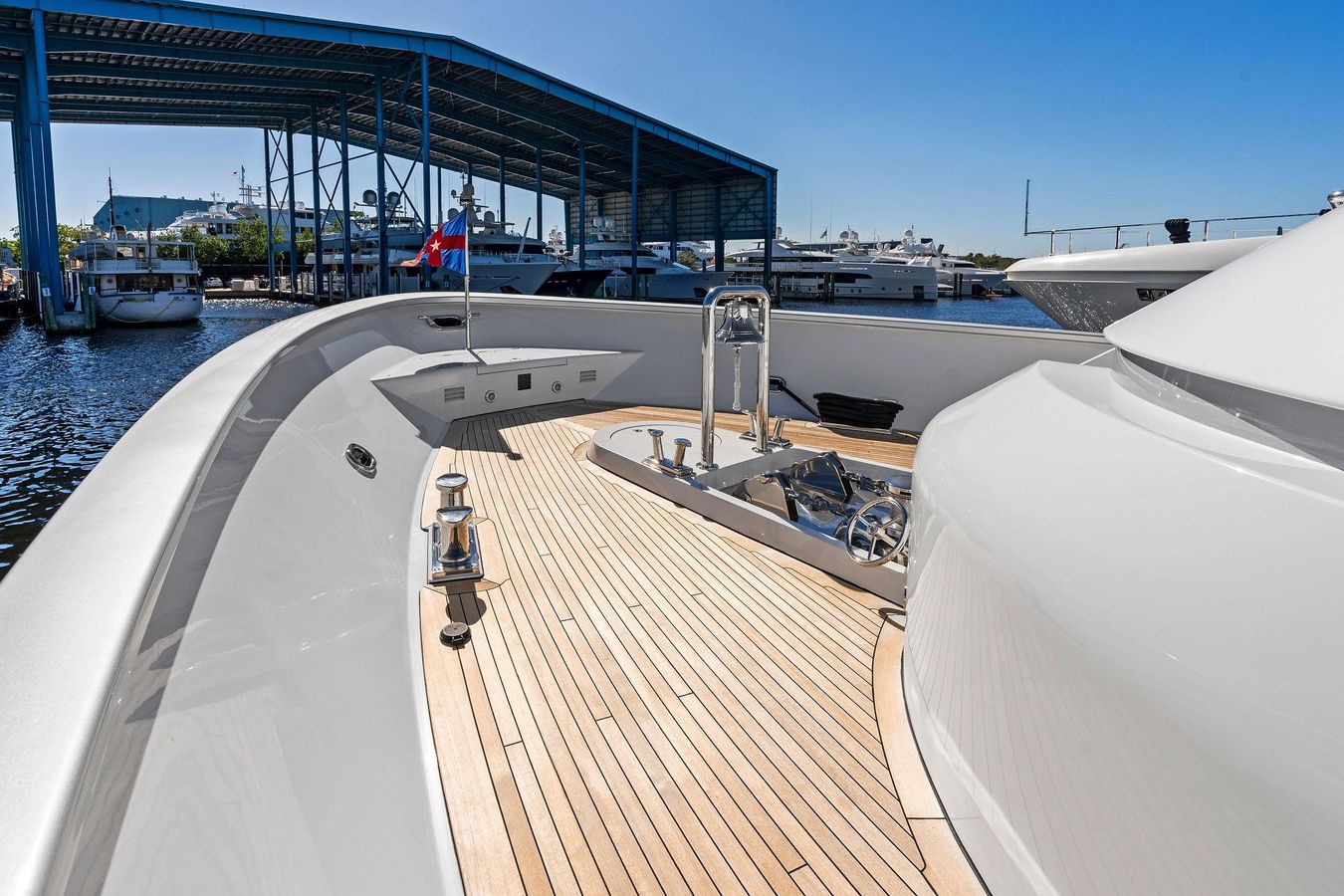

• Anchor Windlass System
  • 2 x Muir VRC 6000 windlass powered by Vickers PVQ20 hydraulic power pack 30 gallons
  • 1 x Center Bow Fair Lead for anchor snubber
• Aft Warping Capstans
  • 2 x Muir VC 4000 aft warping capstans with foot switches
• Boat Crane: 1 x Crane and winch Nautical Structures EZ 4000 lb.
• Tender Chocks: Fully removable
• Passerelle: 1 x Marquipt 15’ extended passarelle able to slew 50 degrees to starboard and 15 degrees to port - Mounted with its own watertight compartment and has one button retrieval system
• Accommodation Ladders: Marquipt, accessed mid ship port and starboard
• Wing Stations: 2 x Wing stations each have DDEC electronic controls, DDEC station activation panels, bow thruster controls follow up rudder and horn button
• Mast: 1 x folding mast which is completely hydraulically operated
• Other: Barnes GC 9000 2 gallons hydraulic reservoir for transom door operation
  • 1 x Aft docking station which is completely hidden when not in use
  • 1 x large top loading freezer on boat deck aft of sky lounge
• Hydraulic Power Pack: Vickers power pack, 30 gallons

Navigation Systems & Communications Systems

• SATcom: 1 x KVH VSat Broadband with 2 VOIP telephone lines
• Wi­Fi: Wi­Fi throughout the yacht - Dual Starlink Antennas NEW 2023
• 1 x Telcor 5413 chronometer
• 1 x Telcor 5513 barometer
• Wind & Speed Indicator Station: 1 x B&G Hydra 2000 Cruise Pack w/wind/speed/depth

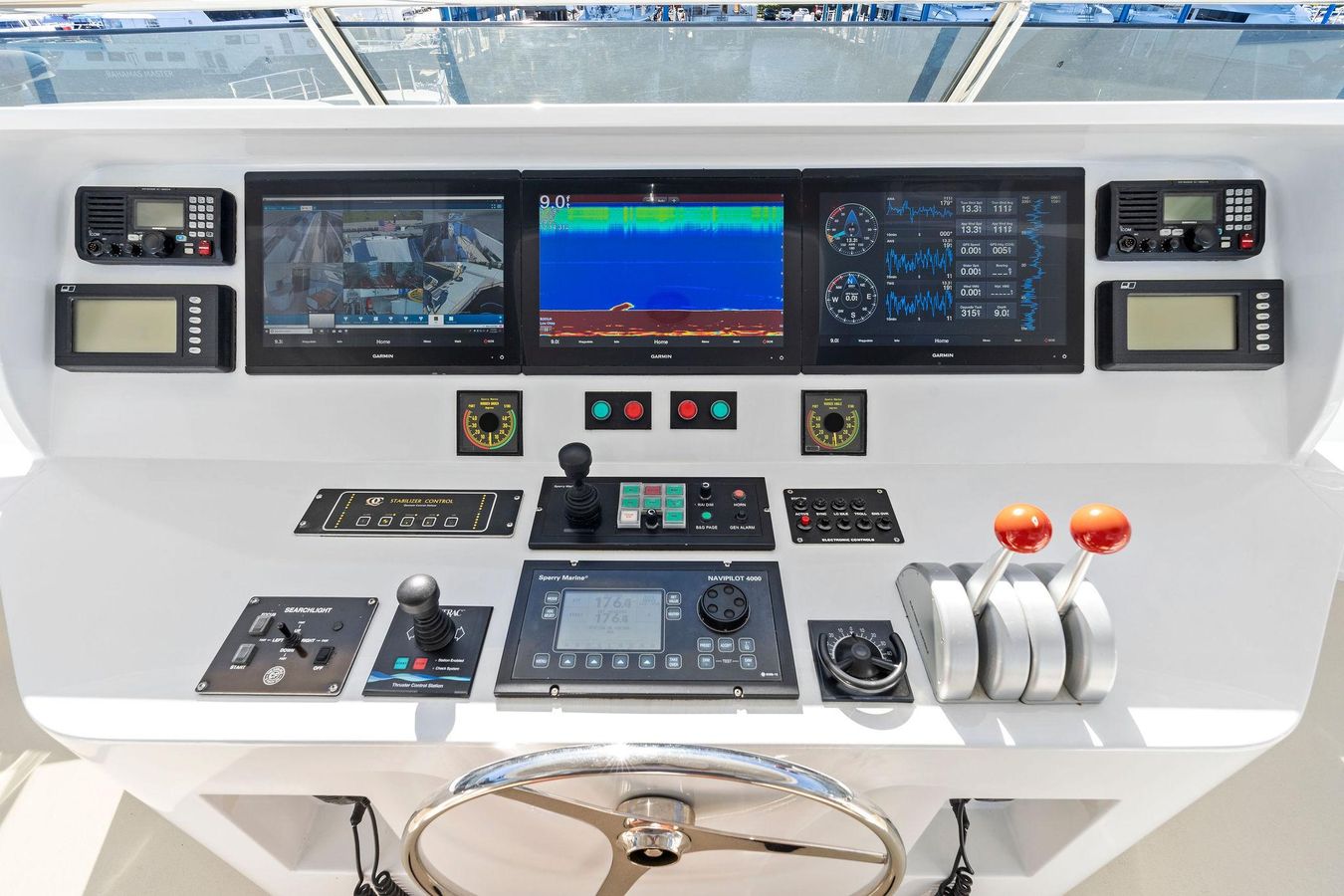

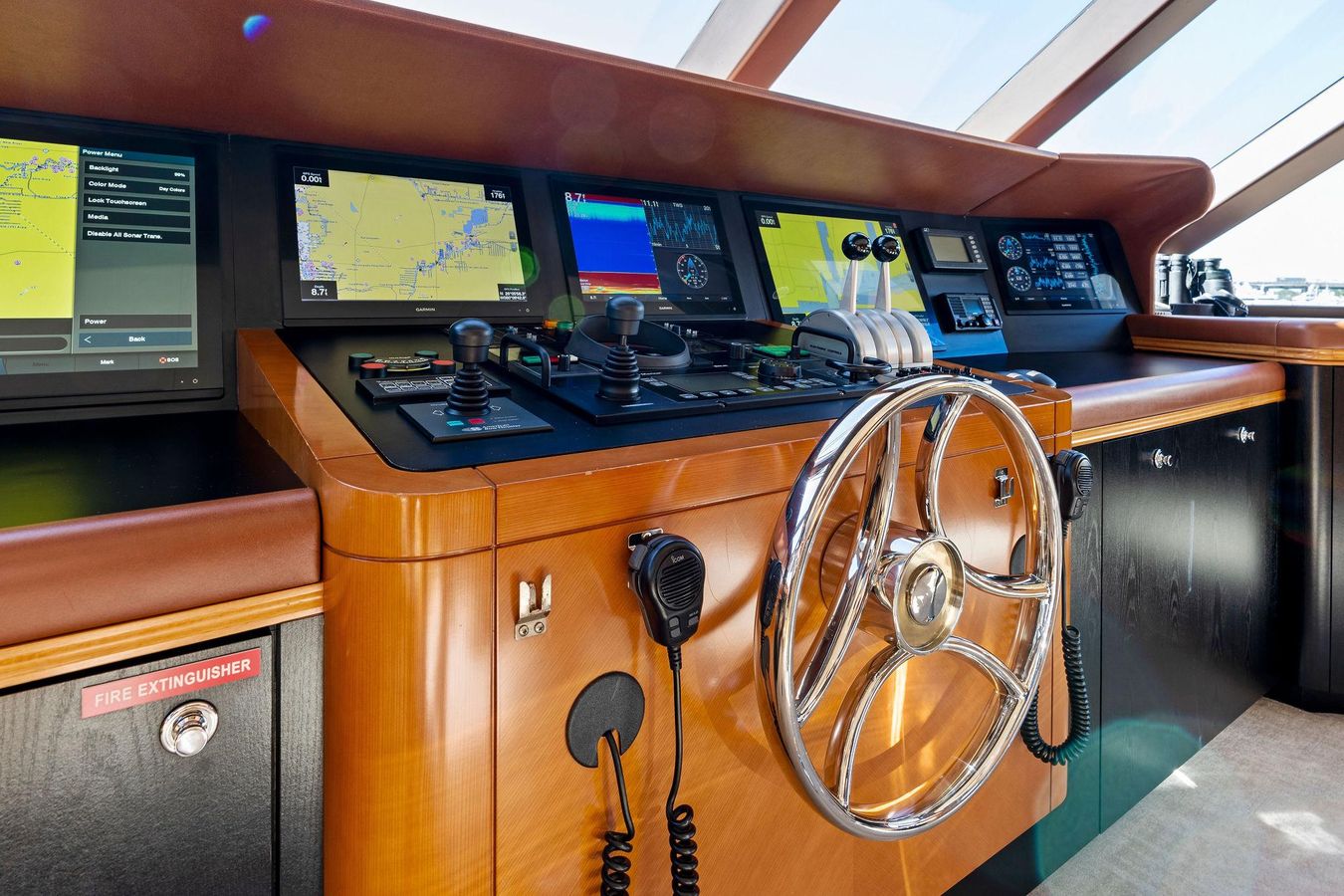

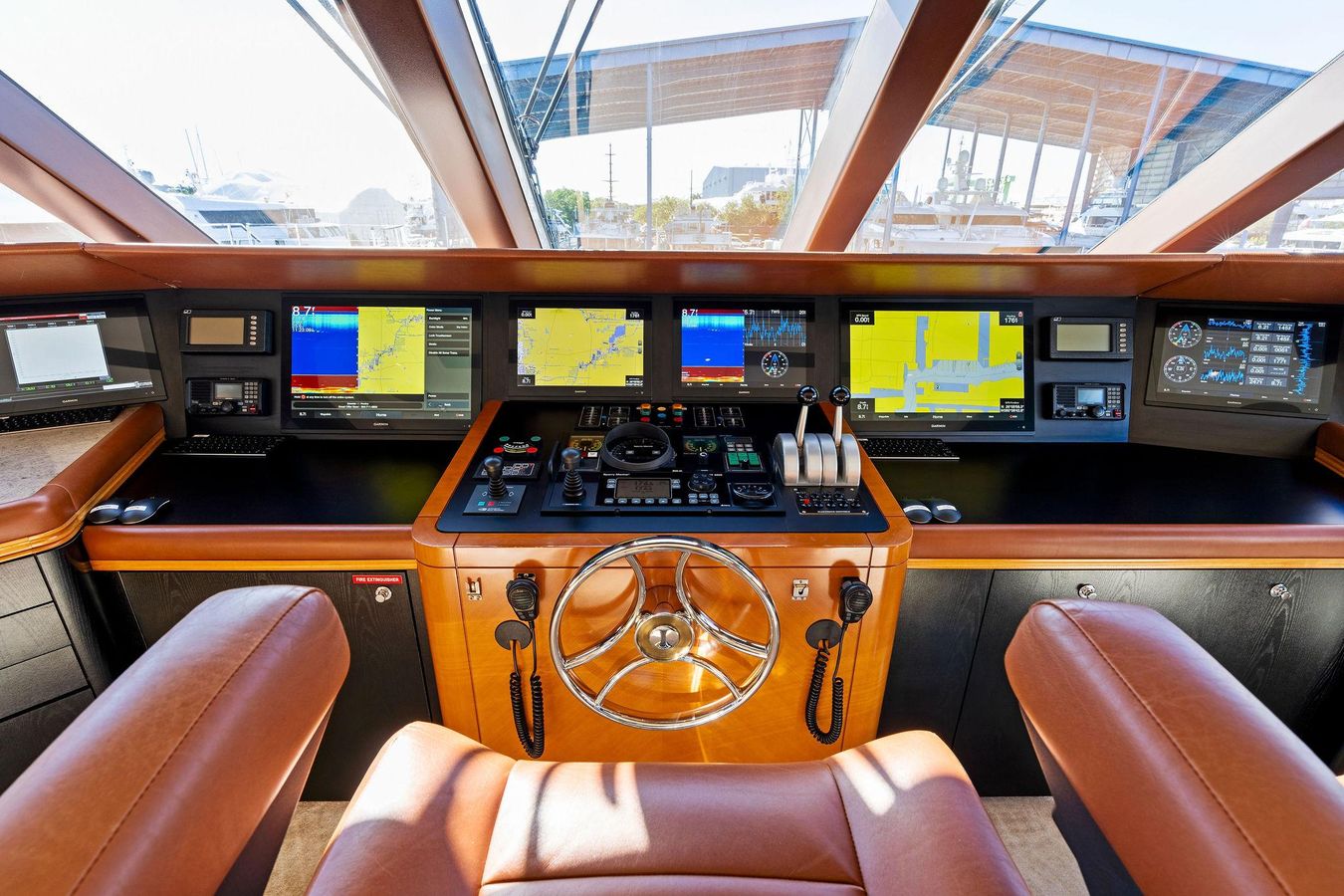

• Main Helm Electronics And Navigation Equipment:
  • 2 x ICOM IC­M604 VHF radio
  • 2 x Garmin GPSMAP 8624 MFD NEW 2020
  • 4 x Garmin GPSMAP 8617 MFD NEW 2020
  • 2 x Garmin Card Reader NEW 2020
  • 1 x Garmin Airmar B265LH 1 kW thru-hull transducer NEW 2020
  • 1 x Garmin chart plotter/sonar XM radio with weather interface NEW 2020
  • 1 x Garmin Extension Cable for 12-pin Garmin Scanning Transducers, 30 feet NEW 2020
  • 1 x Garmin Smart Thru-Hull Mount Transducer with Depth, Speed & Temperature (Triducer, NMEA 2000) NEW 2020
  • 1 x Garmin South Florida and North Bahamas Charts VUS010RNEW 2020
  • 1 x Garmin gWind Transducer includes the GND10 Black Box Bridge for interfacing with Garmin Chart Plotters NEW 2020
  • 1 x Garmin GMS 10 Network Port Expander NEW 2020
  • 1 x Garmin GSD 25 Advanced Sonar Module NEW 2020
  • 1 x Garmin AIS 800 Blackbox Transceiver Install
  • 1 x Garmin GA 38 GPS/GLONASS Antenna NEW 2020
  • 11 x Garmin Marine Network Cable Connectors, 2-pack NEW 2020
  • 1 x Wxworks Marine Weather USB Receiver NEW 2020
  • 6 x Lily 107L Antenna Mount SS Deck 4" high NEW 2020
  • Bundle includes USB Receiver
  • Shakespeare Antenna, Software, GPS
  • Antenna, and Mounting Hardware
  • 2 x Furuno Radars 4' and 6' Open Array Antennas
  • 1 x Navigate X MK 2 digital gyrocompass
  • 1 x Furuno Class A Model FA170 AIS
  • 1 x Furuno GP­32 GPS/WASS Navigator
  • 1 x Sperry Navipilot 4000 autopilot

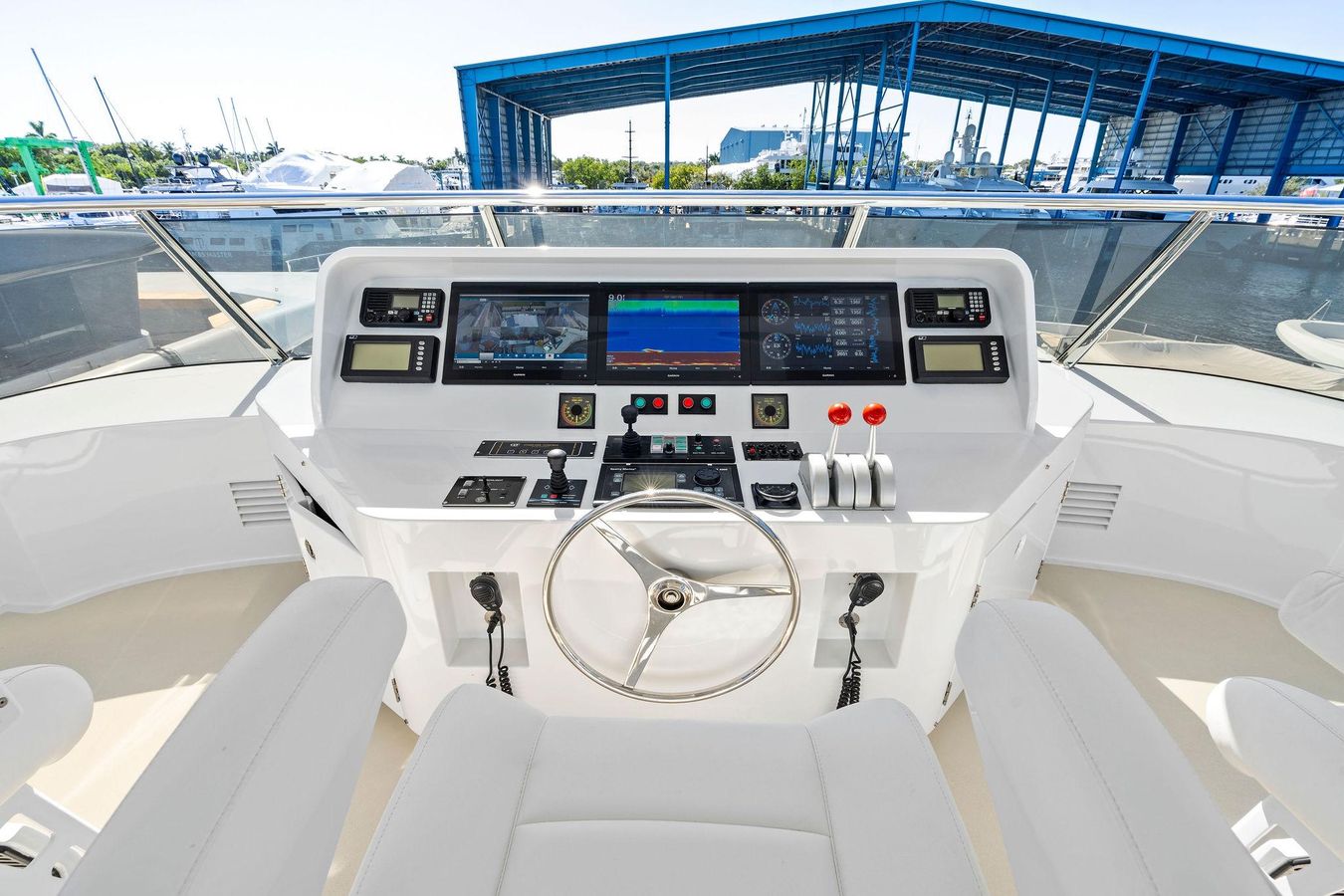

• Flybridge Electronics:
  • 3 x Garmin GPSMAP® 8617 MFD, With Preloaded U.S and Canada BlueChart® g2 and LakeVü™ (16.5" x 12.1" x 2.8") HD NEW 2020
  • 2 x Garmin Card Reader NEW 2020
  • 1 x Garmin GMS 10 Network Port Expander NEW 2020
  • 1 x Mobius systems monitor
  • 2 x Icom IC­M604 VHF radio's
  • Search light control
  • Stabilizer Control

• Radar System:
  • 1 x Furuno, 6’ Open Array Radar Model DRS6ANXT/6 NEW 2020
  • 1 x Furuno Open array, Model DRS6ANXT/4 NEW 2020
  • 1 x Garmin 9-axis Heading Sensor allows for MARPA tracking and improves radar overlay experience NEW 2020
  • 2 x Custom Fabrication of mounting plates for Radar Pedestals NEW 2020
  • 1 x Actisense NGW-1 NMEA 2000® Gateway to 0183 converter NEW 2020

• Camera System:
  • 4 x Axis M5225-E Indoor and outdoor PTZ with 10x zoom in HDTV 1080p NEW 2020
  • 3 x AXIS P3245-LVE Network Camera outdoor-ready HDTV 1080p fixed dome for any light conditions NEW 2020
  • 1 x AXIS Camera Station S2208 Appliance with integrated 8 channel PoE switch for high-definition surveillance NEW 2020
  • 1 x Axis T8310 Video Surveillance Control Board NEW 2020

Galley & Laundry Equipment

• Main Galley Equipment:
  • 2 x Subzero 600 series stainless steel refrigerators
  • 1 x Subzero 600 series stainless steel freezer with ice maker
  • 1 x 5 burner Wolf glass ceramic electric cook top
  • 2 x Wolf stainless steel double pure convection wall ovens
  • 2 x LG and GE turntable microwave ovens located in galley and crew mess
  • 3 x Uline ice makers
  • 2 x Uline combo ice maker / refrigerator
  • 3 x Uline refrigerators
  • 1 x stainless steel 2-drawer Fisher and Paykel dishwasher NEW 2020
  • 2 x Kitchen Aid trash compactors located in galley and crews quarters NEW 2020
  • 2 x Kitchen Aid garbage disposals

• Laundry Equipment: 2 x Bosch stacked washer and dryer (crew and guest area) NEW 2020
• Additional Equipment:

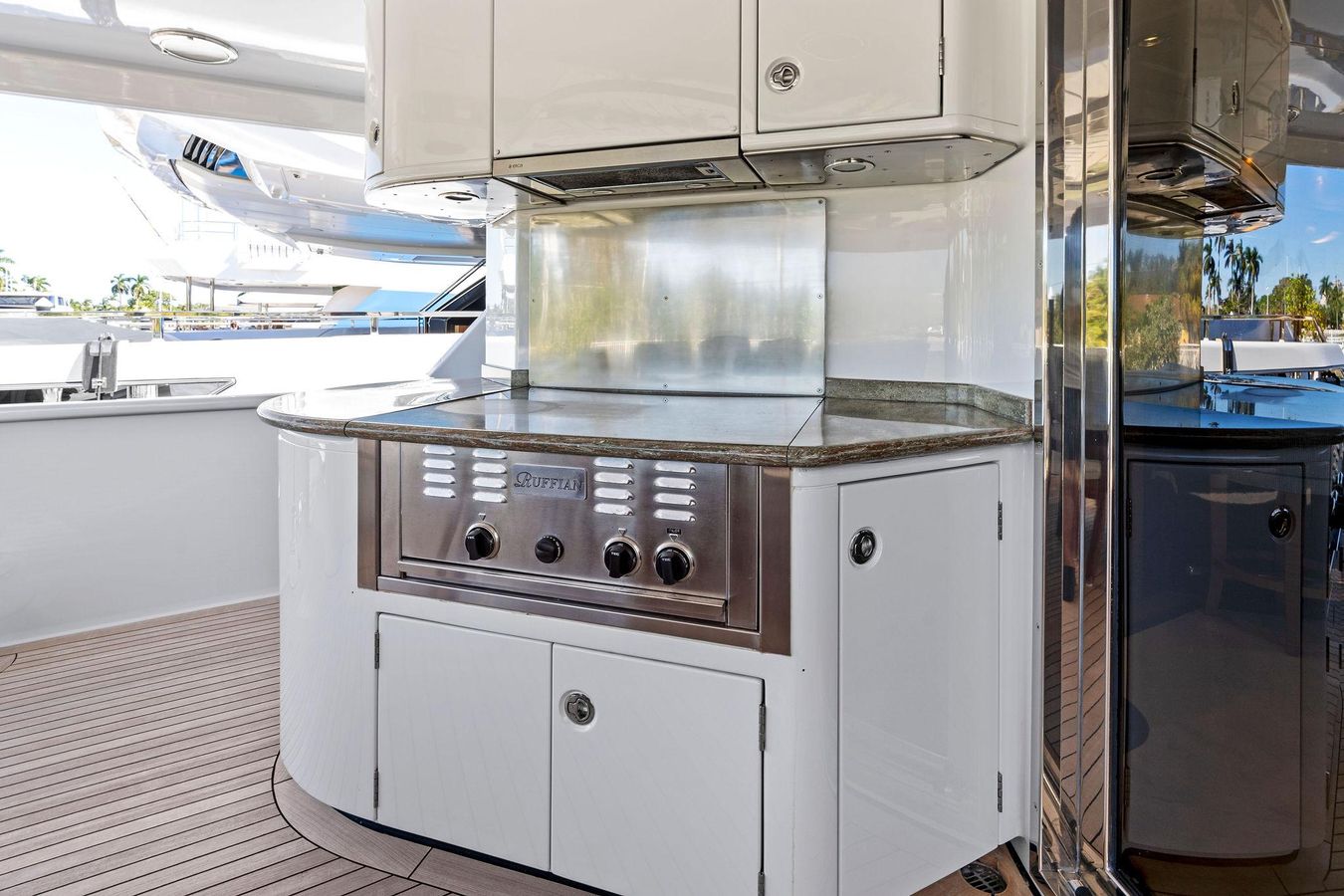

  • Thermal Engineering Corporation stainless steel sterling Infra­Red gas BBQ Grill with storage for three bottles (aft deck)

Security Equipment

• CCTV Cameras And Security:
  • 2 x Aft deck (pan, tilt and zoom features)
  • Engine room (pan, tilt and zoom features)
  • 2 x Side deck camera (zoom only)
  • Ship’s Safe x 2

Fire Fighting Equipment

• Fire Control System: 3 x 136 lbs. CO2 bottles
• Fire Extinguishers: X 30 (CO2, foam, dry chemical and halotron
• Alarms: 1 x Kalenberg M411 Automatic Fog signal timer
• Engine Room: 1 x Telcor 8133 Engine Room temperature indicator

Safety Equipment

• Life Rafts:
  • 2 x Viking 6 person

• Life Rings x 4
• EPIRBS:
  • 2 x ACR Global Fix 406, SART
  • 2 x Ditch Bags
    • 1 has EPIRB
• Search Light
  • 1 x Carlisle and Finch xenon search light with dual electric controls
  • 2 x RCL ACR 100 search lights on mast
• Horn
  • 1 x Kalenberg Model T­2 chrome horns with Compair 10 PUR
  • Hydrovane 30 gal. Air compressor (2009)
  • 2 x SeaINT8000LoudHailers (Flybridge, Wheelhouse)
  • 2 x NewmarPA30/4040watt hailhorn

Entertainment & A/V Equipment

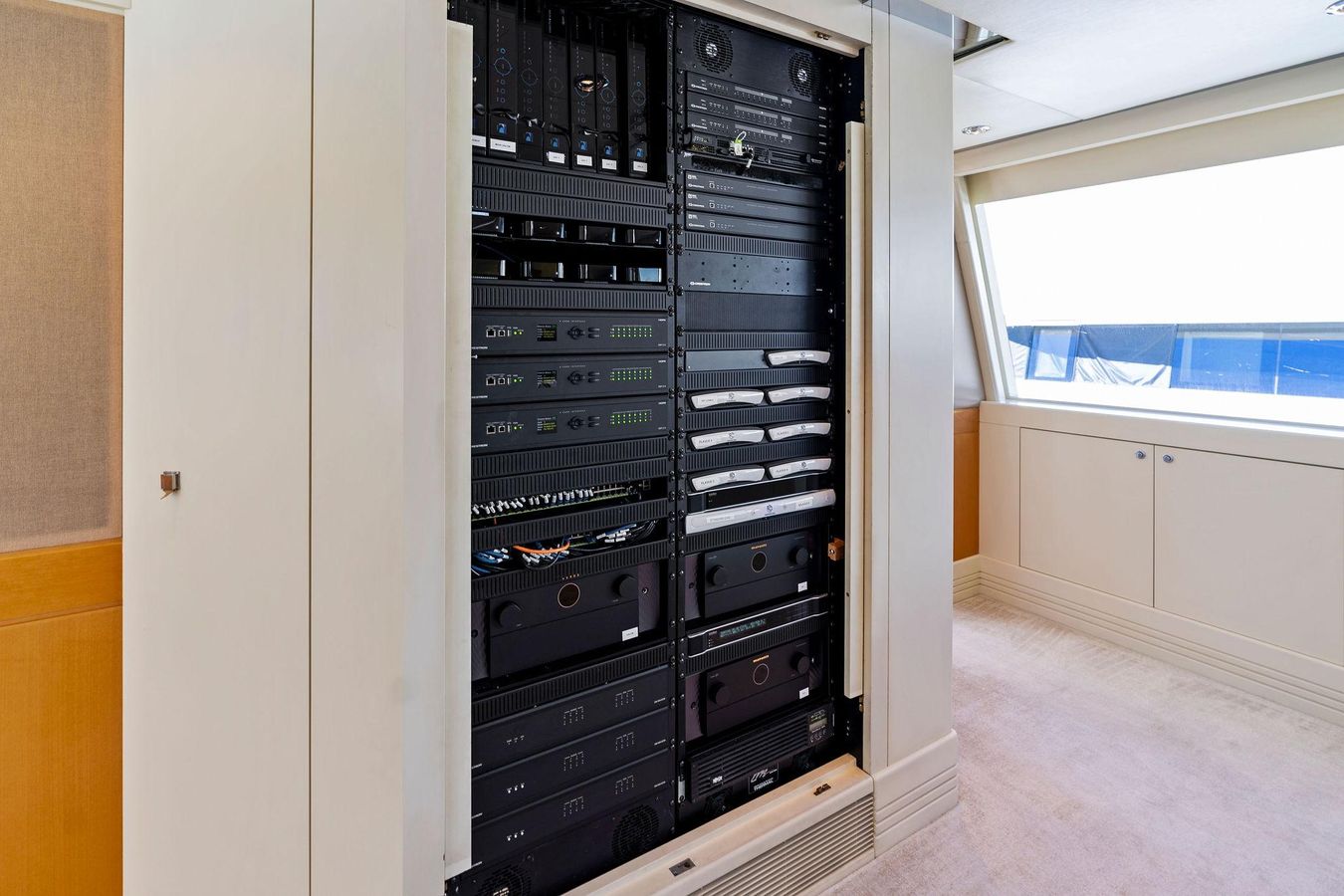

• Ship’s A/V: Custom A/V by Mobius Design Group. Crestron Equipment, Kaleidescape movie library and music
• Owner’s Stateroom
  • 1 x Crestron remote handheld control
  • 1 x Samsung 46” HD 1080p Smart TV
  • 1 x dedicated HD satellite receiver
  • 5.1 Surround Sound, new stereo speakers
  • 1 x Dedicated HD satellite receiver
  • HDMI connection
• Owner’s Stateroom His and Hers
  • Baths 2 x Crestron key pads 4 x Stereo speakers ­ 2 each
  • 1 x 26” Samsung HD 1080P Smart TV
• Guest Staterooms: Port & Starboard – each cabin
  • 1 x Crestron remote handheld control
  • 1 x Samsung 32” HD 1080p Smart TV
  • 1 x dedicated HD satellite receiver
  • 2 x stereo speakers
• VIP Stateroom:
  • 1 x Crestron remote handheld control
  • 1 x Samsung 46” HD 1080p Smart TV
  • 1 x Dedicated HD satellite receiver
  • 2 x Stereo speakers
• VIP Stateroom Bath: 2 x Stereo speakers
• Main Salon:
  • 1 x Crestron remote handheld control
  • 1 x Samsung 46” HD 1080p Smart TV
  • 1 x dedicated HD satellite receiver
  • 5.1 Surround Sound
  • Remote controlled lights
• Dining Room: 4 x Stereo Speakers (volume control by Salon Remote)
• Aft Deck:
  • 1 x Crestron key pad control
  • 2 x Stereo speakers
• Wheelhouse: 2 x Stereo speakers
• Sky Suite:
  • 1 x Crestron remote handheld control
  • 1 x 1 x Samsung 47” 1080p Smart TV
  • 1 x dedicated HD satellite receiver
  • 5.1 surround sound, stereo speakers
  • Remote control lights and blinds
  • HDMI connection
  • VocoPro Karaoke
  • Wii
  • 1 x Crestron key pad for sundeck
• Sun Deck:
  • 1 x Crestron key pad
  • Overhead Speakers
• Flybridge:
  • 1 x Crestron key pad control
  • 4 x stereo speakers
• Port Crew Cabins: 1 x Toshiba 19” HD 19LV505 with built in CD/DVD player
• Starboard Crew Cabins: 1 x Toshiba 19” HD 19LV505 with built in CD/DVD player
• Captain’s Cabin:
  • 1 x Crestron Remote Handheld Control
  • 1 x Samsung 32” LN32650 HD 1080p TV
  • 1 x HD Satellite receiver
  • CCTV display
• Galley:
  • Crestron remote handheld control
  • 1 x Crestron key pad
  • Samsung 22” HD 1080p Smart TV
  • 1 x HD satellite receiver
  • 2 x stereo speakers
• Crew Lounge:
  • 1 x Crestron remote handheld control
  • 1 x Sharp 30” flat screen TV
  • 1 x dedicated satellite receiver
  • 2 x stereo speakers
  • CCTV display

Tenders & Toys

• 2014 ZAR Formenti 57 Well Deck with Yamaha F150 outboard
• 1 x Spectra megabraide combo towing harness

Publications

• 2001 November ­ Showboats
• 2001 December ­ Boat USA
• 2002 Megayachts
• 2002 Winner of Showboats International Best Semi Displacement Motoryacht Under 38 Meters
• 2002 Nominated for Showboats International Best Interior
• 2003 ­ Yacht Design
• 2003 ­ Boat International Interiors
• 2004 The Robb Report “Aerie is a floating entertainment palace”

Exclusions

• Owner's personal items and all items not specifically shown on this listing sheet be excluded from the sale. A detailed list of exclusions will be provided pursuant to a Purchase Agreement, upon written request.
• All artwork is excluded from sale.

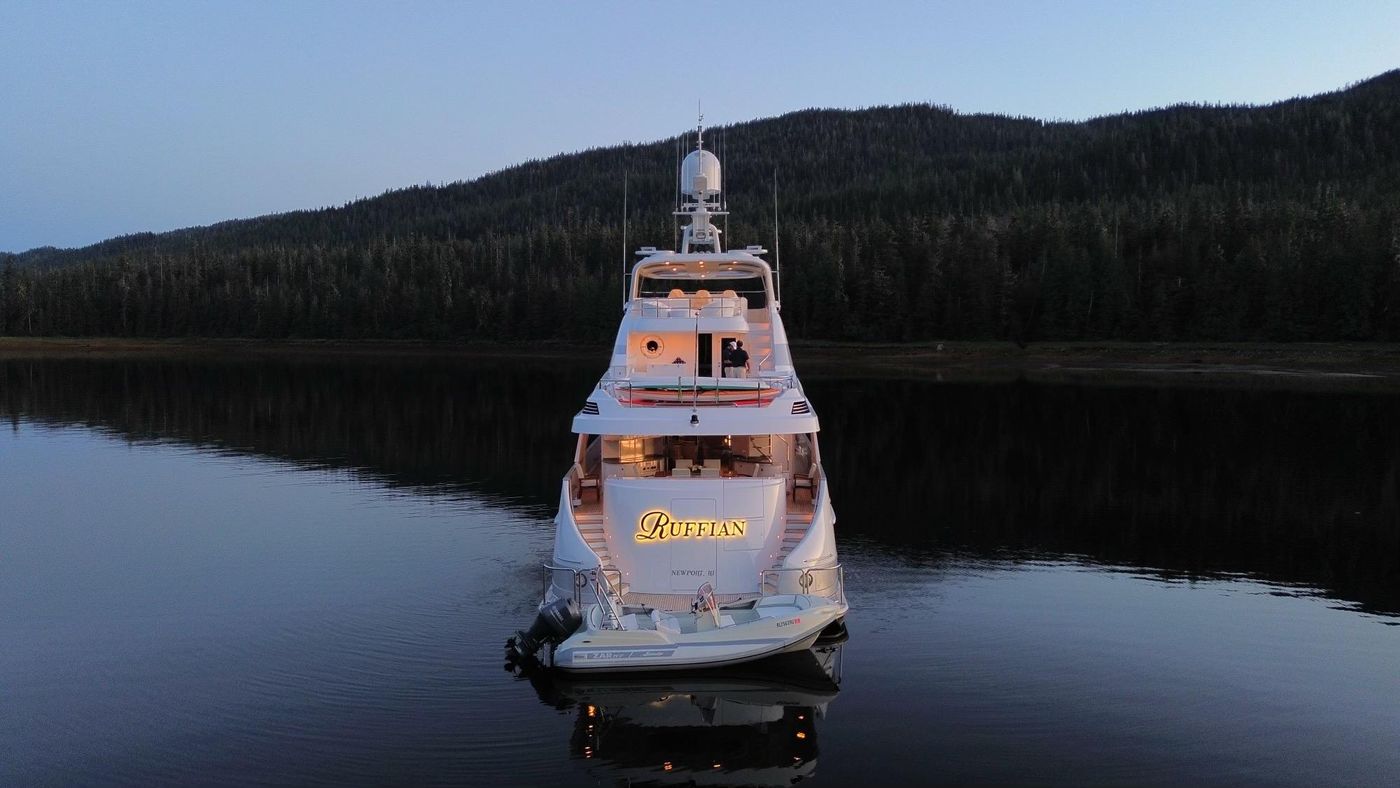

• The vessel name (RUFFIAN) will not convey at Closing

Infinity Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Allied Marine-Naples.
