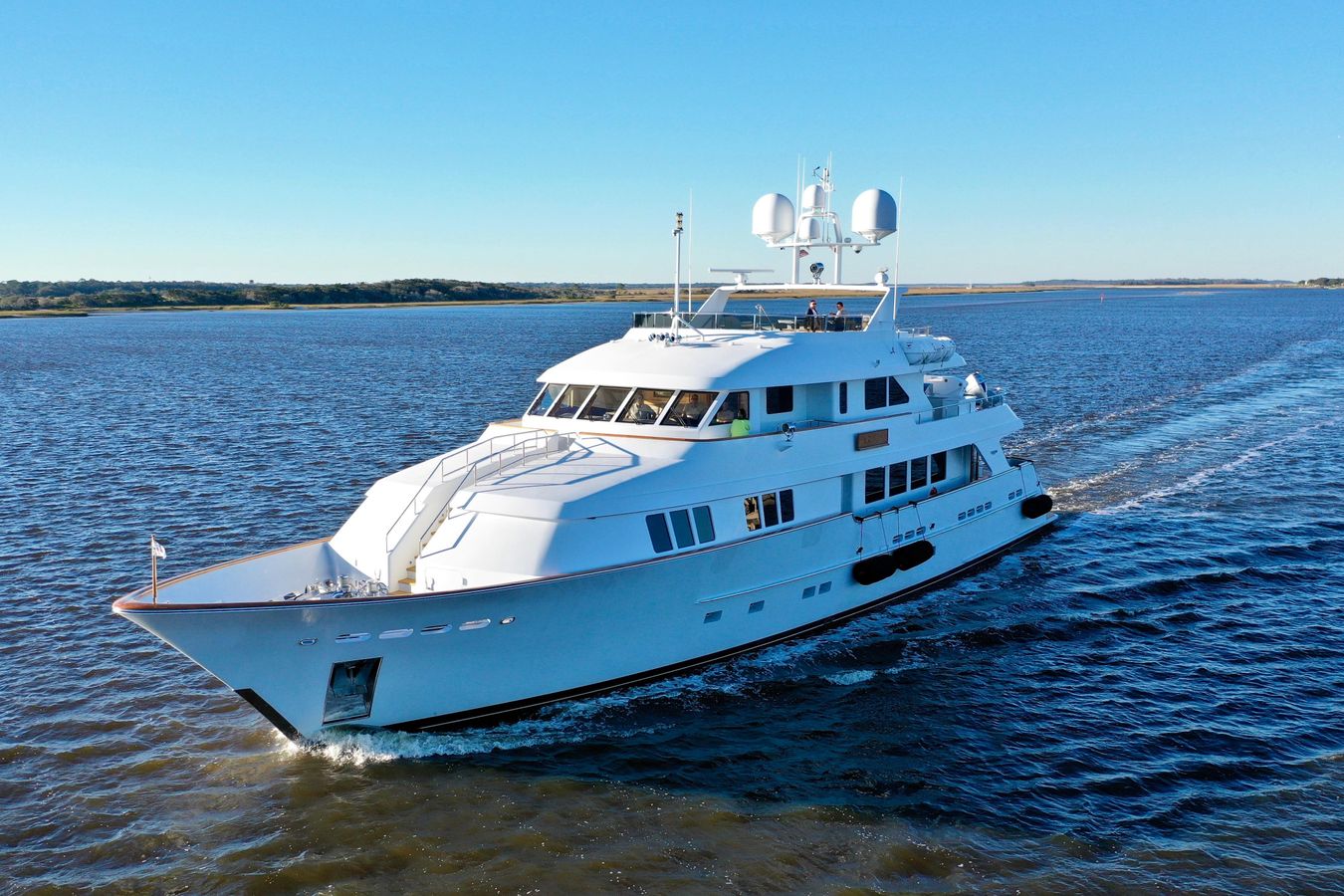

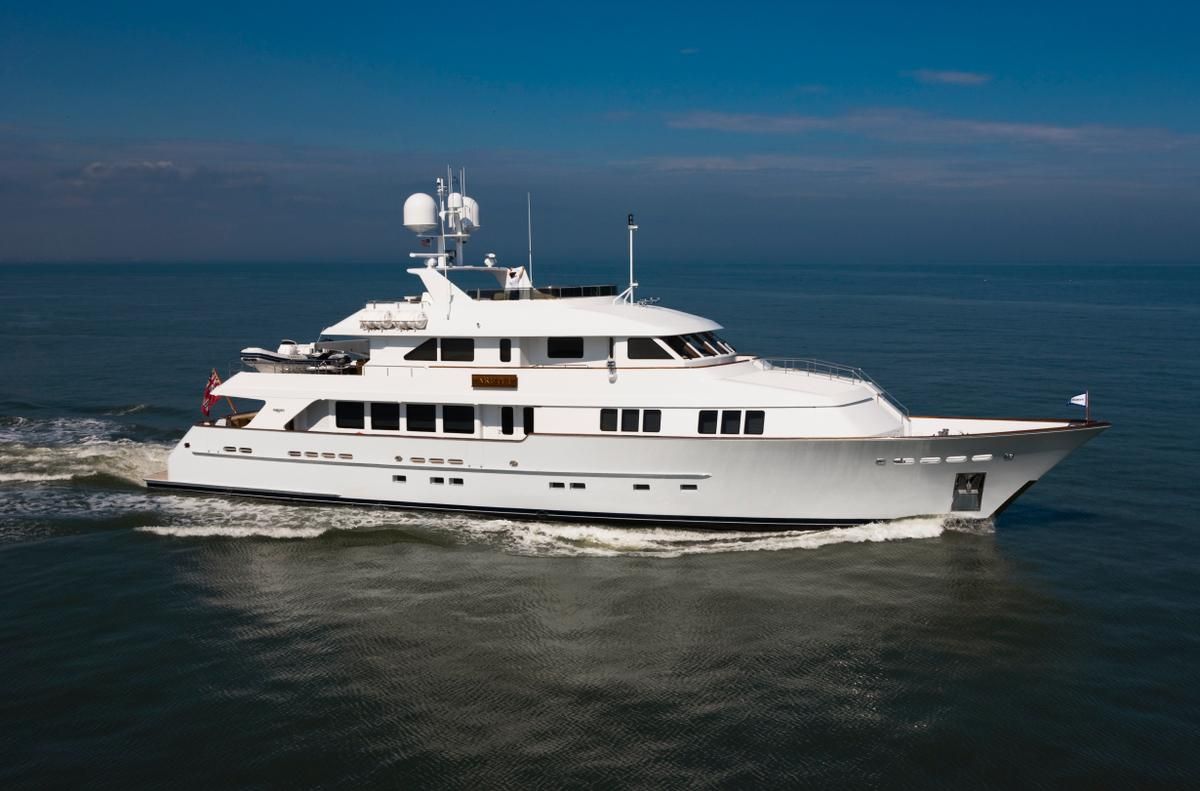

ARETI I’s Burger pedigree has been maintained since her original launch, with all systems and equipment consistently serviced and/or upgraded. Preventative maintenance has always remained a top priority.
The interior design brilliance of Douglas Richey coupled with the naval architecture and exterior styling flair of Don O’Keeffe and the exceptional craftsmanship and engineering expertise of the Burger shipyard, created this beautiful Tri-Deck Motor Yacht, which so elegantly bridges the gap between the most classic Burgers and the more modern, higher freeboard designs.
In short, ARETI I is simply stunning from all perspectives and she serves up four decks of luxurious comfort and entertainment, including several inviting outdoor living spaces for all to enjoy.
Her recent yard period of scheduled maintenance and service continually keeps her at a superior level of yachts her age and in immaculate, superbly-maintained condition.
ARETI I is in turn-key condition in every way and ready to cruise in complete comfort, safety and luxury.
KEY FEATURES
• Burger pedigree yacht - The “Rolls-Royce” of US yacht builders
• Full-Displacement yacht with Trans-Atlantic Range.
• One owner since new and same captain since the boat was built
• Excellent ownership and an open-checkbook maintenance history
• Impeccable condition throughout
• Only ever privately (lightly) used
• Built and maintained to full ABS / MCA Certification
• Complete Repaint Jan 2022 at Rybovich - WPB
• Quantum Four-Fin Zero-Speed® Stabilizers
• Heavy-Duty Nautical Structures Crane and Passerelle
• Eurocave 200-Bottle Wine Cellar
• Yamaha Clavinova Digital Piano in the Main Salon
• Steam shower in Master Stateroom and Sauna in the below-deck stateroom corridor
Specifications
1. MAIN CHARACTERISTICS

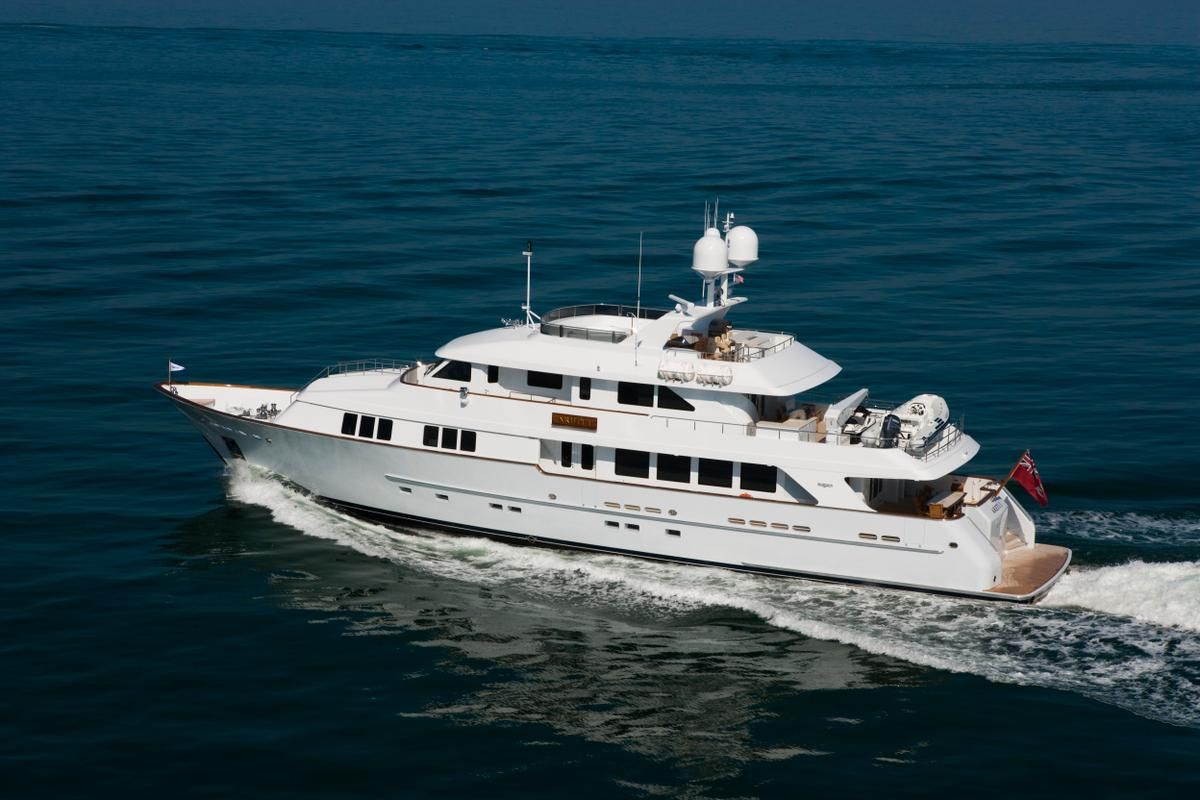

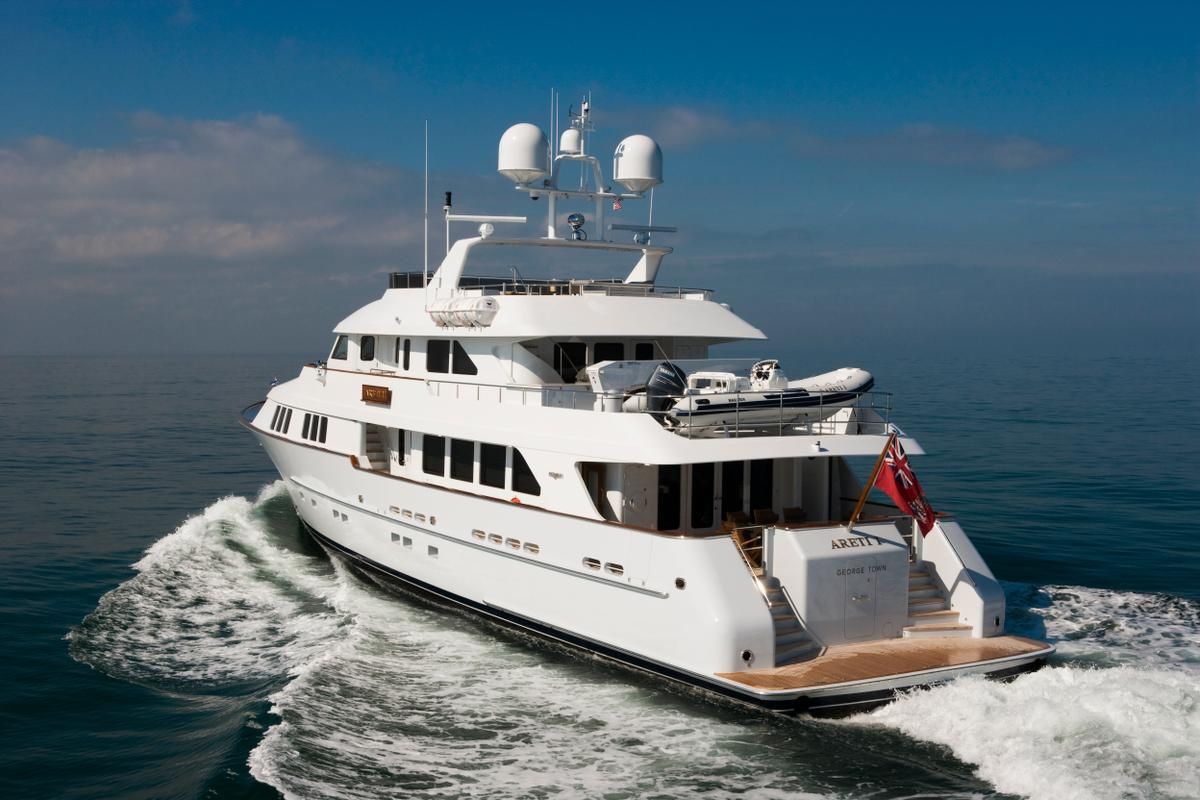

TYPE: Full-Displacement Tri-Deck Motor Yacht
BUILDER: Burger Boat Company
HULL ID: BRGJ505CJ707
REGISTRATION NUMBER: 740241
IMO NUMBER: 946-1726
NAVAL ARCHITECT: Don O’Keeffe – Burger Boat Company
EXTERIOR DESIGN: Don O’Keeffe – Burger Boat Company
INTERIOR DESIGN: Douglas Richey
YEAR: 2007
REFIT: 2024
CLASSIFICATION: ABS +A1, Yachting Service, AMS & MCA Certification
FLAG: Cayman Islands
CONSTRUCTION: Welded Aluminum Hull and Superstructure / Teak Decks
ENGINES: 2 x Caterpillar Diesel, Model 3508B, C(hp)-Rating (1300 hp @ 1835 rpm)
GROSS TONNAGE: 334
LIGHT SHIP WEIGHT: 193.78 LT (426,313 lbs.)
FULL LOAD WEIGHT: 263.13 LT (578,886 lbs.)
2. DIMENSIONS
LOA: 126.35’ / 38.51m
LWL: 111.85’ / 34.09m
BEAM: 27.52’ / 8.4m max
DRAFT: 7.00’ / 2.12m max
3. SPEED, RANGE & CONSUMPTION UNDER POWER
MAXIMUM SPEED: 14.4 knots
HIGH CRUISING SPEED: 13.5 knots
CRUISING SPEED: 12.00 knots
ECONOMICAL SPEED: 10.00 knots
RANGE: 2400 nm @ 13.5 knots; 3,800 nm @ 12 knots; 5,500 nm @ 10 knots
FUEL CONSUMPTION: 89 US gallons/hour (337 liters) @ 13.5 knots; 36 US gallons/hour (136 liters) @ 12 knots; 24 US gallons/hour (90 liters) @ 10 knots
4. CAPACITIES
ACCOMMODATIONS: 10 x Owners / Guests in 5 cabins
CREW: Up to 8 x Crew in 5 cabins
FUEL: 14,296 US Gallons / 54,116 liters
FRESH WATER: 3,033 US Gallons / 11,481liters
LUBE OIL: 270 US gallons / 1,022 liters
DIRTY OIL: 270 US gallons / 1,022 liters
GREY WATER: 551 US gallons / 2,085 liters
BLACK WATER: 557 US gallons / 2,108 liters
SLUDGE: 94 US Gallons / 355 liters
5. MECHANICAL EQUIPMENT
ENGINES: 2 x Caterpillar 3508-B, Chp-rated, 969 kW (1,300 hp / 1,835 rpm / 64.1 US g/h). 52F00113 & 52F00115. Walker Air-Seps and Dual Racor fuel filters
ENGINES HOURS: PORT 4,733 hours, STBD 4,735 hours (15Apr24). CATERPILLAR require these engines to undergo a top end overhaul when they reach 7,500 hours or when 512,500 gallons of fuel has been consumed per engine. ARETI I, has consumed only 98,026 gallons of fuel per engine to date (20%) and is at 60% of hours over 17-years.
TRANSMISSIONS: 2 x ZF Marine 3050, 2.952:1 reversing gears with self-trailing pumps.
STABILIZERS: Quantum Zero Speed 4 fin stabilizers, Model QC-1000E (current model)
TOILET SYSTEM: Headhunter Royal Flush Model SBS-3-G toilets & BDS-3-G bidet, fresh water.
WASTE TREATMENT SYSTEM: Hamann Wasser Teknik USCG Type II waste treatment system
STEERING SYSTEM: Hamilton-Hough - Jastram Steering System
PROPELLERS: 2 x Teignbridge 5-bladed fixed-pitch
BOW THRUSTER: Quantum QT 120 – 120 HP hydraulic bow thruster
AIR CONDITIONING: Marine Air 360,000 BTU - 3 x Marine Air compressors, scroll-type, 120,000 BTU (10-Tons) ea.
HYDRAULICS: Quantum Central Hydraulic System QIS-160 with (2) 20 HP 220-V motors for zero speed capability
CONTROLS: Kobelt electronic controls model 6525
HORNS / COMPRESSORS: Kahlenberg F-2 Five-Horn w/whistle & control system-Powerex Compressor
BILGE PUMPS: Jabsco
ENGINE ROOM VENTILATION: Delta-T, Model 600-P/T4, engine room ventilation system with touch pad controls and soft start/frequency drives for supply and exhaust fans
FUEL CENTRIFUGE: Kaydon Skid-Mounted Fuel Purification System, Model CF112-Burger-220
VACUUM SYSTEM: Nutone Central Vacuum System Model PP550
6. ELECTRICAL EQUIPMENT
SHIP’S ELECTRIC SYSTEM: 120/240/480 Volt AC 3-Phase 60-Hz / 12/24 Volt DC
GENERATORS: 2 x Northern Lights Model M1064T2.11, 65kW 1800 rpm 120/208 3-Ph. 60 Hz / John Deere engines.
GENERATORS HOURS: Fwd: 6,877 hours as of 15Apr2024, Aft: 6,421 hours 15Apr2024
SHORE POWER: Atlas, Model SPCL111, 75kVA Shorepower Converter with Seamless Transfer and Smart Box
SWITCHBOARD: Atlas Energy Systems fully-integrated electrical panel
CABLE REELS: (2) Glendinning CM-8 powered cable reels, positioned fore and aft
BATTERIES: Engine Starting: 2 x 24V 8D / Generator Starting: 2 x 12V 8D / Electronics: 2 x 12V 8D. Replaced 10/20
MAIN ENGINE START: Electric 24V DC
GENERATOR START: Electric 12V DC
BATTERY CHARGERS: 3 x Mastervolt chargers MASS-24/12/100
7. WATER SYSTEM
FRESH WATER SYSTEM: (2) Davey Marine Dynaflo fresh water pumps, Headhunter AVF-18 18 Gal. Fiberglass Accumulator Tank, Bell & Gossett Hot Water Recirculation Pump, Aquapure UV Water Purification System
WATER MAKER: Matrix Model 2600 (410 liters per hour / 2,600 GPD) Reverse Osmosis Water Maker
WATER HEATER: (2) Everlast 80-Gallon Commercial Dual-Element 240-VAC Electric Water Heaters
WATER PURIFIER: Pentair PAK-7 Dual Membrane Water Purifier / Softener with 30-Gallon Salt Tank

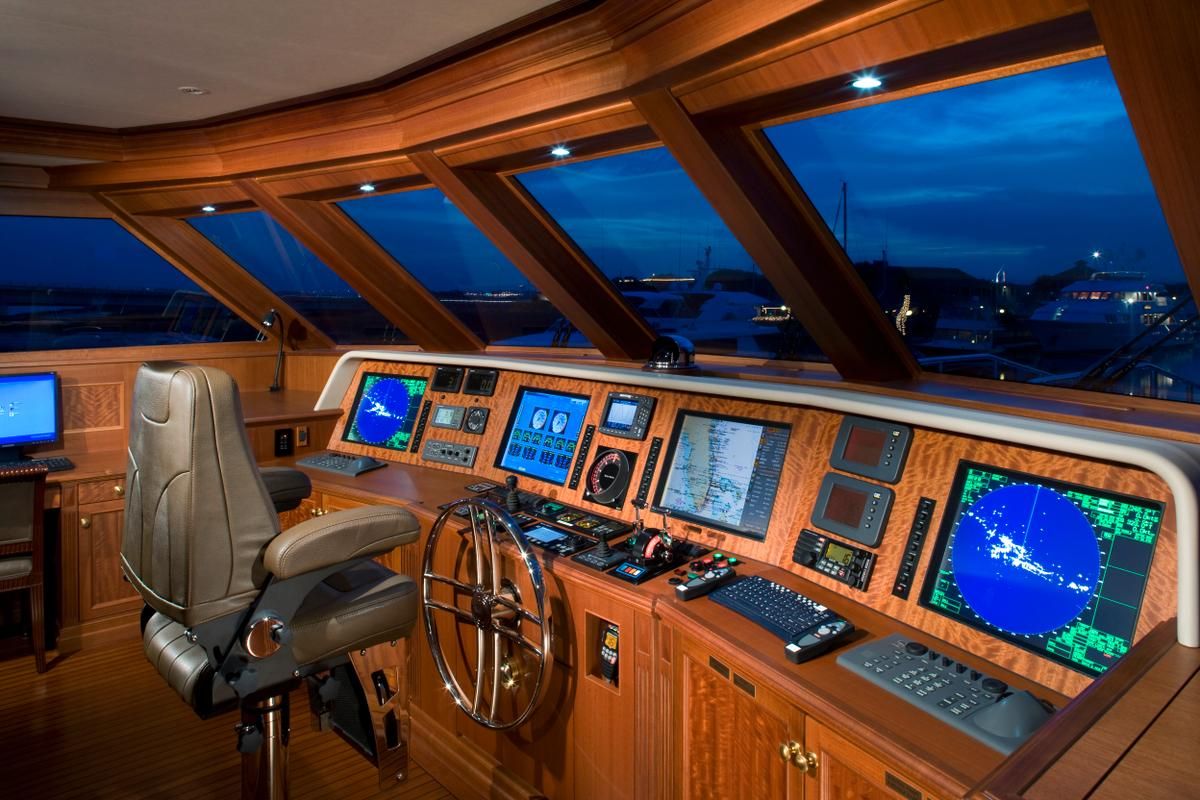

8. NAVIGATION EQUIPMENT
RADARS: Furuno, Model RF2127-BB, FAR-21, S Band, color radar – 30kW Transmitter, 10-ft Antenna and Furuno, Model RF2127-BB, FAR-21, X Band, color radar – 25kW Transmitter, 8-ft Antenna
AIS: Furuno Automatic vessel ID system, Model FA 150
AUTOPILOT: Sperry Marine, Model Navipilot 4000
COLOR SOUNDER: Furuno FCV-1200L sounder and keypad
DEPTH DISPLAY: Furuno RD30
DISPLAY MONITORS: (4) VIE 20” monitors, ea. interchangeable with Radar, CCTV, Plotter and Alarm/Monitoring
GPS: (2) Northstar 6000i
GYROCOMPASS: Sperry, Model NAVAGAT Fiber-Optic Gyrocompass System and Rudder Angle Indicator
DGPS: (2) Furuno GP 37
VHF: (4) ICOM M88 radios with remote mics
W/D/S MONITOR: (2) B&G Hydra 2000 systems and remote monitors at each wing station
NAVTEX RECEIVER: Furuno, model NX-700A/B
DIGITAL TV: Sea Tel 4004-1 with DA4000 digital antenna
ALARM SYSTEM: SiMON integrated vessel alarm and monitoring system
SEARCHLIGHTS: (2) Carlisle & Finch Model CFX-350 (1) Carlisle & Finch mast mounted with joystick controls
MAGNETIC COMPASS: Danforth Constellation 8”
NAVTEX RECEIVER: Furuno Model NX700A/B
9. COMMUNICATION EQUIPMENT
SATCOM: Fleet 55, Nera F55, Furuno Inmarsat C, Model Felcom 15
VHF: (2) ICOM handheld Model IC-M88
VHF TRANSCEIVER: Standard Horizon Model GX2360S
VHF RADIO TELEPHONE: Furuno Model FM8800S
SSB: SEA 2251 / SEA 2250 / SEA 1625
TELEPHONE SYSTEM: Panasonic KXT 61610 / Cordless KXT 9500
CELL SYSTEM: Motorola TVM-200
WIFI: KVH Marine Broadband Wi-Fi Router MBR-400 Wi-Fi access throughout
10. DECK EQUIPMENT
WINDLASSES: 2 x Maxwell VWC-8000-H1bb Hydraulic with chain stoppers
AFT WARPING CAPSTANS: 2 x Maxwell VC-4000-H Hydraulic
ANCHORS: 2 x 350-lb Poole HHP type, stainless steel
ANCHOR CHAINS: 1 x 4-shots (360’) 1/2” chain port and 1 x 4-shots (360’) 1/2” chain starboard
BOAT CRANE: Boat Deck: Nautical Structures EZ-4000, extendable boom crane, 4,000 lbs capacity
PASSERELLE: Nautical Structures NGCAA30, double-telescoping passerelle luffs +/- 20 degrees and slews up to 90 degrees, fully hydraulic, self-centering, slew-lock and float functions. Can support 600-lbs fully extended.
BOARDING LADDER: Marquipt Sea Stair Model ASTRB19R – 9 steps
SWIM PLATFORM: Teak covered, with shower and deck cleats
COVERS: For tender, jet skis and all exterior deck furniture
11. ENTERTAINMENT EQUIPMENT
GENERAL: Sony LCD flat screen TVs in all Staterooms, Main Salon, Sky Lounge, Captain’s and Crew’s Quarters.
SAT TV ANTENNA: KVH Trak Vision HD Satellite TV Antennas, Cabling and associated below deck receivers
12. GALLEY & LAUNDRY EQUIPMENT

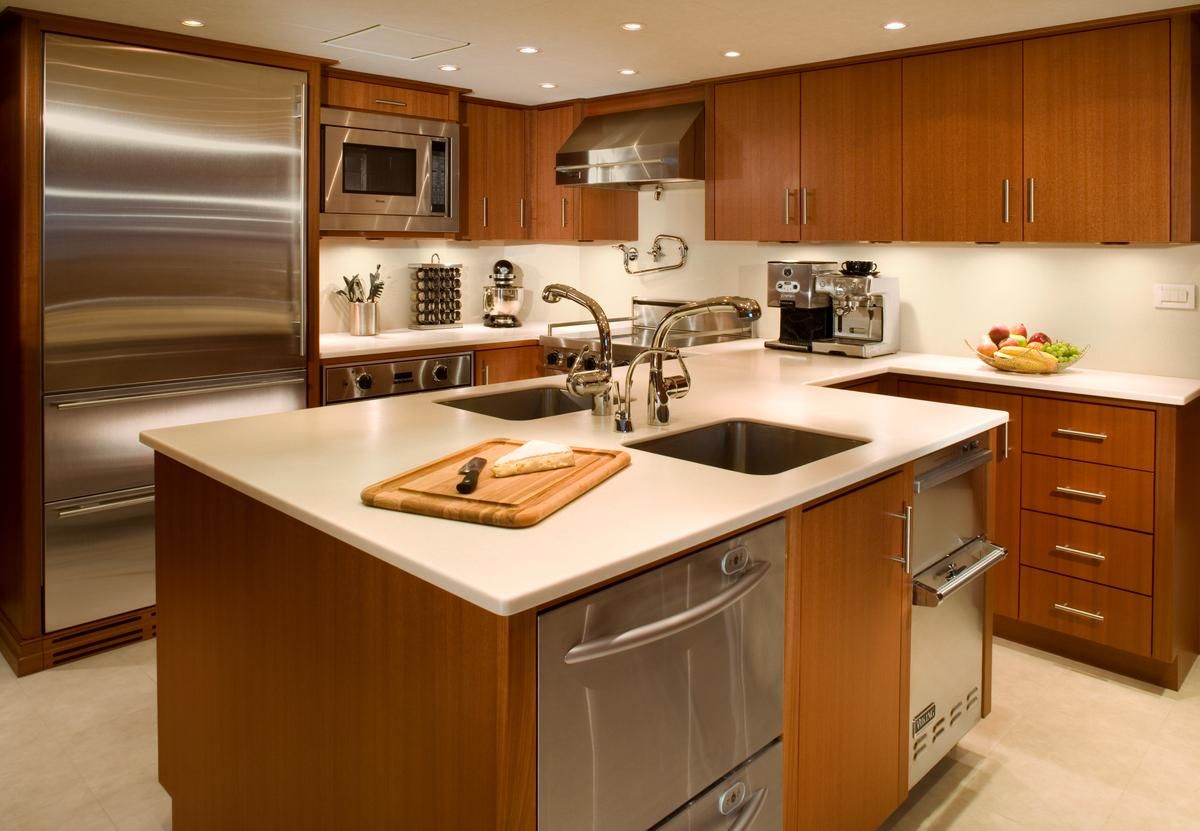

GALLEY
CHILLER: Elkay Water Chiller, Model ER21Y
DISHWASHERS: Viking, Model DFUD-142P-SS and GE, Model KUDD01DS-SS
EXHAUST HOOD: Viking, Model VWH3048-SS-CR
GARBAGE DISPOSAL: Viking, Model VCFW1000
ICE MAKER: Sub-Zero, Model 315P
MICROWAVE: Viking, Model DMOC205-SS
OVENS: Viking, Model VES0130-SS
RANGE: Viking, Model VESC3064B-SS
RANGE HOOD: Viking, Model VIV600-SS
REFRIGERATORS: Sub-Zero, Models 249RP- RH and 249RP-LH
REFRIGERATOR/FREEZER: Sub-Zero, Models 736TC and 700TC-LH
REFRIGERATOR: GE, Model GTR11AAPARWW
TRASH COMPACTOR: Viking, Model VUC-181-SS
LAUNDRY
WASHER: Bosch, Model WFR2460UC
DRYER: Bosch, Model WTA4400US
WASHER: Miele, Model PW6065-PLUS
13. SAFETY & SECURITY EQUIPMENT
SAFETY: 4 x Viking 20-Person life rafts, 4 x Life rings, 30 x life vests 2 x EPIRBS, 36 x Safety flares
FIRE FIGHTING: CO2 fire extinguishing system in engine room 24 Fire Extinguishers throughout, Smoke/Fire detection system throughout. Yanmar Diesel Fire Pump, Model MP 29618-DYV36B
SECURITY: CCTV System: Elbex Digital Video 4 x Security cameras 2 x Monitors in Pilothouse, Safes in Master and Captain Cabins, Honeywell Security System with 3 keypads
14. TENDER & WATERSPORT EQUIPMENT
TENDER: 1 x 5.80m Nautica RIB 19-foot Deluxe with Honda 115-hp
WATERSPORTS: 2 x SEADOO Spark Jet Skis (2016)
15. REFIT & MAINTENANCE NOTES
Over the years since the boat was built for the current owner, all systems, machinery, appliances, electronics and appurtenances have been continually serviced, updated or replaced. Most all of the annual shipyard periods have been carried out at Rybovich in North Palm Beach, the owner’s and captain’s preferred shipyard facility.
2024 (March/April)
ABS/MCA inspection and recertification
All Life Rafts recertified
All thru-hull valves inspected and/or replaced
Aft and forward engine room bilges coated and painted with epoxy
Entire Boat waxed and polished
New bottom coating applied
New prop-speed applied
Nautical Structures crane fully serviced and new Spectra line installed
Spotlights, winches and capstans re-plated
Re-plated interior bathroom fixtures
Jet skis serviced
All exterior polished stainless-steel door handles and bezels replaced
Sundeck barstool cushions replaced
Teak Caprails stripped and recoated with 14 coats
Teak Decks sanded and treated
16. BROKER’S COMMENTS
ARETI I’s Burger pedigree has been maintained since her original launch, with all systems and equipment consistently serviced and/or upgraded. Preventative maintenance has always remained a top priority.
The interior design brilliance of Douglas Richey coupled with the naval architecture and exterior styling flair of Don O’Keeffe and the exceptional craftsmanship and engineering expertise of the Burger shipyard, created this beautiful Tri-Deck Motor Yacht, which so elegantly bridges the gap between the most classic Burgers and the more modern, higher freeboard designs. In short, ARETI I is simply stunning from all perspectives and she serves up four decks of luxurious comfort and entertainment, including several inviting outdoor living spaces for all to enjoy.
Her recent yard period of scheduled maintenance and service continually keeps her at a superior level of yachts her age and in immaculate, superbly-maintained condition.
ARETI I is in turn-key condition in every way and ready to cruise in complete comfort, safety and luxury.
KEY FEATURES
• Burger pedigree yacht - The “Rolls-Royce” of US yacht builders
• Full-Displacement yacht with Trans-Atlantic Range.
• One owner since new and same captain since the boat was built
• Excellent ownership and an open-checkbook maintenance history
• Impeccable condition throughout
• Only ever privately (lightly) used
• Built and maintained to full ABS / MCA Certification
• Complete Repaint Jan 2022 at Rybovich - WPB
• Quantum Four-Fin Zero-Speed® Stabilizers
• Heavy-Duty Nautical Structures Crane and Passerelle
• Eurocave 200-Bottle Wine Cellar
• Yamaha Clavinova Digital Piano in the Main Salon
• Steam shower in Master Stateroom and Sauna in the below-deck stateroom corridor
Disclaimer
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
